Metric Roller Chain Idler Sprockets

Raydafon Guoup's Metric Roller Chain Idler Sprockets ensure smooth, reliable power transmission in industrial machinery. Crafted from durable steel with precision engineering, they reduce wear and noise for optimal performance. Ideal for manufacturers and maintenance teams, these sprockets enhance efficiency and longevity in conveyor systems and drives. Experience enhanced operational confidence and seamless motion. Unlike competitors, our sprockets feature advanced corrosion resistance and easy installation. Upgrade your setup today and enjoy exceptional value with reliable, long-lasting results.

Send Inquiry

Product Description

Metric idler sprockets are utilized on Metric Roller Chain and are designed to direct and carry a roller chain in a desired direction. Because it is an idler it requires the energy or "pull" of a drive sprocket. Using a high-quality bearing or material in an idler sprocket means less friction in your setup with better energy transfer while using less energy. Both our metric and ANSI idler sprockets are made to out-last and out-perform the competition. Metric Roller Chain Idler Sprockets

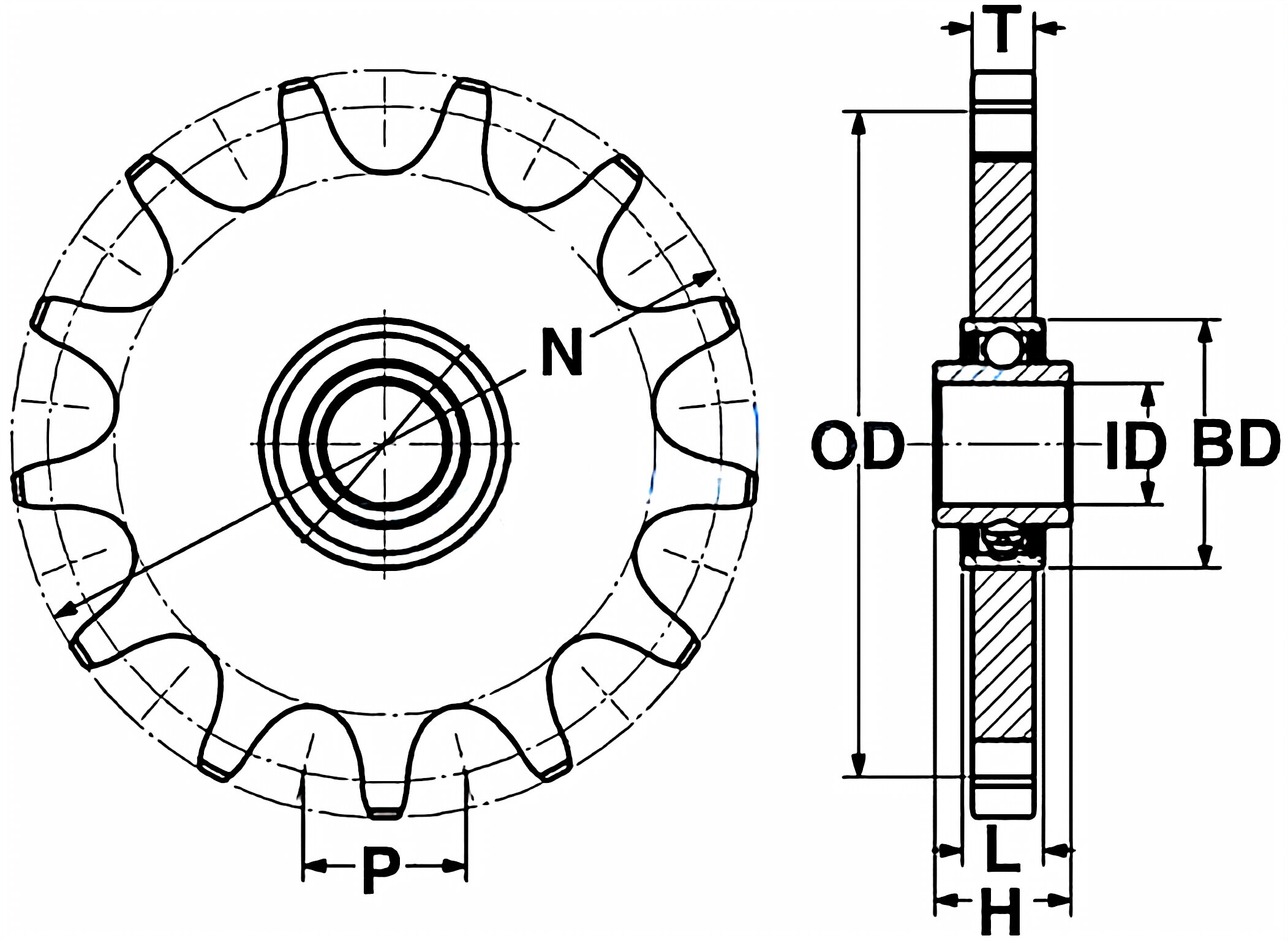

Metric Idler Sprocket Size Chart

Sprocket Size	Tooth Count	(OD)	(N)	(T)	(ID)	(BD)	(H)	(L)	Weight (kg)
05BB23	23	58.75mm	62.0mm	7.0mm	16mm	40mm	18.3mm	12mm	0.14
06BB21	21	63.9mm	68.0mm	5.3mm	16mm	40mm	18.3mm	12mm	0.15
081BB18	18	73.1mm	78.9mm	7.0mm	16mm	40mm	18.3mm	12mm	0.20
083BB16	16	65.1mm	70.9mm	7.0mm	16mm	40mm	18.3mm	12mm	0.20
08BB16	16	65.1mm	69.5mm	7.2mm	16mm	40mm	18.3mm	12mm	0.20
08BB18	18	73.1mm	78.0mm	7.2mm	16mm	40mm	18.3mm	12mm	0.20
10BB15	15	86.4mm	93.0mm	9.1mm	16mm	40mm	18.3mm	12mm	0.20
10BB17	17	86.4mm	93.0mm	9.1mm	16mm	40mm	18.3mm	12mm	0.30
12BB15	15	91.6mm	100.0mm	11.1mm	16mm	40mm	18.3mm	12mm	0.40
16BB12	12	98.1mm	109.0mm	16.2mm	20mm	47mm	17.7mm	14mm	0.65
20BB13	13	132.7mm	148.0mm	18.5mm	25mm	52mm	25.4mm	15mm	0.73
