BSPP Pressure Gauge Connector-MAV Hydraulic Fittings

BSPP Pressure Gauge Connector-MAV Hydraulic Fittings

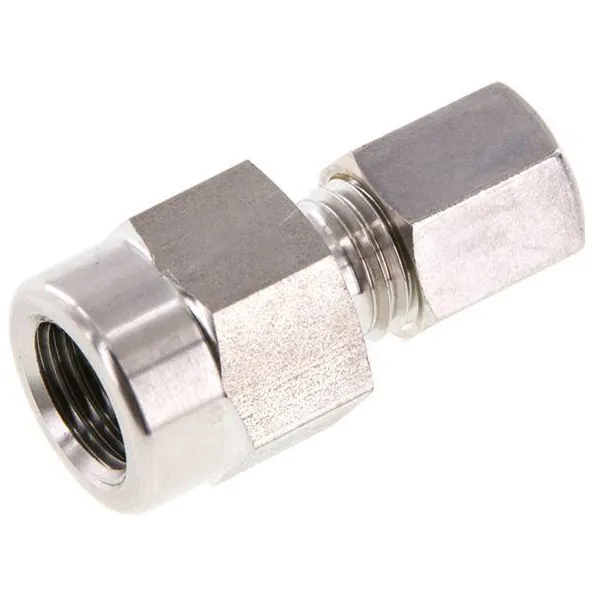

The BSPP (British Standard Pipe Parallel) pressure gauge connector is a type of hydraulic fitting used to connect pressure gauges to hydraulic systems. It provides a secure and leak-free connection between the pressure gauge and the hydraulic system, allowing accurate measurement of the system's pressure.The BSPP pressure gauge connector features a parallel thread design, which means the threads on the connector are straight and maintain the same diameter along their length. This design allows for a tight and reliable seal when connecting the pressure gauge to the hydraulic system. The connector typically has two female BSP (British Standard Pipe) threads - one to connect to the pressure gauge and the other to attach to the hydraulic system.When installing the BSPP pressure gauge connector, it is essential to use proper sealing techniques, such as thread sealant or sealing tape, to prevent any leakage. It is also crucial to tighten the connector securely, but not excessively, to avoid damaging the threads or the gauge.The BSPP pressure gauge connector is available in various sizes and materials to accommodate different pressure ranges and compatibility requirements. Common materials used for manufacturing include brass, stainless steel, and carbon steel, depending on the specific application and environmental conditions.

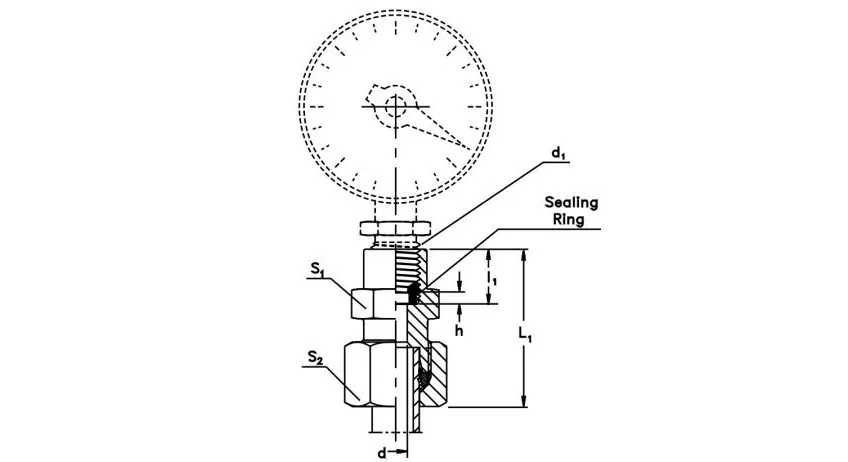

BSPP Pressure Gauge Connector-MAV Hydraulic Fitting Size Chart:

MAVPart no.	SeriesWorkingPressure(bar/psi)	Tubeo.d.	d1BSPPthread	d	h	l1	L1	S1	S2
-MAV04LLR	LLvery light100 bar1450 psi	4	G 1/4	2.5	4.5	14.5	33	19	10
-MAV06LR	Llight315 bar4560 psi	6	G 1/4	2.5	4.5	14.5	37	19	14
-MAV08LR		8	G 1/4	5.5	4.5	14.5	37	19	17
-MAV10LR		10	G 1/4	5.5	4.5	14.5	38	19	19
-MAV12LR		12	G 1/4	5.5	4.5	14.5	38	19	22
-MAV06SR	Sheavy630 bar9130 psi	6	G 1/2	3.5	5	20	46	27	17
-MAV08SR		8	G 1/2	3.5	5	20	46	27	19
-MAV10SR		10	G 1/2	7.5	5	20	47	27	22
-MAV12SR		12	G 1/2	7.5	5	20	47	27	24

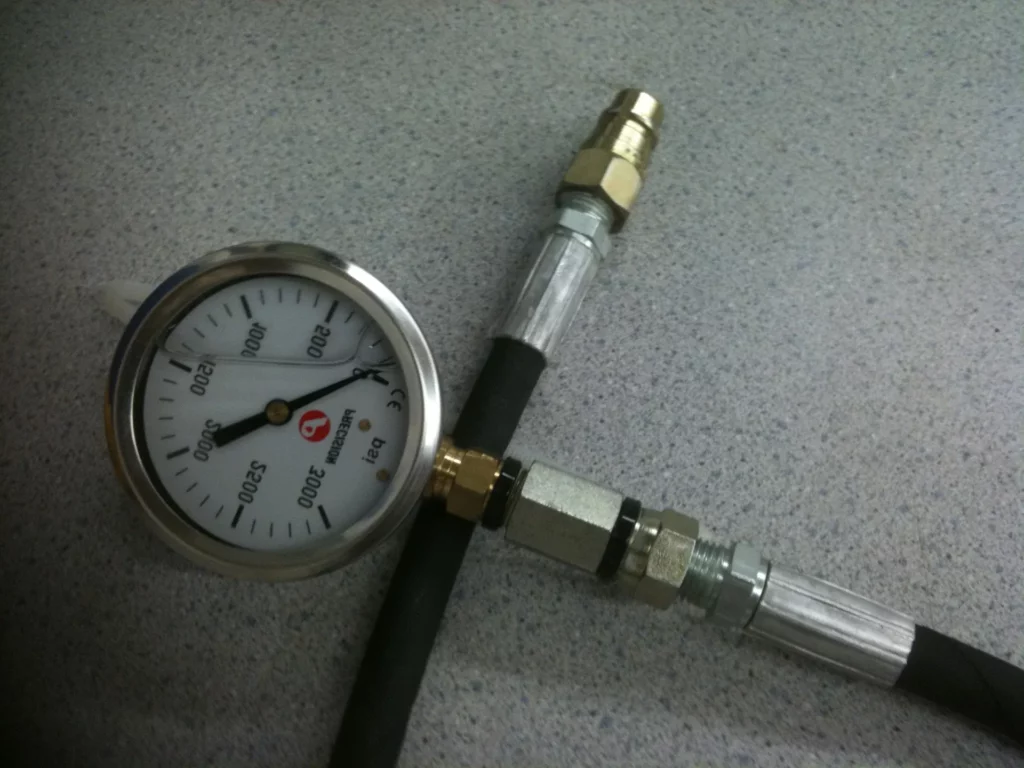

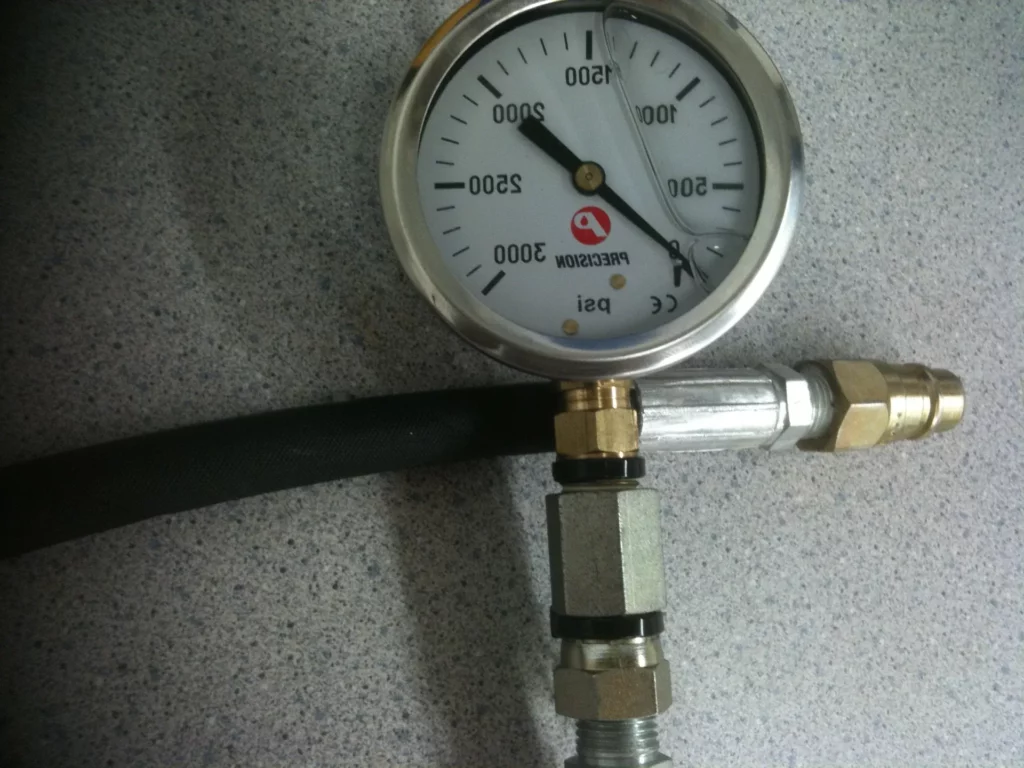

BSPP Pressure Gauge Connector-MAV Hydraulic Fitting Advantages:

BSPP Pressure Gauge Connector-MAV Hydraulic Fittings offer a number of advantages over other types of pressure gauge connectors, including:

1. High-pressure rating: BSPP Pressure Gauge Connector-MAV Hydraulic Fittings are designed to withstand high pressures, up to 800 bar (PN). This makes them ideal for use in a wide range of applications, including hydraulic systems, industrial machinery, and power generation equipment.2. Superior sealing performance: BSPP Pressure Gauge Connector-MAV Hydraulic Fittings use a metal-to-metal seal that is highly resistant to leakage. This is especially important in high-pressure applications, where even a small leak can have serious consequences.3. Durability and corrosion resistance: BSPP Pressure Gauge Connector-MAV Hydraulic Fittings are made of high-quality materials, such as stainless steel, which makes them durable and resistant to corrosion. This is important for applications where the fittings will be exposed to harsh environmental conditions.4. Ease of installation and maintenance: BSPP Pressure Gauge Connector-MAV Hydraulic Fittings are easy to install and maintain. They can be installed and tightened using standard tools, and they do not require any special lubricants or sealants.5. Wide range of sizes and configurations: BSPP Pressure Gauge Connector-MAV Hydraulic Fittings are available in a wide range of sizes and configurations, making it easy to find the right fitting for any application.6. Compatibility with existing BSPP pressure gauges: BSPP Pressure Gauge Connector-MAV Hydraulic Fittings are compatible with all standard BSPP pressure gauges. This means that users can upgrade their existing pressure gauge connectors to MAV hydraulic fittings without having to replace their pressure gauges.7. Competitive pricing: BSPP Pressure Gauge Connector-MAV Hydraulic Fittings are competitively priced, making them an affordable solution for a wide range of applications.

Overall, BSPP Pressure Gauge Connector-MAV Hydraulic Fittings offer a number of advantages over other types of pressure gauge connectors. They are ideal for use in a wide range of applications, and they offer superior sealing performance, durability, corrosion resistance, and ease of installation and maintenance.
