Bulkhead Union Elbow-WSV Hydraulic Fittings

Bulkhead Union Elbow-WSV Hydraulic Fittings

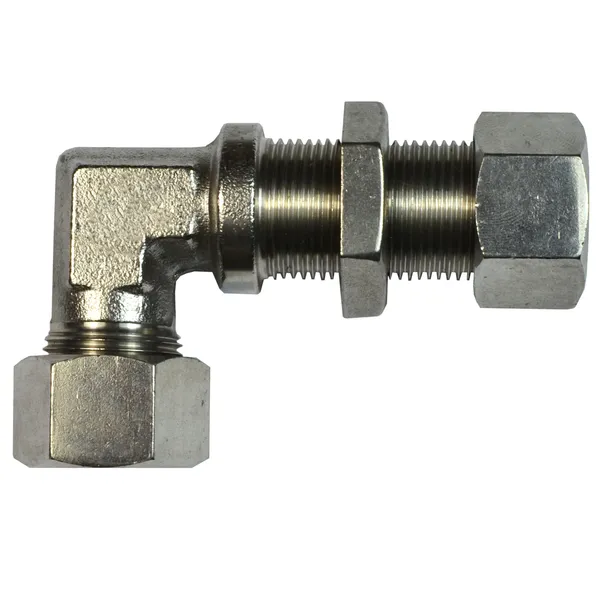

Bulkhead Union Elbow-WSV Hydraulic Fittings are a type of hydraulic fitting that combines the functions of a bulkhead union and an elbow. They are designed to provide a secure and leak-free connection between a hydraulic hose or tube and a panel or other surface. Bulkhead Union Elbow-WSV Hydraulic Fittings are typically made of brass or steel and are available in a variety of sizes and pressure ratings.

Bulkhead Union Elbow-WSV Hydraulic Fittings are used in a wide variety of applications, including:

• Industrial machinery
• Construction equipment
• Agricultural equipment
• Mining equipment
• Forestry equipment
• Oil and gas exploration and production equipment
• Aerospace and defense equipment

Bulkhead Union Elbow-WSV Hydraulic Fittings are known for their durability, reliability, and ease of use. They are also relatively inexpensive, making them a cost-effective solution for a variety of hydraulic applications.

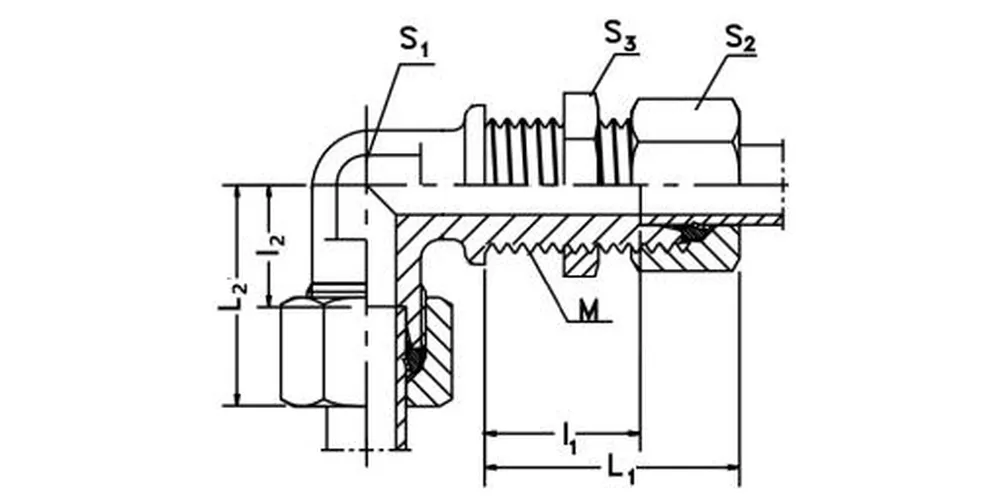

Bulkhead Union Elbow-WSV Hydraulic Fitting Size Chart:

WSVPart no.	Series Working Pressure(bar/psi)	Tubeo.d.	M	l1	l2	L1	L2	S1	S2	S3
-WSV06L	L light 315 bar4560 psi	6	M12 x 1.5	27	12	42	27	14	12	17
-WSV08L		8	M14 x 1.5	27	14	42	29	17	12	19
-WSV10L		10	M16 x 1.5	28	15	43	30	19	14	22
-WSV12L		12	M18 x 1.5	29	17	44	32	22	17	24
-WSV15L		15	M22 x 1.5	31	21	46	36	27	19	30
-WSV18L		18	M26 x 1.5	32.5	23.5	49	40	32	24	36
-WSV22L	160 bar2320 psi	22	M30 x 2	34.5	27.5	51	44	36	27	41
-WSV28L		28	M36 x 2	35.5	30.5	52	47	41	36	46
-WSV35L		35	M45 x 2	36.5	34.5	58	56	50	41	55
-WSV42L		42	M52 x 2	36	40	59	63	60	50	65
-WSV06S	S heavy 630 bar9130 psi	6	M14 x 1.5	29	16	44	31	17	12	19
-WSV08S		8	M16 x 1.5	29	17	44	32	19	14	22
-WSV10S		10	M18 x 1.5	29.5	17.5	46	34	22	17	24
-WSV12S		12	M20 x 1.5	30.5	21.5	47	38	24	17	27
-WSV14S		14	M22 x 1.5	32	22	50	40	27	19	30
-WSV16S	400 bar5800 psi	16	M24 x 1.5	31.5	24.5	50	43	30	24	32
-WSV20S		20	M30 x 2	33.5	26.5	55	48	36	27	41
-WSV25S		25	M36 x 2	35	30	59	54	46	36	46
-WSV30S		30	M42 x 2	37.5	35.5	64	62	50	41	50
-WSV38S	315 bar4560 psi	38	M52 x 2	37	41	68	72	60	50	65

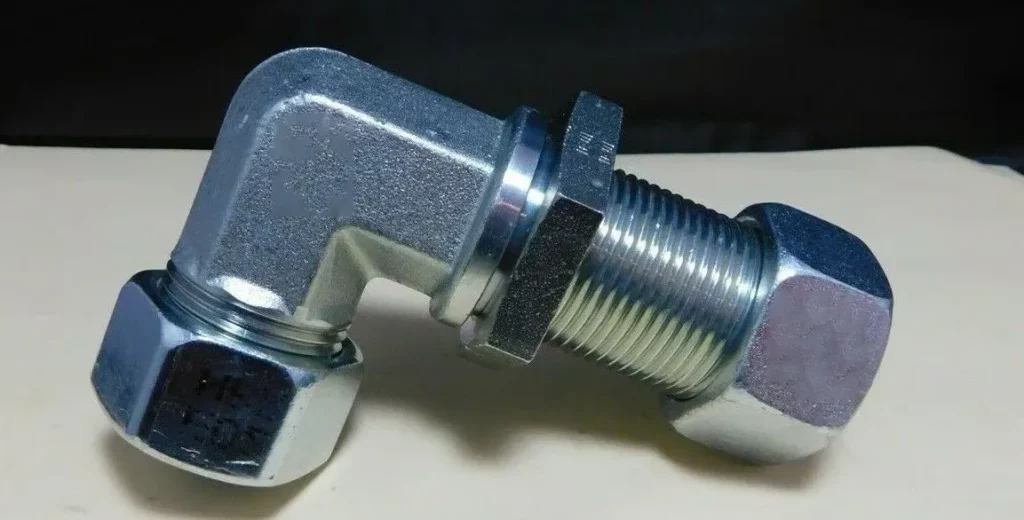

Features of Bulkhead Union Elbow-WSV Hydraulic Fittings:

Bulkhead union elbow-WSV hydraulic fittings are a type of high-pressure hydraulic fitting that is used to connect two tubes or hoses at a 90-degree angle. The fittings are made of stainless steel or steel with a Cr(VI)-free surface treatment, making them highly resistant to corrosion. They are also available with different types of seals, including cutting rings and elastomeric seals, to suit a variety of applications. Here are the key features of bulkhead union elbow-WSV hydraulic fittings include:1. Design and Construction: The Bulkhead Union Elbow-WSV hydraulic fitting is typically made of high-quality materials such as stainless steel, brass, or carbon steel, ensuring durability and resistance to corrosion. It consists of three main components: a threaded nut, a body with internal threads on both ends and a compression sleeve or ferrule.2. Connection and Sealing: This hydraulic fitting is specifically designed to create a tight seal between two tubes or hoses passing through a bulkhead or panel. The threaded nut is used to secure the fitting to the bulkhead, while the compression sleeve or ferrule is crimped onto the tubes or hoses, providing a secure and leak-free connection.3. Right-Angle Connection: The Bulkhead Union Elbow-WSV fitting features a 90-degree bend, allowing for a right-angle connection between the tubes or hoses. This configuration is particularly useful in situations where space is limited, or when a change in direction is required in the hydraulic system.4. Versatile Applications: This type of hydraulic fitting finds applications in various industries, including automotive, construction, manufacturing, agriculture, and more. It is commonly used in hydraulic systems, such as those found in heavy machinery, industrial equipment, hydraulic power units, and hydraulic control systems.5. Easy Installation and Maintenance: The Bulkhead Union Elbow-WSV hydraulic fitting is designed for easy installation and maintenance. The compression sleeve or ferrule simplifies the assembly process, and the threaded nut allows for quick and secure attachment to the bulkhead. This facilitates efficient system maintenance, troubleshooting, and component replacement.6. Compatibility and Sizing: When selecting a Bulkhead Union Elbow-WSV fitting, it is crucial to consider compatibility with the tubing or hose material, hydraulic fluid, and system pressure requirements. These fittings are available in various sizes and thread types, ensuring compatibility with different hydraulic system configurations.7. Safety Considerations: Proper installation and regular inspection of the Bulkhead Union Elbow-WSV hydraulic fitting are essential to ensure the overall safety and reliability of the hydraulic system. Inspecting for leaks, checking for proper torque on the threaded connections, and following manufacturer guidelines for installation and maintenance are important safety measures.

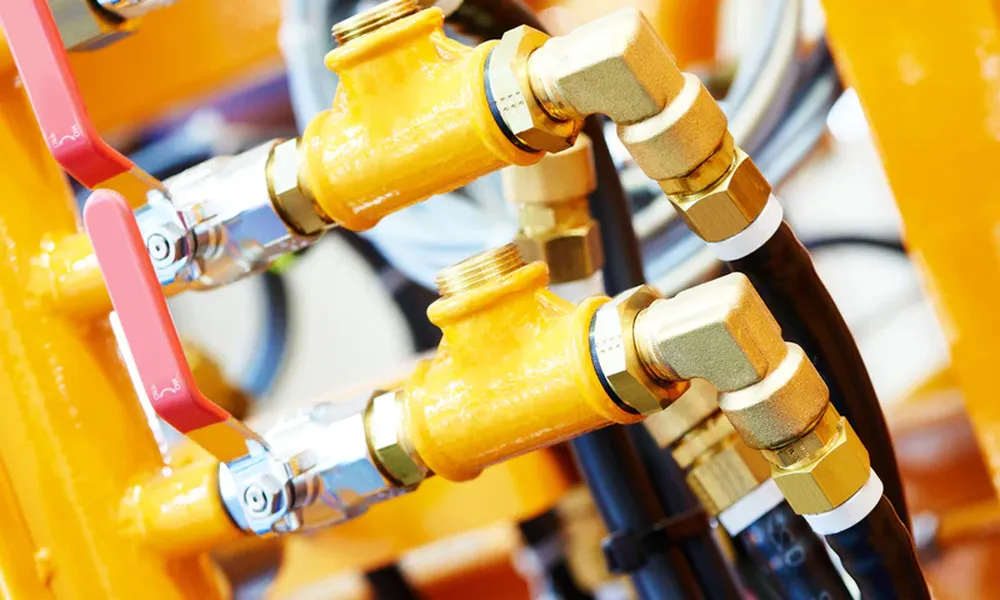

Choose the Right Bulkhead Union Elbow-WSV Hydraulic Fittings:
