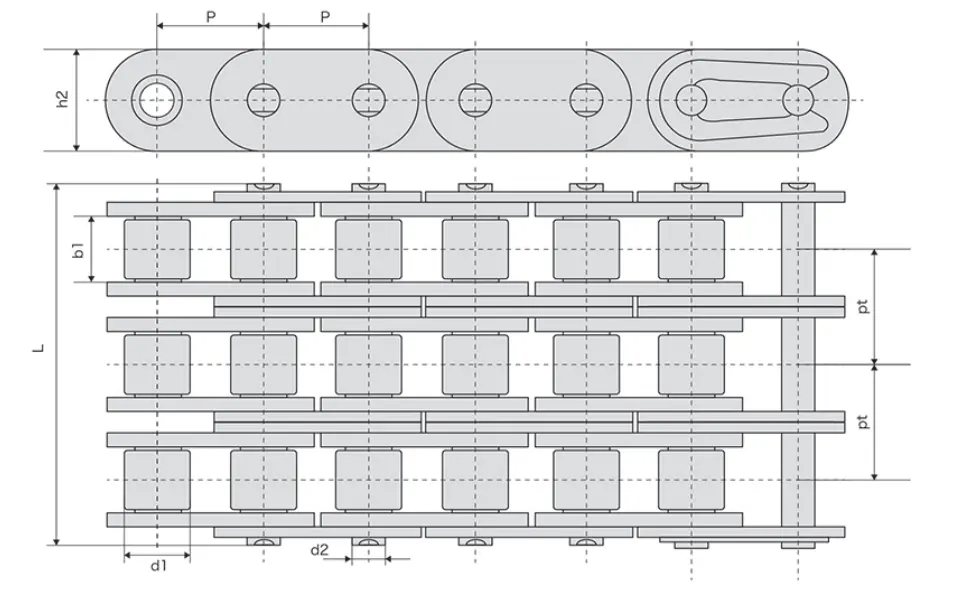

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1max | blmin | d2max | Lmax | h2max | Pt | Qmin | Qo | q | |
| mm | mm | mm | mm | mm | mm | mm | KN | KN | kg/m | |
| C40SS-3 | 12.7 | 7.95 | 7.85 | 3.96 | 45.5 | 12 | 14.38 | 27.5 | 30 | 2.15 |
| C50SS-3 | 15.875 | 10.16 | 9.4 | 5.08 | 56.8 | 15 | 18.11 | 43.7 | 57.1 | 3.64 |
| C60SS-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71.5 | 18 | 22.78 | 63.7 | 69.3 | 5.37 |
| C80SS-3 | 25.4 | 15.88 | 15.75 | 7.92 | 91.4 | 24 | 29.29 | 110.7 | 130.5 | 9.13 |
| C100SS-3 | 31.75 | 19.05 | 18.9 | 9.53 | 112.2 | 30.18 | 35.76 | 159.3 | 169.6 | 13.62 |
| C120SS-3 | 38.1 | 22.23 | 25.22 | 11.1 | 141.4 | 35.7 | 45.44 | 250.6 | 262.3 | 20.45 |
| C08BSS-3 | 12.7 | 8.51 | 7.75 | 4.45 | 45 | 11.8 | 13.92 | 31 | 32.8 | 2.14 |
| C10BSS-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 14.6 | 16.59 | 37.8 | 43.6 | 2.89 |
| C12BSS-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 16 | 19.46 | 52 | 61 | 3.9 |
| C16BSS-3 | 25.4 | 15.88 | 17.02 | 8.28 | 99.7 | 21 | 31.88 | 108 | 124.2 | 9.12 |
| C20BSS-3 | 31.75 | 19.05 | 19.56 | 10.19 | 114.3 | 26 | 36.45 | 151.2 | 173.6 | 11.32 |
| C24BSS-3 | 38.1 | 25.4 | 25.4 | 14.63 | 150.4 | 33.4 | 48.36 | 255 | 285.4 | 22.12 |

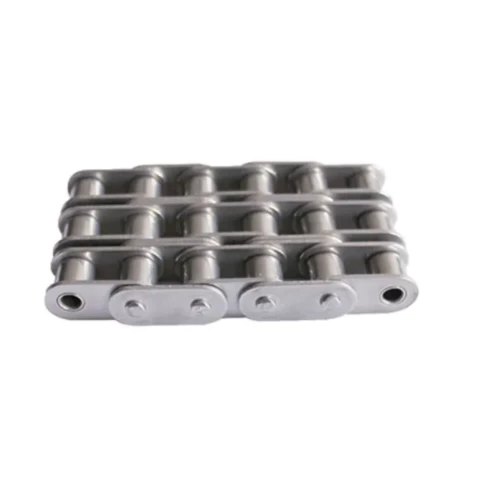

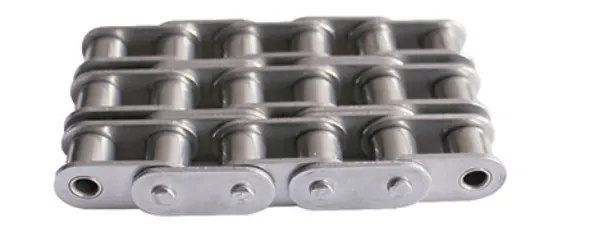

The C12BSS-3 Triplex Stainless Steel Roller Chain with Straight Side Plates is a high-performance, durable and versatile mechanical device. This type of chain is widely considered to be the backbone of any mechanical transmission system due to its strength, durability and flexibility.
The link plates are the main body of the chain and consist of inner and outer link plates, inner and outer pins. The link plates of this type of chain are straight.
Rollers are located on the inner pins of the link plates and are used to transmit power and reduce friction.
The pins connect the link plates and rollers and transmit power to the sprocket.
Proper maintenance of stainless steel industrial chains includes cleaning, lubrication, and regular inspection.
Stainless Steel Sprockets for Chains serve as the backbone of a robust and durable chain system. The seamless interaction between these sprockets and chains is crucial for smooth and efficient mechanical operations. The corrosion-resistant nature of stainless steel ensures longevity, making it ideal for various applications. The precise engagement of teeth on the sprockets with the links of the chain guarantees reliable power transmission. This symbiotic relationship enhances the overall performance, reducing wear and tear while maintaining a high level of efficiency. In industries where reliability is paramount, the combination of stainless steel sprockets and chains becomes indispensable for seamless functionality.
stainless steel sprockets">
Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our stainless steel roller chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our stainless steel chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of stainless steel materials. The products are manufactured using high quality alloy steel. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions.
We encourage you to explore this product further and contact us for purchase.
