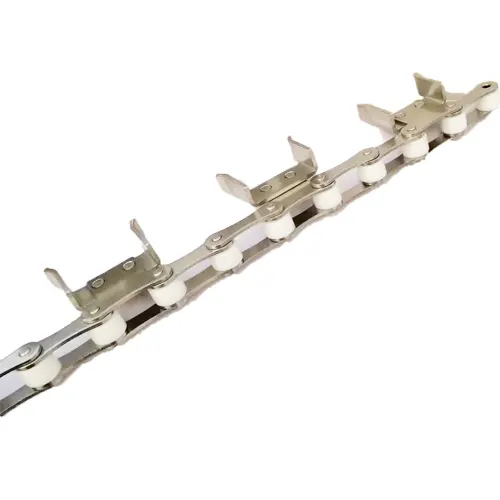

C50S-N3SS Stainless Steel Ice-cream Processing Chain

The C50S-N3SS stainless steel ice-cream production chain is a premium quality chain specifically designed for use in the food industry. It is a critical component in ice-cream processing plants, ensuring the smooth and efficient transfer of product throughout the production process. This chain is known for its durability, high load capacity, and superior functionality, making it an ideal choice for ice-cream manufacturers.

Structure of the Stainless Steel Ice-cream Production Chain

The stainless steel ice-cream production chain is composed of high-grade steel rollers, pins, and bushings that are heat-treated and pre-stressed to ensure durability and longevity. These components are assembled using precision technology and pressure riveting to guarantee excellent performance in even the most demanding environments.

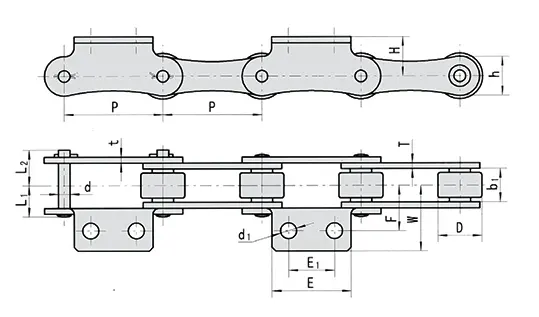

C50S-N3SS Stainless Steel Ice-cream Processing Chain Specifications

ChainNo.	Pitch	Widthbetweeninner plates	Roller? diameter	Pin	Pin	Pin	Plate	Plate	UItimate tensile strength
	P	bl(min)	D(max)	d	L1	L2	h	t/T	Q(min)
	mm	mm	mm	mm	mm	mm	mm	mm	KN
C50S-N3SS	500	12	22.23	5.9	13.95	16.55	20	3	15

ChainNo.	d1(mm)	E1(mm)	E(mm)	F(mm)	W(mm)	H(mm)
C50S-N3SS	7	25.5	40	22	31	20

Hygiene and Safety of Stainless Steel Ice-cream Production Chains

Stainless steel is a popular choice for food processing equipment due to its resistance to corrosion, high-temperature durability, and ease of cleaning. The stainless steel ice-cream production chain is no exception and is designed to meet the strict hygiene and safety standards of the food industry.Some benefits of using stainless steel for food processing are:

• Non-reactive and non-toxic
• Easy to clean and sanitize
• Resistant to high temperatures and harsh chemicals
• Corrosion resistant
• Durable and long-lasting

Specific Features of Stainless Steel Ice-cream Production Chains

The stainless steel ice-cream production chain has some unique features that make it an ideal choice for ice-cream processing plants.Some of these features include:

• High load capacity
• Smooth operation
• Durable and long-lasting
• Low maintenance
• Resistant to wear and tear

Design of Stainless Steel Ice-cream Production Chains

The design of the stainless steel ice-cream production chain is critical to its performance and functionality. When selecting a chain, factors such as transmission speed, load capacity, and wear resistance should be taken into account. The design should be tailored to the specific needs of the production process to ensure optimal performance.

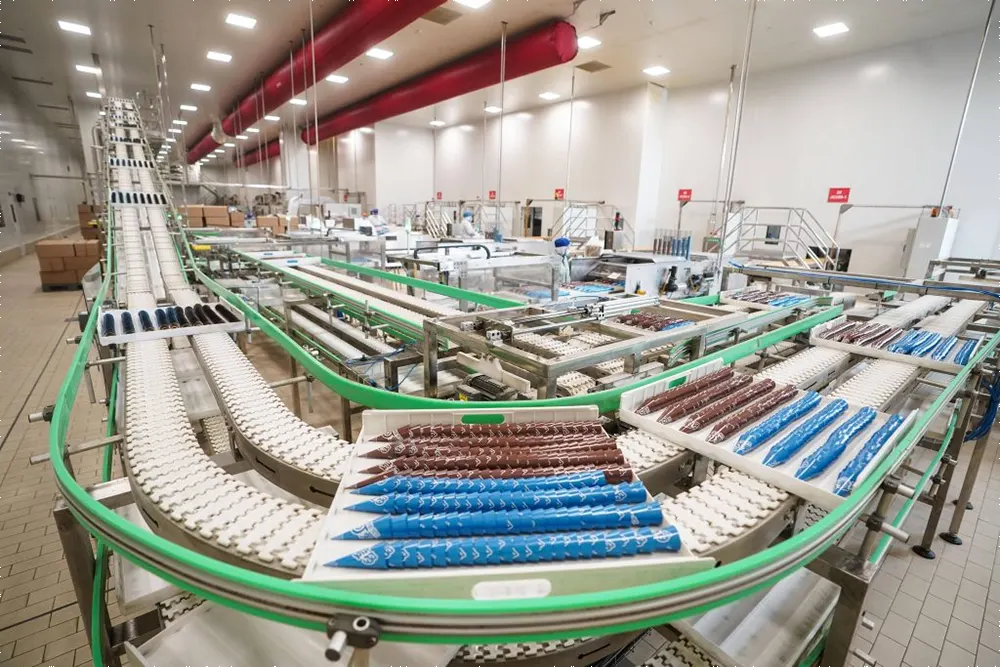

Applications of Stainless Steel Ice-cream Production Chains

The stainless steel ice-cream production chain is not limited to ice-cream processing plants but is also used in other food processing industries such as chocolate manufacturing and bakery production. The chain's high-quality construction and durability make it ideal for any application where hygiene, safety, and performance are critical.

Maintenance and Care for Stainless Steel Ice-cream Production Chains

Maintenance and care for the stainless steel ice-cream production chain are vital to ensure its longevity and optimal performance. Regular cleaning, lubrication, and inspection are necessary to prevent wear and damage to the chain.Some critical maintenance steps for the stainless steel ice-cream production chain include:

• Regular cleaning of the chain surface using a mild detergent and soft bristle brush to remove grease, dirt, and other debris
• Lubricating the chain using food-grade lubricants to reduce friction and wear
• Checking chain tension regularly to ensure proper operation and prevent jumping or binding
• Inspecting the chain for wear and damage and replacing as needed
• Inspecting chain fittings such as pins and connectors to ensure they are secure and undamaged
• Preventing contamination of the chain during production by avoiding contact with food, liquids, and foreign substances
• Ensuring proper alignment of the chain with sprockets and guide rails to prevent damage and wear

Stainless Steel Sprockets for Chains

Stainless steel sprockets and chains are designed to work together for optimal performance. The sprocket teeth mesh with the chain rollers, providing power and torque to move the chain. Our company offers a range of high-quality stainless steel sprockets for use with our C50S-N3SS stainless steel ice-cream production chain.
