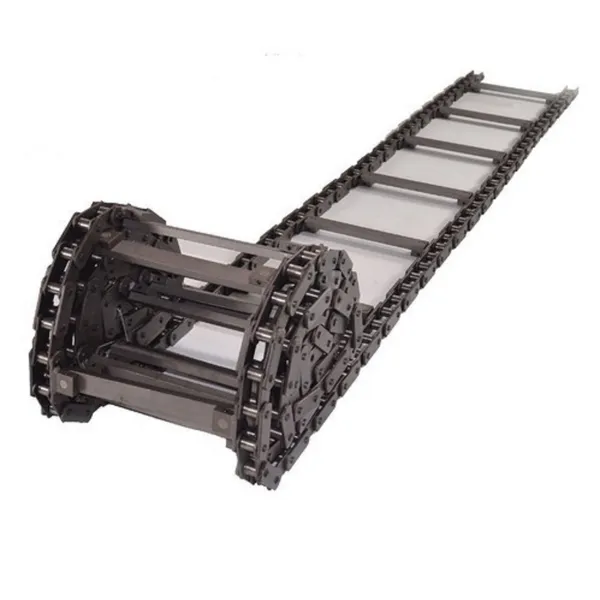

Conveyor Chain for Crawler Asphalt Paver

Conveyor Chains for Crawler Asphalt Paver

The conveyor chains for crawler asphalt paver drive the transverse scraper to slide on the bottom plate, through the accumulation of animal material on the bottom plate, carrying the materials through the gate, forming a mobile material flow with a certain flow, and constantly conveying to the upper part of the spiral blade. In order to ensure that the scraper conveying chain with high stress has higher wear resistance, it is made of strong and high-quality steel. The asphalt paver chain is an important component of the conveying system of pavers, which has the function of conveying materials. The conveyor chains for crawler asphalt paver are to be in direct contact with the asphalt mixture accessories, and the working environment can be said to be very difficult.

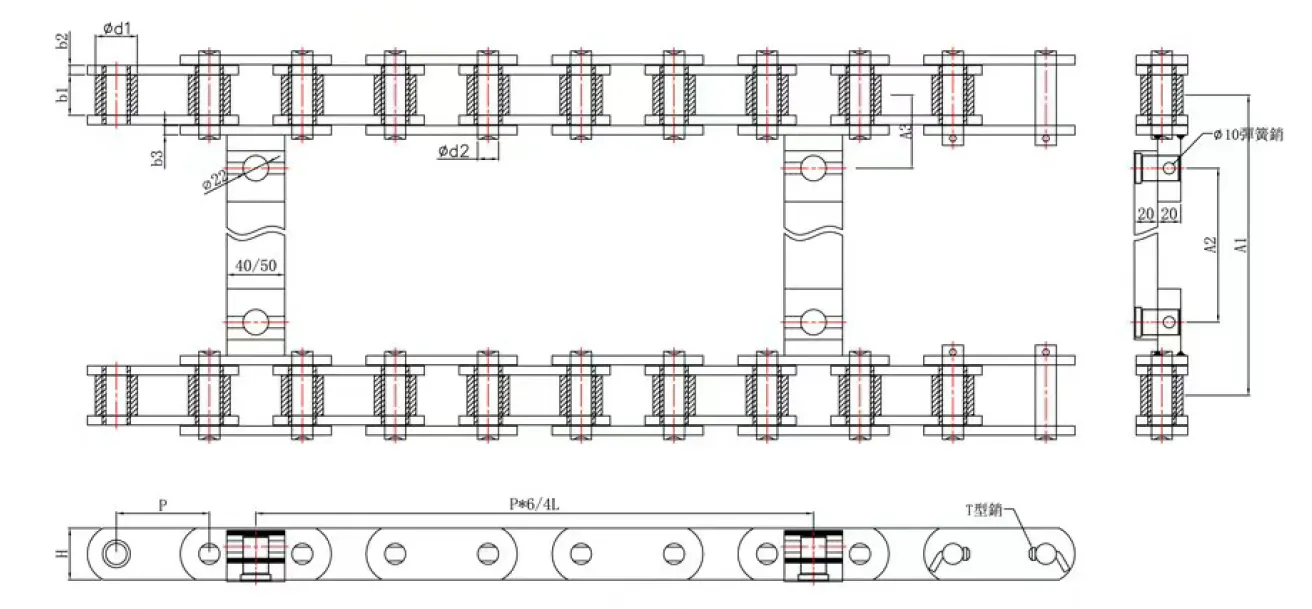

▍Dimensions of Conveyor Chains for Crawler Asphalt Paver

Chain No.	Pitch(P)	Roller diameter(d1)	Pin diameter(d2)	Width between inner plates(b1)	Scraper?Link	Scraper Pitch to Roller Center Distance(A3)	Inner Chain Links?(b2)	External?Chain?Links		Chain Plate Height(H)
								External Links (b3)	Scraper Link(b4)
EPG66A	66.27	22	11.1	27	6	45.5	6	6	6	28.6
EPG70D	70	30	15	32.2	6/8	61	6	6	6	40
EPG70A	70	22	11.1	29	8	56.5	6	6	6	40
EPG70B	70	26	12.7	28	4	51	6	6	6	30
EPG80B	80	26	18	36	4	56.5	8	6	8	45
EPG80C	80	27.94	15.9	33.8	4/6	56.5	6	8	8	45
EPG80F	80	36	18	35	6	63	8	8	8	45
EPG80G	80	24	15.9	26	4	51	8	8	8	38
EPG75E	75	32	15.9	32.3	6/8	56.5	8	8	8	38.1
EPG78E	78	32	15.9	32.3	4	56.5	8	8	8	38.1

▍Features of Conveyor Chains for Crawler Asphalt Paver

Conveyor chains for crawler asphalt pavers are designed to be durable and reliable in the harsh conditions of an asphalt paving operation. They are made of high-quality steel and are heat-treated to withstand the heat and abrasion of the asphalt mix. The chains are also designed to be balanced and quiet, which helps to ensure a smooth operation.Here are some of the key features of conveyor chains for crawler asphalt pavers:1. Durability: The conveyor chains for crawler asphalt pavers are made of high-quality steel and are heat-treated to withstand the heat and abrasion of the asphalt mix. This makes them ideal for use in demanding paving applications.2. Balance: The conveyor chains for crawler asphalt pavers are designed to be balanced, which helps to reduce vibration and noise during operation. This is important for operators as it helps to create a more comfortable and productive work environment.3. Quiet operation: The conveyor chains for crawler asphalt pavers are designed to operate quietly, which helps to reduce noise pollution in the work area. This is important for both operators and the surrounding community.4. Abrasion resistance: The conveyor chains for crawler asphalt pavers are designed to be resistant to abrasion, which helps to extend their lifespan. This is important as conveyor chains are a major component of an asphalt paver and can be expensive to replace.5. Durable scrapers: The conveyor chains for crawler asphalt pavers are equipped with durable scrapers that help to remove excess asphalt mix from the chain. This helps to prevent the buildup of asphalt, which can lead to chain failure.6. Easy maintenance: The conveyor chains for crawler asphalt pavers are designed for easy maintenance. The scrapers can be easily removed and replaced, and the chains can be cleaned and lubricated as needed.Overall, conveyor chains for crawler asphalt pavers are a key component of an asphalt paver. They are designed to be durable, reliable, and easy to maintain. This helps to ensure that asphalt pavers can operate efficiently and effectively, even in the harshest conditions.

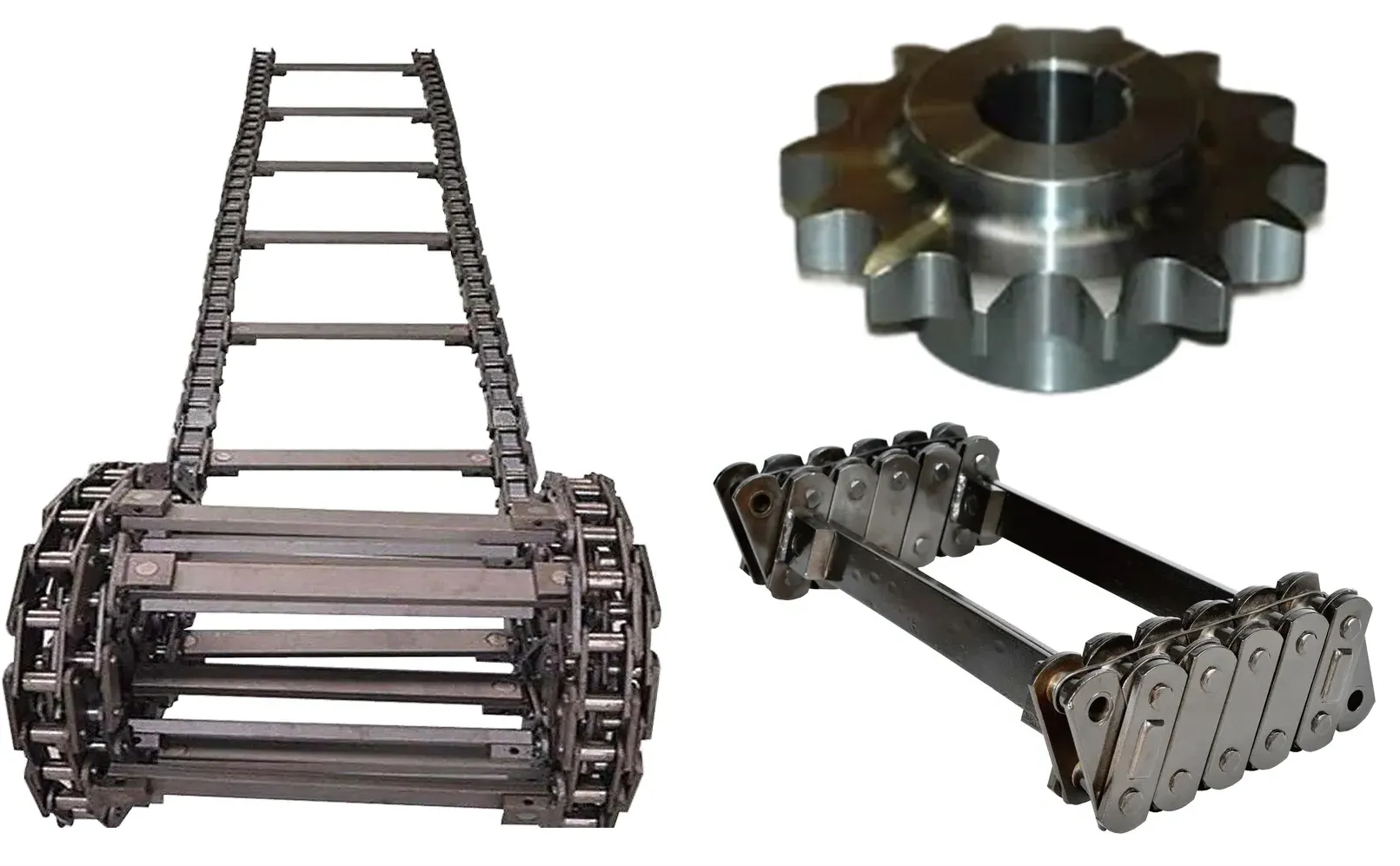

▍Asphalt Paver Chain Sprockets for Asphalt Paver Chains

Asphalt paver chain sprockets are an important component of an asphalt paver. They are used to drive the conveyor chains that move the asphalt mix through the paver. Sprockets are made of high-quality steel and are designed to withstand the heat and abrasion of the asphalt mix.Here are some of the key features of asphalt paver chain sprockets:

• Durability:?Sprockets are made of high-quality steel and are designed to withstand the heat and abrasion of the asphalt mix. This makes them ideal for use in demanding paving applications.
• Balance:?The sprockets are designed to be balanced, which helps to reduce vibration and noise during operation. This is important for operators as it helps to create a more comfortable and productive work environment.
• Quiet operation:?The sprockets are designed to operate quietly, which helps to reduce noise pollution in the work area. This is important for both operators and the surrounding community.
• Strength:?The sprockets are designed to be strong enough to drive the conveyor chains even under heavy loads. This is important as the conveyor chains are a major component of an asphalt paver and can be expensive to replace.
• Long lifespan:?The sprockets are designed to last for many years with proper maintenance. This is important as sprockets are a major component of an asphalt paver and can be expensive to replace.

Here are some additional tips for choosing the right asphalt paver chain sprockets:

• Consider the size and weight of the asphalt paver. The sprockets should be able to support the weight of the paver and the conveyor chains.
• Consider the type of asphalt mix you will be using. The sprockets should be able to withstand the heat and abrasion of the asphalt mix.
• Consider the climate you will be operating the paver in. The sprockets should be able to withstand the elements.
• Choose a reputable manufacturer of asphalt paver chain sprockets. Quality sprockets will last longer and perform better.

By following these tips, you can choose the right asphalt paver chain sprockets for your asphalt paver and ensure that they will provide years of reliable service.
