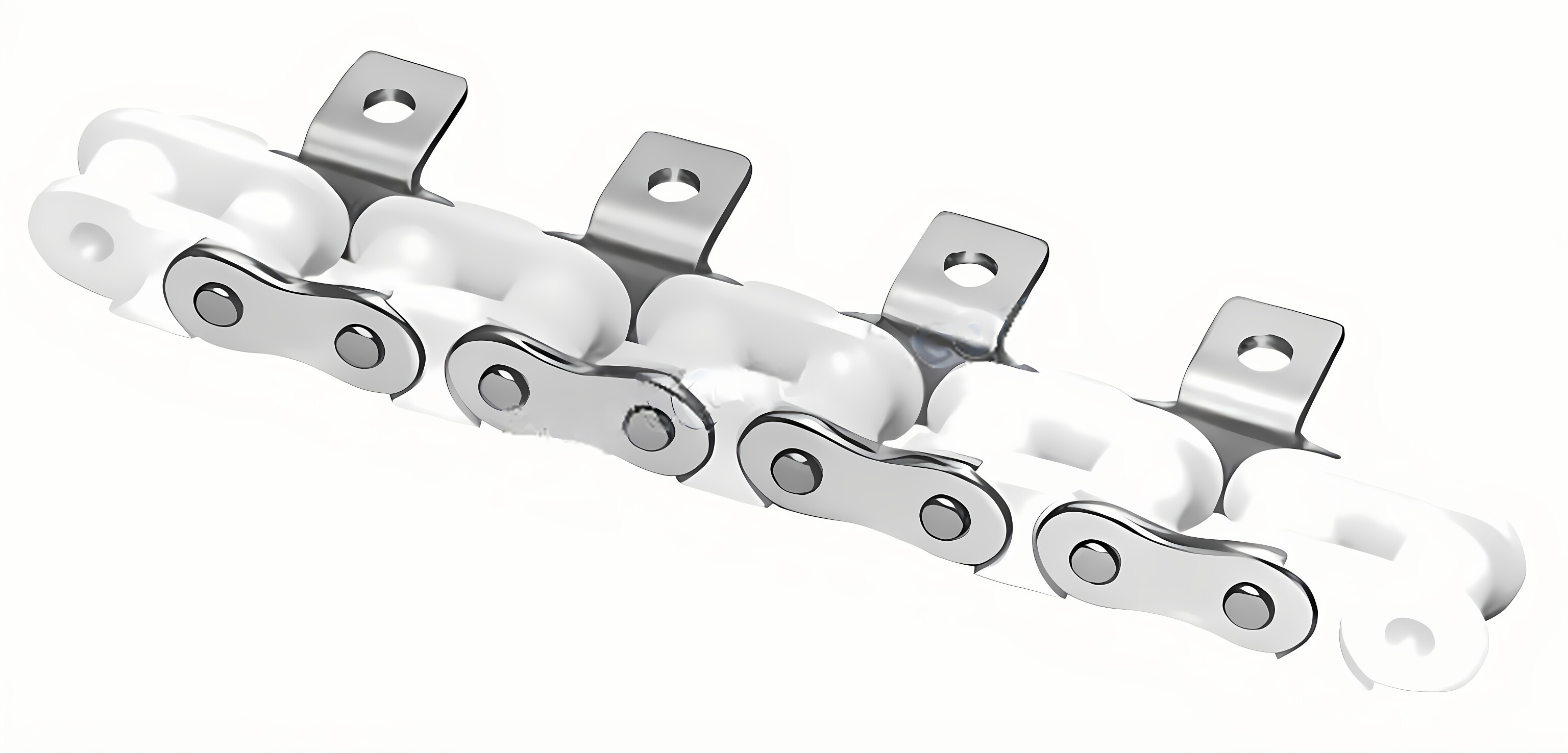

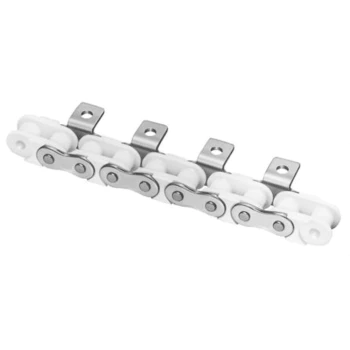

Conveyor Chains with Plastic Rollers 40-P/50-P/60-P/80-P/A2050-P

Conveyor Chains with Plastic Rollers 40-P/50-P/60-P/80-P/A2050-P

Conveyor chains are generally used to move a wide range of goods, from small items to heavy industrial pieces. Unlike a traditional conveyor belt, chain conveyors do not require human workers to lift items on their own, making them ideal for heavy-duty conveyance in harsh environments. They can also handle abrasive and sharp materials.In many applications, plastic chains are the preferred choice. This type of chain has several benefits, including its light weight, reliability, and reasonable price. Another popular option is nylon drive chain, which resists creeping and remains solidly in place with adjoining sprockets.Conveyor chains with plastic rollers can be used for a variety of applications. They are particularly suitable for applications where product accumulation is a concern. Some of these applications include car parking, lumber conveyor, heat treatment, metallurgy, palm oil, and forest industry.Conveyor chains with plastic rollers are often used in assembly lines because they accumulate products and reduce the risk of damage during transport. These chains are also easy to maintain and can handle heavy loads without the use of any mechanical devices. However, the most important aspect to consider when choosing a conveyor system is your application.

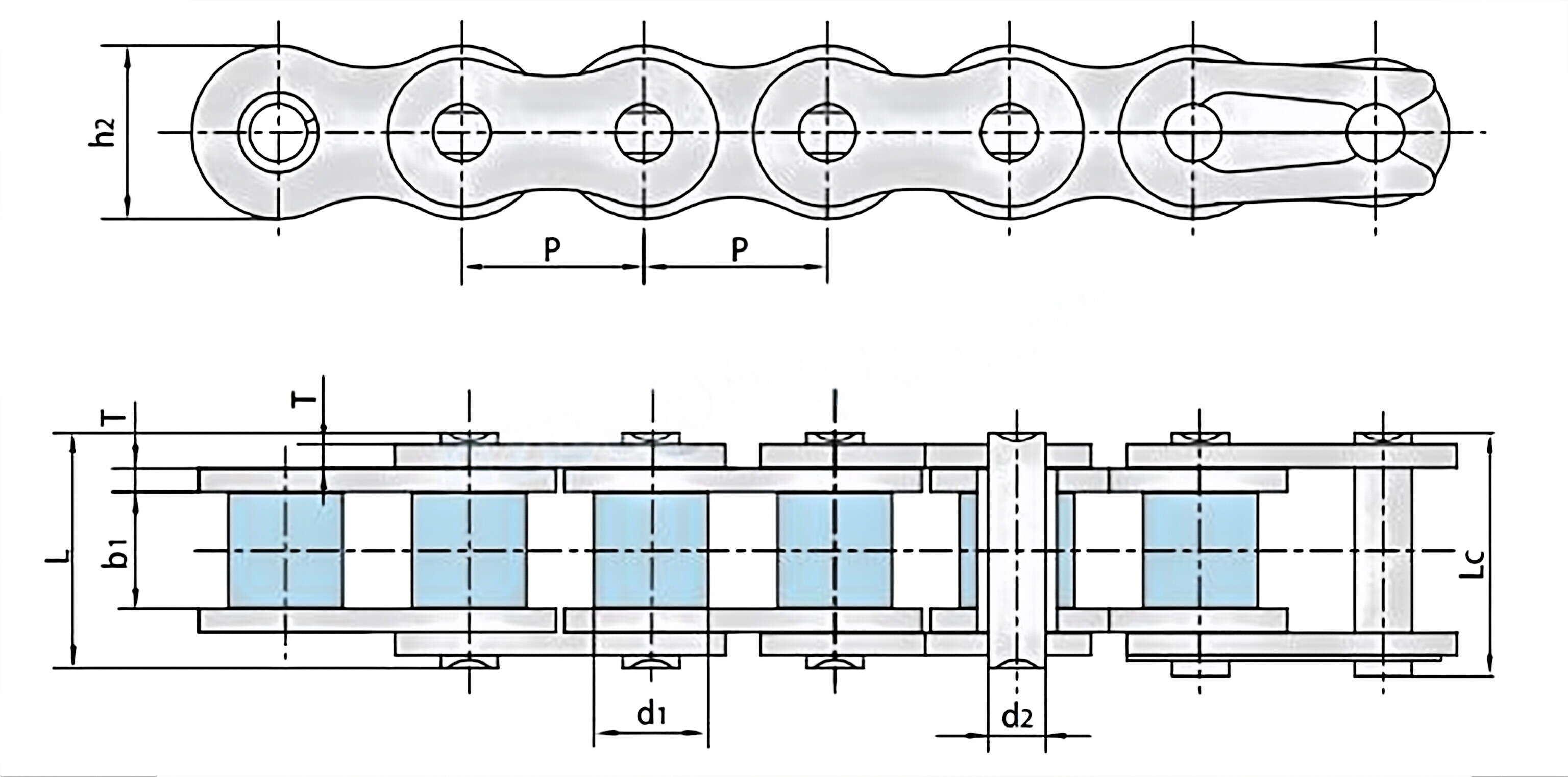

Dimensions of Conveyor Chains with Plastic Rollers

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Ultimatetensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	Lmax	Lc max	h2 max	T	Qmin	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
40-P	12.700	7.95	7.85	3.96	16.60	17.80	12.00	1.50	14.10/3205	17.5	0.56
50-P	15.875	10.16	9.40	5.08	20.70	22.20	15.09	2.03	22.20/5045	29.4	0.96
60-P	19.050	11.91	12.57	5.94	25.90	27.70	18.00	2.42	31.80/7227	41.5	1.35
80-P	25.400	15.88	15.75	7.92	32.70	35.00	24.00	3.25	56.70/12886	69.4	2.26
A2050-P	31.750	10.16	9.40	5.08	20.70	22.20	15.00	2.03	22.2/5045	28.1	0.61



Sprockets for Conveyor Chains with Plastic Rollers

Sprockets for Conveyer Chains with Plastic Rollers are made of plastic and are available in a variety of styles. These gears are lightweight and durable, and don't rust or wear out. They also reduce noise and lubricant needs. Sprockets transmit shaft rotation to the chains. The types of sprockets used to depend on the hub used. Some are flat and have single hubs, while others are dual hubs.As a mature supplier of chains and sprockets in China, Raydafon also provides highly durable?sprockets for sale?besides conveyor chains. Contact us now if you are interested.
