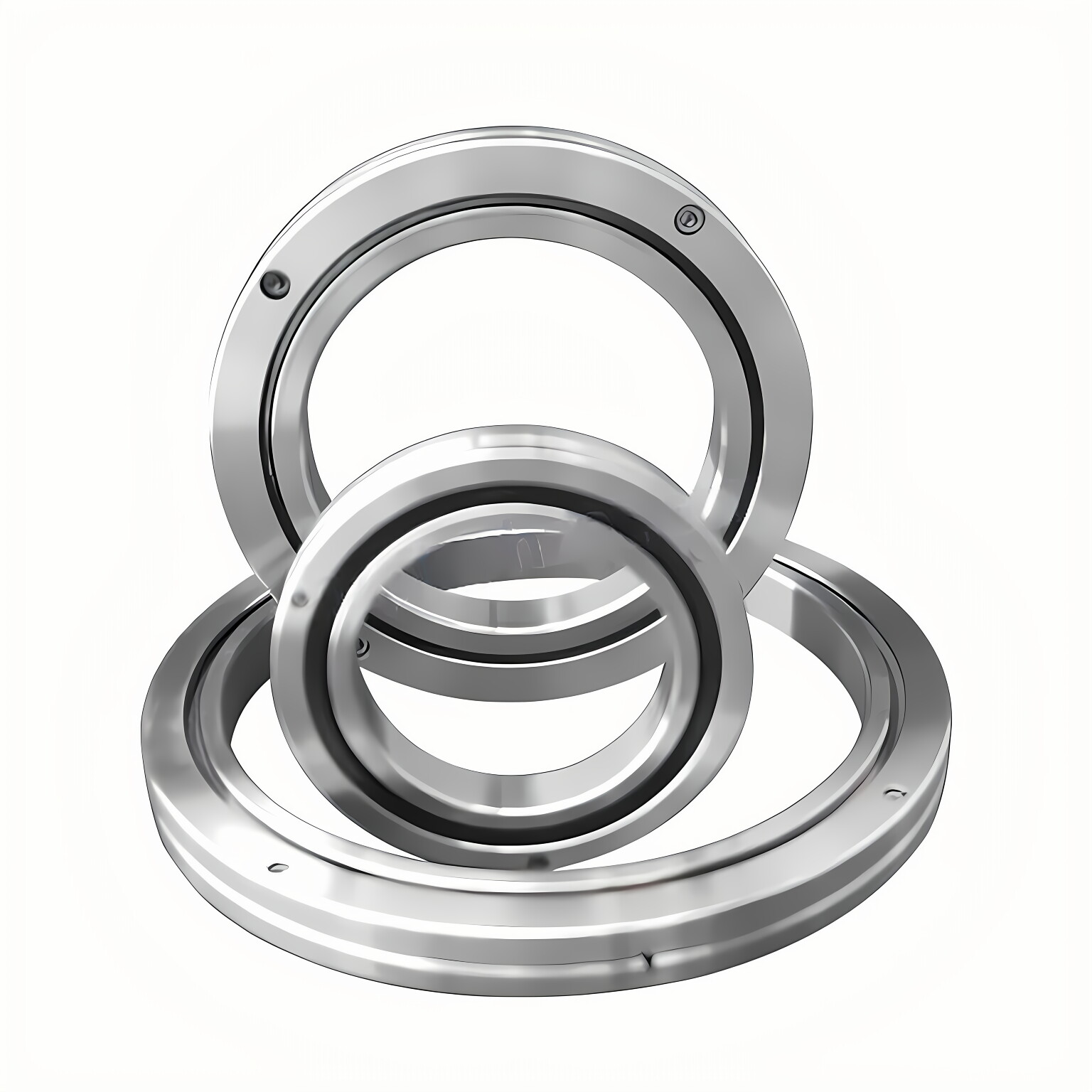

CRB Series Crossed Roller Bearings

CRB Series Crossed Roller BearingsCRB series crossed roller bearing series (Split outer ring, with inner ring rotating).CRB series crossed roller bearing series is the primary type of cross roller bearing. Its structure is two split outer rings (connected by bolt or unique rivet, integral design of inner ring), so the inner ring has high rotation accuracy. The integrity of the inner ring is more suitable for high precision of inner ring rotation, and stable rotation accuracy reaches micron level. For example, the rotating position of the machine tool indexing table, the internal rotor drive motor, and so on.

Technical data

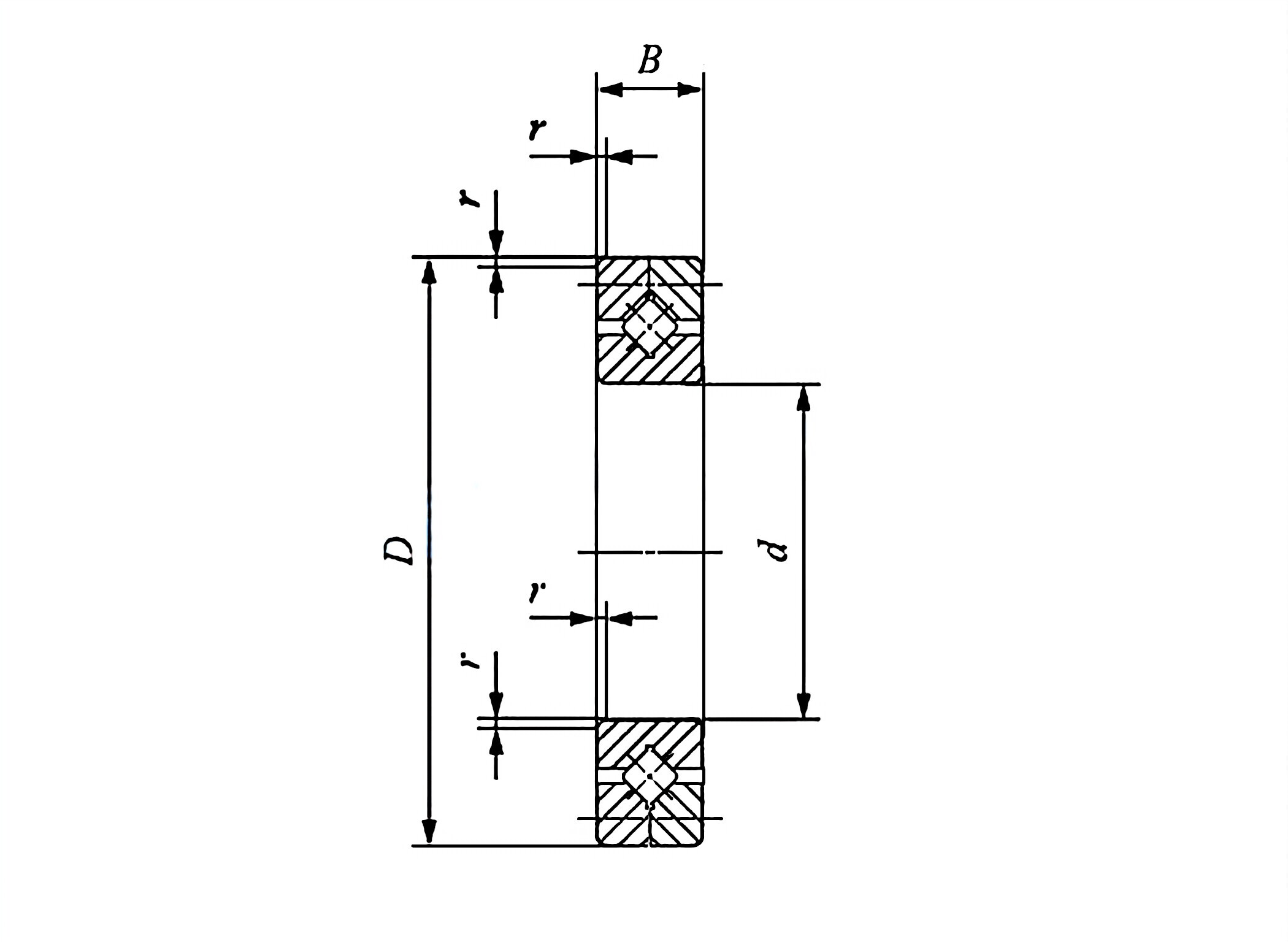

Model No.	Outer dimension (mm)				Installation dimension (mm)		Rated load (Kn)		Weight
	d	D	B/C	Rmin	da	Da	C	C0	kg
CRB3010	30	55	10	0.3	34	44	5.29	6.35	0.12
CRB4010	40	65	10	0.3	44	54	5.98	8.04	0.15
CRB5013	50	80	13	0.6	55	71	14.2	18.4	0.29
CRB6013	60	90	13	0.6	64	81	15.4	21.5	0.33
CRB7013	70	100	13	0.6	75	91	17	25.5	0.38
CRB8016	80	120	16	0.6	86	107	24.3	37.5	0.74
CRB9016	90	130	16	1	98	118	25.9	42.1	0.81
CRB10020	100	150	20	1	108	134	39.4	61.1	1.45
CRB11020	110	160	20	1	118	144	41.2	66.7	1.56
CRB12025	120	180	25	1.5	132	164	59.9	95.4	2.62
CRB13025	130	190	25	1.5	140	172	61	99.8	2.82
CRB14025	140	200	25	1.5	151	183	64.4	108	2.96
CRB15025	150	210	25	1.5	160	192	65	113	3.16
CRB15030	150	230	30	1.5	166	202	85.9	144	5.3
CRB20025	200	260	25	2	208	239	75.3	148	4.0
CRB20030	200	280	30	2	218	262	133	234	6.7
CRB20035	200	295	35	2	221	274	168	282	9.58
CRB25025	250	310	25	2.5	259	290	83.9	183	4.97
CRB25030	250	330	30	2.5	265	310	146	283	8.1
CRB25040	250	355	40	2.5	271	330	215	382	14.8
CRB30025	300	360	25	2.5	310	341	91.9	217	5.88
CRB30035	300	395	35	2.5	318	372	205	408	13.4
CRB30040	300	405	40	2.5	321	381	235	451	17.2
CRB40035	400	480	35	2.5	414	457	165	400	14.5
CRB40040	400	510	40	2.5	423	483	270	590	23.5
CRB40070	400	580	70	2.5	430	532	576	1060	72.4
CRB50040	500	600	40	2.5	517	573	259	648	26.0
CRB50050	500	625	50	2.5	531	592	306	747	41.7
CRB50070	500	680	70	2.5	530	633	653	1330	86.1
CRB60040	600	700	40	3	621	676	287	774	30.6
CRB60070	600	780	70	3	630	734	700	1540	102
CRB600120	600	870	120	3	643	817	1490	2800	274
CRB70045	700	815	45	3	730	785	313	917	46.5
CRB70070	700	880	70	3	731	834	766	1810	115
CRB700150	700	1020	150	3	751	953	1980	3820	478
CRB80070	800	950	70	4	831	907	513	1440	109
CRB800100	800	1030	100	4	840	972	1140	2640	247

CRB Series Crossed Roller Bearing Features

1. Sustain radial, axial, and moment loads2. Make the best use of space3. Stable Rotation and high rigidity & running accuracy supplied with average clearance, little clearance, or Even under a pre-load.

Applications

CRB series cross roller bearings are especially suitable for limited space applications, while high rigidity and high rotation accuracy are required. Such as joints and swiveling units of industrial robots, machining center tables, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments, and IC manufacturing machines.
