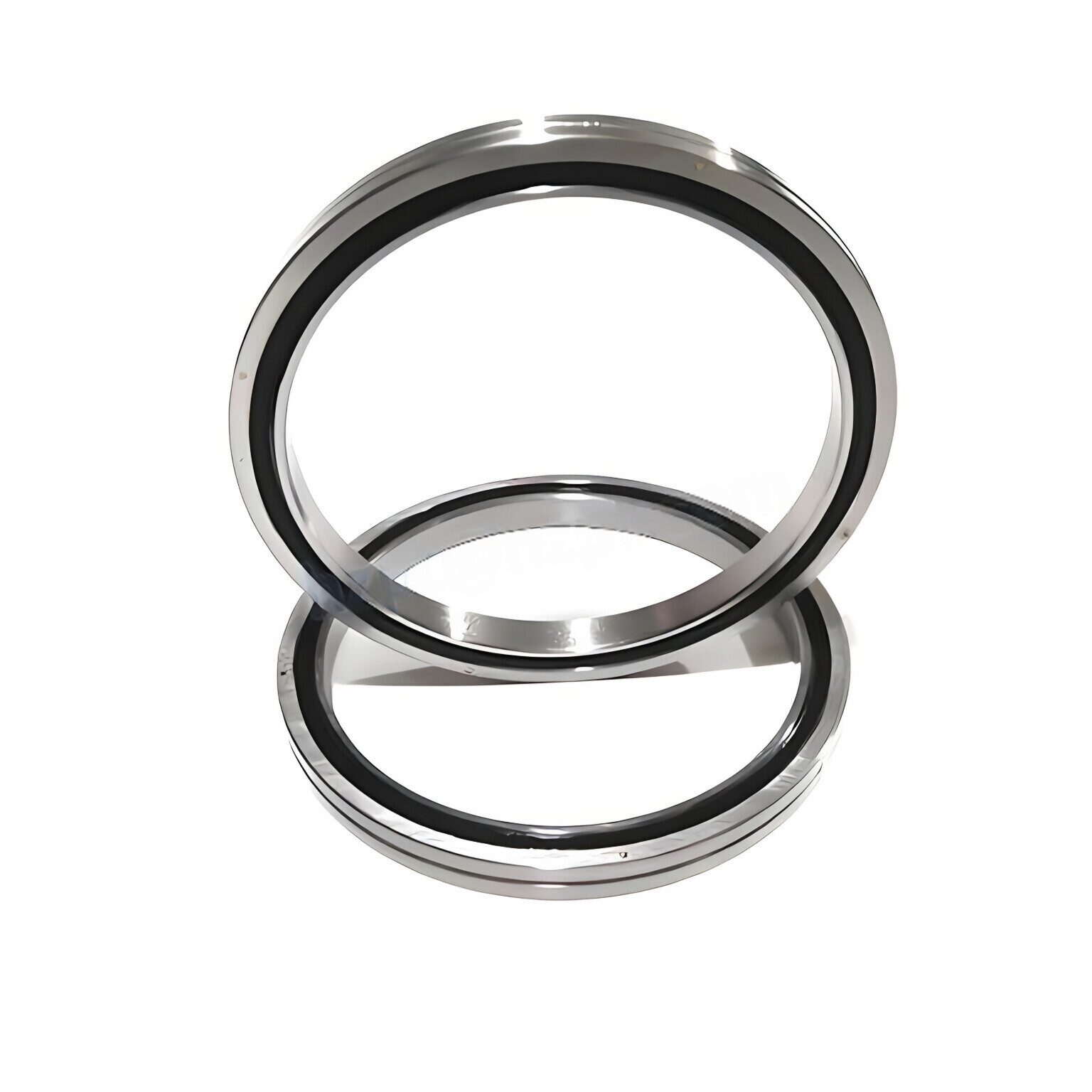

CRBS Series Crossed Roller Bearings

CRBS Series Crossed Roller BearingsThe CRBS cross roller bearing is a light and thin type of cross roller bearing. Its structure is divided into an outer ring and an inner ring. The ultra-thin size design contributes to the light and slim design of the relevant structure. The overall structure of the inner circle is more suitable for the occasion of high rotation precision of the inner ring, and the stable rotation precision is up to a micrometer. It is ideal for precision detection instruments, robot joints, direct-drive torque motors, high-precision turntables, and other applications requiring high precision and rigidity.

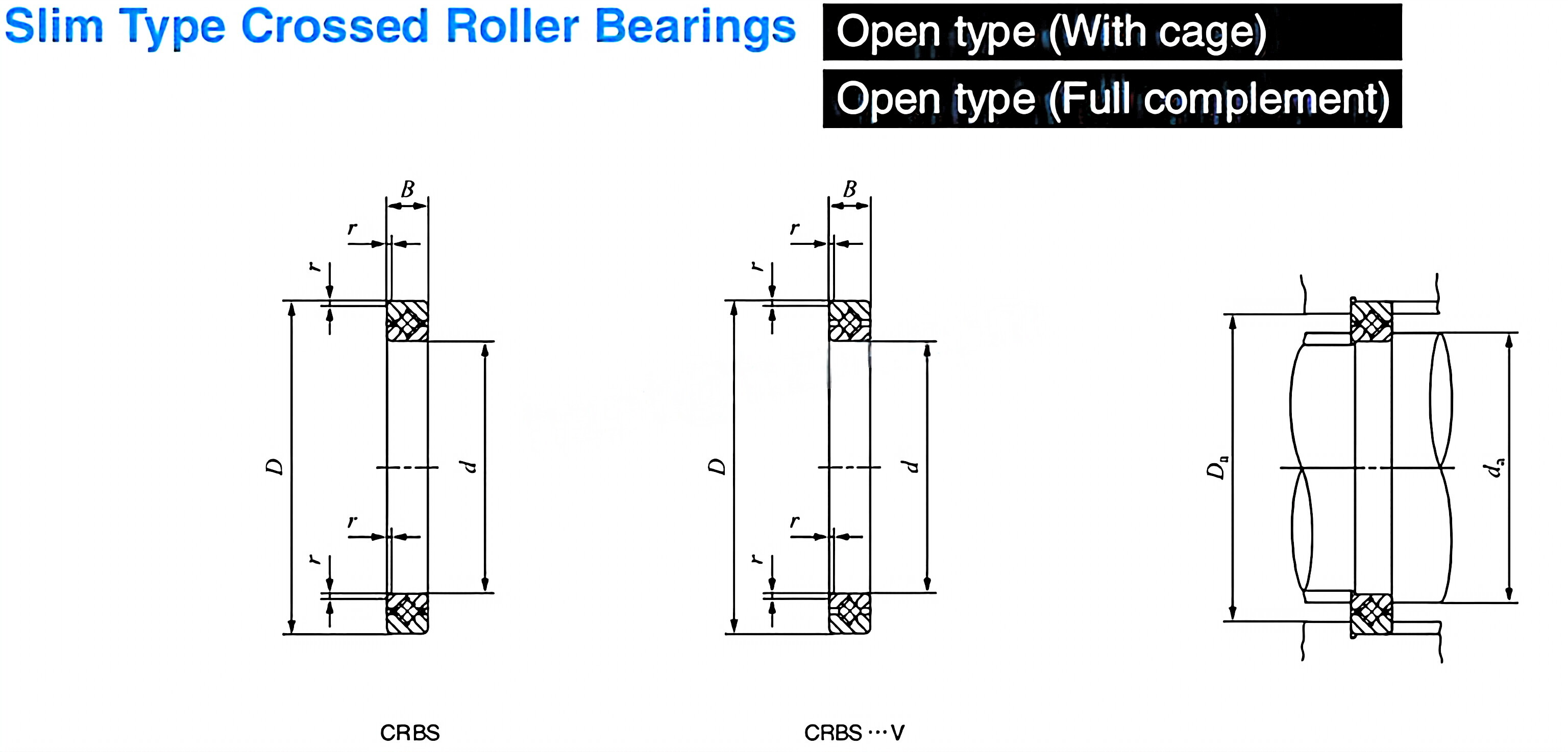

Technical data

TYPE	Inner diameter	Outer diameter	Pitch diameter	Height	Shoulder size		Basic rated load(Radial)		Weight
	d	D	Dpw	B	ds	Dh	Cr Kn	Cor Kn	KG
CRBS508	50	66	57	8	53.5	60.5	5.1	7.18	0.08
CRBS608	60	76	67	8	63.5	70.5	5.68	8.68	0.09
CRBS708	70	86	77	8	73.5	80.5	5.98	9.8	0.1
CRBS808	80	96	87	8	83.5	90.5	6.37	11.3	0.11
CRBS908	90	106	97	8	93.5	100.5	6.67	12.4	0.12
CRBS1008	100	116	107	8	103.5	110.5	7.15	13.9	0.16
CRBS1108	110	126	117	8	113.5	120.5	7.45	15	0.15
CRBS1208	120	136	127	8	123.5	130.5	7.84	16.5	0.17
CRBS1308	130	146	137	8	133.5	140.5	7.94	17.6	0.18
CRBS1408	140	156	147	8	143.5	150.5	8.33	19.1	0.19
CRBS1508	150	166	157	8	153.5	160.5	8.82	20.6	0.2
CRBS1613	160	186	172	13	165	179	23.3	44.9	0.59
CRBS1713	170	196	182	13	175	189	23.5	46.5	0.64
CRBS1813	180	206	192	13	185	199	24.5	49.8	0.68
CRBS1913	190	216	202	13	195	209	24.9	51.5	0.69
CRBS2013	200	226	212	13	205	219	25.8	54.7	0.71

The application of CRBS series crossed roller bearing

Our company can produce crossed roller bearings RA, RB, RE, RU series and CRB, CRBC, CRBH, CRBF, CRBS series, XSU, XU, SX Series cross cylindrical roller bearings. The products are widely used in industrial robots, CNC machine tools, reducers, printing machinery, medical equipment, accuracy measurement and control equipment, communication radar antennas, optical equipment, etc.
