Cuplock Scaffolding Steel Decks for Construction Process

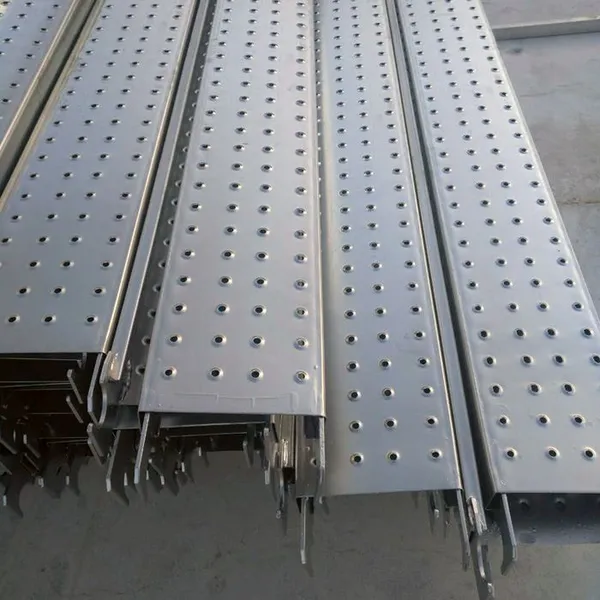

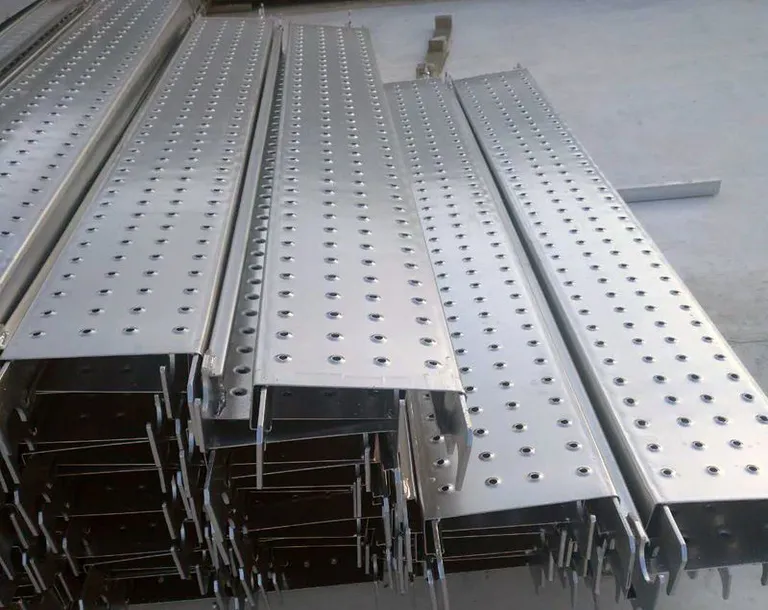

Scaffold steel decks are platforms on which scaffolding structures are built by using a type of board. It is an essential part of the cuplock scaffolding system. It is fixed on the cuplock scaffolding ledger for workers to walk on. Every corner is provided with a welded hook. Two or three beams are welded under the scaffold plank. Perforated plates are used to improve their anti-slip performance.Scaffolding boards/Decks should be designed so that boards are physically strong and sturdy to protect from damage during use by keeping the structure safe and working manpower. The boards/decks are the base of scaffolding structures that have to bear the weight of the workers. They must be spacious enough to keep and adjust the tools and other equipment on them.

Products Specification

The main material of cup lock scaffolding is: Q195/Q235The surface treatment is: Pre-galvanized

Cuplock scaffolding Steel Decks
Product Code	Specification/L(mm/ft)	Material	Surface Treatment
TY-CSP040	230*63*1219mm/4’	Q195/Q235	Pre-galvanized
TY-CSP050	230*63*1524mm/5’	Q195/Q235	Pre-galvanized
TY-CSP060	230*63*1829mm/6’	Q195/Q235	Pre-galvanized
TY-CSP070	230*63*2133mm/7’	Q195/Q235	Pre-galvanized
TY-CSP080	230*63*2438mm/8’	Q195/Q235	Pre-galvanized
TY-CSP100	230*63*3048mm/10’[	Q195/Q235	Pre-galvanized

Features of Scaffolding Steel Decks

Scaffold Steel Board /Metal Decks are a stronger and lighter version, which has a better load bearing and is lighter than the conventional timber board, so the steel board /metal decks are easier to install in access scaffold than the timber/wooden board.All Scaffolding Steel boards/Metal Decks are designed with a non-slip surface and good drainage for additional safety.Made from Q235 steel as the primary material for production, it boasts a high capacity and triples the life span of scaffolding steel boards/metal decks for a competitive price.There are hot dip galvanized and pre-galvanized steel boards/metal decks surface treatments that provide excellent weather resistance and prevent the steel board from corrosion with sufficient durability in harsh environments, particularly onshore and offshore facilities where salty air or long-term weather exposures are inevitable.

Product Display

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has 10 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
