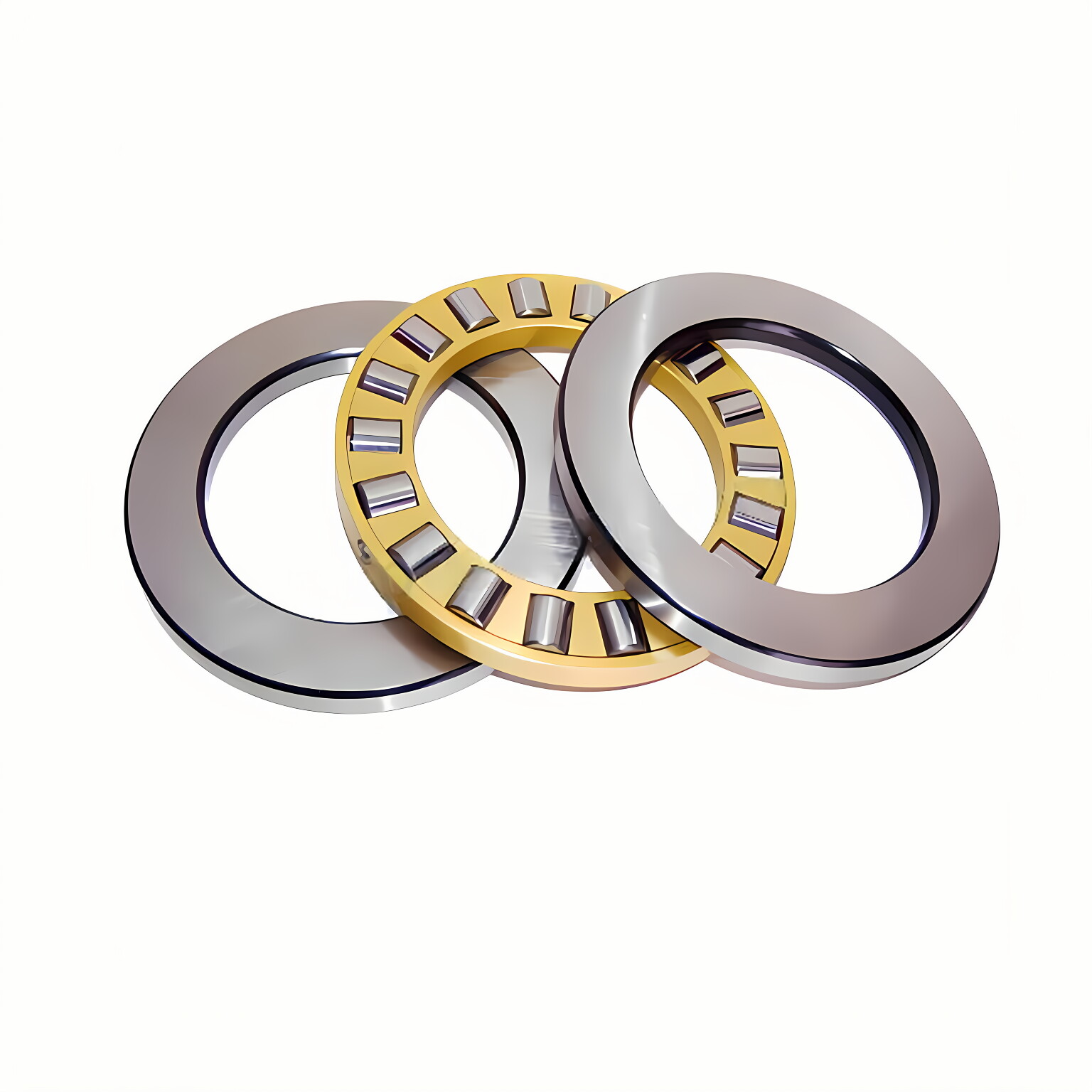

Cylindrical Thrust Roller Bearings

Raydafon Group presents Cylindrical Thrust Roller Bearings, engineered for heavy-load applications like industrial machinery and automotive systems. Featuring durable materials, precision design, and superior axial support, these bearings reduce friction and enhance equipment longevity. Ideal for engineers and manufacturers seeking reliable performance, they ensure smooth operation and efficiency, solving issues like wear and downtime. With Raydafon Group's commitment to innovation, our bearings stand out for their robust construction and custom solutions. Experience effortless power transmission today.

Send Inquiry

Product Description

Cylindrical Thrust Roller BearingsCylindrical thrust roller bearings are separable bearings, generally consisting of two washers (raceways) and cylindrical rollers. Cylindrical thrust roller bearings are separable. They only carry axial loads in one direction and slight shock loads, but their loading capacity is much higher than thrusting ball bearings with the exact dimensions. They can limit axial displacement of shafts or housing in one direction so that they can be axial locating bearings in one order. The slippage will be formed on the raceways because of the linear velocity differences between two ends of rollers while rolling. So the Limiting speed of these bearings is lower than thrust ball bearings, and they are usually applied to typical speed applications.

Product Specification

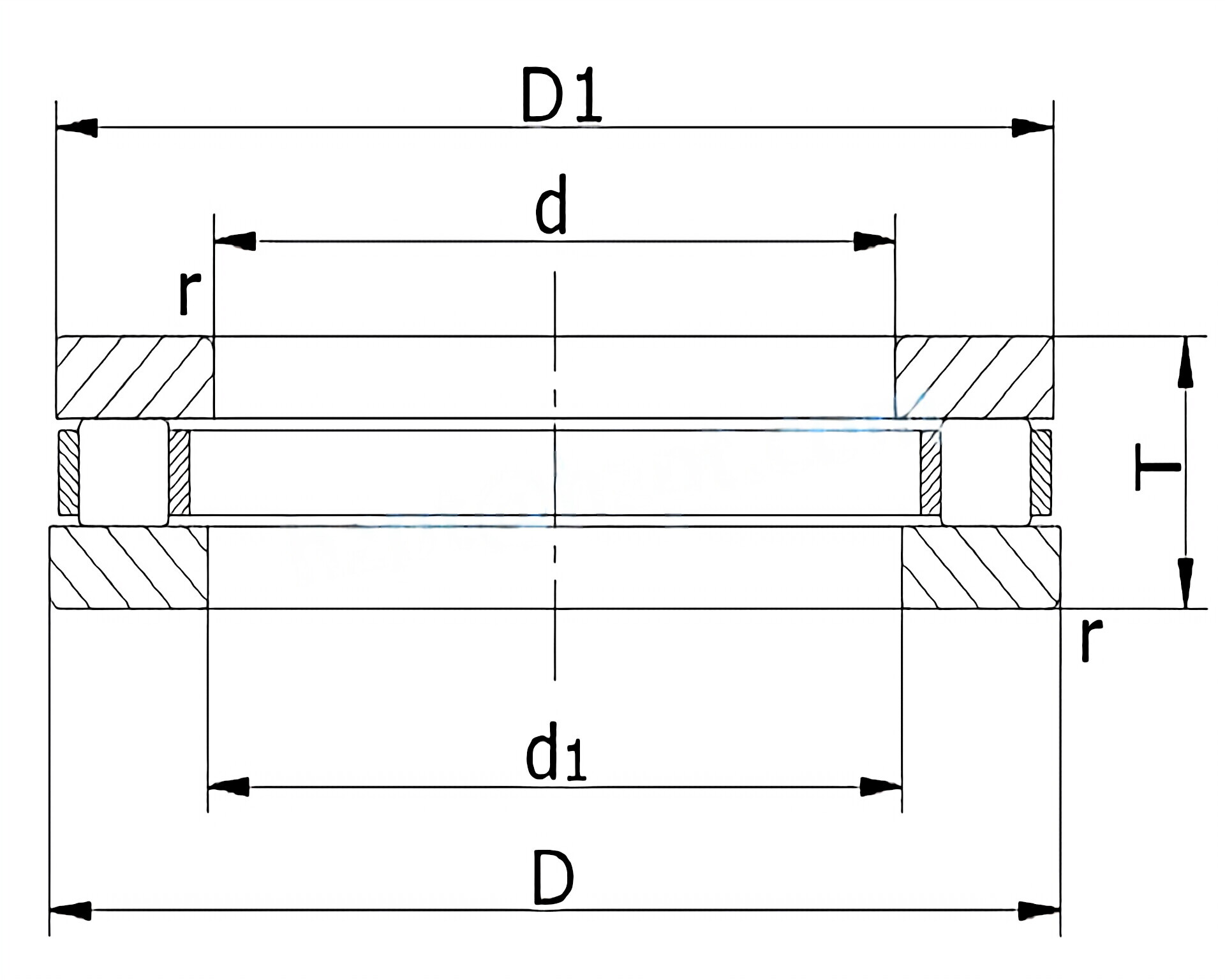

Dimension				Basic axial load		Speed limit		Designation of Bearing Components
Product Designation	d(mm)	D(mm)	H(mm)	r1, r2 min.(mm)	dyn. Ca(KN)	stat. C0a(KN)	grease(min-1)	S(mm)	Cylindrical Roller and Cage thrust assembly()	Shaft Washer()	(Kg)
81115	75	100	19	1	75	285	950	5,75	K81115	WS81115	0,43
81215	75	110	27	1	125	440	900	8	K81215	WS81215	0,92
81116	80	105	19	1	76,5	300	900	5,75	K81116	WS81116	0,46
81216	80	115	28	1	129	455	850	8,5	K81216	WS81216	1,02
81117	85	110	19	1	76,5	310	850	5,75	K81117	WS81117	0,48
81217	85	125	31	1	153	550	800	9,5	K81217	WS81217	1,36
81118	90	120	22	1	104	415	800	6,5	K81118	WS81118	0,72
81218	90	135	35	1,1	190	670	800	10,5	K81218	WS81218	1,85
81120	100	135	25	1	146	585	750	7	K81120	WS81120	1,07
81220	100	150	38	1,1	224	815	700	11,5	K81220	WS81220	2,45
81122	110	145	25	1	160	655	700	7	K81122	WS81122	1,12
81222	110	160	38	1,1	232	865	670	11,5	K81222	WS81222	2,7
81124	120	155	25	1	160	680	670	7	K81124	WS81124	1,25
81224	120	170	39	1,1	245	950	630	12	K81224	WS81224	2,98
81126	130	170	30	1	186	780	600	9	K81126	WS81126	1,72
81226	130	190	45	1,5	365	1400	560	13	K81226	WS81226	4,37
81128	140	180	31	1	196	865	560	9,5	K81128	WS81128	2,02
81228	140	200	46	1,5	375	1460	530	13,5	K81228	WS81228	4,76
81130	150	190	31	1	204	930	530	9,5	K81130	WS81130	2,15
81230	150	215	50	1,5	455	1800	500	14,5	K81230	WS81230	6,04
81132	160	200	31	1	212	980	500	9,5	K81132	WS81132	2,28
81232	160	225	51	1,5	465	1900	500	15	K81232	WS81232	6,52
81134	170	215	34	1,1	265	1220	500	10	K81134	WS81134	3,01
81234	170	240	55	1,5	520	2080	480	16,5	K81234	WS81234	8,12
81136	180	225	34	1,1	275	1290	480	10	K81136	WS81136	3,07
81236	180	250	56	1,5	520	2160	450	17	K81236	WS81236	8,69
81138	190	240	37	1,1	315	1500	450	11	K81138	WS81138	3,99
81238	190	270	62	2	655	2650	430	18	K81238	WS81238	11,7
81140	200	250	37	1,1	325	1600	450	11	K81140	WS81140	4,17
81240	200	280	62	2	695	2900	430	18	K81240	WS81240	12,2
81144	220	270	37	1,1	355	1830	430	11	K81144	WS81144	4,65
81244	220	300	63	2	735	3200	400	18,5	K81244	WS81244	13,4
81148	240	300	45	1,5	465	2360	380	13,5	K81148	WS81148	7,43
81248	240	340	78	2,1	980	4250	360	23	K81248	WS81248	23,1
81152	260	320	45	1,5	500	2650	360	13,5	K81152	WS81152	7,99
81252	260	360	79	2,1	1040	4650	340	23,5	K81252	WS81252	25,1
81156	280	350	53	1,5	670	3450	340	15,5	K81156	WS81156	12
81256	280	380	80	2,1	1060	4900	320	24	K81256	WS81256	27,1
81160	300	380	62	2	800	4000	300	18,5	K81160	WS81160	17,2
81260	300	420	95	3	1400	6200	280	28,5	K81260	WS81260	42,5
81172	360	440	65	2	900	4900
