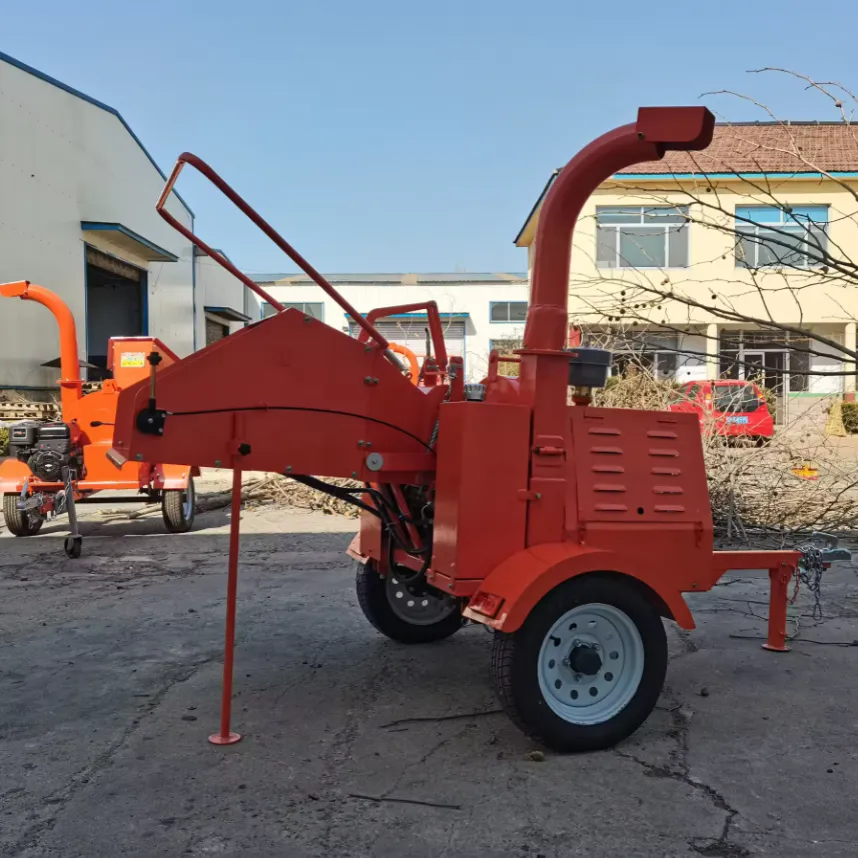

Diesel Wood Chipper DWC-18 for Chipping Wood into Pieces

[embed]https://youtu.be/sqxBad8yFs0[/embed] A diesel wood chipper is a powerful and efficient piece of machinery designed for the task of reducing wood, such as tree limbs, branches, and even entire trees, into smaller, manageable wood chips. These machines are pivotal in various sectors including forestry, landscaping, agriculture, and waste management, offering a practical solution for disposing of wood waste and repurposing it into something useful, like mulch for gardens or biomass fuel. Looking for a top-notch diesel wood chipper? Our new, diesel-powered wood chipper is designed for efficient wood chipping. It measures 3x1.6x2m and weighs 600kgs. This wood chipper is available in various colors like red, blue, yellow, or green, and you can even request a custom color. It's designed to cut wood into small pieces, with a hydraulic feeding method and can accommodate a wood diameter of up to 8. It's certified by CE and ISO, and comes with a one-year warranty. Core components like the motor, pump, and engine have a three-year warranty. After-sales services are also provided by third-party overseas support.

Diesel Wood Chipper DWC-18 Specifications

Specifications for Diesel Wood Chipper for Sale
Model	DWC-18	DWC-22	DWC-40
Engine	18HP Changechai diesel engine	22HP Changechai diesel engine	40HP Laidong diesel engine
Chipper capacity	max. 150mm	max. 150mm	max. 200mm
Feeding system	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic
Flywheel diameter	640mm	640mm	640mm
Blades number	1 stationary blade, 2 rotary blades
Flywheel weight	85kg	85kg	85kg
Feed Hopper Inner Opening	200x220mm	200x220mm	200x220mm
Rated RPM	1080	1080	1280
Weight	650kg	690kg	800kg
Working efficiency	7-11cbm/h	7-11cbm/h	9-13cbm/h

Advantages of Using the Diesel Wood Chipper DWC-18

The Diesel Wood Chipper DWC-18 offers several advantages for users in need of a robust and efficient wood chipping solution. Here are some of the key benefits of using the DWC-18: 1. High-power performance: The diesel wood chipper DWC-18 is equipped with a powerful diesel engine that provides ample torque and horsepower for tackling demanding wood chipping tasks. This high-performance engine enables the chipper to handle larger diameter branches, tree trunks, and other tough wood materials with ease. 2. Versatility: The diesel wood chipper is designed to handle a wide range of wood materials, making it suitable for various applications. Whether you need to chip branches, leaves, brush, or larger pieces of wood, the DWC-18 can efficiently process them into smaller chips, making it a versatile tool for landscaping, forestry, and agricultural tasks. 3. Increased productivity: With its powerful engine and efficient cutting mechanism, the DWC-18 diesel wood chipper can significantly enhance productivity. It can process wood quickly and efficiently, reducing the time and effort required for manual wood disposal. This allows users to accomplish more in less time, improving overall operational efficiency. 4. Mobility and convenience: The diesel wood chipper DWC-18 is equipped with a tow-bar and rugged wheels, making it easy to transport and maneuver on different terrains. This mobility feature allows you to take the chipper to different job sites, saving time and effort by eliminating the need to transport wood waste to a central location for processing. 5. Durability and reliability: The DWC-18 is built to withstand heavy-duty use and harsh working conditions. Its robust construction and high-quality components ensure durability and longevity, reducing the need for frequent repairs or replacements. This reliability translates into cost savings and uninterrupted operation. 6. Reduced wood waste: By using the diesel wood chipper, you can efficiently convert wood waste into valuable wood chips. These chips can be repurposed for various applications, such as mulching, biomass fuel, or composting. This not only helps in waste management but also promotes sustainable practices.

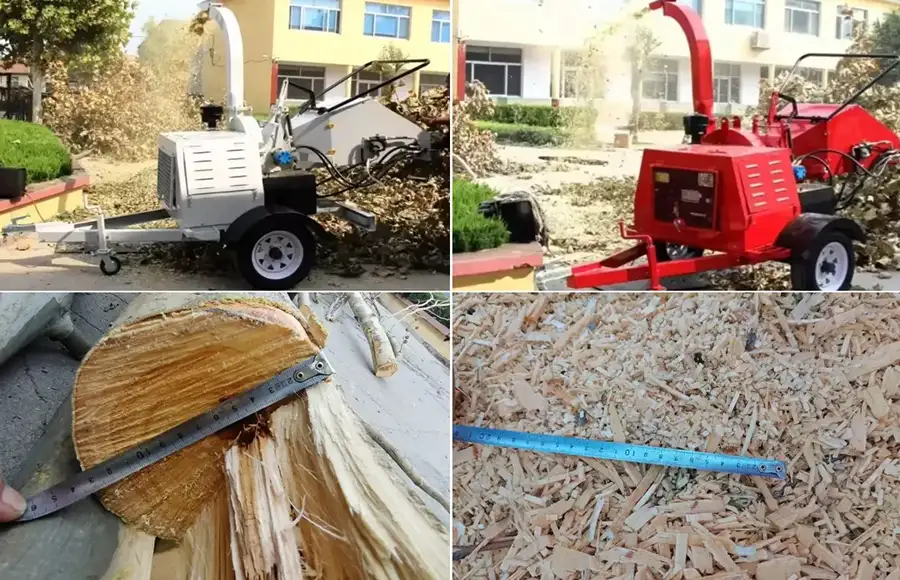

Common Applications of Diesel Wood Chipper DWC-18

The Diesel Wood Chipper DWC-18 is designed for versatility and high performance, making it suitable for a wide range of applications across various sectors. Here are some of its common uses: (1) Forestry and logging: In forestry operations, the DWC-18 diesel wood chipper can be utilized to chip branches, tree limbs, and small to medium-sized tree trunks. This helps in clearing logging sites, maintaining forests, and managing wood waste generated during timber harvesting. (2) Landscaping and tree care: Landscapers and arborists often use the diesel wood chipper DWC-18 to process tree branches, brush, and other green waste. By chipping these materials, they can be more easily transported, disposed of, or repurposed as mulch for landscaping projects. (3) Garden and yard maintenance: Homeowners or gardeners with large properties can benefit from the diesel wood chipper for managing garden and yard waste. It can chip and reduce the volume of fallen branches, leaves, and other organic debris, making it easier to handle and dispose of the waste. (4) Composting: Chipping wood waste with the diesel wood chipper DWC-18 can aid in the composting process. The smaller wood chips produced can be mixed with other organic materials, accelerating the decomposition process and creating nutrient-rich compost for gardening or agricultural purposes. (5) Construction and demolition: During construction or demolition projects, the diesel wood chipper can be used to process wooden materials, such as old lumber, pallets, or demolished structures. By chipping these materials, they can be repurposed or disposed of more efficiently.

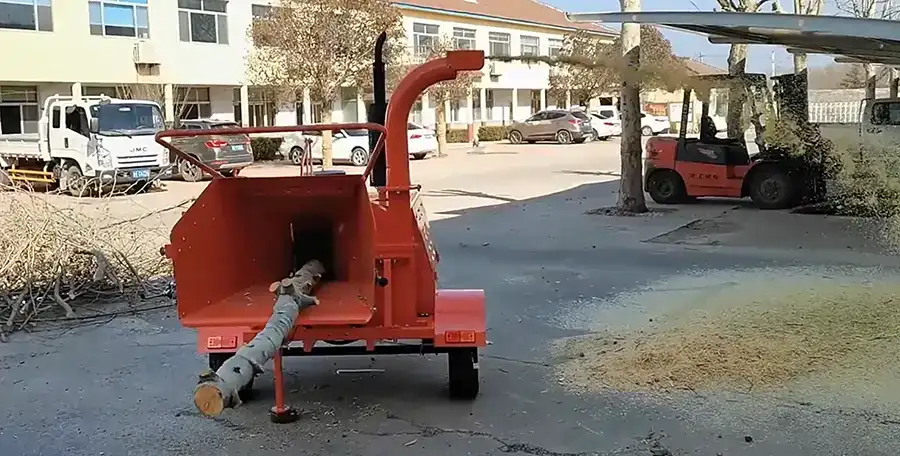

How Does the Diesel Wood Chipper Work?

A diesel wood chipper works by using a combination of mechanical force and sharp blades to shred and chip wood into smaller pieces.

1. Wood Material Input: The operator feeds the wood material into the chipper through the feed chute. This can include branches, logs, tree trunks, and other wood waste.
2. Diesel Engine Power: The chipper is equipped with a diesel engine that provides the necessary power to drive the chipper's cutting mechanism. The diesel engine generates high torque, allowing the chipper to handle tough and dense wood material effectively.
3. Cutting Mechanism: The cutting mechanism of a diesel wood chipper consists of a cutting disc or drum with sharp blades. The disc or drum is mounted on a rotating shaft connected to the diesel engine. As the engine powers the rotation of the cutting mechanism, the blades spin rapidly.
4. Wood Shredding and Chipping: As the wood material passes through the cutting mechanism, the sharp blades slice and shred it into smaller pieces. The high-speed rotation of the blades generates significant force, allowing the chipper to chip the wood into consistent-sized chips or mulch.
5. Discharge Chute: Once the wood is shredded and chipped, the resulting wood chips are expelled through the discharge chute. The discharge chute can be directed into a container, truck, or other designated area for collection and transport.

Diesel Wood Chipper Operating Precautions

Operating a diesel wood chipper requires careful attention to safety precautions to prevent accidents and ensure the well-being of the operator and those in the surrounding area.

1. Inspection: Before starting the chipper, inspect it thoroughly for any signs of damage or wear. Check that all safety guards and shields are in place and secure. Ensure that the cutting blades are sharp and properly aligned. If any issues are identified, do not operate the chipper until the necessary repairs or adjustments have been made.
2. Clear the Work Area: Remove any obstructions, such as rocks, metal, or other debris, from the work area. Clear the area of people and pets to maintain a safe distance during operation. Establish a safety perimeter or use barriers to prevent unauthorized access to the chipper.
3. Feed Material Carefully: Feed the wood material into the chipper cautiously and at a controlled pace. Avoid overloading the chipper beyond its recommended capacity, as this can lead to malfunctions or accidents. Never insert your hands or any body part into the chipper's chute or near the rotating blades.
4. Maintain Stability: Ensure that the chipper is placed on stable ground and properly secured before operation. If the chipper is mobile, engage the brakes and ensure it is on a level surface. Avoid operating the chipper on slopes or uneven terrain that can compromise stability.
5. Shut Down and Maintenance: After using the chipper, wait for all moving parts to come to a complete stop before performing any maintenance or cleaning tasks. Follow the manufacturer's instructions for proper maintenance procedures, including blade sharpening, lubrication, and inspection of critical components.
6. Fuel Safety: Handle diesel fuel with care. Refuel the chipper in a well-ventilated area, away from open flames or sparks. Store fuel in approved containers and follow local regulations for fuel storage and disposal.

Common Troubleshooting of Diesel Wood Chipper

While diesel wood chippers are designed to be reliable and durable machines, occasional issues may arise during operation. Here are some common troubleshooting steps for diesel wood chippers:

• Engine Won't Start: Check the fuel level and ensure there is enough diesel fuel in the tank. Verify that the fuel line is not blocked or clogged. Check the battery and connections to ensure they are in good condition. Ensure that the engine kill switch is in the "on" position. Refer to the chipper's manual for specific troubleshooting steps related to the engine.
• Engine Runs Roughly or Stalls: Check the fuel filters for clogs or contaminants and clean or replace them if necessary. Inspect the air filters and clean or replace them if dirty. Check the spark plugs for fouling or wear and replace them if needed. Ensure that the fuel injectors are clean and functioning properly. Check for any loose or damaged wires or connections.
• Chipper Blades are Dull or Inefficient: Inspect the blades for dullness, damage, or excessive wear. Sharpen or replace the blades following the manufacturer's guidelines. Ensure that the blades are securely fastened and properly aligned. Check the cutting disc or drum for any damage or misalignment.
• Chipper Jams or Material Doesn't Feed Properly: Stop the engine and disconnect the spark plug or power source before attempting any troubleshooting. Clear any jammed material from the feed chute and cutting mechanism. Ensure that the feed chute is not overloaded with wood material. Check for any obstructions or foreign objects in the feed chute or cutting mechanism.
• Excessive Vibration or Noise: Inspect the chipper for loose or damaged parts, such as bolts, nuts, or belts, and tighten or replace them if necessary. Check the bearings of the cutting mechanism for wear or damage and replace them if needed. Ensure that the chipper is sitting on a stable and level surface. Check for any debris or foreign objects caught in the cutting mechanism.

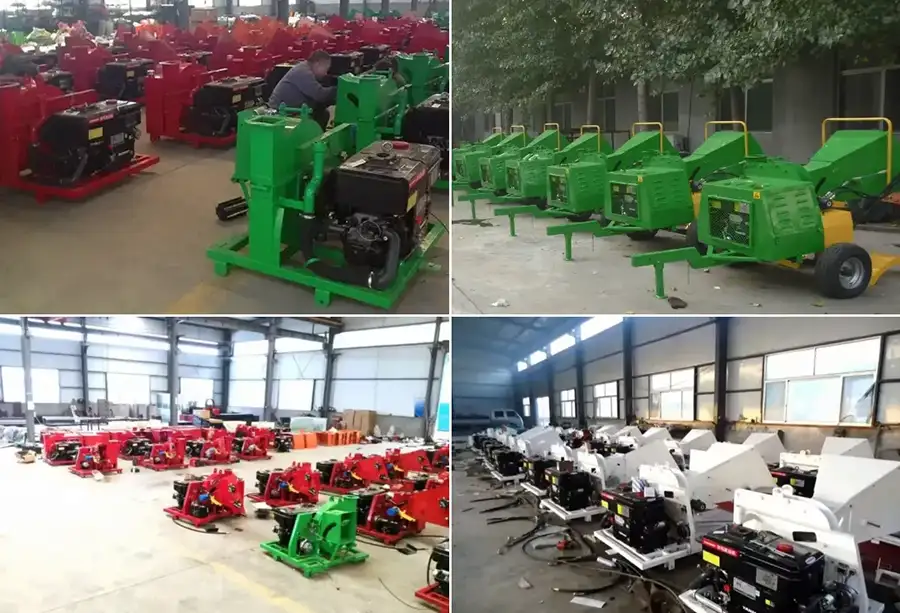

Why Choose Raydafon's Diesel Wood Chipper?

Choosing Raydafon's diesel wood chipper means choosing quality, durability, and excellent service. Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for over a decade. With more than 100 employees, including 20 technical staff and five senior R&D personnel, we have the expertise and resources to ensure the highest quality of our products. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, hay square baler, PTO wood chipper, diesel wood chipper, drum mowers, rotary hay rakes, silage harvester, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, chain trencher, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. Our company is equipped with advanced casting, forging, machining, heat treatment, and lacquering production lines. We use a CAD computer-aided design system for precise and efficient design. Our main products include farming machinery, planting machinery, harvesting machinery, and their accessories. All our products are complete in specifications, excellent in performance, and reliable in quality. They are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We pride ourselves on our professionalism, international certifications, custom services, state-of-the-art production facilities, and comprehensive after-sales services. If you're looking for a reliable and efficient diesel wood chipper, look no further than Raydafon. Author: Yjx
