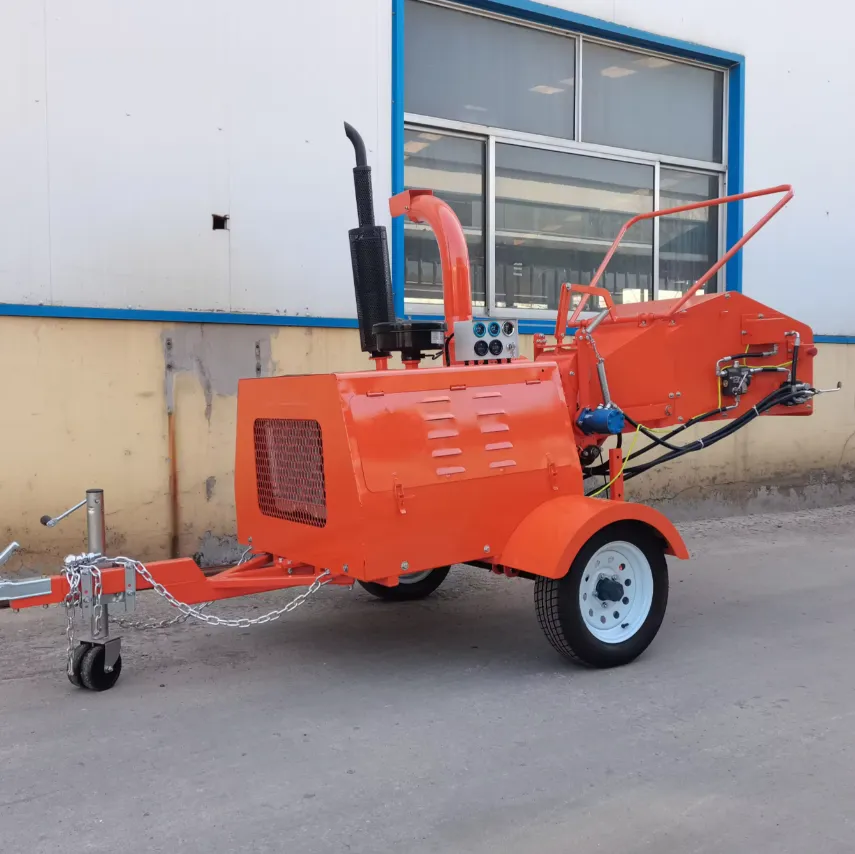

Mobile DWC40 Diesel Wood Chipper for Chipping Wood into Pieces

[embed]https://youtu.be/sqxBad8yFs0[/embed] Designed for agricultural use, the mobile DWC40 diesel wood chipper is a robust machine capable of processing entire wooden logs into smaller, manageable pieces. This powerful diesel-powered wood chipper is ideal for farms, boasting a new condition, and a comprehensive one-year warranty. With its core components including bearings, motor, pump, and pressure vessel, the diesel wood chipper operates at dimensions of 3435x1650x1870mm and weighs 800 KG. It has a maximum chipping diameter of 20cm, making it a highly versatile tool for any farm operation. The Mobile DWC40 Diesel Wood Chipper is a powerful and versatile wood chipping machine designed for heavy-duty applications. It is equipped with a diesel engine, which provides exceptional performance, fuel efficiency, and reliability. This mobile wood chipper is built to handle a wide range of wood materials, including branches, logs, and brush, making it suitable for various tasks such as landscaping, gardening, mulching, and biomass production. One of the primary advantages of the Mobile DWC40 Diesel Wood Chipper is its power and performance. The diesel engine delivers robust torque and high compression ratios, enabling it to handle larger branches and tougher materials with ease. This ensures efficient and productive chipping, allowing you to process a significant amount of wood in a shorter timeframe. Fuel efficiency is another key feature of the Mobile DWC40. Diesel engines are known for their superior fuel economy compared to gasoline engines. This means that the chipper can operate for extended periods on a single tank of fuel, reducing downtime for refueling and increasing overall productivity. Durability and longevity are essential factors in any wood chipper, and the Mobile DWC40 excels in this regard. The diesel engine is renowned for its resilience and ability to withstand heavy workloads. With proper maintenance and care, this chipper can have a longer lifespan, ensuring reliable performance for years to come.

Specifications of DWC40 Diesel Wood Chipper

Specifications for Best Wood Chipper to Buy
Model	DWC-18	DWC-22	DWC-40
Engine	18HP Changechai diesel engine	22HP Changechai diesel engine	40HP Laidong diesel engine
Chipper capacity	max. 150mm	max. 150mm	max. 200mm
Feeding system	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic
Flywheel diameter	640mm	640mm	640mm
Blades number	1 stationary blade, 2 rotary blades
Flywheel weight	85kg	85kg	85kg
Feed Hopper Inner Opening	200x220mm	200x220mm	200x220mm
Rated RPM	1080	1080	1280
Weight	650kg	690kg	800kg
Working efficiency	7-11cbm/h	7-11cbm/h	9-13cbm/h

Key Advantages of the DWC40 Diesel Wood Chipper

The DWC40 Diesel Wood Chipper, while not a specific model available in my training data, I can provide you with some general advantages of diesel-powered wood chippers. Please note that specific features and advantages may vary depending on the exact model and manufacturer. Here are some key advantages commonly associated with diesel wood chippers:

• Power and Performance: Diesel engines are known for their robust power and torque, making them well-suited for heavy-duty applications. A diesel wood chipper can handle larger branches and tougher materials, providing excellent performance and productivity.
• Fuel Efficiency: Diesel engines are typically more fuel-efficient than their gasoline counterparts. This means that a diesel wood chipper can operate for longer periods on a single tank of fuel, reducing refueling downtime and increasing overall efficiency.
• Durability and Longevity: Diesel engines are known for their durability and longevity. They are designed to handle high compression ratios and heavy workloads, making them a reliable choice for demanding wood chipping tasks. With proper maintenance, a diesel wood chipper can have a longer lifespan compared to other types of engines.
• Versatility: Diesel wood chippers are often designed to handle a wide range of wood materials, including branches, logs, and brush. They can produce different sizes and types of wood chips, allowing for versatile applications such as landscaping, gardening, mulching, and biomass production.
• Mobility: Diesel-powered wood chippers are often equipped with sturdy wheels or a trailer hitch, making them easy to transport to different job sites. This mobility enables efficient use across various locations, whether for residential or commercial purposes.

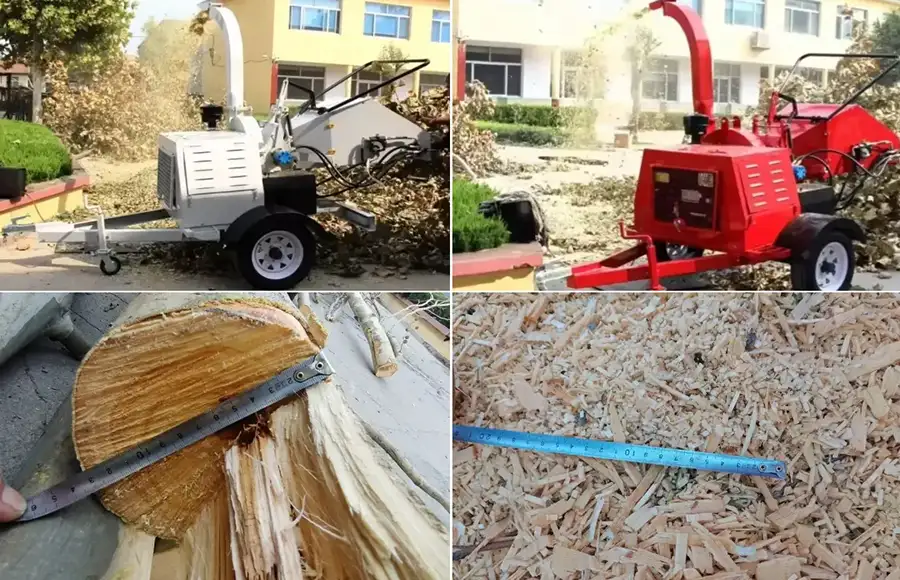

Applications of the DWC40 Diesel Wood Chipper

1. Land Clearing: The wood chipper is ideal for clearing land, turning branches and fallen trees into mulch that can be easily disposed of or used to enrich soil.
2. Waste Management: It can be used to manage wood waste on farms by turning it into wood chips which can be used for various purposes such as fuel or compost.
3. Forestry Operations: Forestry operations can use the wood chipper to process logging residues, making transport and disposal easier.
4. Garden Maintenance: The DWC40 is perfect for large-scale garden maintenance, easily processing branches and other garden waste.
5. Composting: The wood chips produced by the machine can be used to make compost, providing a natural and cost-effective fertilizer option.
6. Biofuel Production: Wood chips can be used in the production of biofuels, making the DWC40 a valuable tool in renewable energy operations.

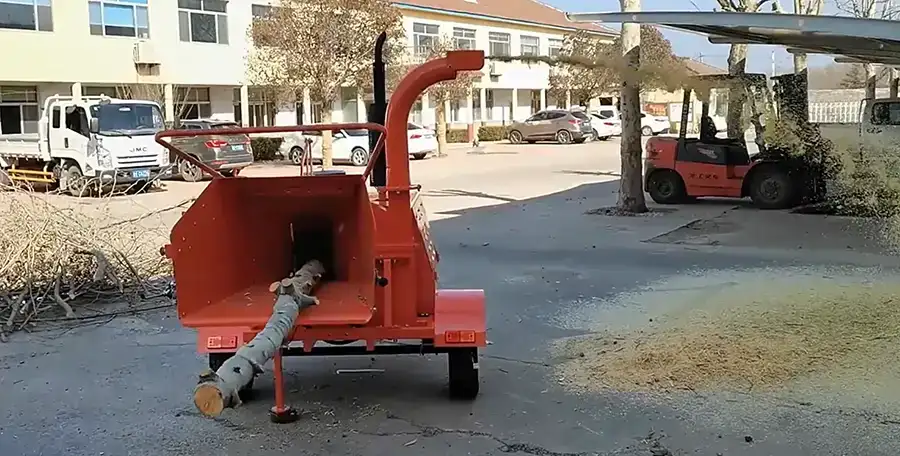

How Does the Diesel Wood Chipper Work?

A diesel wood chipper works by using a combination of mechanical force and sharp blades to shred and chip wood into smaller pieces. Here is a step-by-step explanation of how a diesel wood chipper typically operates:

1. Wood Material Input: The operator feeds the wood material into the chipper through the feed chute. This can include branches, logs, tree trunks, and other wood waste.
2. Diesel Engine Power: The chipper is equipped with a diesel engine that provides the necessary power to drive the chipper's cutting mechanism. The diesel engine generates high torque, allowing the chipper to handle tough and dense wood material effectively.
3. Cutting Mechanism: The cutting mechanism of a diesel wood chipper consists of a cutting disc or drum with sharp blades. The disc or drum is mounted on a rotating shaft connected to the diesel engine. As the engine powers the rotation of the cutting mechanism, the blades spin rapidly.
4. Wood Shredding and Chipping: As the wood material passes through the cutting mechanism, the sharp blades slice and shred it into smaller pieces. The high-speed rotation of the blades generates significant force, allowing the chipper to chip the wood into consistent-sized chips or mulch.
5. Discharge Chute: Once the wood is shredded and chipped, the resulting wood chips are expelled through the discharge chute. The discharge chute can be directed into a container, truck, or other designated area for collection and transport.

Diesel Wood Chipper Operating Precautions

Operating a diesel wood chipper requires careful attention to safety precautions to prevent accidents and ensure the well-being of the operator and those in the surrounding area. Here are some important operating precautions to follow when using a diesel wood chipper:

1. Inspection: Before starting the chipper, inspect it thoroughly for any signs of damage or wear. Check that all safety guards and shields are in place and secure. Ensure that the cutting blades are sharp and properly aligned. If any issues are identified, do not operate the chipper until the necessary repairs or adjustments have been made.
2. Clear the Work Area: Remove any obstructions, such as rocks, metal, or other debris, from the work area. Clear the area of people and pets to maintain a safe distance during operation. Establish a safety perimeter or use barriers to prevent unauthorized access to the chipper.
3. Feed Material Carefully: Feed the wood material into the chipper cautiously and at a controlled pace. Avoid overloading the chipper beyond its recommended capacity, as this can lead to malfunctions or accidents. Never insert your hands or any body part into the chipper's chute or near the rotating blades.
4. Maintain Stability: Ensure that the chipper is placed on stable ground and properly secured before operation. If the chipper is mobile, engage the brakes and ensure it is on a level surface. Avoid operating the chipper on slopes or uneven terrain that can compromise stability.
5. Shut Down and Maintenance: After using the chipper, wait for all moving parts to come to a complete stop before performing any maintenance or cleaning tasks. Follow the manufacturer's instructions for proper maintenance procedures, including blade sharpening, lubrication, and inspection of critical components.
6. Fuel Safety: Handle diesel fuel with care. Refuel the chipper in a well-ventilated area, away from open flames or sparks. Store fuel in approved containers and follow local regulations for fuel storage and disposal.

Common Troubleshooting for the Diesel Wood Chipper

While diesel wood chippers are designed to be reliable and durable machines, occasional issues may arise during operation. Here are some common troubleshooting steps for diesel wood chippers:

• Engine Won't Start: Check the fuel level and ensure there is enough diesel fuel in the tank. Verify that the fuel line is not blocked or clogged. Check the battery and connections to ensure they are in good condition. Ensure that the engine kill switch is in the "on" position. Refer to the chipper's manual for specific troubleshooting steps related to the engine.
• Engine Runs Roughly or Stalls: Check the fuel filters for clogs or contaminants and clean or replace them if necessary. Inspect the air filters and clean or replace them if dirty. Check the spark plugs for fouling or wear and replace them if needed. Ensure that the fuel injectors are clean and functioning properly. Check for any loose or damaged wires or connections.
• Chipper Blades are Dull or Inefficient: Inspect the blades for dullness, damage, or excessive wear. Sharpen or replace the blades following the manufacturer's guidelines. Ensure that the blades are securely fastened and properly aligned. Check the cutting disc or drum for any damage or misalignment.
• Chipper Jams or Material Doesn't Feed Properly: Stop the engine and disconnect the spark plug or power source before attempting any troubleshooting. Clear any jammed material from the feed chute and cutting mechanism. Ensure that the feed chute is not overloaded with wood material. Check for any obstructions or foreign objects in the feed chute or cutting mechanism.
• Excessive Vibration or Noise: Inspect the chipper for loose or damaged parts, such as bolts, nuts, or belts, and tighten or replace them if necessary. Check the bearings of the cutting mechanism for wear or damage and replace them if needed. Ensure that the chipper is sitting on a stable and level surface. Check for any debris or foreign objects caught in the cutting mechanism.

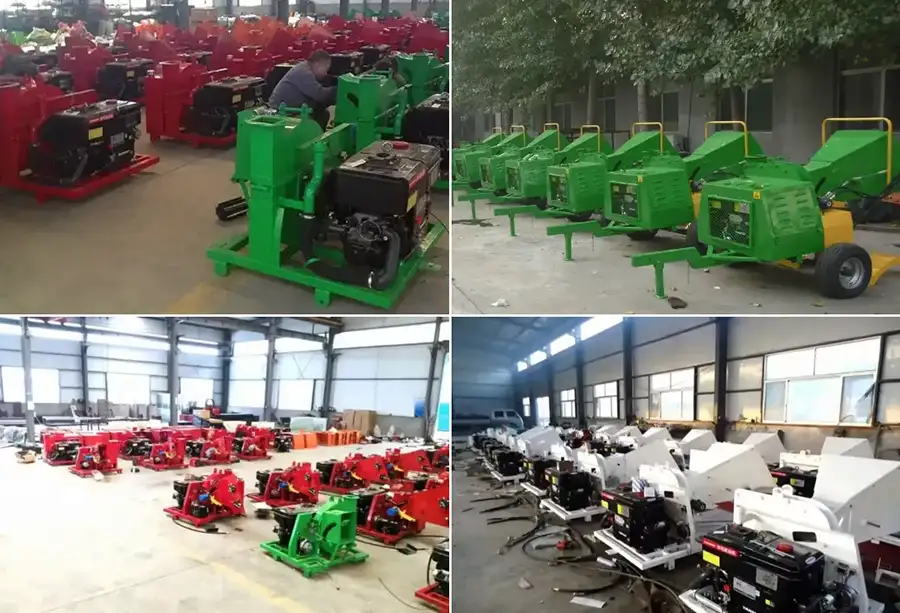

Why Choose Raydafon's Diesel Wood Chipper?

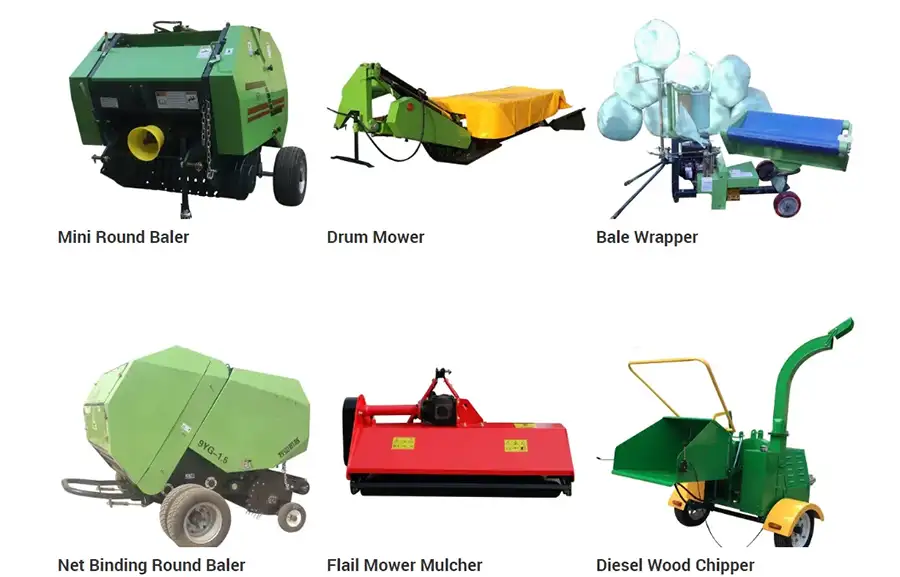

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer a range of professional, international certifications, customized services, state-of-the-art production facilities, and dependable after-sales services. Author: Yjx
