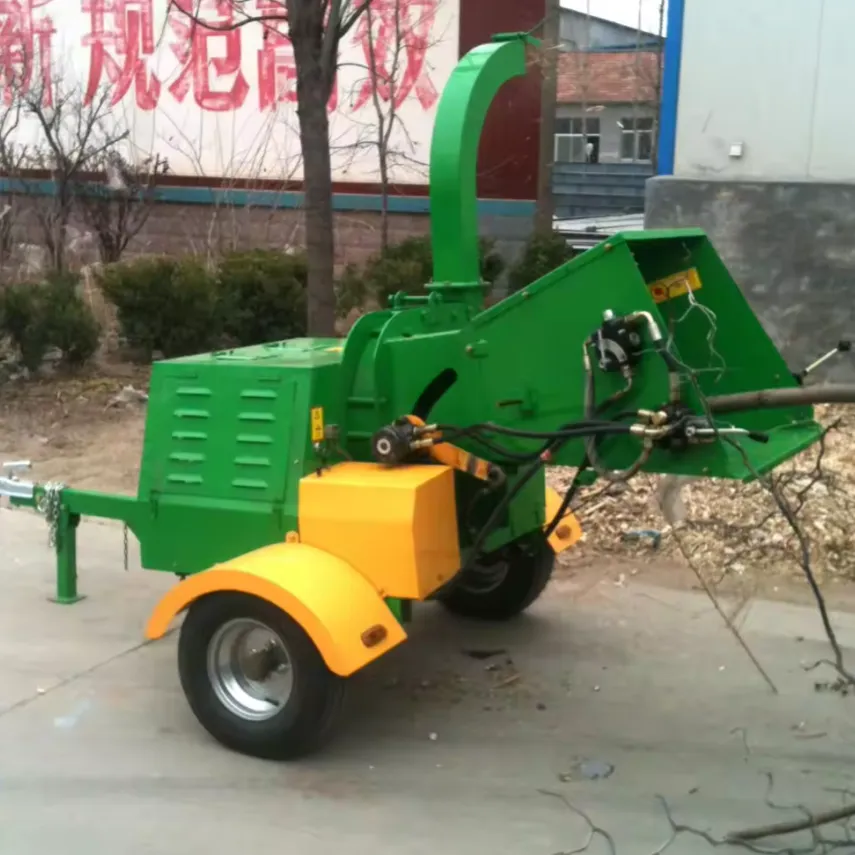

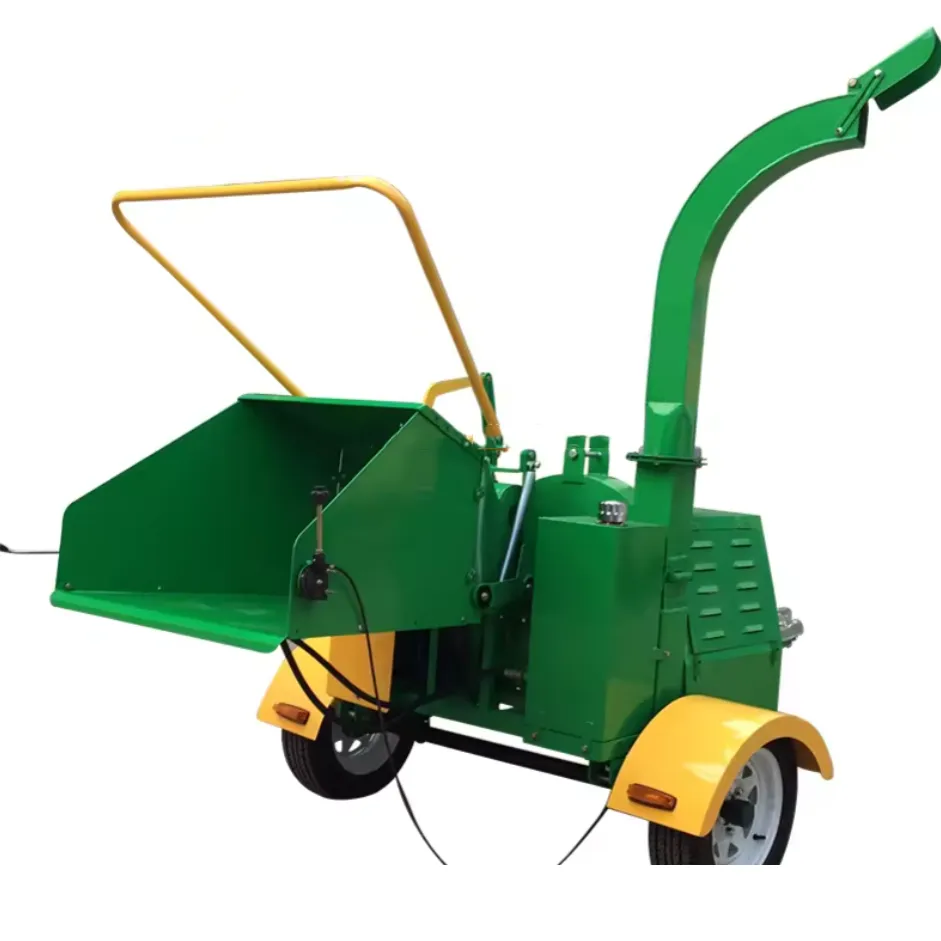

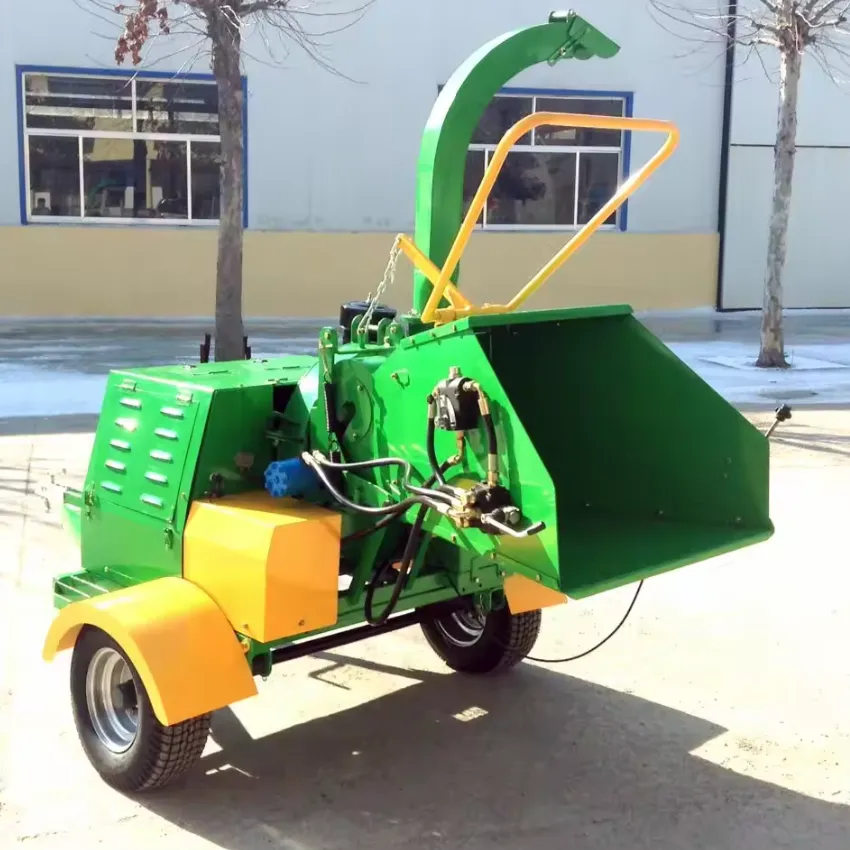

Diesel Wood Chipper for Cutting Wood into Small Pieces

[embed]https://youtu.be/sqxBad8yFs0[/embed] Ideal for farms, the Diesel Wood Chipper is a new, innovative machinery designed to efficiently chip wood. Assembled with core components such as Bearing, Pump and Pressure vessel, it is powered by a Changchai diesel engine CY1115, and is capable of cutting wood branches into chips. This wood chipper comes with optional parts such as a double feeding roller and an option for hydraulic or mechanical feeding. It measures 3100x1750x1800mm in dimension and weighs 650 KG. It offers a warranty of two years and is available in colours as per your request. A diesel wood chipper and shredder is a powerful machine designed to efficiently process wood waste and organic materials. It is commonly used in forestry, landscaping, and agricultural applications to reduce the size of branches, twigs, leaves, and other wood debris. The diesel engine provides the necessary power to operate the wood chipper and shredder, making it suitable for remote locations or areas without access to electricity. Diesel engines are known for their durability, reliability, and ability to generate high torque, making them ideal for handling tough wood materials. The main purpose of a wood chipper is to reduce the size of wood waste into smaller, more manageable pieces called wood chips. These chips can be used for various purposes, such as landscaping, mulching, biomass fuel, or composting. The shredding function of the machine further breaks down the wood chips into finer pieces, enhancing their usability. Diesel wood chippers and shredders typically consist of a feed hopper, a cutting mechanism, a discharge chute, and a collection bag or container. The feed hopper is where the wood waste is loaded into the machine. The cutting mechanism usually consists of sharp blades or knives that rotate at high speeds to chip or shred the wood. The discharge chute directs the processed material away from the machine, while the collection bag or container collects the output for further use or disposal.

Specifications of Diesel Wood Chipper & Shredder

Specifications for Chipper & Shredder
Model	DWC-18	DWC-22	DWC-40
Engine	18HP Changechai diesel engine	22HP Changechai diesel engine	40HP Laidong diesel engine
Chipper capacity	max. 150mm	max. 150mm	max. 200mm
Feeding system	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic
Flywheel diameter	640mm	640mm	640mm
Blades number	1 stationary blade, 2 rotary blades
Flywheel weight	85kg	85kg	85kg
Feed Hopper Inner Opening	200x220mm	200x220mm	200x220mm
Rated RPM	1080	1080	1280
Weight	650kg	690kg	800kg
Working efficiency	7-11cbm/h	7-11cbm/h	9-13cbm/h

Advantages of the Diesel Wood Chipper

The Diesel Wood Chipper comes with a multitude of advantages, making it a popular choice among users. Here are some of its notable features:

1. High Efficiency: The wood chipper is designed to shred wood branches into chips swiftly and efficiently.
2. Diesel-Powered: The use of a diesel engine provides robust and reliable performance, ensuring the machine can handle tough and dense wood materials effectively.
3. Customizable: The machine allows for customization in terms of colour and optional parts like feeding rollers, enhancing user convenience.
4. Compact and Portable: Its compact design and manageable weight of 650 KG make it easy to manoeuvre and transport across different locations.
5. Durable: Built with core components such as Bearing, Pump, and Pressure vessel, the machine promises durability and long lifespan.
6. Warranty: The machine comes with a two-year warranty, ensuring users' peace of mind.

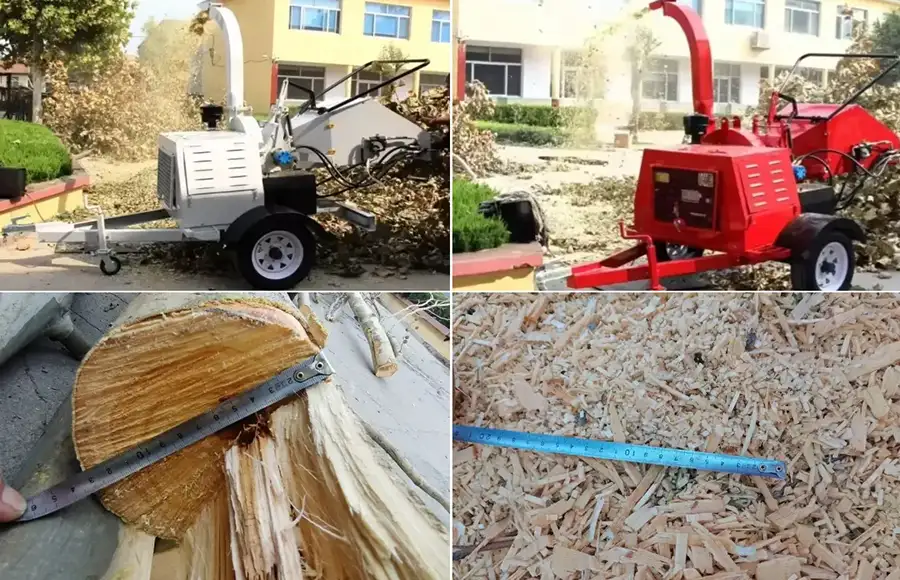

Diesel Wood Chipper Common Applications

A diesel wood chipper is a versatile machine with various applications across different industries. Some common applications of diesel wood chippers include:

• Forestry: In the forestry industry, diesel wood chippers are used for processing tree branches, limbs, and other wood waste generated during logging operations. The wood chips produced by the chipper can be used for biomass fuel, landscaping, or pulp and paper production.
• Landscaping and Gardening: Diesel wood chippers are widely used in landscaping and gardening to process tree and shrub trimmings, branches, and other green waste. The wood chips produced can be used as mulch to help retain moisture, suppress weed growth, and improve soil health in gardens, parks, and other outdoor spaces.
• Composting: Wood chips from diesel wood chippers can be used in composting operations. They provide a carbon-rich material that helps balance the carbon-to-nitrogen ratio in compost piles. Wood chips promote aeration, moisture retention, and microbial activity, resulting in the decomposition of organic matter into nutrient-rich compost.
• Construction and Demolition: Diesel wood chippers are employed in construction and demolition sites to process wood waste, such as demolished structures, pallets, and crates. The chipped wood can be recycled or used for various purposes, including landscaping and biomass fuel.
• Municipal Waste Management: Diesel wood chippers play a role in municipal waste management systems by processing tree branches, logs, and other wood waste collected from tree trimming, storm cleanup, or urban landscaping activities. The resulting wood chips can be used for city beautification projects, biomass energy production, or composting.
• Agriculture: Farmers and agricultural workers use diesel wood chippers to process crop residues, such as corn stalks, sugarcane tops, and pruning waste from orchards and vineyards. The resulting wood chips can be used as animal bedding, soil amendment, or biomass fuel.

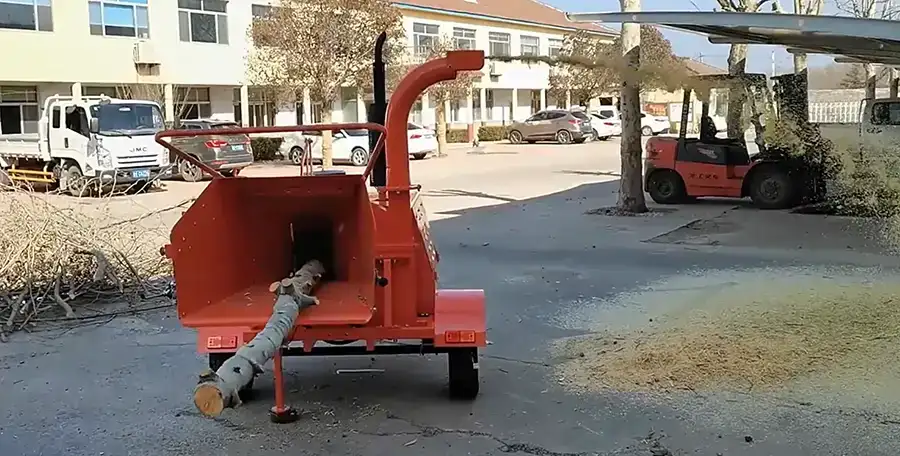

Diesel Wood Chipper Working Principle

The Diesel Wood Chipper's functionality is based on mechanical force and sharp blades that shred and chip wood into smaller pieces. Here's a step-by-step explanation of its operation:

1. Wood Material Input: The operator feeds the wood material into the chipper through the feed chute. This can include branches, logs, tree trunks, and other wood waste.
2. Diesel Engine Power: The chipper is equipped with a diesel engine that provides the necessary power to drive the chipper's cutting mechanism. The diesel engine generates high torque, allowing the chipper to handle tough and dense wood material effectively.
3. Cutting Mechanism: The cutting mechanism of a diesel wood chipper consists of a cutting disc or drum with sharp blades. The disc or drum is mounted on a rotating shaft connected to the diesel engine. As the engine powers the rotation of the cutting mechanism, the blades spin rapidly.
4. Wood Shredding and Chipping: As the wood material passes through the cutting mechanism, the sharp blades slice and shred it into smaller pieces. The high-speed rotation of the blades generates significant force, allowing the chipper to chip the wood into consistent-sized chips or mulch.
5. Discharge Chute: Once the wood is shredded and chipped, the resulting wood chips are expelled through the discharge chute. The discharge chute can be directed into a container, truck, or other designated area for collection and transport.

Operating Precautions of the Diesel Wood Chipper

Operating a diesel wood chipper requires careful attention to safety precautions to prevent accidents and ensure the well-being of the operator and those in the surrounding area. Here are some important operating precautions to follow when using a diesel wood chipper:

1. Inspection: Before starting the chipper, inspect it thoroughly for any signs of damage or wear. Check that all safety guards and shields are in place and secure. Ensure that the cutting blades are sharp and properly aligned. If any issues are identified, do not operate the chipper until the necessary repairs or adjustments have been made.
2. Clear the Work Area: Remove any obstructions, such as rocks, metal, or other debris, from the work area. Clear the area of people and pets to maintain a safe distance during operation. Establish a safety perimeter or use barriers to prevent unauthorized access to the chipper.
3. Feed Material Carefully: Feed the wood material into the chipper cautiously and at a controlled pace. Avoid overloading the chipper beyond its recommended capacity, as this can lead to malfunctions or accidents. Never insert your hands or any body part into the chipper's chute or near the rotating blades.
4. Maintain Stability: Ensure that the chipper is placed on stable ground and properly secured before operation. If the chipper is mobile, engage the brakes and ensure it is on a level surface. Avoid operating the chipper on slopes or uneven terrain that can compromise stability.
5. Shut Down and Maintenance: After using the chipper, wait for all moving parts to come to a complete stop before performing any maintenance or cleaning tasks. Follow the manufacturer's instructions for proper maintenance procedures, including blade sharpening, lubrication, and inspection of critical components.
6. Fuel Safety: Handle diesel fuel with care. Refuel the chipper in a well-ventilated area, away from open flames or sparks. Store fuel in approved containers and follow local regulations for fuel storage and disposal.

Common Troubleshooting of the Diesel Wood Chipper

While diesel wood chippers are designed to be reliable and durable machines, occasional issues may arise during operation. Here are some common troubleshooting steps for diesel wood chippers:

1. Engine Won't Start: Check the fuel level and ensure there is enough diesel fuel in the tank. Verify that the fuel line is not blocked or clogged. Check the battery and connections to ensure they are in good condition. Ensure that the engine kill switch is in the "on" position. Refer to the chipper's manual for specific troubleshooting steps related to the engine.
2. Engine Runs Roughly or Stalls: Check the fuel filters for clogs or contaminants and clean or replace them if necessary. Inspect the air filters and clean or replace them if dirty. Check the spark plugs for fouling or wear and replace them if needed. Ensure that the fuel injectors are clean and functioning properly. Check for any loose or damaged wires or connections.
3. Chipper Blades are Dull or Inefficient: Inspect the blades for dullness, damage, or excessive wear. Sharpen or replace the blades following the manufacturer's guidelines. Ensure that the blades are securely fastened and properly aligned. Check the cutting disc or drum for any damage or misalignment.
4. Chipper Jams or Material Doesn't Feed Properly: Stop the engine and disconnect the spark plug or power source before attempting any troubleshooting. Clear any jammed material from the feed chute and cutting mechanism. Ensure that the feed chute is not overloaded with wood material. Check for any obstructions or foreign objects in the feed chute or cutting mechanism.
5. Excessive Vibration or Noise: Inspect the chipper for loose or damaged parts, such as bolts, nuts, or belts, and tighten or replace them if necessary. Check the bearings of the cutting mechanism for wear or damage and replace them if needed. Ensure that the chipper is sitting on a stable and level surface. Check for any debris or foreign objects caught in the cutting mechanism.

Why Choose Raydafon's Diesel Wood Chipper?

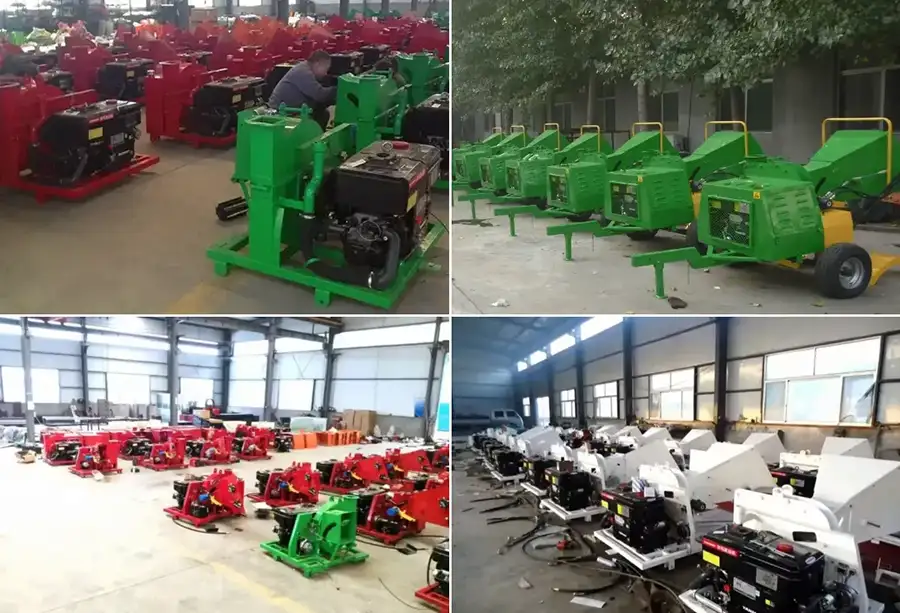

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for over a decade. With a team of more than 100 employees, including 20 technical staff and five senior R&D personnel, we are committed to providing high-quality, reliable and efficient machinery to our customers. Our products, including the Diesel Wood Chipper, are designed with advanced technology and made with superior materials to ensure durability and high performance. Our company is equipped with two advanced casting, forging, machining, heat treatment, and lacquering production lines. We use CAD computer-aided design system for precision and accuracy in our designs. We offer a wide range of farming machinery, planting machinery, harvesting machinery and their accessories, and matching machines. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Our professionalism is marked by international certifications and we offer customized services as per the clients' requirements. We are dedicated to providing excellent after-sales services to ensure customer satisfaction. Choosing Raydafon's Diesel Wood Chipper ensures you receive a superior product backed by extensive experience and commitment to quality. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer a range of professional, international certifications, customized services, state-of-the-art production facilities, and dependable after-sales services. Author: Yjx
