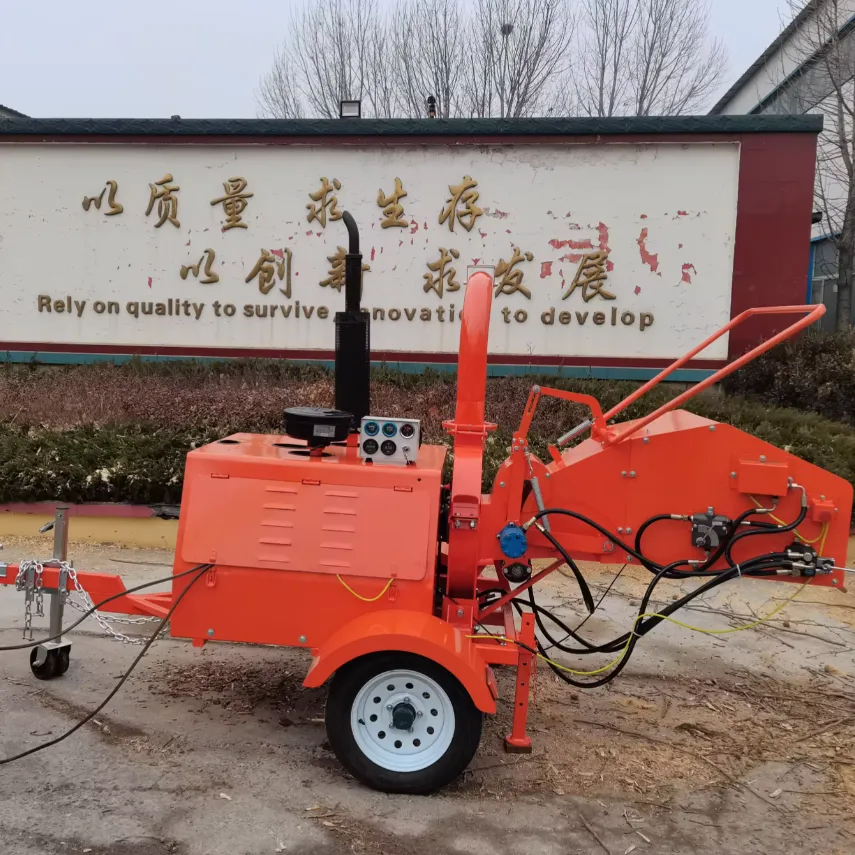

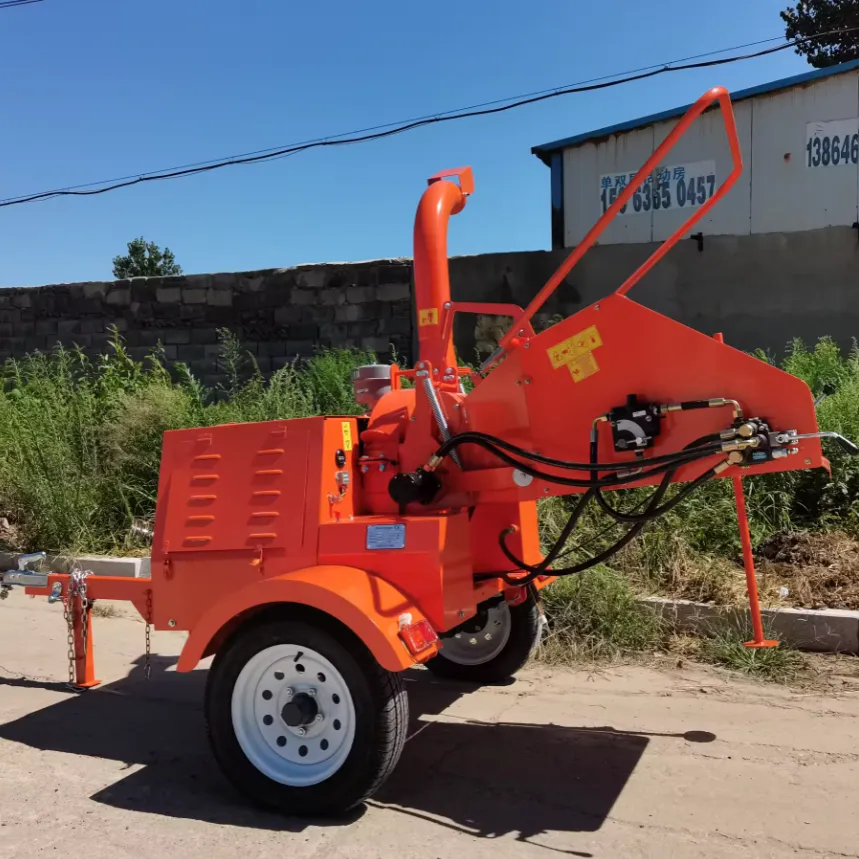

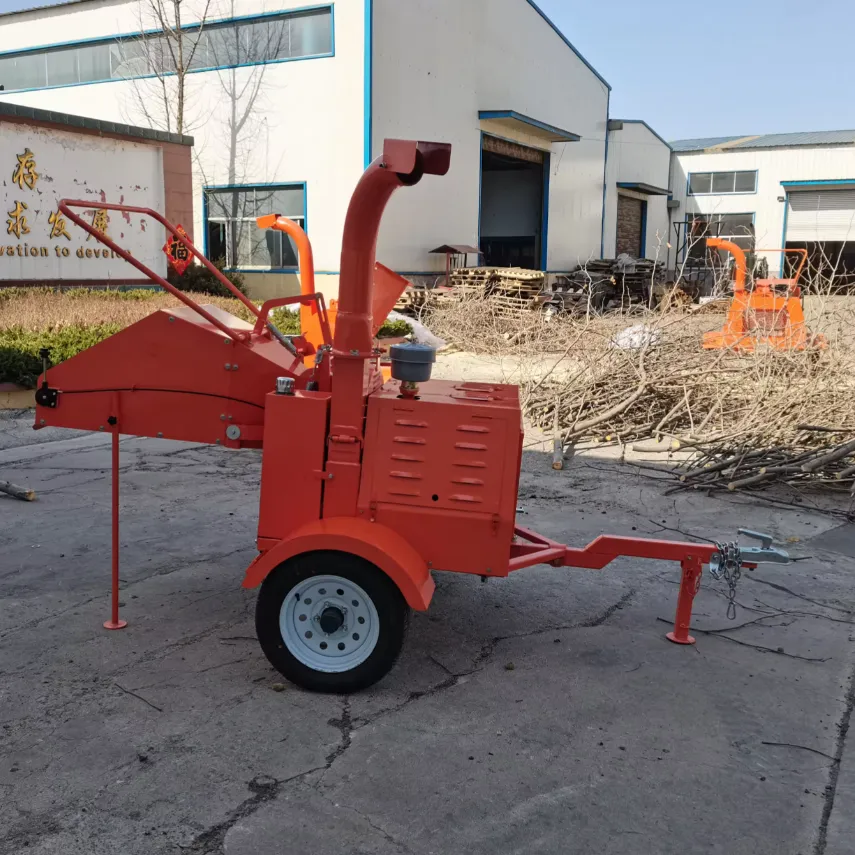

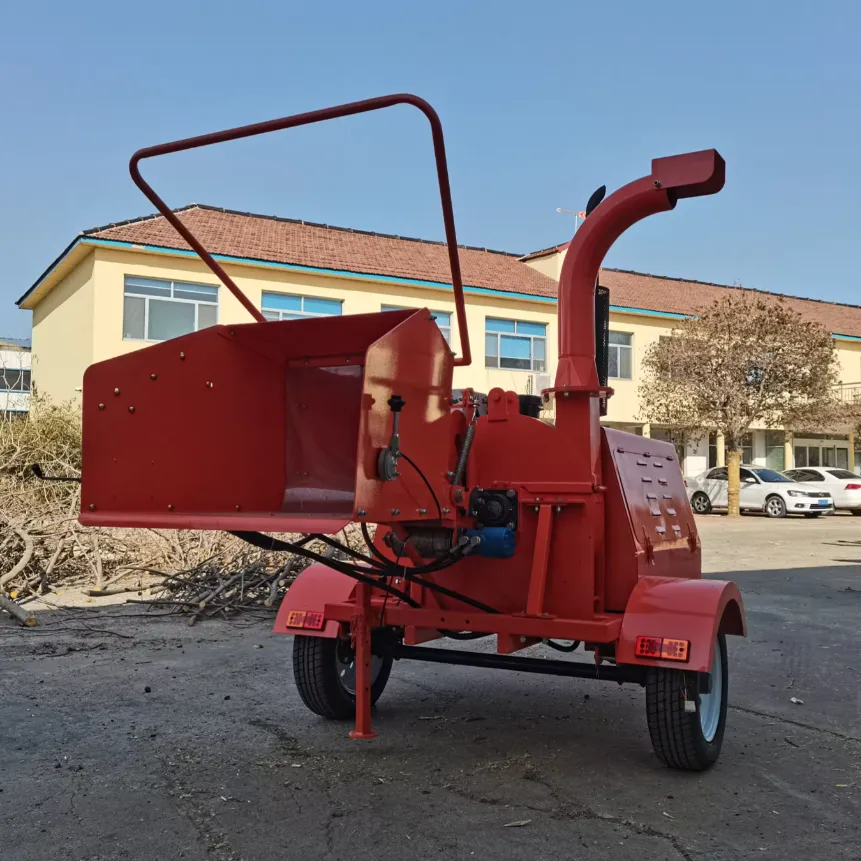

DWC22 Diesel Wood Chipper for Wood Chipping

[embed]https://youtu.be/sqxBad8yFs0[/embed] The DWC22 Diesel Wood Chipper is a robust, heavy-duty machine designed for chipping wood, turning tree branches, limbs, and trunks into smaller, manageable wood chips. These machines are often used in various settings, including forestry, landscaping, and in the creation of biomass fuels. The chipper is equipped with a reliable diesel engine, which provides ample power to drive the cutting mechanism. Diesel engines are known for their durability, efficiency, and ability to handle heavy-duty tasks. The diesel wood chipper DWC22 has a high chipping capacity, capable of handling wood pieces up to 22 inches in diameter. This makes it suitable for processing large branches and logs, minimizing the need for manual cutting and reducing overall processing time. The wood chipper utilizes a cutting mechanism consisting of sharp blades or knives that rotate at high speeds. As wood is fed into the chipper, the blades effectively slice and chip the material into smaller pieces. The machine is designed to produce consistent and uniform chips. The DWC22 diesel wood chipper is versatile in its application, capable of chipping various types of wood, including hardwood and softwood. It can efficiently process branches, trunks, leaves, and other wood waste, making it an essential tool for tasks such as tree maintenance, land clearing, and waste disposal. The DWC22 Diesel Wood Chipper is an industrial-grade wood chipping machine with a one-year warranty. It is categorized as a garden shredder and disc chipper. The chipper supports customization options such as OEM, ODM, and OBM. The model number for this particular chipper is DWC-22/DWC-40. It runs on a diesel power source and has a hydraulic or mechanical roller feeding system. The machine is certified and comes packaged in an iron crate. It is shipped from the port of Qingdao.

Specifications of the DWC22 Diesel Wood Chipper

Specifications for DWC22 Diesel Wood Chipper
Model	DWC-18	DWC-22	DWC-40
Engine	18HP Changechai diesel engine	22HP Changechai diesel engine	40HP Laidong diesel engine
Chipper capacity	max. 150mm	max. 150mm	max. 200mm
Feeding system	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic
Flywheel diameter	640mm	640mm	640mm
Blades number	1 stationary blade, 2 rotary blades
Flywheel weight	85kg	85kg	85kg
Feed Hopper Inner Opening	200x220mm	200x220mm	200x220mm
Rated RPM	1080	1080	1280
Weight	650kg	690kg	800kg
Working efficiency	7-11cbm/h	7-11cbm/h	9-13cbm/h

Benefits of Using the DWC22 Diesel Wood Chipper

The DWC22 Diesel Wood Chipper offers numerous benefits for users needing efficient, reliable wood processing. From environmental advantages to operational efficiency, this machine is designed to meet the needs of a wide range of applications, including forestry, landscaping, and biomass production. Here are some of the key benefits of using the DWC22 Diesel Wood Chipper: 1. High Efficiency and Productivity

• Powerful Performance: The diesel engine provides robust power, allowing the DWC22 to chip wood quickly and efficiently. This high level of performance is essential for handling large volumes of wood, reducing the time and effort required for wood processing tasks.
• Large Chipping Capacity: Capable of processing wood of various sizes, the Diesel Wood Chipper DWC22 can handle a wide range of materials, from small branches to large trunks. This versatility ensures high productivity, as it can accommodate different types of wood waste without the need for extensive pre-processing.

2. Durability and Reliability

• Robust Construction: Diesel wood chipper DWC22 is built to withstand tough working conditions. The use of high-quality materials and components ensures long-term durability, reducing downtime and maintenance costs.
• Diesel Engine Advantages: Diesel engines are known for their longevity and reliability. They offer superior torque compared to gasoline engines, making them ideal for the heavy-duty task of wood chipping.

3. Cost-Effectiveness

• Reduced Waste Disposal Costs: By converting wood waste into chips, the DWC22 helps to significantly reduce the volume of waste. This can lead to lower disposal fees and transportation costs, as the processed wood chips are easier and cheaper to transport.
• Versatile End Product: The wood chips produced can be used for various purposes, such as mulch for landscaping, biomass fuel, or even in the production of wood-based products, adding value to what would otherwise be considered waste.

4. Environmental Benefits

• Waste Recycling: The Diesel Wood Chipper DWC22 contributes to environmental sustainability by recycling wood waste into useful products. This not only reduces the amount of waste sent to landfills but also contributes to the conservation of resources.
• Carbon Footprint Reduction: By processing wood waste on-site and using the resulting wood chips as a renewable energy source or as organic mulch, the DWC22 helps to reduce the carbon footprint associated with waste disposal and the use of non-renewable materials.

5. Mobility and Ease of Use

• Portability: Designed to be towed, the DWC22 Diesel Wood Chipper can easily be transported to various job sites. This mobility is particularly beneficial for businesses that operate across multiple locations, such as landscaping companies or forestry services.
• User-Friendly Design: With features aimed at simplifying operation and maintenance, such as easy access to cutting blades for replacement or cleaning, the DWC22 is designed to be user-friendly, minimizing the training required to operate the machine safely and effectively.

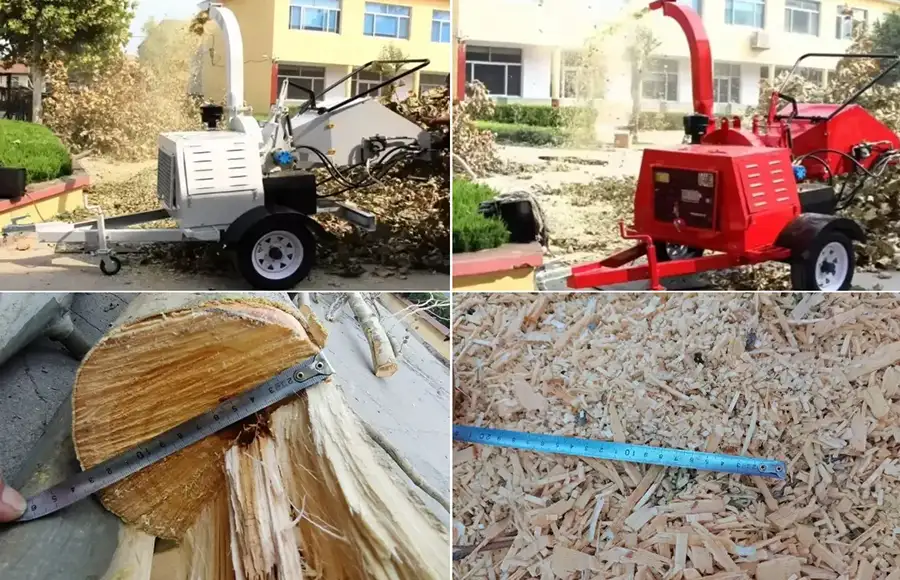

DWC22 Diesel Wood Chipper Application Scenarios

The DWC22 Diesel Wood Chipper is a versatile machine that finds its application in a variety of scenarios, ranging from forestry operations to urban landscaping and biomass production. Its robust design, powered by a diesel engine, enables it to efficiently process wood waste into smaller, manageable chips. Below are some application scenarios where the DWC22 Diesel Wood Chipper proves to be especially useful: (1) Forestry and Woodland Management: In forestry operations, the DWC22 can be used to clear underbrush and process fallen trees and limbs. This not only helps in managing forest health by reducing fuel load and controlling pests but also aids in creating trails or clearing areas for replanting. The wood chips produced can be used as biomass fuel, mulch, or left to decompose naturally, contributing to soil health. (2) Urban and Municipal Landscaping: Municipalities and landscaping companies can utilize the Diesel Wood Chipper DWC22 for maintaining parks, green spaces, and roadside vegetation. Pruned branches and trimmed trees can be quickly turned into wood chips, which can then be used within the community as mulch for public gardens, playgrounds, or as a soil conditioner. This reduces the cost and environmental impact associated with transporting and disposing of green waste. (3) Biomass Fuel Production: The demand for renewable energy sources has made biomass fuel an increasingly popular option. The Diesel Wood Chipper DWC22 can play a crucial role in producing biomass chips from wood waste, which can be burned in specialized stoves and boilers to generate heat or electricity. This application not only provides a cost-effective fuel option but also helps in reducing carbon emissions by utilizing renewable resources. (4) Agricultural and Orchard Management: In agricultural settings, particularly in orchards and vineyards, the DWC22 can be used to chip pruned branches and old vines. These wood chips can then be spread as mulch around the base of trees and plants, helping to retain soil moisture, regulate temperature, and suppress weed growth, thereby enhancing soil health and fertility. (5) Construction and Demolition Sites: On construction and demolition sites, the DWC22 Diesel Wood Chipper can assist in managing wood waste, including pallets, offcuts, and old lumber. Processing these materials into chips can reduce waste disposal costs and provide an opportunity to reuse the chips for landscaping, erosion control, or as a component of building materials like particleboard.

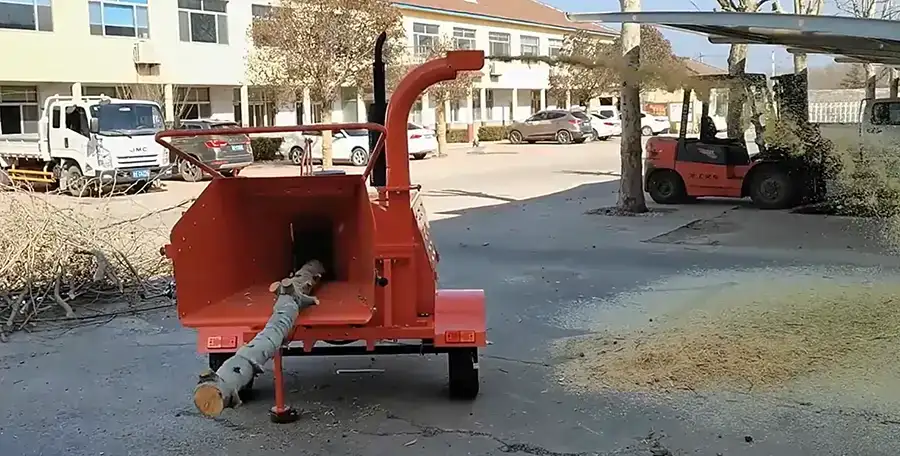

Working Principle of the Diesel Wood Chipper DWC22

The DWC22 Diesel Wood Chipper operates on principles common to many wood chipping machines, but with the robustness and efficiency provided by its diesel engine. Understanding its working principle involves looking at the main components and how they function together to convert large pieces of wood into chips. Here’s a simplified overview:

• Diesel Engine: The heart of the DWC22 is its diesel engine, which provides the power needed to drive the chipper mechanism. Diesel engines are chosen for their durability, fuel efficiency, and high torque output, making them ideal for the heavy-duty requirements of wood chipping.
• Feeding Mechanism: Wood is introduced into the chipper via a feeding mechanism, which could be manual or hydraulic. In more advanced models like the DWC22, a hydraulic feed system is often used. This system consists of rollers or a conveyor belt that grabs the wood and guides it into the chipper at a controlled rate. This automation enhances safety and efficiency, allowing for a steady and consistent feed into the chipper blades.
• Chipping Blades or Knives: At the core of the machine is the chipping mechanism, typically consisting of a rotating disk or drum equipped with high-strength blades or knives. These blades are mounted on the drum in such a way that as the drum spins at high speed (powered by the diesel engine), the blades cut into the wood, slicing it into chips. The size and shape of the chips can often be adjusted by changing the blades or modifying the speed of the feed mechanism.
• Discharge Chute: After the wood is chipped, the chips are ejected from the machine through a discharge chute. The direction and angle of the chute can usually be adjusted to direct the wood chips into a container, onto the ground, or into a truck for transport. This part of the DWC22 is crucial for managing the output efficiently, especially in operations where the chips are being collected for specific uses.
• Control System: Operators control the DWC22 through a control system that may include start and stop functions, emergency shutoffs, and adjustments for the feed rate and chip size. Advanced models might also feature diagnostics and alerts for maintenance needs, enhancing safety and operational efficiency.

Working Process Summary:

1. Starting Up: The operator starts the diesel engine, which powers the drum or disk with the chipping blades.
2. Feeding: Wood is fed into the machine via the feeding mechanism, where it is grabbed and pulled into the path of the rotating blades.
3. Chipping: As the wood comes into contact with the fast-spinning blades, it is quickly chopped into chips.
4. Discharging: The wood chips are then thrown out of the machine through the discharge chute, where they can be collected or dispersed as needed.

Common Troubleshooting for DWC22 Diesel Wood Chipper

The DWC22 Diesel Wood Chipper, like any heavy machinery, can encounter issues during operation. Regular maintenance and proper use are key to minimizing these problems, but when issues do arise, it's important to know how to troubleshoot them. Below are some common problems encountered with diesel wood chippers and tips on how to address them:

1. Engine Won't Start or Runs Poorly

• Fuel Issues: Check if there's enough diesel fuel in the tank. Also, ensure the fuel is clean and not contaminated. Replace fuel filters if necessary.
• Battery Problems: A dead or weak battery can prevent the engine from starting. Check the battery charge and connections.
• Air Intake: A blocked air intake can affect engine performance. Inspect the air filter and replace it if it's dirty or clogged.

2. Insufficient Chipping Power or Inefficiency

• Dull Blades: Regular use can dull the chipping blades, reducing efficiency. Inspect the blades and sharpen or replace them as needed.
• Engine Performance: Ensure the engine is running at the correct RPM. Low power output may affect the chipping process.
• Overfeeding: Feeding wood too quickly can overload the system. Try reducing the feed rate.

3. Hydraulic Feeding System Issues

• Hydraulic Fluid Levels: Low hydraulic fluid levels can lead to poor feed system performance. Check and refill the hydraulic fluid if needed.
• Leaks or Damage: Inspect hydraulic lines and fittings for leaks or damage. Replace or repair any faulty components.
• Hydraulic Pressure: Incorrect hydraulic pressure settings can affect the feeding mechanism. Refer to the manufacturer’s guide to adjust the pressure settings properly.

4. Excessive Vibration

• Unbalanced Chipper Drum or Disc: Wear and tear or damage can cause the chipper drum or disc to become unbalanced. Check for damaged parts and ensure the drum or disc is properly balanced.
• Loose Components: Check for any loose nuts, bolts, or other components that might cause vibration. Tighten as necessary.
• Mounting Issues: Ensure the chipper is correctly mounted and stabilized according to the manufacturer’s instructions.

5. Chipper Produces Uneven Chips or Jams Frequently

• Blade Configuration: Incorrectly installed or misaligned blades can produce uneven chips. Check the alignment and spacing of the blades.
• Wood Type and Size: Ensure the wood being chipped is within the size and type specifications for the machine. Hardwoods or wood with lots of knots may require slower feeding.
• Clearing Jams: If the chipper jams, follow safety procedures to turn off the machine and clear the blockage. Regularly check for and remove any debris that might cause jams.

6. Noise Issues

• Bearing Wear: Worn bearings can produce excessive noise. Inspect and replace any worn bearings.
• Mechanical Damage: Damaged or worn mechanical parts can increase noise levels. Conduct a thorough inspection and replace damaged components.

Choose the Right Diesel Wood Chipper for Wood Chipping

Choosing the right diesel wood chipper for your wood chipping needs involves considering a range of factors to ensure you select a machine that not only meets your immediate requirements but also offers reliability, efficiency, and longevity. Here’s a guide to help you make an informed decision: 1. Understand Your Needs: Volume and Type of Material: Assess the average volume and type of material you plan to chip. Different chippers handle different diameters of branches and types of wood with varying efficiency. Usage Frequency: Consider how often the chipper will be used—daily, weekly, or occasionally. More frequent use demands a more robust and durable machine. End Product Usage: Determine what the chipped material will be used for—mulch, biomass fuel, or disposal. This can affect the size of the chip required and, consequently, the type of chipper. 2. Engine Power and Size: Power Requirements: Higher horsepower engines can handle larger, tougher materials and continuous operation more efficiently. Match the engine power to the toughness and volume of material you need to chip. Efficiency and Fuel Consumption: Diesel engines are known for their efficiency and torque, but consider fuel consumption rates as they can vary between models. 3. Chipping Capacity: Maximum Diameter: Check the maximum diameter of wood the chipper can process. This should align with the typical size of the material you need to chip. Feed Type: Consider whether a gravity feed or a hydraulic feed system is more suitable for your needs. Hydraulic feed systems can handle irregular shapes and sizes more effectively but come at a higher cost. 4. Portability and Size: Mobility Needs: If you need to move the chipper between locations, consider its size and weight, and whether it can be easily towed. Also, check the requirements for transportation, such as a specific type of vehicle or trailer. Space Constraints: Assess the storage space you have available. Larger chippers offer more power and capacity but take up more space. 5. Durability and Maintenance: Construction Quality: Look for chippers with robust construction and high-quality materials to ensure longevity and durability. Ease of Maintenance: Consider how easy it is to perform regular maintenance tasks, such as changing blades or filters, and check the availability of spare parts. 6. Safety Features: Safety Mechanisms: Ensure the chipper includes necessary safety features, such as emergency stop controls, safety guards, and reverse feed options to clear jams safely.

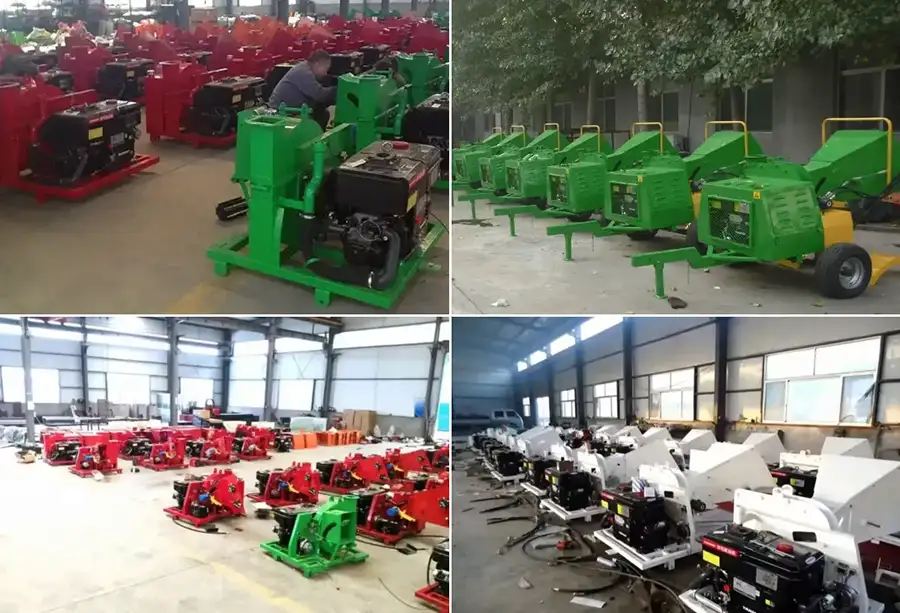

Why Choose Raydafon's Diesel Wood Chipper?

Raydafon Agricultural Machinery Co., Ltd. is a leading manufacturer of agricultural machinery, including the DWC22 Diesel Wood Chipper. With over 100 employees and advanced production facilities, Raydafon is committed to delivering high-quality products that meet international standards. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, hay square baler, PTO wood chipper, diesel wood chipper, drum mowers, rotary hay rakes, silage harvester, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, chain trencher, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. Raydafon offers a wide range of products, including farming machinery, planting machinery, harvesting machinery, and accessories. The company's products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia. Raydafon stands out for its professionalism, international certifications, customized services, and top-notch production facilities. The company offers excellent after-sales services, ensuring customers get the most out of their products. Raydafon's commitment to quality and customer satisfaction has made it a preferred choice for customers around the world. Author: Yjx
