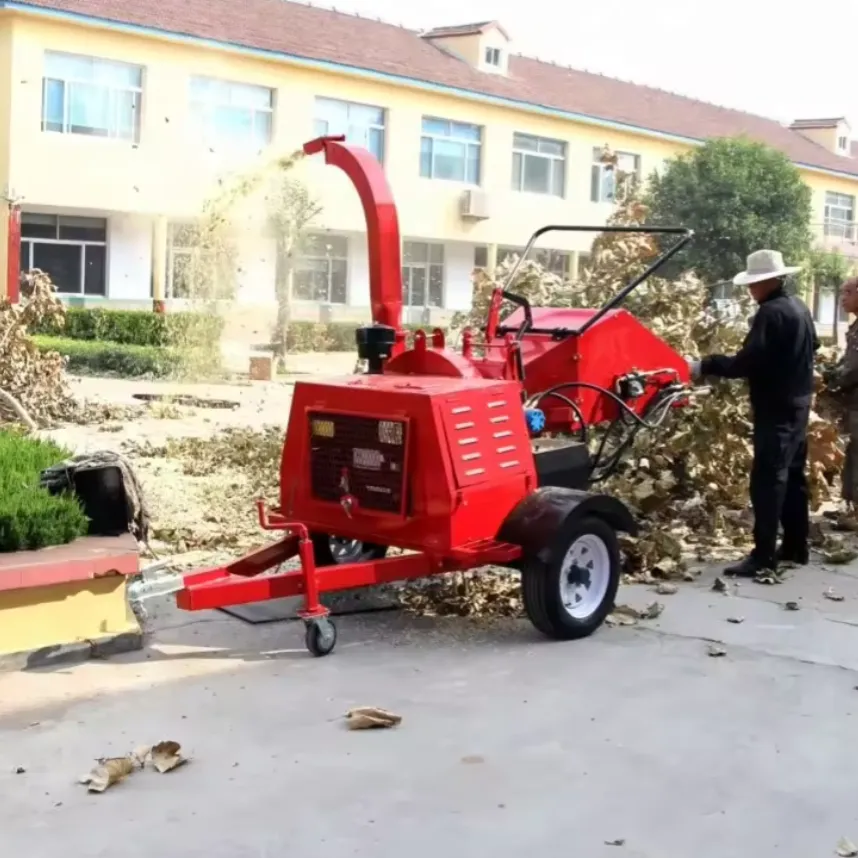

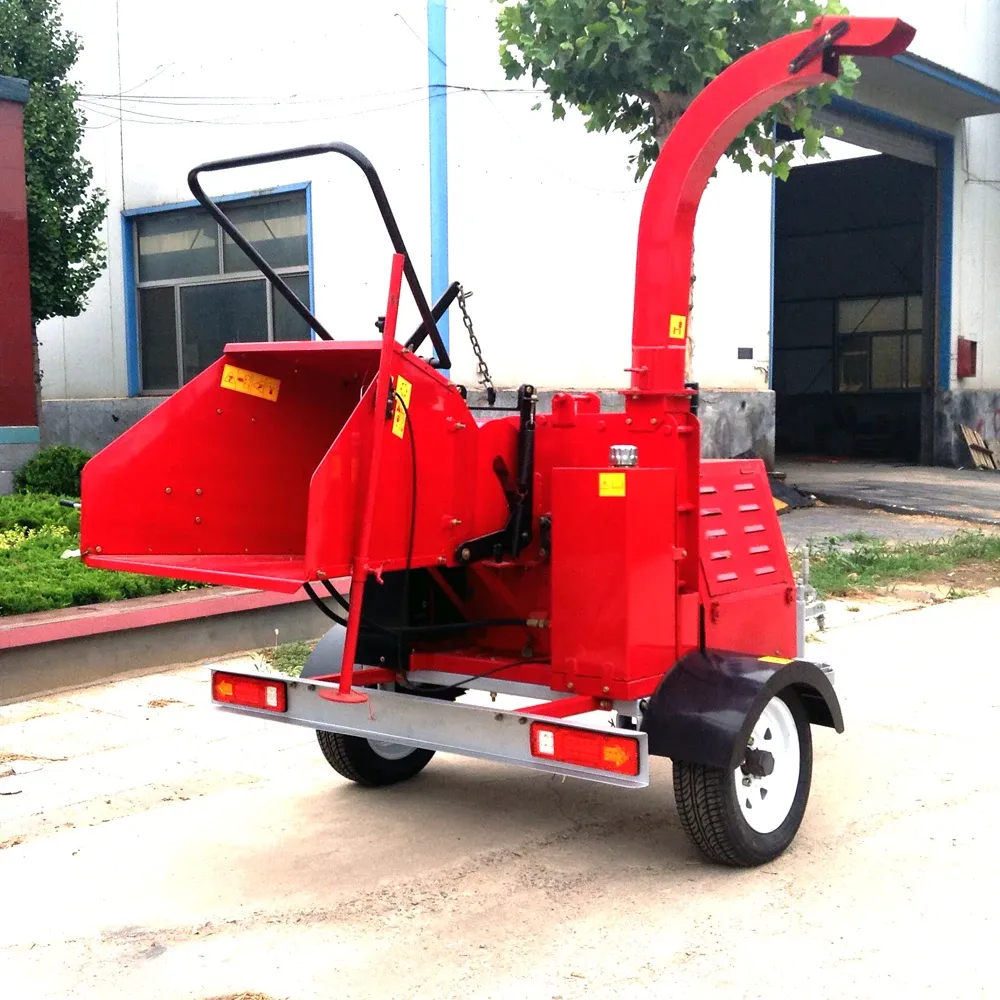

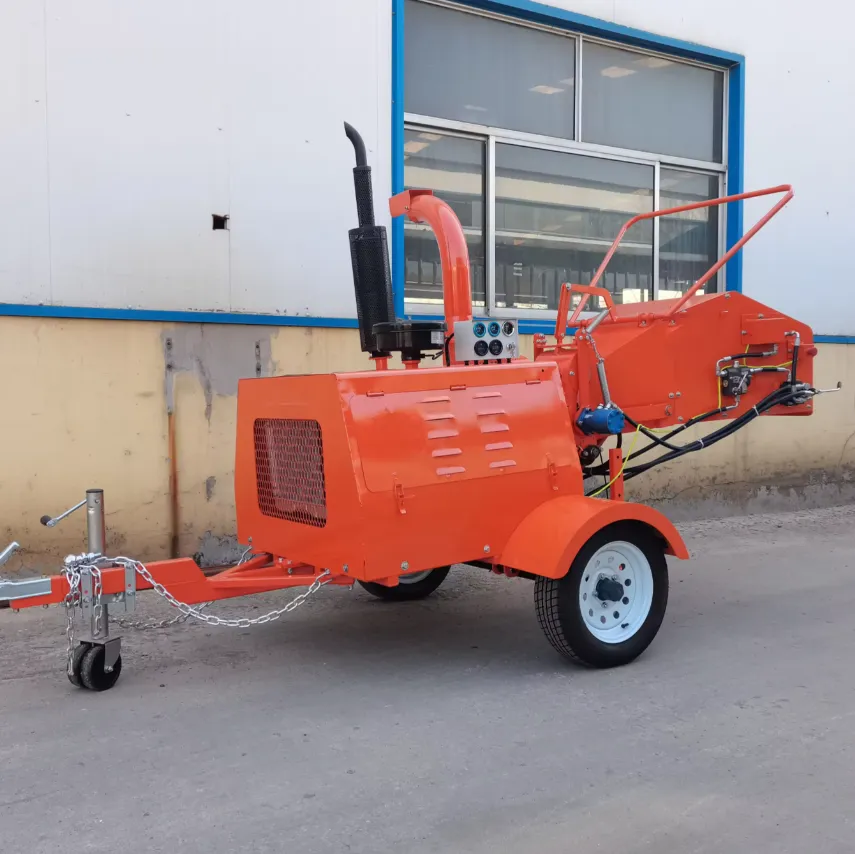

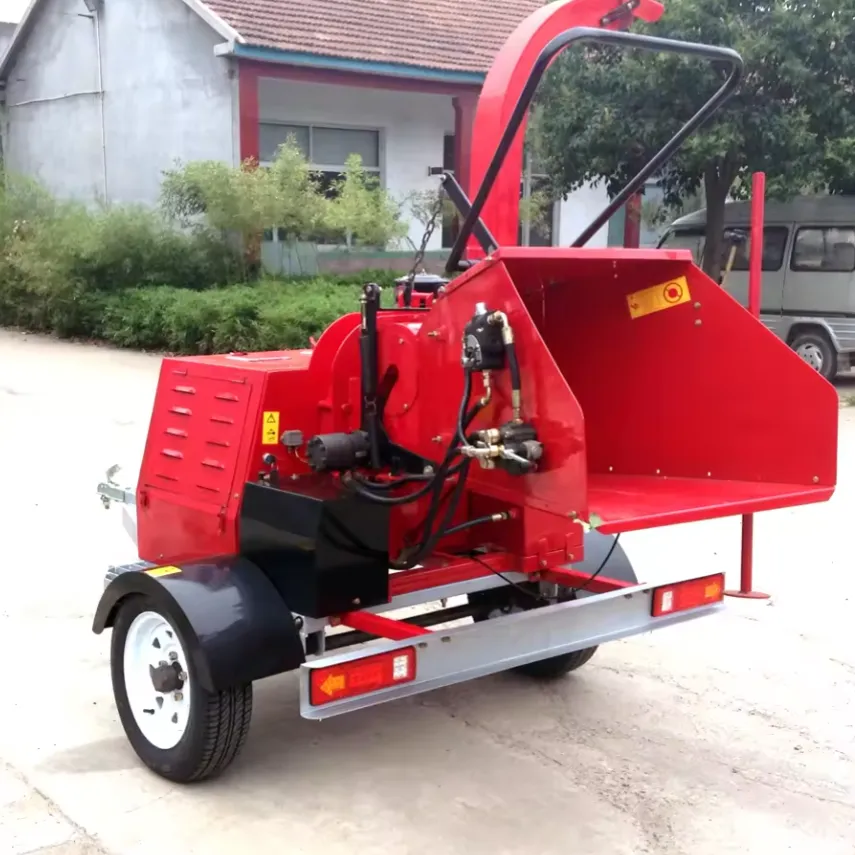

Mobile DWC22 Diesel Wood Chipper for Chipping Wood

[embed]https://youtu.be/sqxBad8yFs0[/embed] The Mobile DWC22 Diesel Wood Chipper is a compact, yet powerful, piece of machinery designed to meet the needs of various users ranging from professional landscapers and arborists to property owners and municipal workers. Powered by a diesel engine, this mobile wood chipper provides a reliable and efficient solution for chipping wood and tree branches, turning them into smaller, manageable chips suitable for mulching, landscaping, or disposal.

Key Features of the Mobile DWC22 Diesel Wood Chipper

• Diesel Engine Efficiency: The DWC22 is equipped with a diesel engine that offers superior performance and durability. Diesel engines are known for their long lifespan, excellent fuel efficiency, and ability to deliver high torque at low speeds, making them ideal for the demanding task of wood chipping.
• High Chipping Capacity: Designed to handle a variety of wood and tree branches with ease, the DWC22 can typically chip materials up to 6 inches in diameter. This capacity makes it versatile for a wide range of chipping tasks, from clearing yard debris to managing larger tree removal projects.
• Robust Cutting Mechanism: The chipper features a durable cutting mechanism, often comprising a rotating drum or disc equipped with sharp blades. This design ensures consistent, high-quality wood chips and efficient operation, even in challenging conditions.
• Mobile and Towable: One of the standout features of the DWC22 is its mobility. Mounted on a sturdy frame with wheels, this wood chipper can be towed behind a vehicle, allowing for easy transportation to and from job sites, as well as greater flexibility in accessing remote or difficult-to-reach areas.
• Hydraulic Feeding System: To enhance safety and operational efficiency, the DWC22 often includes a hydraulic feeding system. This system automates the feeding of wood into the chipper, adjusting the feed rate to optimize chipping performance and reduce the need for manual input.

Specifications of Mobile DWC22 Diesel Wood Chipper

Specifications for Diesel Wood Chippers and Shredders
Model	DWC-18	DWC-22	DWC-40
Engine	18HP Changechai diesel engine	22HP Changechai diesel engine	40HP Laidong diesel engine
Chipper capacity	max. 150mm	max. 150mm	max. 200mm
Feeding system	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic
Flywheel diameter	640mm	640mm	640mm
Blades number	1 stationary blade, 2 rotary blades
Flywheel weight	85kg	85kg	85kg
Feed Hopper Inner Opening	200x220mm	200x220mm	200x220mm
Rated RPM	1080	1080	1280
Weight	650kg	690kg	800kg
Working efficiency	7-11cbm/h	7-11cbm/h	9-13cbm/h

Advantages of Using the Mobile DWC22 Diesel Wood Chipper

The Mobile DWC22 Diesel Wood Chipper offers a suite of advantages that make it a standout choice for professionals and enthusiasts alike who require efficient wood and tree branch chipping. Here’s a breakdown of its key benefits: 1. Powerful Diesel Engine: Diesel engines provide high torque at lower RPMs, making the DWC22 exceptionally efficient at chipping tough materials without straining the engine, leading to fuel efficiency and longer operational life. 2. High Chipping Capacity: Capable of processing wood and branches up to 6 inches in diameter, the DWC22 can tackle a wide range of chipping tasks, from light yard debris to more substantial tree limbs, enhancing its utility across different job requirements. 3. Mobility and Portability: Being mobile and towable, the Diesel Wood Chipper DWC22 can be easily transported to and from job sites. This flexibility is invaluable for professionals who work in multiple locations or need to access remote or difficult-to-reach areas. 4. Hydraulic Feeding System: The hydraulic feeding system automates the process of feeding material into the chipper, minimizing the need for manual effort, enhancing safety, and allowing for more consistent and efficient chipping operations. 5. Durability and Reliability: With a robust construction designed to withstand heavy use and harsh conditions, the DWC22 is a reliable machine that promises longevity. Regular maintenance and proper care can further extend its service life. 6. Efficient Operation: The Diesel Wood Chipper DWC22 produces uniform wood chips suitable for mulching, composting, or disposal. This consistency is crucial for professional landscaping applications where the quality of the chips can impact the finished look of garden beds and landscapes. 7. Safety Features: Equipped with emergency stop controls, protective guards, and safety labels, the DWC22 prioritizes operator safety, helping to prevent accidents and injuries during operation.

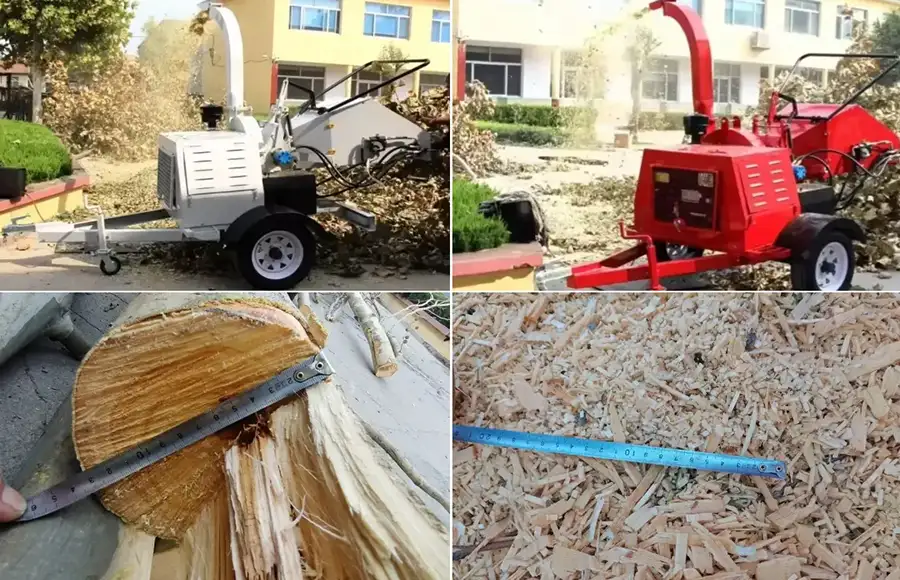

Applications of the Mobile DWC22 Diesel Wood Chipper

The mobile DWC22 diesel wood chipper finds utility in a range of applications that include:

1. Efficient chipping of wood into pieces for use in various agricultural and forestry operations.
2. Clearing farm land or forest areas of unwanted or excess wood debris.
3. Production of wood chips for use in composting or as a natural mulch for gardening and landscaping.
4. Processing of wood waste into smaller pieces for easier transportation and disposal.
5. Creation of wood chips for use in biofuel production.
6. Reducing the size of fallen tree branches or logs for easier handling and processing.

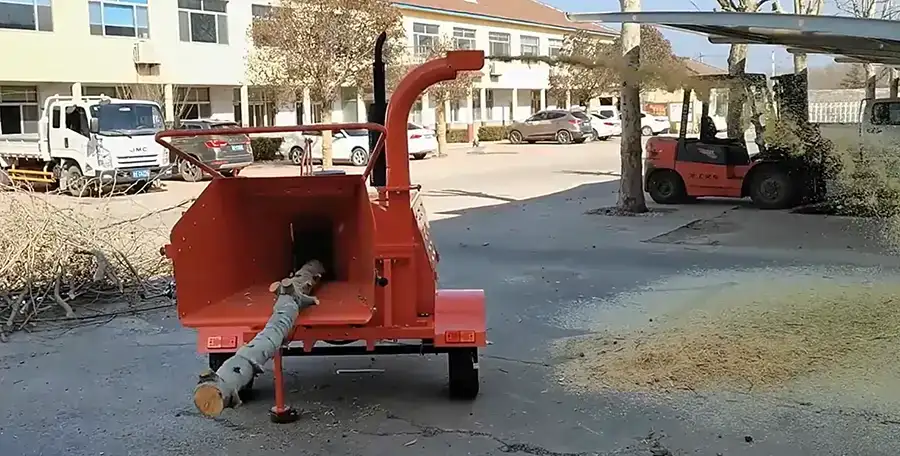

How Does the Diesel Wood Chipper Work?

The diesel wood chipper operates using a step-by-step process:

1. Wood Material Input: The operator feeds the wood material into the chipper through the feed chute. This can include branches, logs, tree trunks, and other wood waste.
2. Diesel Engine Power: The chipper is equipped with a diesel engine that provides the necessary power to drive the chipper's cutting mechanism. The diesel engine generates high torque, allowing the chipper to handle tough and dense wood material effectively.
3. Cutting Mechanism: The cutting mechanism of a diesel wood chipper consists of a cutting disc or drum with sharp blades. The disc or drum is mounted on a rotating shaft connected to the diesel engine. As the engine powers the rotation of the cutting mechanism, the blades spin rapidly.
4. Wood Shredding and Chipping: As the wood material passes through the cutting mechanism, the sharp blades slice and shred it into smaller pieces. The high-speed rotation of the blades generates significant force, allowing the chipper to chip the wood into consistent-sized chips or mulch.
5. Discharge Chute: Once the wood is shredded and chipped, the resulting wood chips are expelled through the discharge chute. The discharge chute can be directed into a container, truck, or other designated area for collection and transport.

Operating Precautions of Mobile Diesel Wood Chipper

When operating a Mobile Diesel Wood Chipper, it is essential to follow certain precautions to ensure your safety and the proper functioning of the machine. Here are some operating precautions to keep in mind:

• Personal Protective Equipment (PPE): Always wear appropriate personal protective equipment, including safety goggles, hearing protection, a hard hat, gloves, and steel-toed boots. This equipment will protect you from flying debris, noise hazards, and potential injuries.
• Clear the Work Area: Remove any obstacles, debris, or tripping hazards from the work area. Ensure there is enough space around the chipper for safe operation and that no bystanders are nearby.
• Inspection: Before starting the machine, inspect it for any damage or loose parts. Check the blades, belts, and other components for wear and tear. Address any issues or malfunctions before operating the chipper.
• Fueling: Refuel the chipper in a well-ventilated area, away from open flames or ignition sources. Use the recommended fuel and follow proper storage and handling procedures for diesel fuel.
• Start-Up Procedure: Follow the manufacturer's instructions for starting the chipper. Typically, this involves turning the ignition switch, priming the fuel system (if required), and engaging the choke. Ensure you are in a stable position and have a firm grip on the machine before starting it.
• Feeding the Chipper: When feeding the wood chipper, use caution and follow these guidelines:
• a. Do not overload the chipper beyond its recommended capacity. Follow the manufacturer's guidelines for maximum branch diameter and feed rates.
• b. Avoid wearing loose clothing or jewelry that could get caught in the chipper.
• c. Use a push paddle or other feeding tool to guide the branches into the hopper, keeping your hands a safe distance away from the blades.
• d. Feed the material smoothly and steadily, rather than forcing it into the chipper. This promotes efficient chipping and reduces the risk of jamming.
• Never Reach into the Chipper: Never attempt to reach into the chipper or remove obstructions while the machine is running. If a blockage occurs, shut off the engine, wait for the blades to stop completely, and follow the manufacturer's instructions for clearing the obstruction.
• Shutting Down the Chipper: After finishing your work, turn off the chipper's engine and allow it to cool down before performing any maintenance or inspections. Follow proper shutdown procedures outlined in the manual.

Common Troubleshooting for the Mobile Diesel Wood Chipper

Troubleshooting common issues with a mobile diesel wood chipper involves identifying and resolving problems that can affect its performance and operation. Here are several typical issues encountered with diesel wood chippers and tips for troubleshooting them: 1. Diesel Engine Won’t Start or is Hard to Start

• Fuel Problems: Check if there’s enough diesel in the tank, and ensure the fuel is fresh and not contaminated. Also, check the fuel filter for clogs and replace it if necessary.
• Battery Issues: Verify that the battery is fully charged and the connections are clean and secure. A weak or dead battery will need replacement.
• Air Intake: Inspect the air filter for blockages. A dirty air filter should be cleaned or replaced to allow proper air flow.

2. Engine Starts but Dies or Runs Poorly

• Fuel Supply: Ensure there are no restrictions in the fuel lines and that the fuel pump is operating correctly. Air in the fuel system can also cause this issue; bleed the system as needed.
• Overload: Make sure the chipper isn’t overloaded with too much material or material that’s too large for its capacity.

3. Excessive Vibration

• Unbalanced or Damaged Cutting Mechanism: Check for damaged or worn blades, and ensure they are properly balanced. Replace or sharpen blades as needed.
• Loose Components: Inspect the machine for any loose bolts or parts, especially around the cutting mechanism and engine mount, and tighten them.

4. Reduced Chipping Efficiency

• Dull Blades: Sharp blades are crucial for efficient chipping. If the blades are dull, sharpen or replace them according to the manufacturer’s specifications.
• Incorrect Feeding Rate: Adjust the rate at which material is fed into the chipper to prevent overloading the engine and cutting mechanism.

5. Wood Chipper Feeds Material Slowly or Not At All

• Hydraulic Feeding System Issues: For chippers with a hydraulic feed, check the hydraulic fluid level and refill if low. Also, inspect the hydraulic lines for leaks and ensure the feed rollers are not obstructed.
• Mechanical Blockages: Clear any jams or blockages in the feeding mechanism, following the manufacturer’s guidelines for safety.

6. Engine Overheating

• Cooling System: Ensure the cooling system is functioning correctly. Check the coolant level, and clean any debris from the radiator.
• Air Flow: Confirm that there is adequate airflow around the engine. Remove any obstructions that might be blocking the air intakes.
• Engine Load: Avoid running the chipper at full capacity for extended periods without breaks, especially on hot days.

7. Uneven or Oversized Wood Chips

• Blade Adjustment: Adjust the position of the blades closer to the anvil for a finer chip size. Ensure the blades are evenly spaced and aligned.
• Worn Blades: Replace blades that are too worn to produce the desired chip size.

Why Choose Raydafon's Diesel Wood Chipper?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for over a decade. With a team of experienced technical staff, advanced production technology, and strong equipment including lathing, milling, planing, stamping, cutting plate, and electric welding, Raydafon offers reliable and high-quality products. Our company boasts more than 100 employees, among which there are 20 technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. We produce a wide range of farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, and many more. Our products are complete in specifications, excellent in performance, and reliable in quality. They are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

Professionalism and Certifications

At Raydafon, we uphold the highest standards of professionalism in our operations. Our products are CE certified, guaranteeing that they meet high safety and quality standards. We also provide a machinery test report and video outgoing-inspection, assuring transparency and trust in our products.

Customized Services

We understand that every client's needs are unique, and we strive to offer customized services to meet these needs. Whether you need a specific color of the diesel wood chipper or require a custom design for your operations, we are ready to serve you.

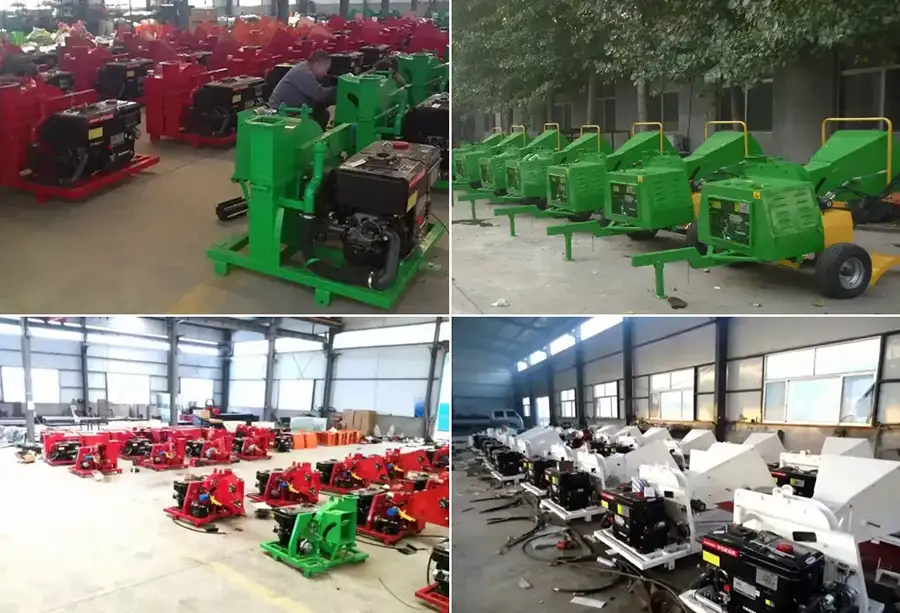

Production Facilities

Our production facilities are equipped with the latest technology, ensuring the efficient production of high-quality products. Our machinery includes lathing, milling, planing, stamping, cutting plate, and electric welding machines.

After-Sales Services

Our commitment to our clients does not end at the point of sale. We offer comprehensive after-sales services, including maintenance and repair services, to ensure our clients get the best value from our products. Author: Yjx
