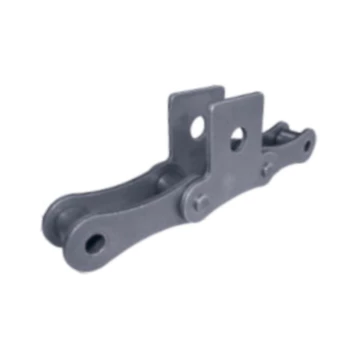

Double Pitch Conveyor Chain Attachments K-1 SK-1

Double Pitch Conveyor Chain Attachments K-1 SK-1

Double Pitch Conveyor Chains are an extension of the standard short-pitch conveyor chain. They have the same static strength and length, but the pitch is extended, reducing the weight of the entire chain. Standard Double Pitch Conveyor Chains can be matched with a variety of attachments.Ever power manufactures double-pitch chains with different pitch levels. These chains are manufactured using the highest quality alloy steel and manufacturing processes. They can be used in various applications, including conveying biomass fuels, recycling materials and wood. Their case-hardened pins provide the best balance between strength and wear resistance.Double-pitch roller chains are available in a variety of styles and types. The C2000 series is an example of a double-pitch chain. This model has large oversized rollers that project over the lower link plates, providing smooth rolling action while minimizing friction on the supporting surface.

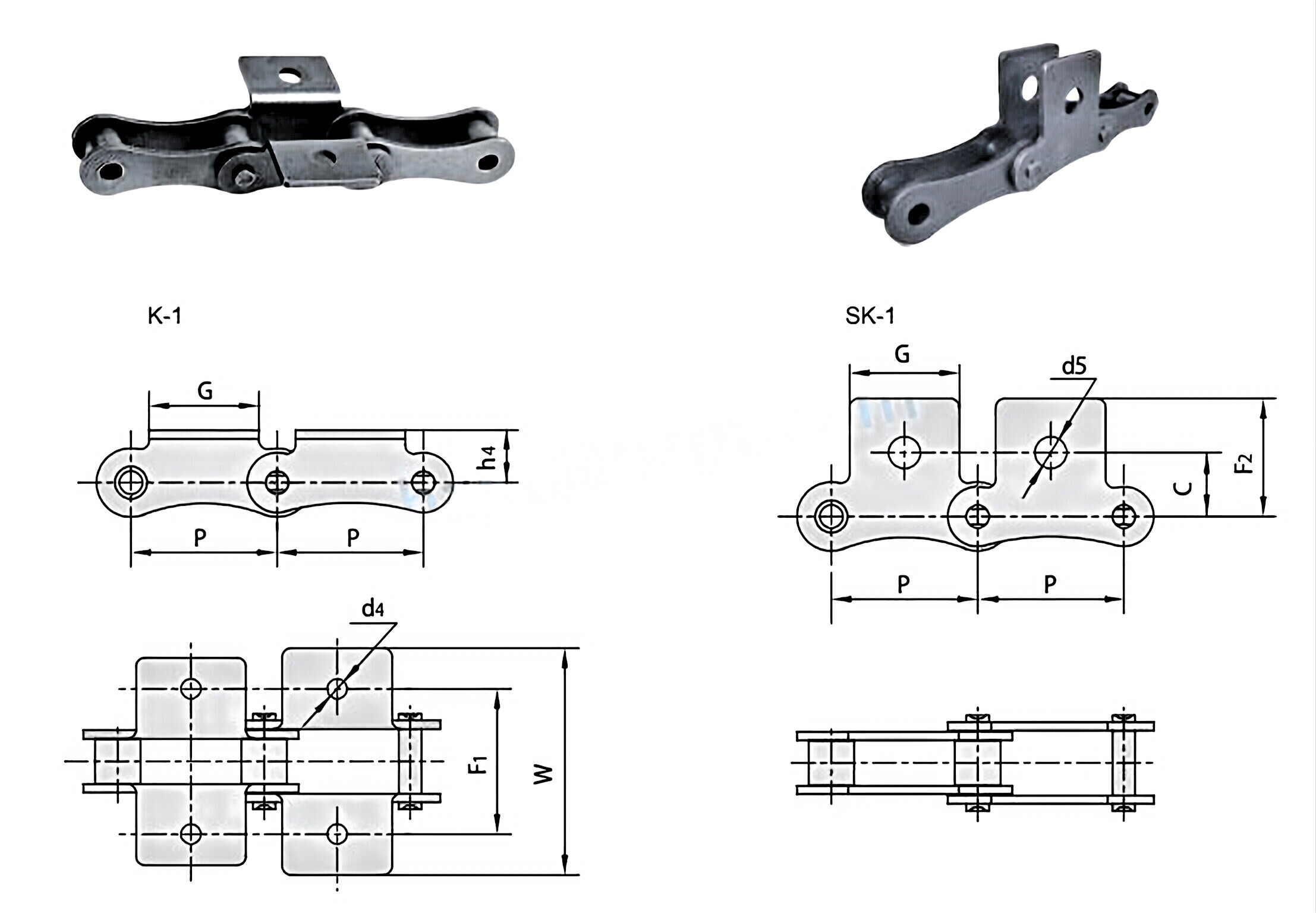

Specifications of Double Pitch Conveyor Chain Attachments

DIN/ISOChain No.	ANSIChain No.	P	G	F1	W	h4	d4	C	F2	d5
		mm	mm	mm	mm	mm	mm	mm	mm	mm
208A	2040	25.40	19.1	25.4	39.6	9.1	3.4	11.1	20.5	5.5
210A	2050	31.75	23.8	31.8	49.0	11.1	5.5	14.3	25.0	6.6
212A	2060	38.10	28.6	42.9	67.8	14.7	5.5	17.5	32.9	9.2
216A	2080	50.80	38.1	55.6	87.8	19.1	6.8	22.2	43.5	11.0
220A	2100	63.50	47.6	66.6	107.5	23.4	9.2	28.6	50.4	13.0
224A	2120	76.20	57.2	79.3	121.4	27.8	10.5	33.3	55.5	15.0
208B		25.40	23.2	25.4	39.6	9.1	4.5	11.1	20.5	5.5
210B		31.75	23.8	31.8	49.0	11.1	5.5
212B		38.10	35.0	38.1	57.0	14.7	6.6
216B		50.80	44.0	50.8	84.0	19.1	6.6
220B		63.50	52.0	63.5	104.0	23.4	8.4
224B		76.20	60.0	76.2	120.0	27.8	10.5

Sprockets for Double Pitch Conveyor Chains

Sprockets for double pitch conveyor chains are standard issues in many manufacturing operations. These sprockets are designed with a greater number of teeth and provide better wear life than single pitch sprockets. Double pitch sprockets come in a single or double toothed design. Double pitch conveyor chains have a wider chain pitch and are used for applications that require precise positioning.The sprockets for double pitch conveyor chains are made from flame-cut steel and are precision machined. They are available in two types: A Type and B Type. The B Type is less expensive and uses a single hub, while the C Type has two.Double pitch roller chains are similar to single pitch chains, except that their link plates are wider than normal. This reduces the weight of the chain, making it suitable for power transmission applications. Double pitch roller chains also include transport rollers which reduce the friction and tensile forces during the transport process.Raydafon has a wide range of sprockets for sale at competitive prices. Contact us and get more!
