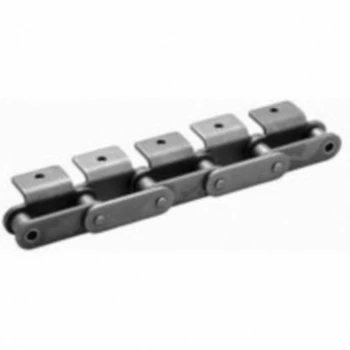

Double Pitch Conveyor Chain Special Attachments C2062F5 C2042F8 C2062HF13 C224AF2

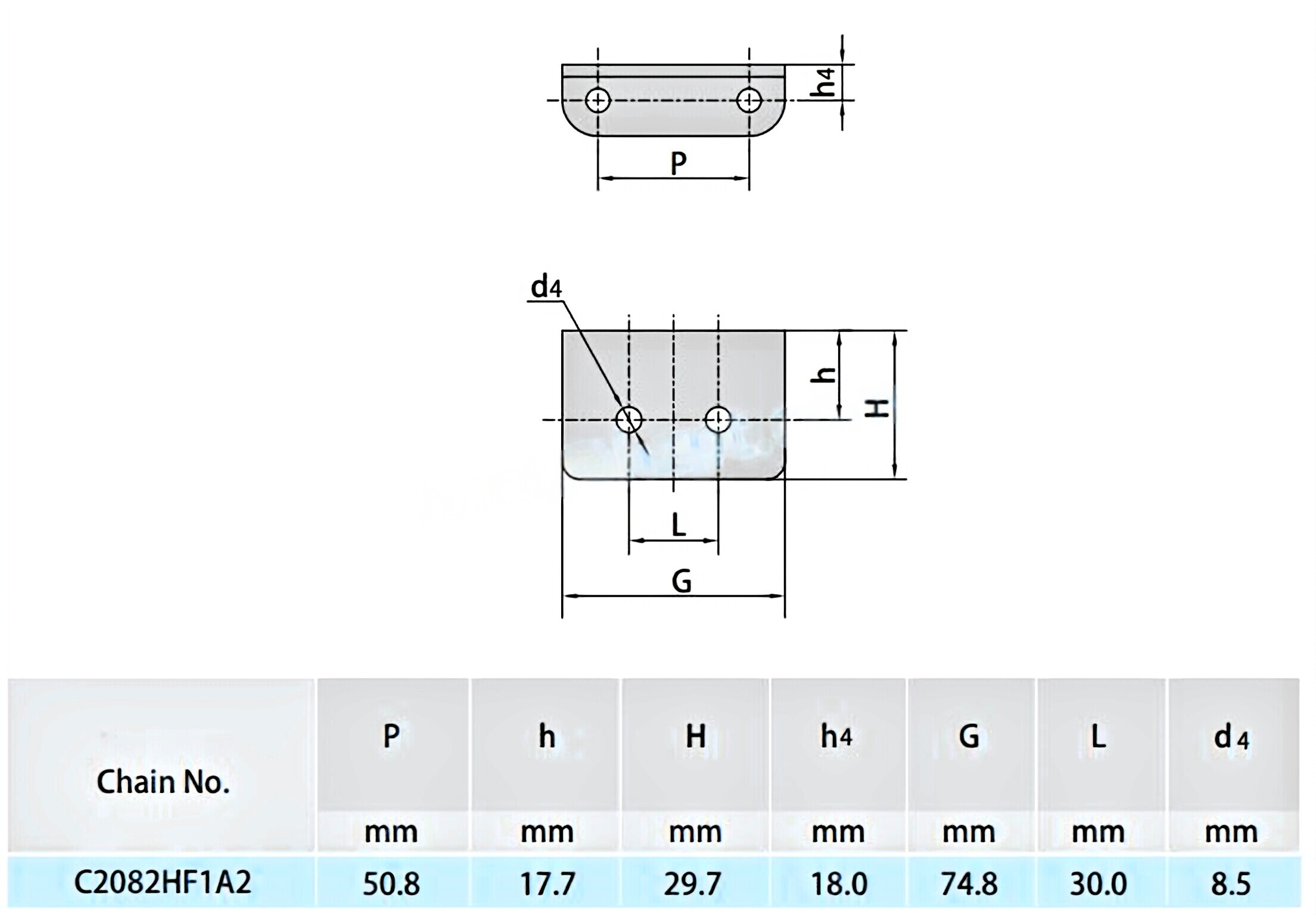

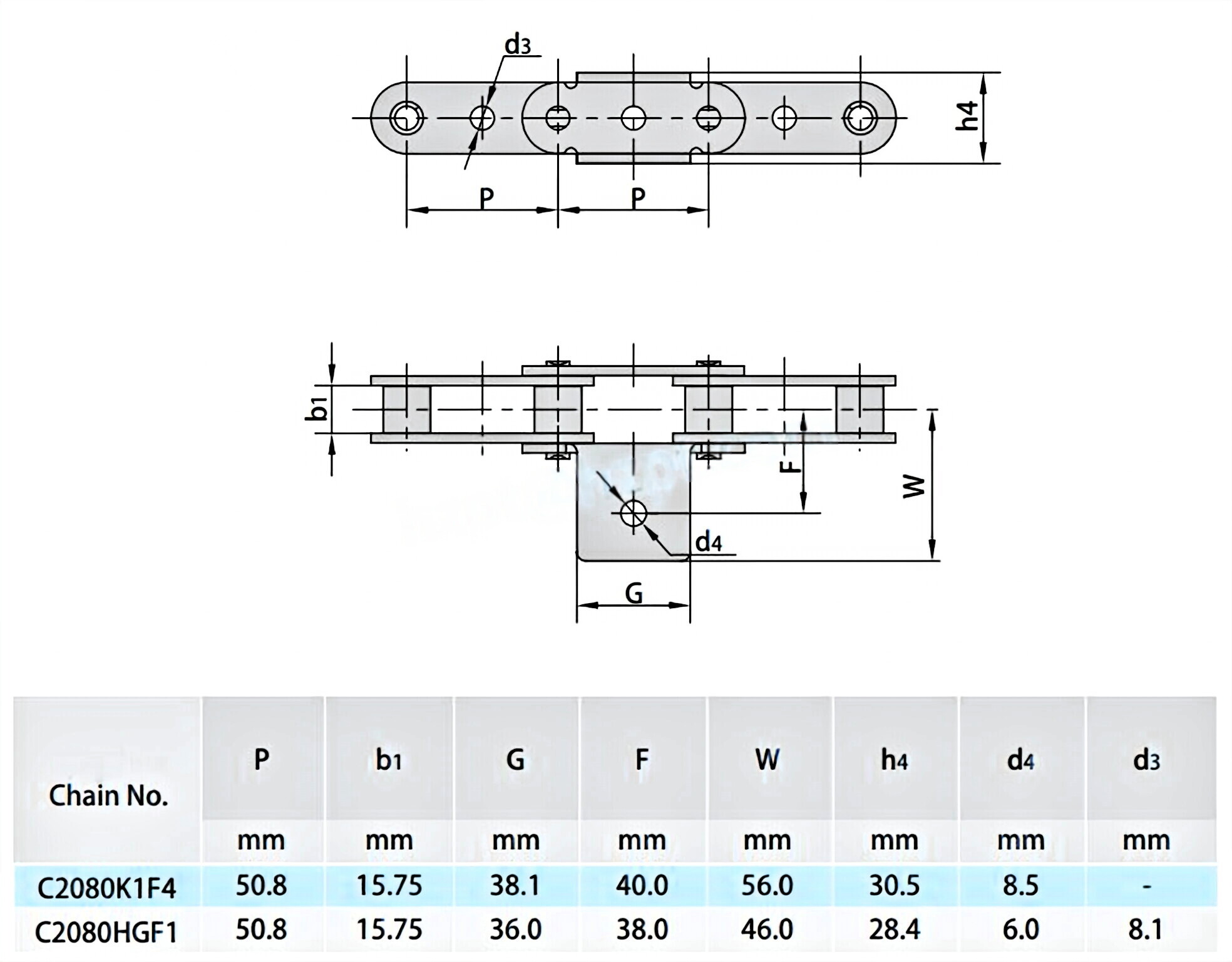

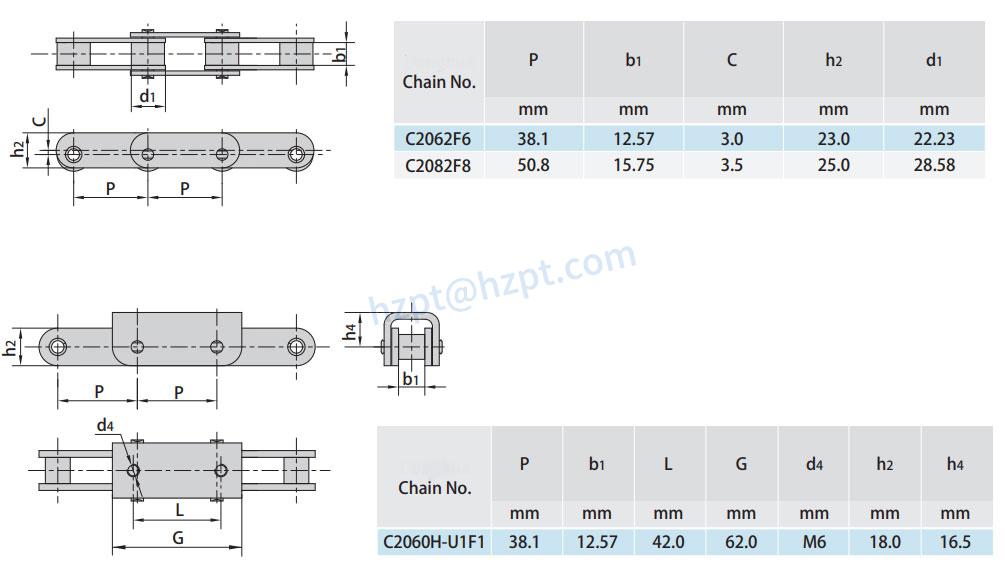

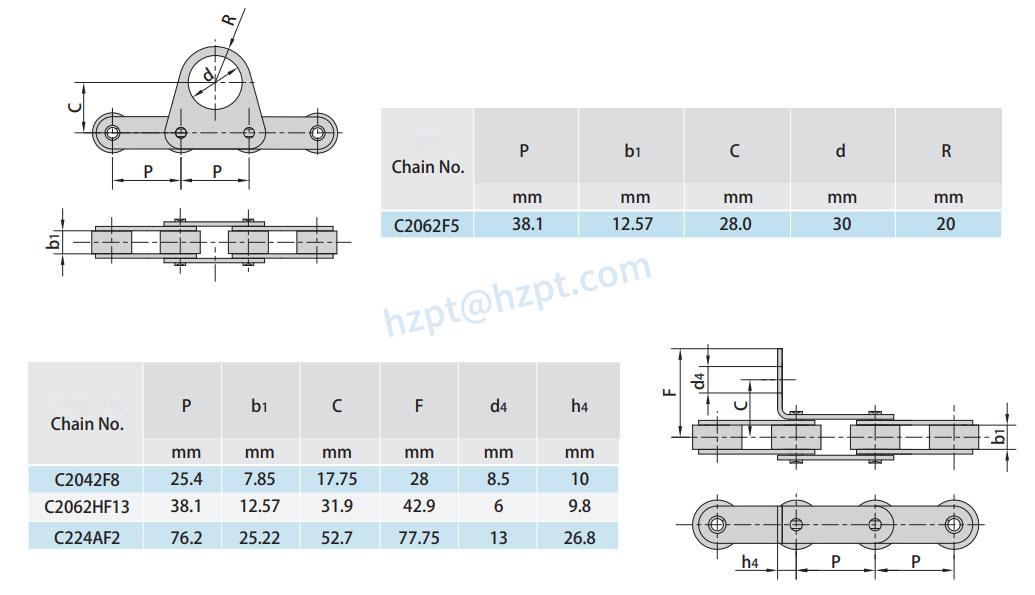

Double Pitch Conveyor Chain Special AttachmentsC2062F5 C2042F8 C2062HF13 C224AF2 C2062F6CC2082F8 C2060H-U1F1 C2080K1F4 C2080HGF1 C2082HF1A2

Details of Double Pitch Conveyor Chain Special Attachments

Sprockets for Double Pitch Conveyor Chains

Sprockets for double pitch conveyor chains are standard issues in many manufacturing operations. These sprockets are designed with a greater number of teeth and provide better wear life than single pitch sprockets. Double pitch sprockets come in a single or double toothed design. Double pitch conveyor chains have a wider chain pitch and are used for applications that require precise positioning.The sprockets for double pitch conveyor chains are made from flame-cut steel and are precision machined. They are available in two types: A Type and B Type. The B Type is less expensive and uses a single hub, while the C Type has two.Double pitch roller chains are similar to single pitch chains, except that their link plates are wider than normal. This reduces the weight of the chain, making it suitable for power transmission applications. Double pitch roller chains also include transport rollers which reduce the friction and tensile forces during the transport process.Raydafon has a wide range of?sprockets for sale?at competitive prices. Contact us and get more!

Packaging of Conveyor Chains

Our chain is most commonly supplied in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.

Why Choose Ever power Conveyor Chains?

Raydafon is an industry-leading, reliable and outstanding?drive chain supplier?that aims to provide high-quality products at more competitive prices and better service.* Good quality products at competitive pricing* Wide variety of products available in various materials and sizes* Our products are manufactured in an ISO9001 certified factory* Great customer service that's here to answer all of your questions* Largest online selection of power transmission products* Easy online shopping and ordering available 24/7 - 365 days a year* High-quality made-to-order products
