Double Pitch Conveyor Chains Attachments SA-1 SA-2 SK-1 SK-2

Double Pitch Conveyor Chains Attachments SA-1 SA-2 SK-1 SK-2

A variety of attachments can be combined with standard double pitch conveyor chains. Ever power manufactures double-pitch chains with different pitch levels. These chains are manufactured using the highest quality alloy steel and manufacturing processes. They can be used in various applications, including conveying biomass fuels, recycling materials and wood. Their case-hardened pins provide the best balance between strength and wear resistance.Double Pitch Conveyor Chains are an extension of the standard short-pitch conveyor chain. They have the same static strength and length, but the pitch is extended, reducing the weight of the entire chain. These chains?are available in a variety of styles and types. The C2000 series is an example of a double-pitch chain. This model has large oversized rollers that project over the lower link plates, providing smooth rolling action while minimizing friction on the supporting surface.

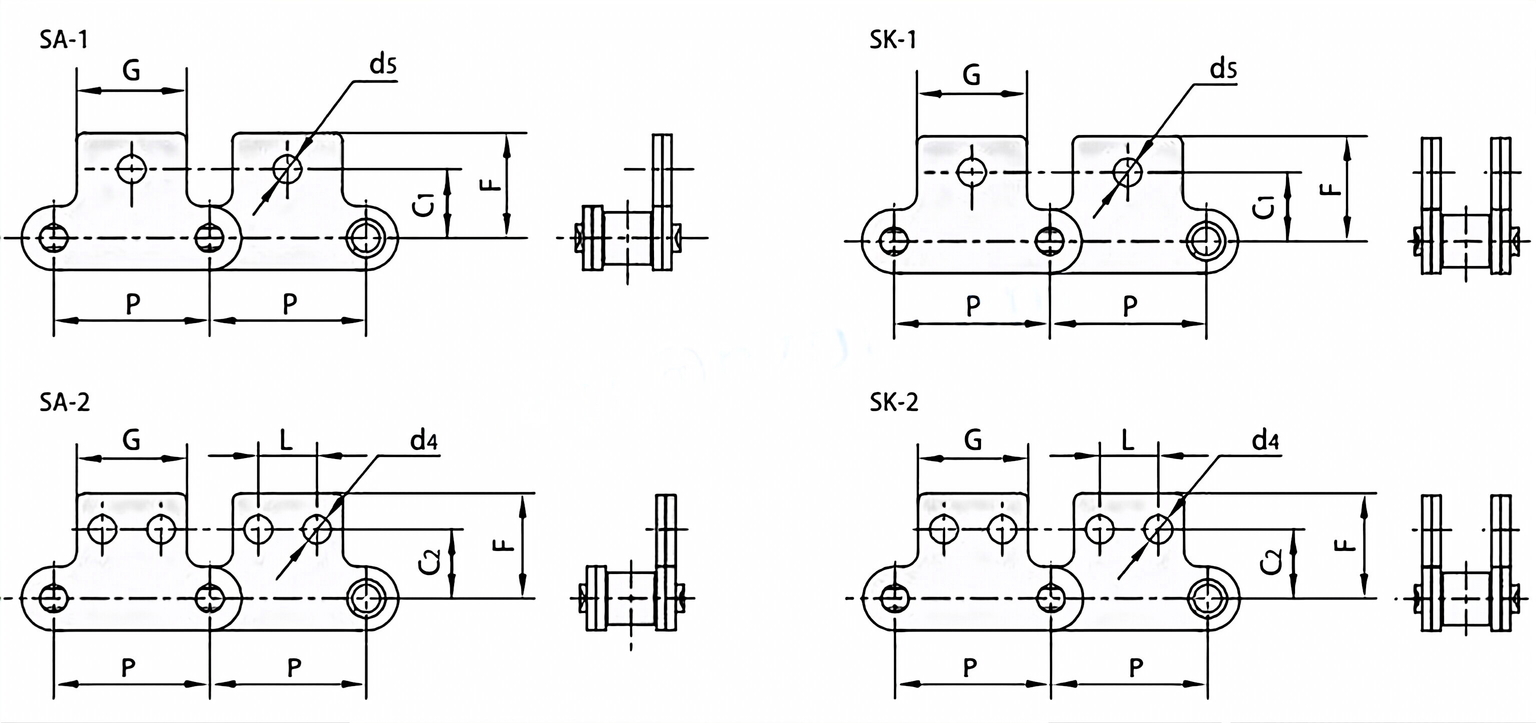

Dimensions of Double Pitch Conveyor Chains Attachments

Chain No.	ANSIChain No.	P	G	L	C1	C2	F	d4	d5
		mm	mm	mm	mm	mm	mm	mm	mm
C208AC208AL	C2040C2042	25.40	19.10	9.50	11.1	13.50	20.5	3.4	5.50
C208BC208BL		25.40	23.20	12.70	11.1	13.50	20.5	4.5	5.50
C210AC210AL	C2050C2052	31.75	23.80	11.90	14.3	15.90	25.0	5.5	6.60
C212AC212AL	C2060C2062	38.10	28.60	14.30	17.5	19.10	32.9	5.5	9.20
C212AHC212AHL	C2060HC2062H	38.10	28.60	14.30	17.5	19.10	32.9	5.5	9.20
C216AC216AL	C2080C2082	50.80	38.10	19.10	22.2	25.40	43.5	6.6	11.00
C216AHC216AHL	C2080HC2082H	50.80	38.10	19.10	22.2	25.40	43.5	6.6	11.00
C220AC220AL	C2100C2102	63.50	47.60	23.80	28.6	31.80	50.4	8.4	13.00
C220AHC220AHL	C2100HC2102H	63.50	47.60	23.80	28.6	31.80	50.4	8.4	13.00
C2042HWSA2		25.40	37.30	9.50	-	13.50	20.5	3.4	-
C2050HWSA2F1		31.75	46.75	31.75	-	15.90	25.0	5.5	-
C2060SA2F1		38.10	28.60	14.30	-	19.10	26.1	5.5	-
C2062HSK2F1		38.10	28.60	14.30	-	19.10	23.8	5.2	-
C2060HSK1F1		38.10	28.60	-	17.3	-	30.0	-	11.80
C216AH2F		50.80	38.10	19.10	-	25.40	43.5	6.5	-
C2082F58SA1-P		50.80	38.50	-	27.0	-	39.5	-	8.10
C2080HSLRSA2F5		50.80	38.10	19.10	-	25.40	43.5	6.8	-
C2100HSA1		63.50	47.60	-	28.6	-	50.4	-	13.00
C224ALSK2F1		76.20	57.20	28.6	-	37.30	59.9	-	11.00
C2122HSA1F1		76.20	57.20	-	37.3	-	59.9	-	14.30
C224AHLSA2F1		76.20	57.20	28.6	-	37.30	59.9	-	9.53
208BSK1F2		25.40	14.00	-	17.7	-	21.3	-	3.20
208BSK1F3		25.40	13.00	-	14.7	-	26.7	-	3.10
208BSK1F4		25.40	24.20	-	14.3	-	20.5	-	4.20

Sprockets for Double Pitch Conveyor Chains

Sprockets for double pitch conveyor chains are standard issues in many manufacturing operations. These sprockets are designed with a greater number of teeth and provide better wear life than single pitch sprockets. Double pitch sprockets come in a single or double toothed design. Double pitch conveyor chains have a wider chain pitch and are used for applications that require precise positioning.The sprockets for double pitch conveyor chains are made from flame-cut steel and are precision machined. They are available in two types: A Type and B Type. The B Type is less expensive and uses a single hub, while the C Type has two.Double pitch roller chains are similar to single pitch chains, except that their link plates are wider than normal. This reduces the weight of the chain, making it suitable for power transmission applications. Double pitch roller chains also include transport rollers which reduce the friction and tensile forces during the transport process.Raydafon has a wide range of?sprockets for sale?at competitive prices. Contact us and get more!
