Double Pitch Conveyor Chains with Extended Pins C2052F1 C2052F11 C2050A6 C2062HF63A2F1

Double Pitch Conveyor Chains with Extended Pins

C2052F1 C2052F11 C2050A6 C2062HF63A2F1

Double Pitch Conveyor Chains With Extended Pins have a longer pin shaft than standard roller chains. They are commonly used in light load drives and agricultural applications. These chains are also available in custom lengths and diameters. Double Pitch Chains With Extended Pins can be manufactured with different materials to suit specific applications.Double Pitch Conveyor Chains are constructed on the same principles as single pitch chains, and they meet the same standards. The main difference is that double pitch chains have a longer pin, plate thickness, and link spacing than standard roller chains. These chains are available in C2000 and C2002 series. Double Pitch Chains With Extended Pins can be specified with a normal or heavy plate thickness.Double Pitch Conveyor Chains With Extended Pins can be ordered with bent or straight attachments, depending on the application. We, Raydafon, a professional drive chain company, can also provide a customized design for any needs. Some double-pitch chains with extended pins have a stainless steel roller.

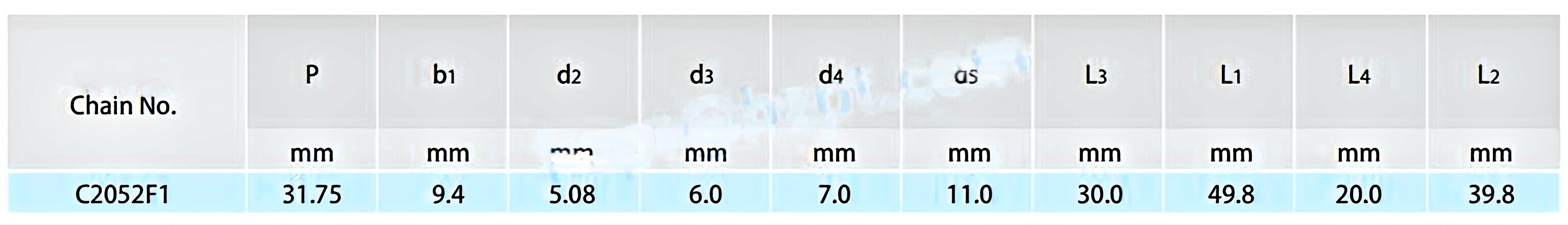

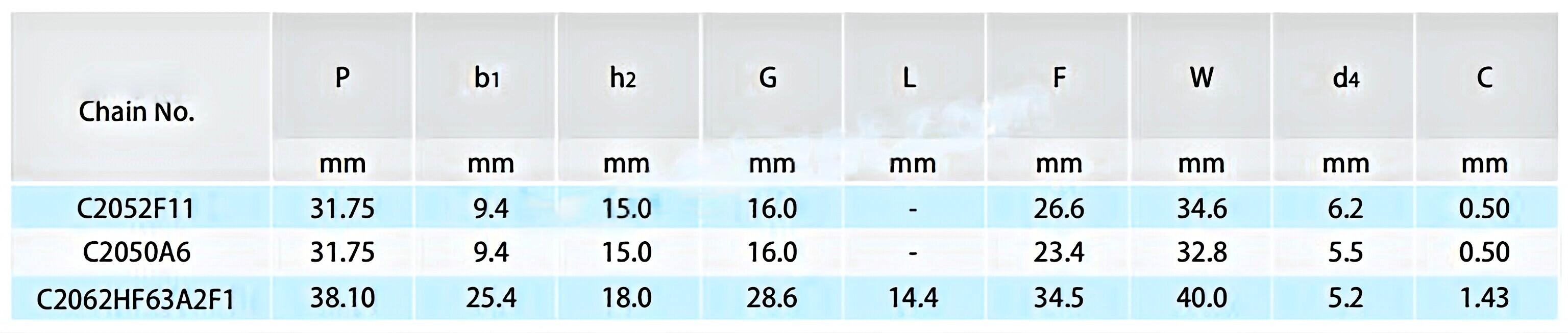

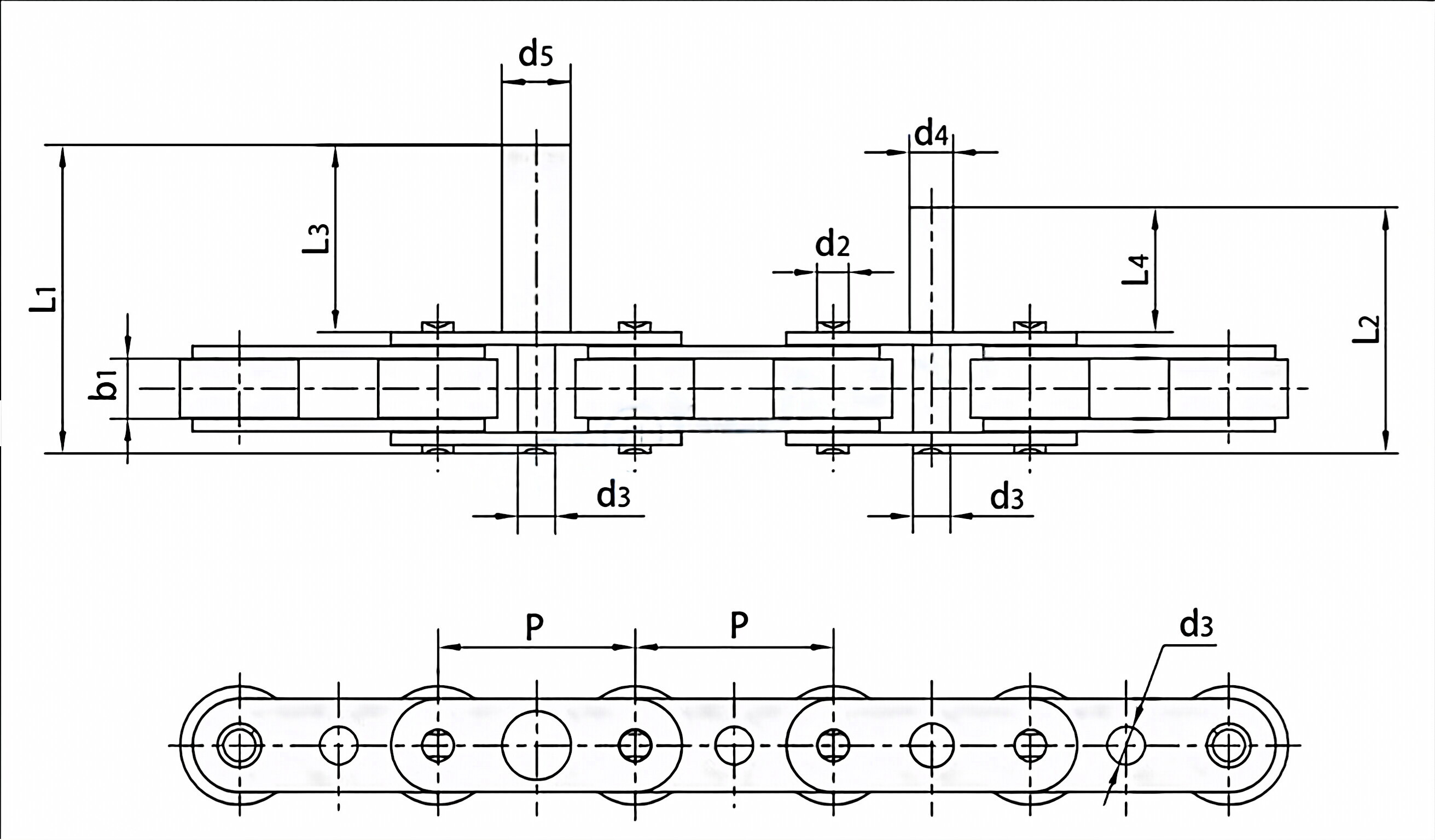

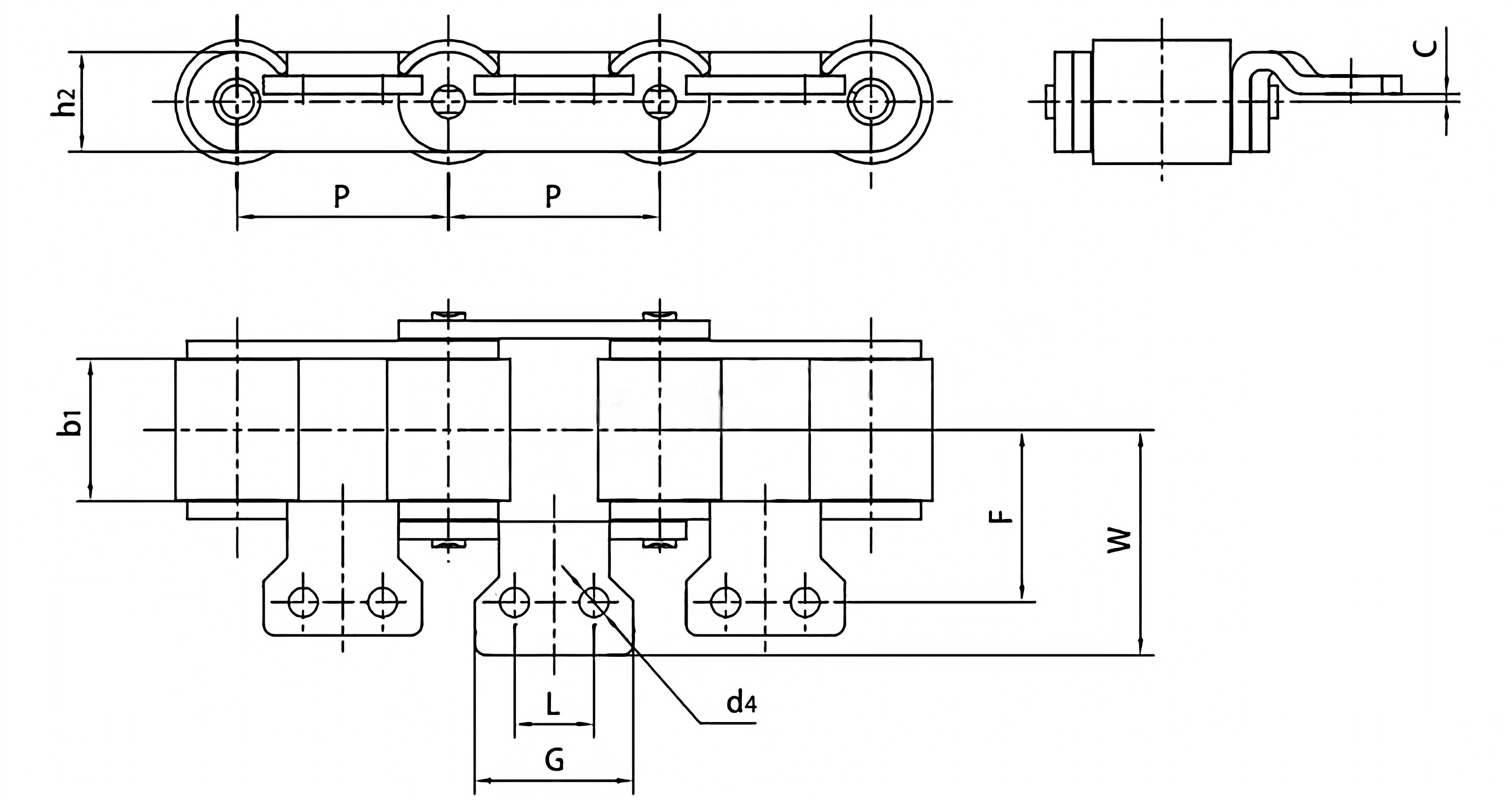

Specifications of C2052F1 C2052F11 C2050A6 C2062HF63A2F1

Characteristics of Double Pitch Conveyor Chains

Double-pitch conveyor chains can be a popular choice for medium-duty to light-duty applications for handling materials.?They are constructed using the same components as a standard chain however, they are constructed with larger plates and smaller rollers.?They also meet the minimum requirements and are controlled by the ANSI B29.4 and ISO 1275-A standards.Double-pitch chains are available in various varieties.?The C2000 double-pitch roller chain is identical to ANSI regular roller chains, but it is double-pitch in design.?The side plates are straight with the same design and contours.?Double-pitch chains for rollers are offered with bigger roller diameters.?These chains are able to roll on flat surfaces without friction.Double-Pitch Conveyor Chains can be used in light-duty agricultural applications.?They are characterized by high breaking strength and excellent resistance to abrasion.?Double-pitch chains are available in A-style and metric models.?They are typically used within European-style equipment.Double-pitch chains typically come with stainless steel side plates as well as many other options.?They are available in a variety of pitches.?They are also available with an attachment that is straight or peanut-shaped.?They are lubricated to prolong their lifespan.

Sprockets For Double Pitch Conveyor Chains

Double pitch roller chains come in two basic types: S-roller and R-roller. The former is used for short-length conveyance, while the latter is used for longer conveyors. Both types feature standard and special attachments.Double pitch roller chains are common in manufacturing. Our sprockets for sale used for these chains are precision-made to provide accurate positioning. In addition to their size and pitch, double pitch chains also require the proper pressure angle for sprocket engagement. This angle determines how the rollers of the chain engage with the sprocket tooth.Double pitch roller chain sprockets are manufactured with the highest level of integrity, flame-cut, and precision. They are available in A-type and B-type with single or dual-hub constructions.Double pitch conveyor chains are ideal for light and medium-duty material-handling applications. They are similar to standard chains but with larger side plates. As a result, they are often used on slower-moving conveyors, which place less strain on the chain. Some industries that use double-pitch chains include timber mills, airport equipment manufacturers, and fruit pack houses.

Related Chains

As one of the?chain manufacturers, we specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain, Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.

Production Workshop of Ever power Chains
