EPE ECONOMY PLANETARY GEARBOX

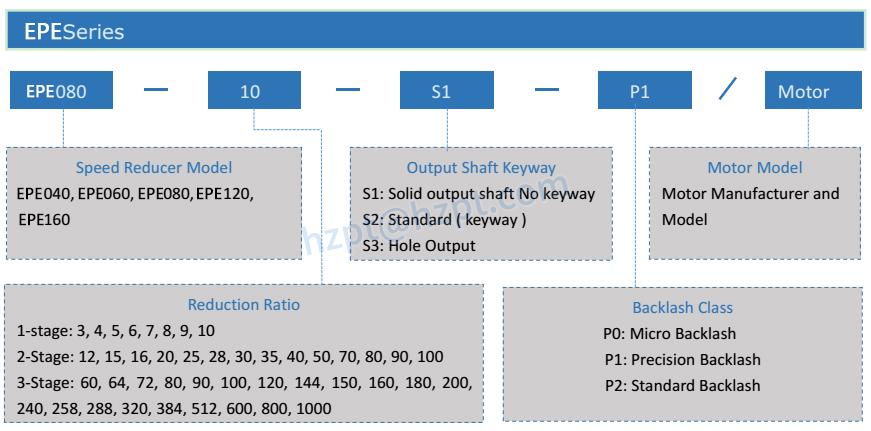

Indication of Model Numbers of EPE Speed Reducers

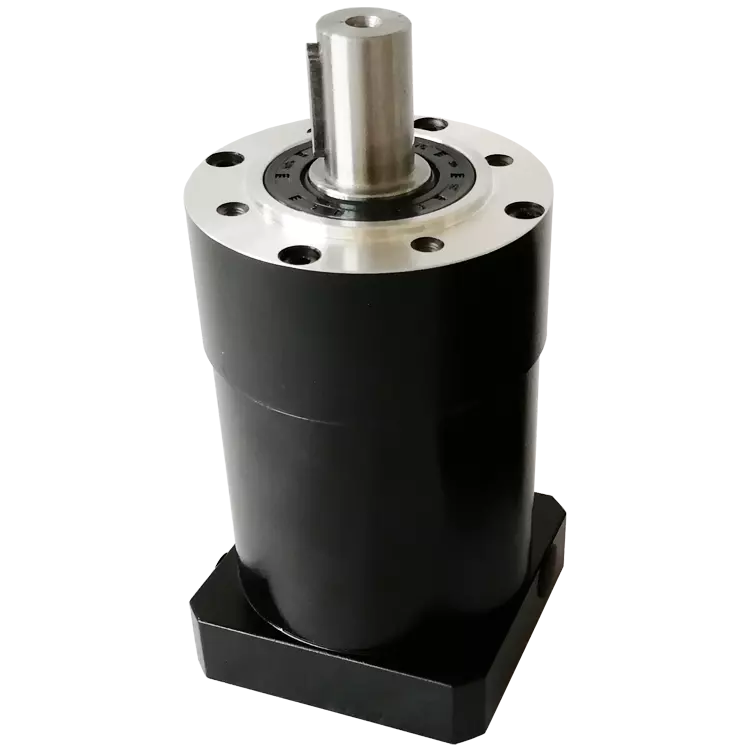

Description of EPE Low Backlash Planetary Gearbox

The internal structure of our company's famous EPE series gearbox is a spur gear design, which can be matched with stepper motors and servo motors. Compared with other series, EPE series planetary gear motors are cheaper and can also meet your requirements. The transmission ratio of the planetary reducer is 3-100, and the diameter of the input end is φ30-150mm, which can greatly meet the various application needs of customers. In-line planetary geared motors can match all brands of servo motors and stepper motors, such as: Panasonic, Mitsubishi, Lenz, Yaskawa, Panasonic, Fanuc, Siemens, etc.

Transmission Construction of Planetary Gear Reducer

The internal structure of a single-stage planetary reducer consists of three planetary gears and one sun gear.

Application of EPE Low Backlash Planetary Gearboxes

EPE low backlash planetary gearboxes are widely used in machine tools, textile, printing, packaging machinery, rubber machinery, production lines, cutting machines, robotic arm gantry, aluminum door and window equipment, sealing machines, and testing machines, and other fields.

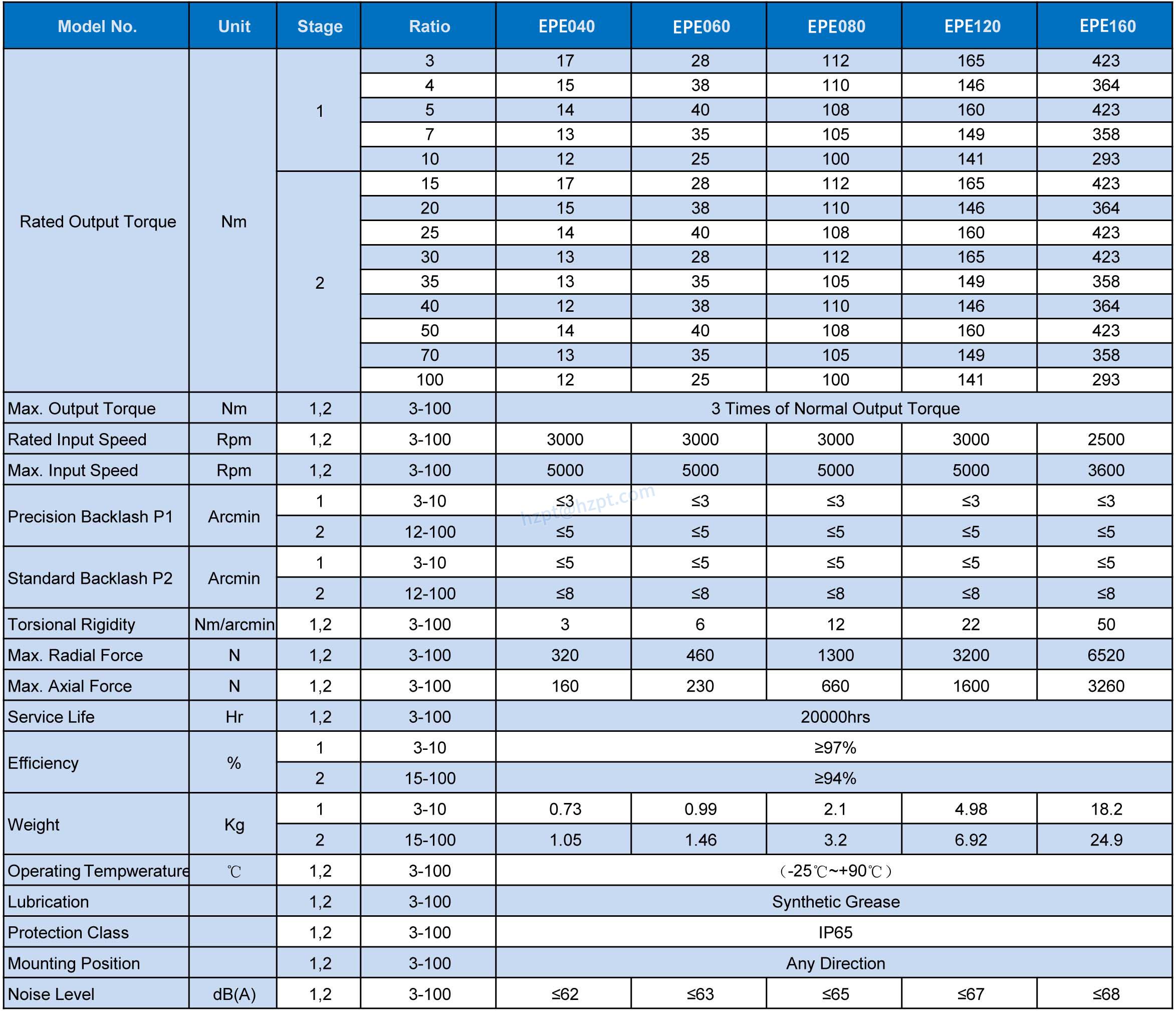

Specification Table of EPE Planetary Gear Reducer

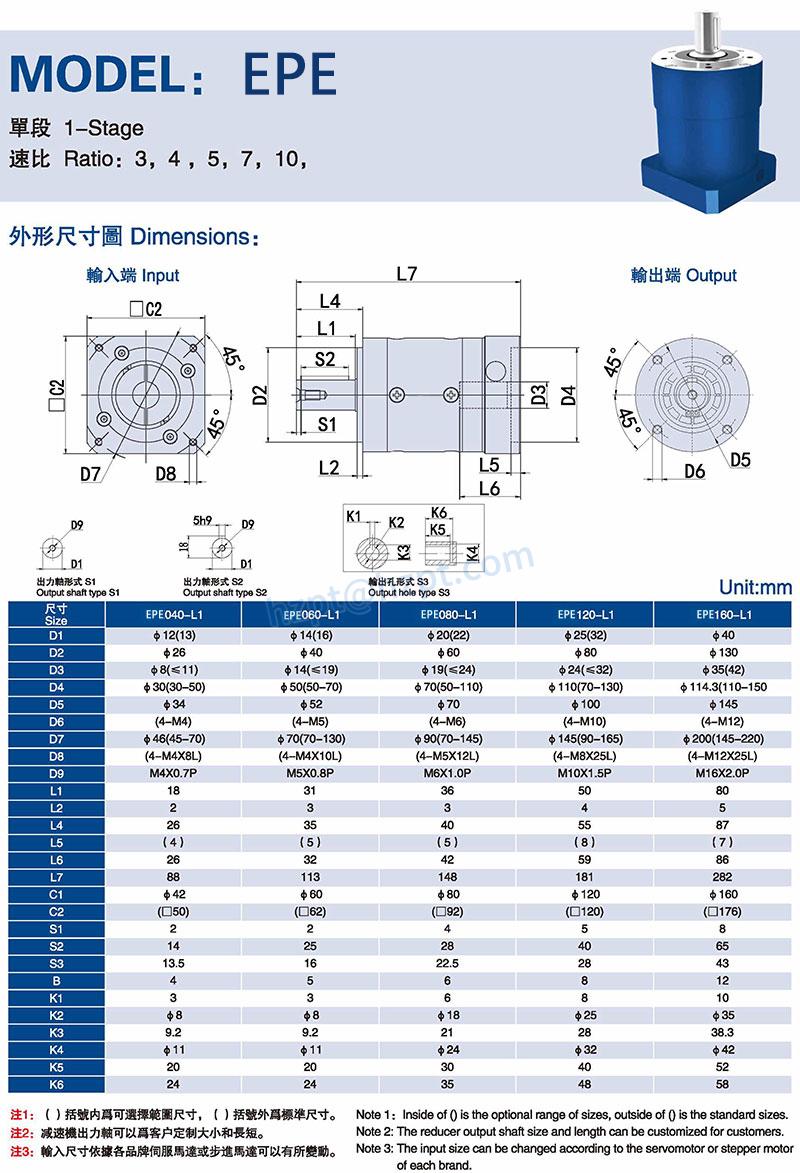

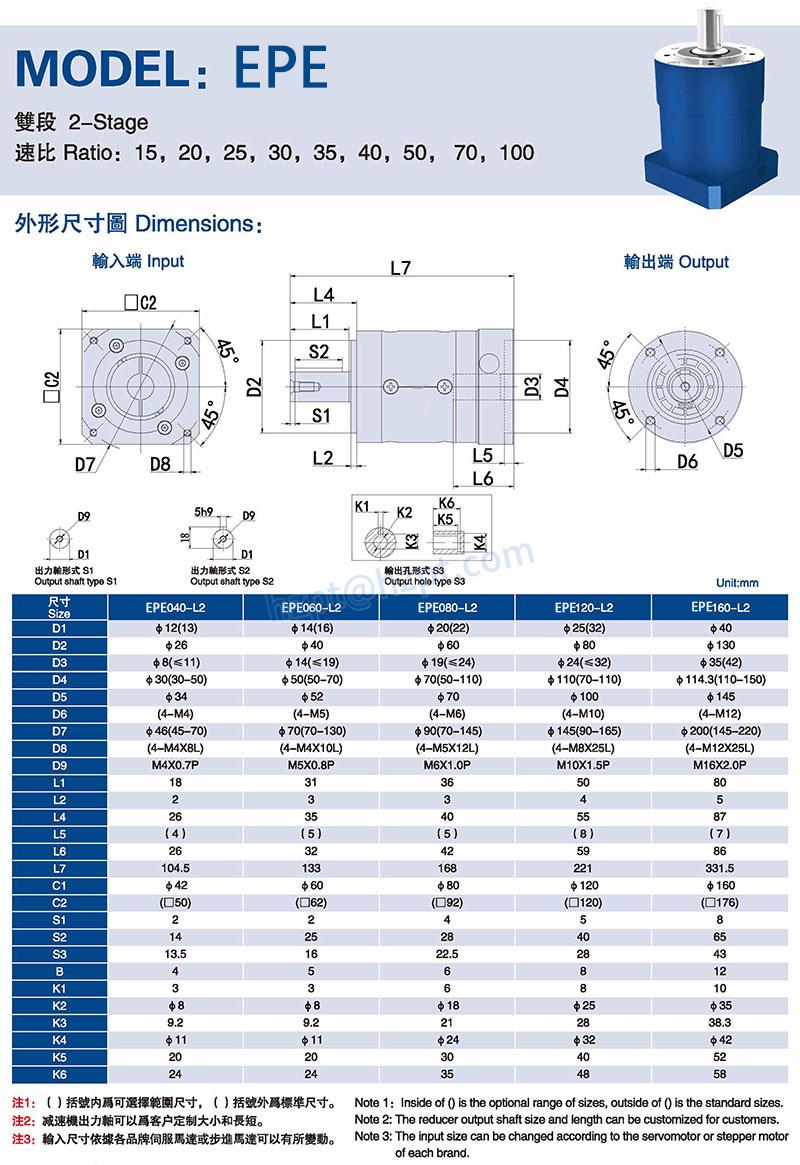

Catalog of EPE Precision Speed Reducer

edited by CX
