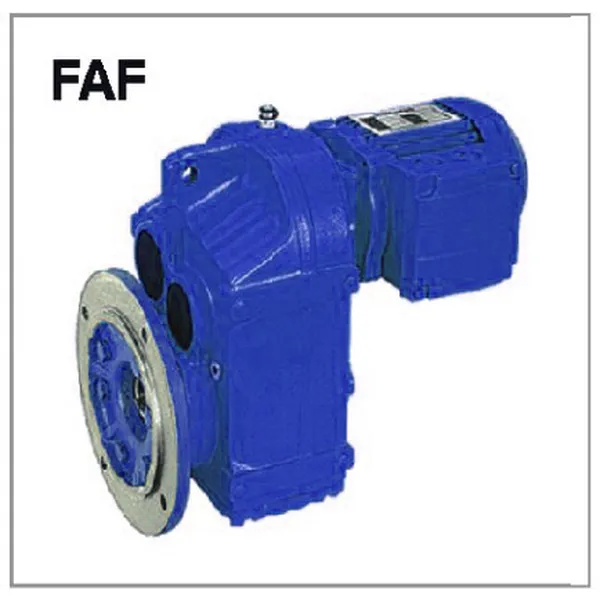

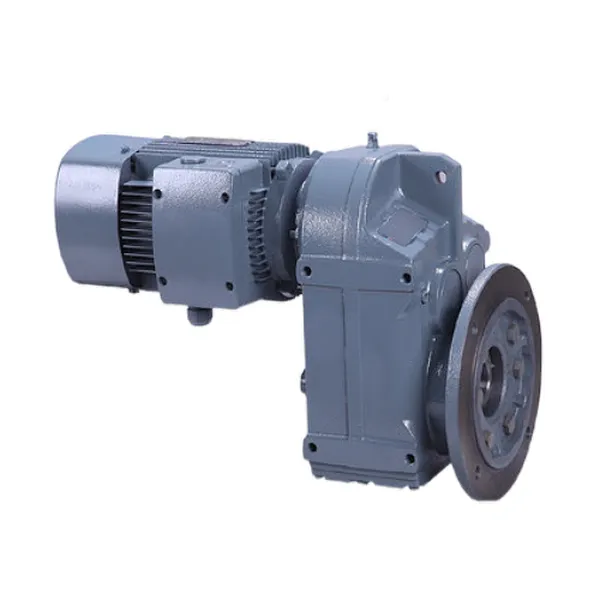

FAF Series Helical Gearbox with Flange Mounted Hollow Shaft Output

FAF Series Helical Gearbox with Flange Mounted Hollow Shaft Output

Our F series shaft mounted helical gearbox has a wide range of transmission ratios. And it can reach a larger transmission ratio by combining with the R series helical gear reducer to meet the requirements of low-speed output and high torque. And F series helical gear reducer has various types of installation positions for options, including foot installation, flange installation, or shaft installation. Its output methods include solid shaft output, hollow shaft output, output with a large flange, output with a small flange, etc. So it is suitable for a multitude of applications. FAF series is one type of F series helical gear reducer with flange-mounted hollow shaft output.Our housing of the F series helical gear reducer is made of high-strength cast iron, and the gears and gear shafts adopt the carburizing quenching fine grinding process, so the helical gear reducer has a large load capacity, high efficiency, and low noise. Under the conditions of correct model selection, normal use and maintenance, the main parts of the helical gear reducer (except the wearing parts, oil seal bearings, etc.) can have a long service life, generally over 20,000 hours.

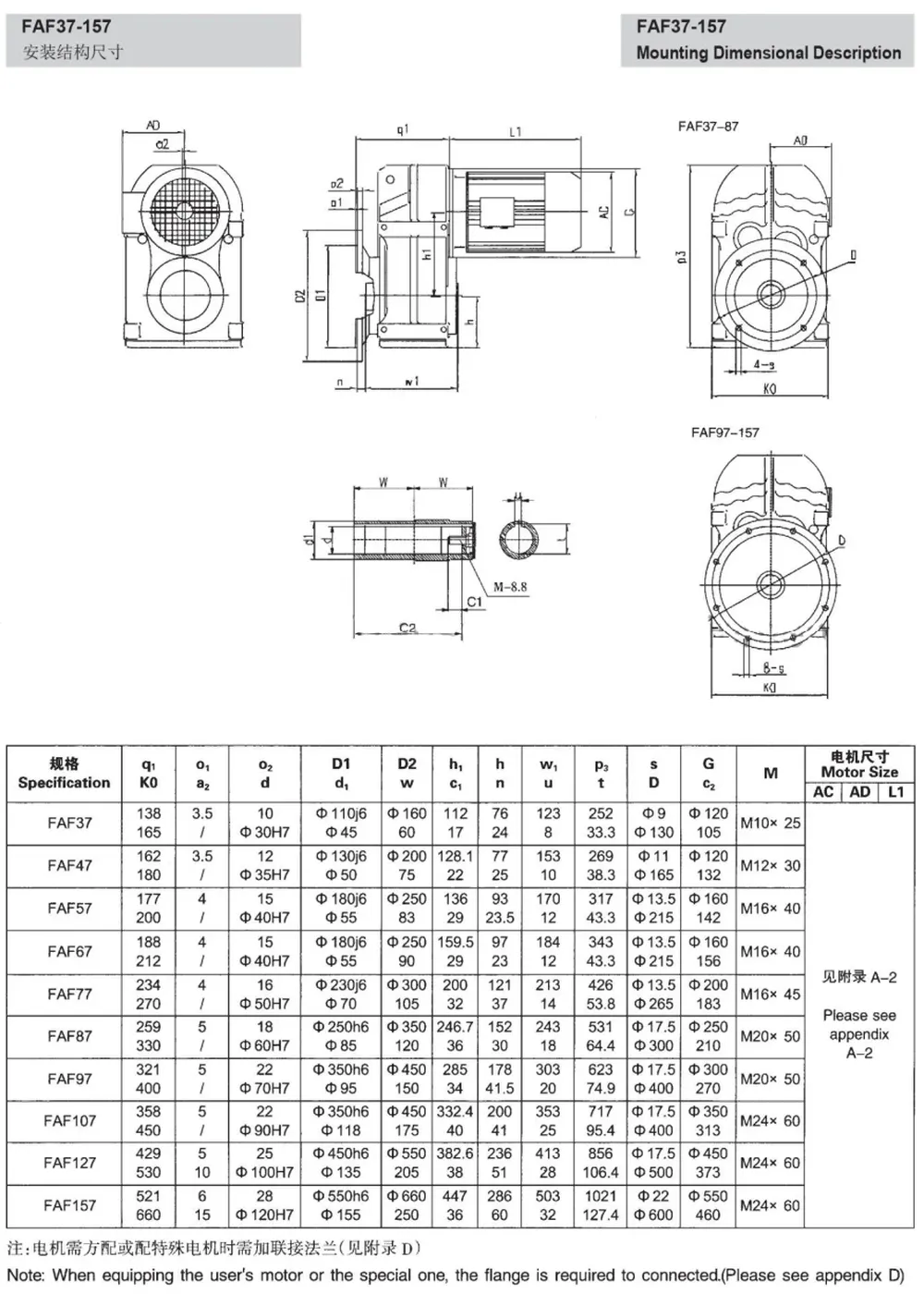

FAF Series Hollow Shaft Helical Gearbox Specifications:

Product name:	FAF series parallel shaft helical gearbox
Model:	FAF37/47/57/67/77/87/97/107/127/157
Mounting ways:	Foot-mounted, flange-mounted, or shaft mounted
Input ways:	Motor input, AM (IEC) flange input, and shaft input
Output way:	Solid shaft output, hollow shaft output, output with large flange, output with small flange
Efficiency:	96% for basic two-stage, 94% for three-stage
Housing material:	HT250 high-strength cast iron
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or another brand
Oil seal:	NAK or another brand
Lubricating oil:	Gear oil
Packing:	Plywood case

FAF Series Shaft Mounted Helical Gearbox Parameters:

Input power and permissible torque chart
Size	37	47	57	67	77	87	97	107	127	157

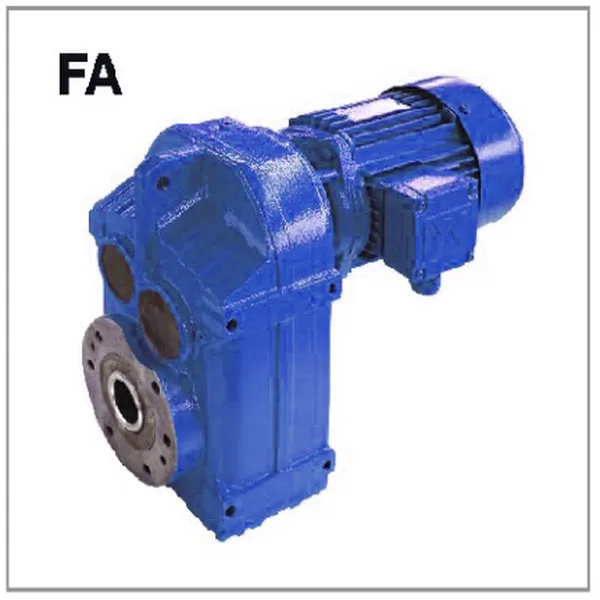

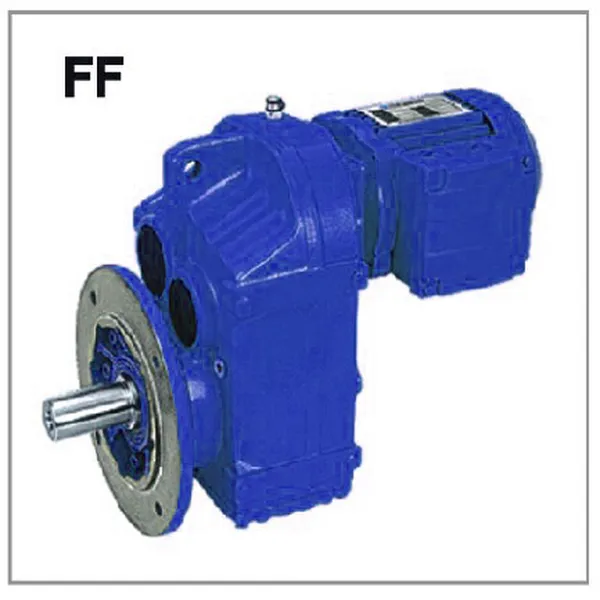

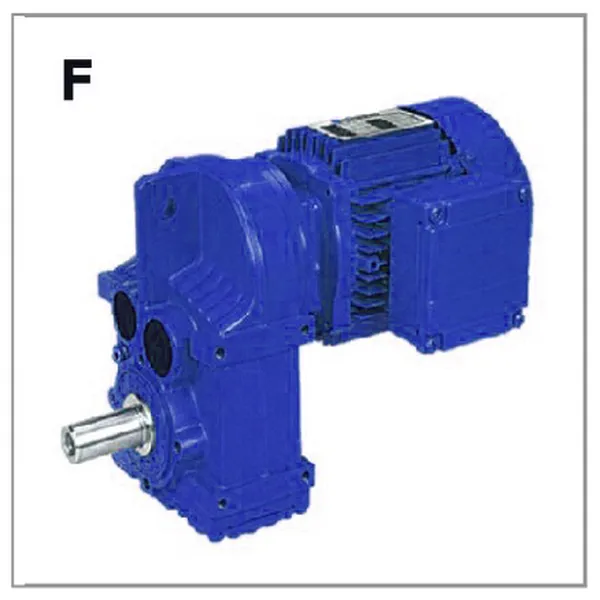

Structure	F   FA   FF   FAF   FAZ
Input power(kW)	0.18-3.0	0.18-3.0	0.18-5.5	0.18-5.5	0.37-11	0.75-22	1.1-30	2.2-45	7.5-90	11-200
Ralio	3.81-128.51	5.06-189.39	5.18-199.70	4.21-228.99	4.30-281.71	4.12-270.68	4.68-280.76	6.20-254.76	4.63-172.17	11.92-267.43
Permissibletorque(N.M)	200	400	600	820	1500	3000	4300	7840	12000	18000
