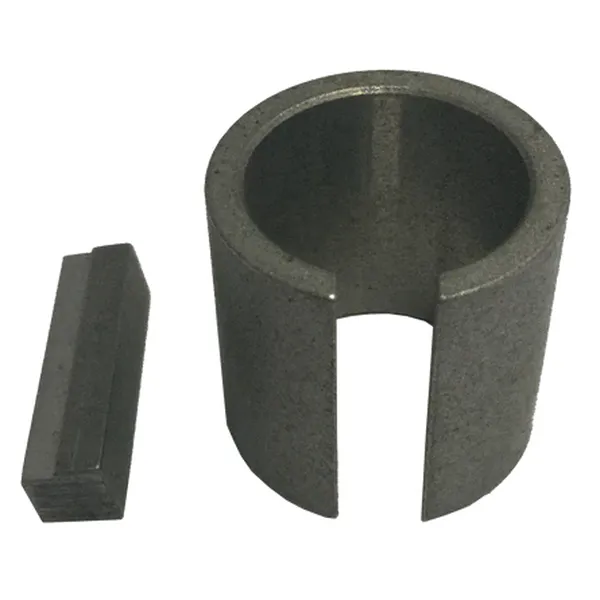

FHP14K Split Taper Bushing

FHP14K Split Taper Bushing

The FHP14K split taper bushing is a type of bushing that is used to mount sheaves and sprockets on shafts. It is designed for use in drives with lower torque, but it does feature keys that help lock it in place on the shaft. The double-split steel barrel of the bushing allows it to be easily installed and removed, and the tapered bore provides a secure fit for the shaft.The FHP14K split taper bushing has an inner diameter of 1 3/16 inches and an outer diameter of 1 7/16 inches. It is made of steel and is heat treated for durability. The bushing is also keyed to the shaft, which helps to prevent it from rotating. FHP14K split taper bushings are used in a variety of applications, including conveyors, hoists, and winches. They are a versatile and reliable way to mount sheaves and sprockets on shafts, and they are available in a wide range of sizes and materials.

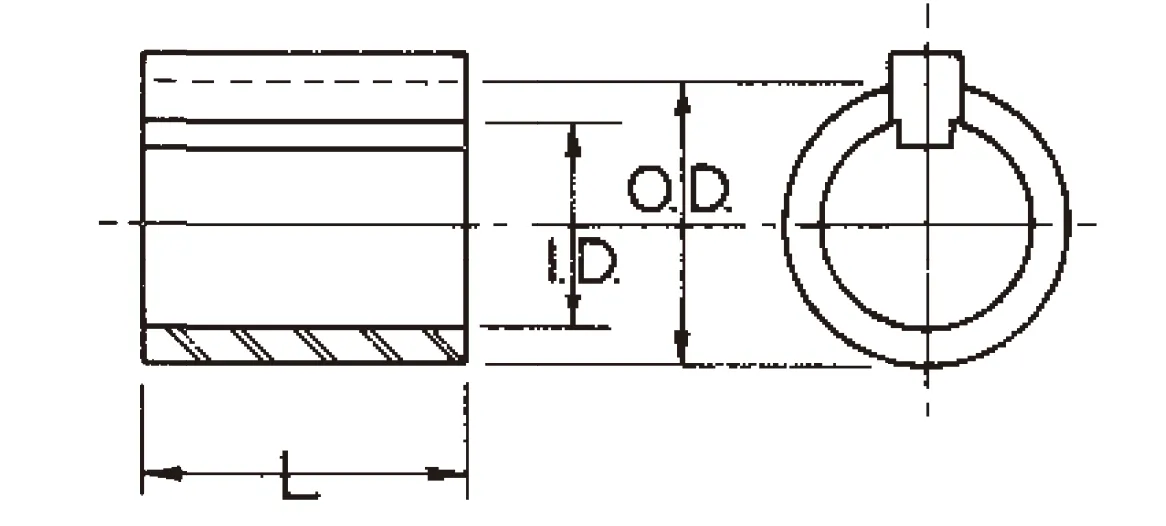

FHP14K Split Taper Bushing Dimensions:

Bushing Part No.	FHP14K Split Taper Bushing
Outside Diameter (O.D.)	1 7/16''
Inside Diameter (I.D.)	1 3/16''
Length	1 3/8''
Keyway Size	3/8'' X 9/32'' — 1/4'' X 1/8''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

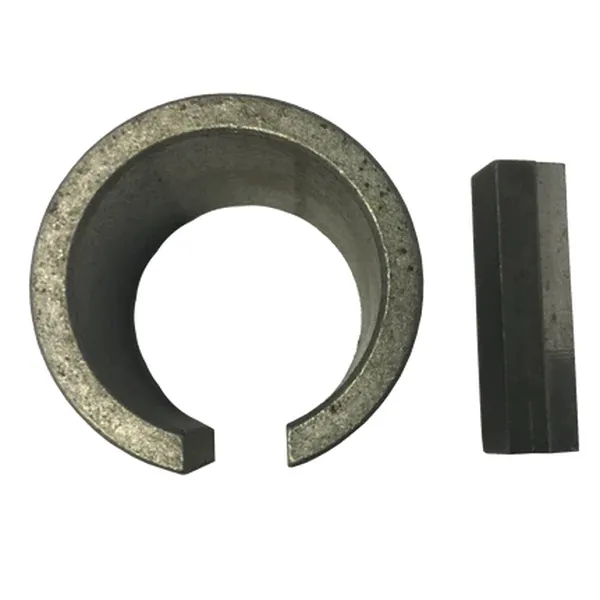

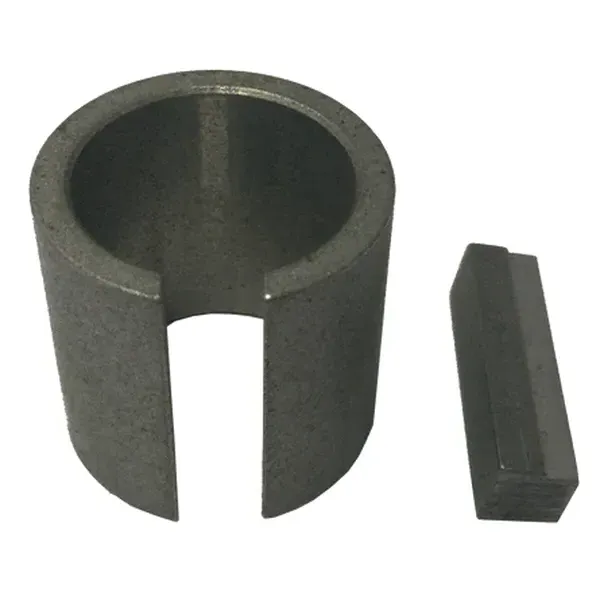

Advantages of FHP14K Split Taper Bushing:

The FHP14K split taper bushing offers several advantages over other types of bushings or mounting methods. Here are some of the key advantages:1. Easy installation and removal: The split taper design of the FHP14K split taper bushing makes it quick and easy to install or remove without having to remove other components from the shaft. This can save time and effort during maintenance or repairs.2. Precise fit: The tapered inner surface of the FHP14K split taper bushing fits tightly onto the shaft, creating a secure and precise connection that minimizes vibration and ensures accurate alignment of the mounted component.3. High torque capacity: The split taper design of the FHP14K split taper bushing distributes the clamping force evenly around the circumference of the shaft, which allows it to handle high torque loads without slipping or damaging the shaft.4. Versatility: The FHP14K split taper bushing can be used with a wide range of components, including pulleys, sprockets, gears, and other power transmission parts. This versatility makes it a popular choice in many different types of machinery and equipment.5. Cost-effective: Compared to other types of mounting methods, such as weld-on hubs or keyless bushings, the FHP14K split taper bushing is often more cost-effective. It requires fewer specialized tools or equipment and can be used with standard screws or bolts.

Split Taper Bushing Vs QD Bushing:

Split taper bushings and QD (Quick Disconnect) bushings are two common types of mechanical bushings used for mounting components onto shafts. Here are some key differences between the two:(1) Installation and removal: Split taper bushings are designed to be installed and removed easily without having to remove other components from the shaft. QD bushings, on the other hand, require a specific tool to install and remove and may require the removal of other components to access the bushing.(2) Precision and accuracy: Split taper bushings have a tapered inner surface that fits tightly onto the shaft, which provides a precise and accurate connection that minimizes vibration and ensures accurate alignment of the mounted component. QD bushings do not have a tapered inner surface and rely on a clamping mechanism to secure the component to the shaft, which may result in less precise alignment.(3) Torque capacity: Split taper bushings are designed to handle high torque loads without slipping or damaging the shaft. QD bushings typically have lower torque capacities and may require additional components, such as a locking device, to handle high torque loads.(4) Cost: Split taper bushings are often less expensive than QD bushings, due to their simpler design and ease of installation.Overall, the choice between Split taper bushings and QD bushings depends on the specific requirements of the application. Split taper bushings are often a good choice for applications that require easy installation and removal, precision and accuracy, and high torque capacity at a lower cost. QD bushings are often a good choice for applications that require a higher torque capacity, and where precision and accuracy are less critical.

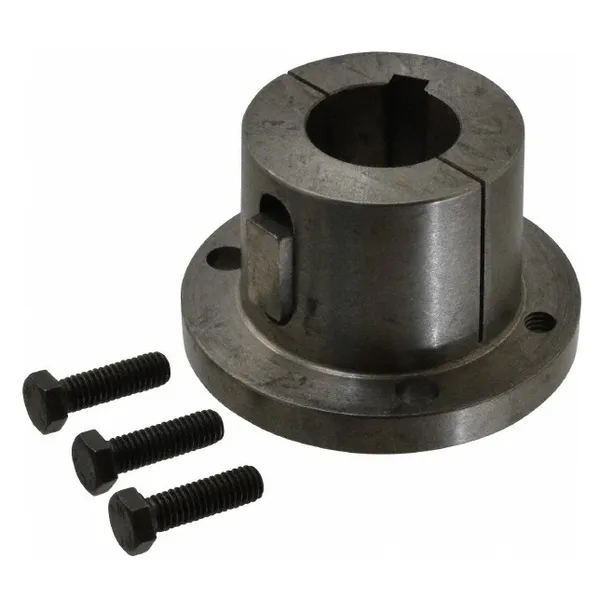

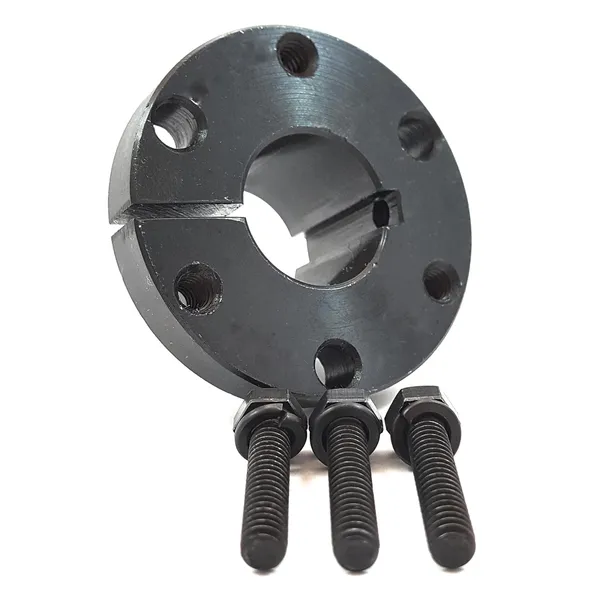

Split Taper Bushing	QD Bushing

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team and we will happily assist you.
