FHP13K Split Taper Bushing

Discover the FHP13K Split Taper Bushing by Raydafon Group, a durable solution for secure shaft-to-hub connections. With a precision split design and high-strength materials, it ensures easy installation and superior torque transmission, ideal for industrial machinery and automation. Users appreciate its reliability and time-saving efficiency, solving alignment and slippage issues. Stand out from competitors with its robust build and cost-effective performance. Experience seamless operation—upgrade your equipment today with Raydafon Group's trusted engineering.

Send Inquiry

Product Description

FHP13K Split Taper Bushing

The FHP13K split taper bushing is a type of split taper bushing that is designed for use in drives with lower torque. It features a key that helps lock it in place on the shaft, and it is built to withstand torque generated in power transmission. The double-split steel barrel of the bushing allows it to be easily installed and removed, and the tapered bore provides a secure fit for the shaft.The FHP13K split taper bushing is typically used to mount sheaves and sprockets on shafts. It is also used in other applications where secure and reliable mounting is required, such as in conveyors, hoists, and winches. If you are looking for a split taper bushing that is designed for use in drives with lower torque, the FHP13K split taper bushing is a good option. It is a reliable and durable bushing that is easy to install and remove.

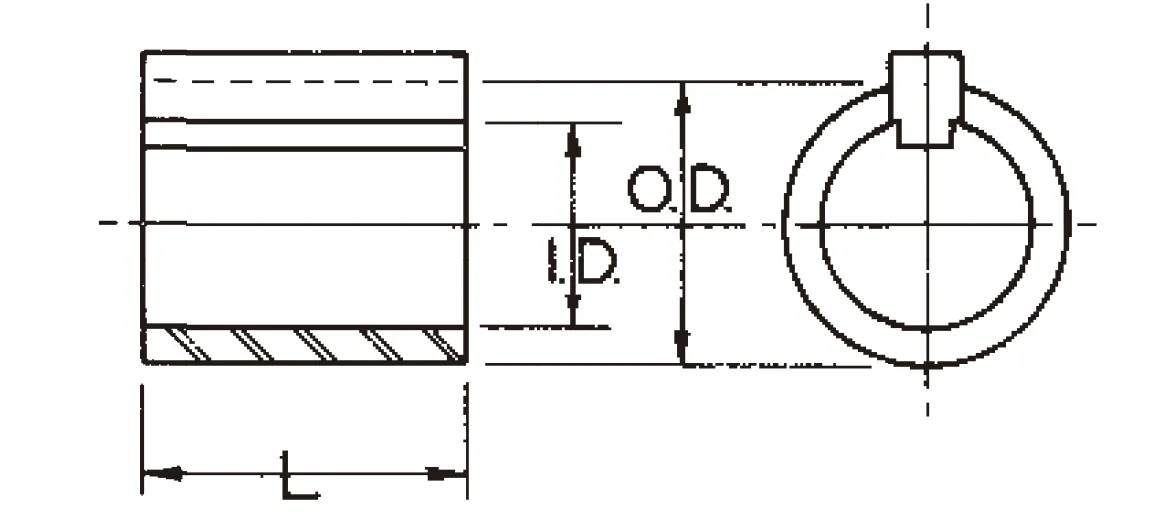

FHP13K Split Taper Bushing Dimensions:

Bushing Part No.	FHP13K Split Taper Bushing
Outside Diameter (O.D.)	1 7/16''
Inside Diameter (I.D.)	1 1/8''
Length	1 3/8''
Keyway Size	3/8'' X 5/16'' — 1/4'' X 1/8''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

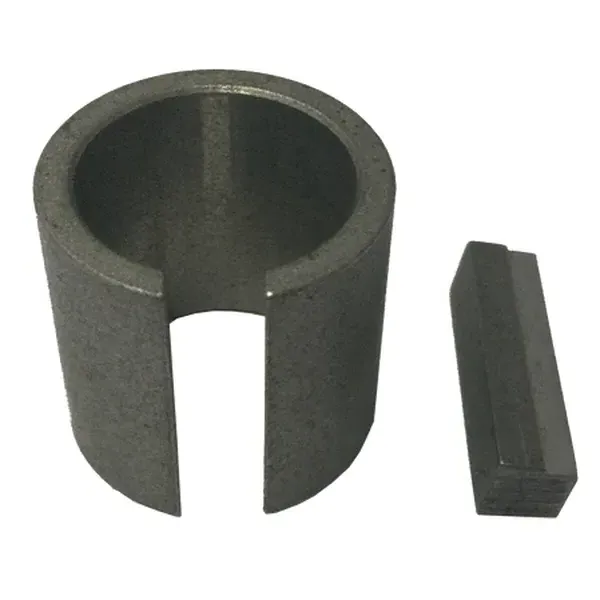

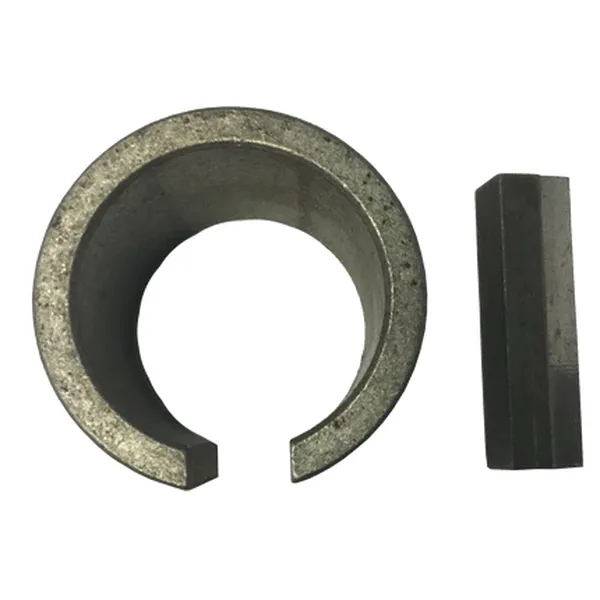

FHP13K Split Taper Bushing Design Features:

Here are some of the key design features of the FHP13K split taper bushing:1. Keyed barrel: The barrel of the FHP13K split taper bushing is keyed to the shaft, which helps to lock it in place and prevent it from rotating. This is important for applications where the bushing is subjected to high torque.2. Double split barrel: The barrel of the FHP13K split taper bushing is split into two places, which makes it easier to install and remove. The split barrel also allows the bushing to expand and contract slightly, which helps to accommodate slight misalignments between the shaft and the bushing.3. Tapered bore: The bore of the FHP13K split taper bushing is tapered, which provides a secure fit for the shaft. The taper also helps to distribute the load evenly across the bushing, which helps to prevent it from becoming damaged.4. Materials: The FHP13K split taper bushing is made of high-quality steel, which makes it strong and durable. The steel is also heat-treated, which makes it even stronger and more resistant to wear and tear.These design features make the FHP13K split taper bushing a reliable and durable bushing that is well-suited for use in a variety of applications.

FHP13K Split Taper Bushing Application Scenarios:

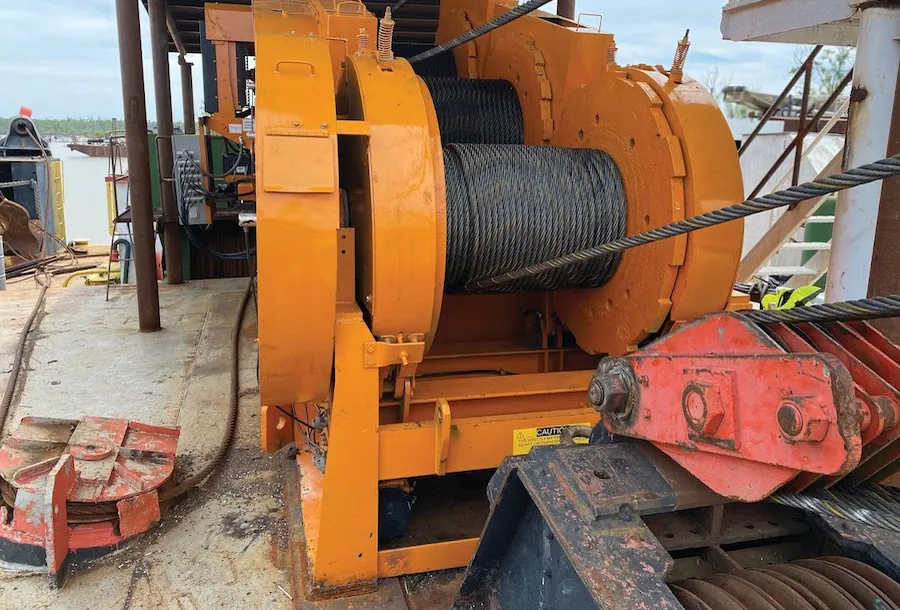

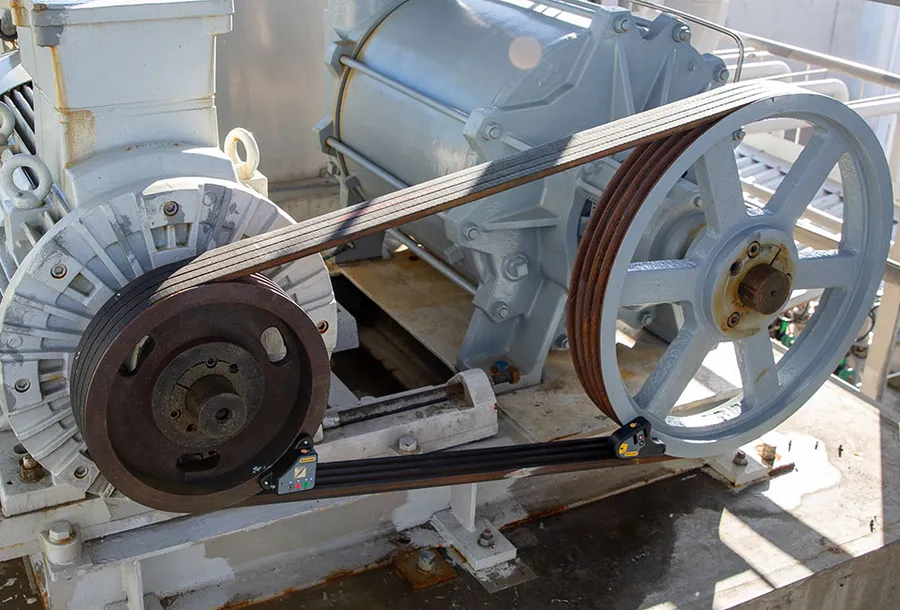

The FHP13K split taper bushing is a versatile bushing that can be used in a variety of applications. Some of the most common application scenarios for the FHP13K split taper bushing include the following:(1) Mounting sheaves and sprockets on shafts: The FHP13K split taper bushing is commonly used to mount sheaves and sprockets on shafts. This is because the bushing provides a secure and reliable mounting for these components, which is important in applications where the sheaves and sprockets are subjected to high torque.(2) Conveyors: The FHP13K split taper bushing is also used in conveyors. In conveyors, the bushing is used to mount the rollers on the conveyor shafts. The bushing provides a secure and reliable mounting for the rollers, which is important in applications where the conveyors are subjected to high loads.(3) Hoists and winches: The FHP13K split taper bushing is also used in hoists and winches. In hoists and winches, the bushing is used to mount the load-bearing components on the hoist or winch shafts. The bushing provides a secure and reliable mounting for these components, which is important in applications where the hoists and winches are subjected to high loads.In addition to these common application scenarios, the FHP13K split taper bushing can also be used in other applications where secure and reliable mounting is required. For example, the bushing can be used to mount gears, couplings, and other components on shafts.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team, and we will happily assist you.
