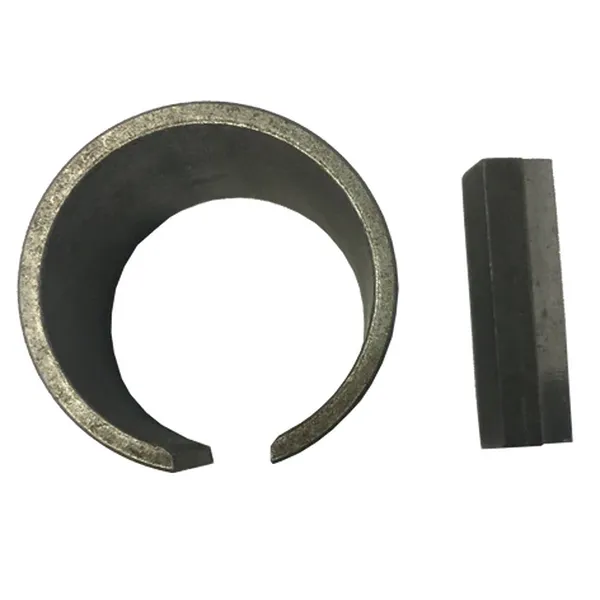

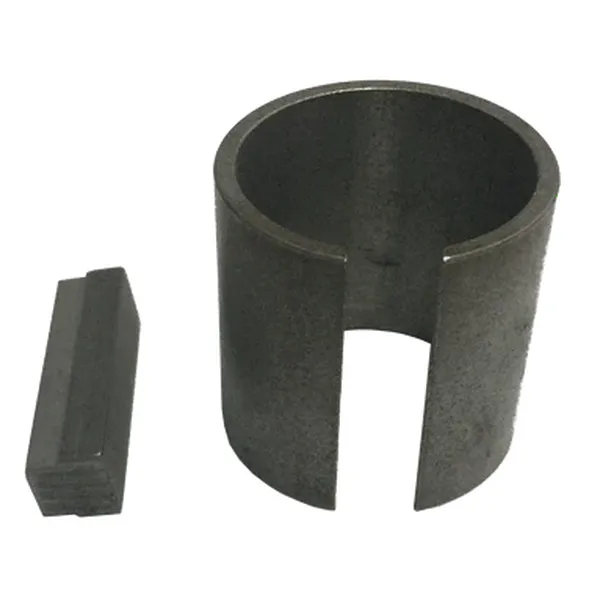

FHP15K Split Taper Bushing

FHP15K Split Taper Bushing

The FHP15K split taper bushing is a type of bushing that is designed for use in drives with lower torque. It features a double split steel sleeve that is held in place by keys on the shaft. This helps to prevent the bushing from rotating on the shaft, even under high loads.The FHP15K split taper bushing is typically used to mount sheaves and sprockets on shafts. It is also used in other applications where a low-torque, high-precision bushing is required. The main difference between the FHP15K split taper bushing and a QD bushing is that the QD bushing has a flange around the outside diameter, while the taper lock bushing has straight sides on the OD bushing, which is meant to mount flush.

FHP15K Split Taper Bushing Dimensions:

Bushing Part No.	FHP15K Split Taper Bushing
Outside Diameter (O.D.)	1 7/16''
Inside Diameter (I.D.)	1 1/4''
Length	1 3/8''
Keyway Size	3/8'' X 1/4'' — 1/4'' X 1/8''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

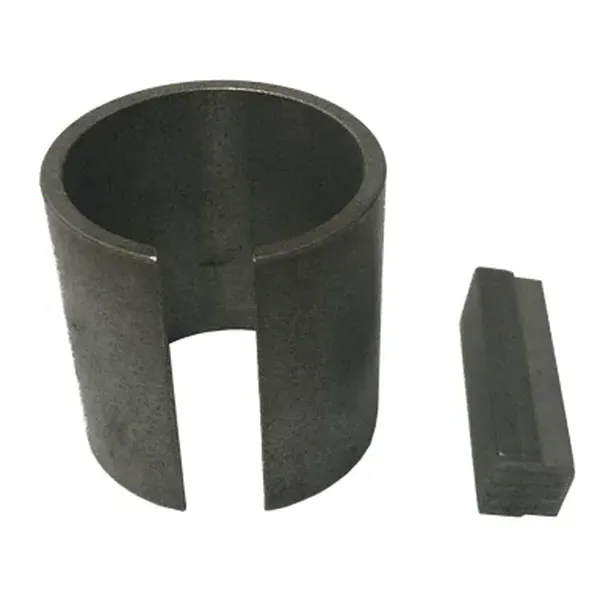

Advantages of FHP15K Split Taper Bushing:

The FHP15K split taper bushing is a type of taper lock bushing that is designed for use in drives with lower torque. It has a number of advantages over other types of bushings, including:1. High strength: The FHP15K split taper bushing is made of high-strength steel, which makes it very resistant to wear and tear.2. Easy installation: The FHP15K split taper bushing is easy to install, as it simply slips over the shaft and is then locked in place with a key.3. Good alignment: The split design of the FHP15K split taper bushing helps to ensure good alignment between the shaft and the bushing, which minimizes vibration and wear.4. Wide range of sizes: The FHP15K split taper bushing is available in a wide range of sizes, so it can be used to fit a variety of shafts.5. Long service life: The FHP15K split taper bushing is designed to last for many years, even under heavy use.6. Easy maintenance: The FHP15K split taper bushing is easy to maintain, as it can simply be removed and replaced if necessary.

FHP15K Split Taper Bushing Installation Steps:

Split taper bushings are used to mount pulleys, sprockets, and other devices onto shafts. They provide a secure and firm fit and are easy to install and remove. Here are the steps to install an FHP15K split taper bushing:Inspect the Bushing and Shaft: Before installing, inspect the FHP15K split taper bushing and shaft for any visible damage or debris. The surfaces should be clean and smooth. The shaft should be free of nicks, burrs, and rust.Prepare the Bushing: Apply a light coating of oil to the bore of the FHP15K split taper bushing and the outside of the shaft. This helps in easy installation and removal in the future.Slide the Bushing onto the Shaft: Position the FHP15K split taper bushing onto the shaft. Make sure the bushing is oriented correctly. Align the holes in the bushing with the holes in the device you're mounting (like a pulley or sprocket).Install the Screws: Insert the screws through the holes in the device and into the FHP15K split taper bushing. Do not fully tighten the screws yet; just make them snug.Align the Device: Adjust the position of the device on the shaft as needed. This could be aligning a pulley with a belt or a sprocket with a chain, for example.Tighten the Screws: Once the device is positioned correctly, tighten the screws. It is important to tighten them evenly. Start by partially tightening one screw, then move to the next. Repeat the process until all the screws are fully tightened.Check the Installation: Verify that the device is secure and correctly positioned. If necessary, adjust the position and re-tighten the screws.Final Inspection: Rotate the shaft by hand to ensure that the device is rotating freely and evenly. If there is any wobble or binding, loosen the screws, adjust the position, and re-tighten the screws.
