FHP23K Split Taper Bushing

Raydafon Group's FHP23K Split Taper Bushing is a precision-engineered component designed for secure shaft-hub connections in various industrial applications. Its split taper design ensures easy installation and reliable torque transmission, made from high-grade materials for durability. Ideal for equipment in manufacturing and machinery, it solves alignment issues, enhancing operational efficiency and reducing downtime. Compared to standard bushings, it offers superior adaptability and longevity, delivering confidence and smoother workflows. Trust in Raydafon Group for innovative solutions that power your productivity.

Send Inquiry

Product Description

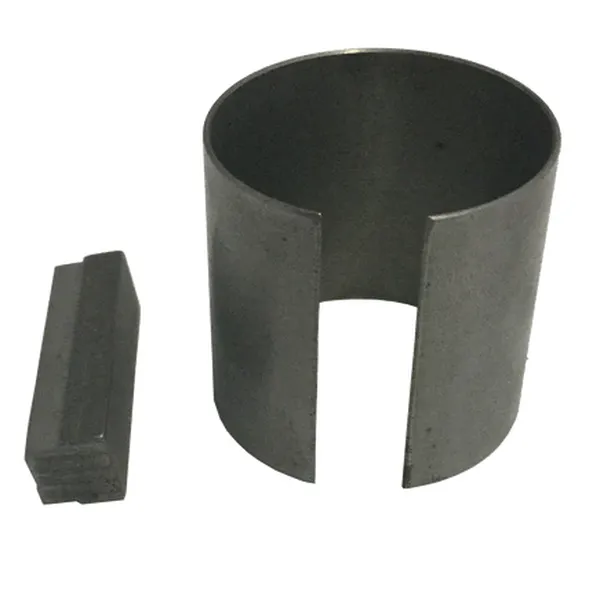

FHP23K Split Taper Bushing

The FHP23K split taper bushing is a type of split taper bushing that is designed for use in drives with lower torque. It features a key that helps to lock it in place on the shaft, and it is made of double-split steel for strength and durability. The FHP23K split taper bushing is used to mount sheaves and sprockets on shafts, and it is built to withstand the torque generated in power transmission.The FHP23K split taper bushing is a versatile and reliable component that can be used in a variety of applications. It is a good choice for applications where lower torque is required, and it is built to withstand the rigors of power transmission.

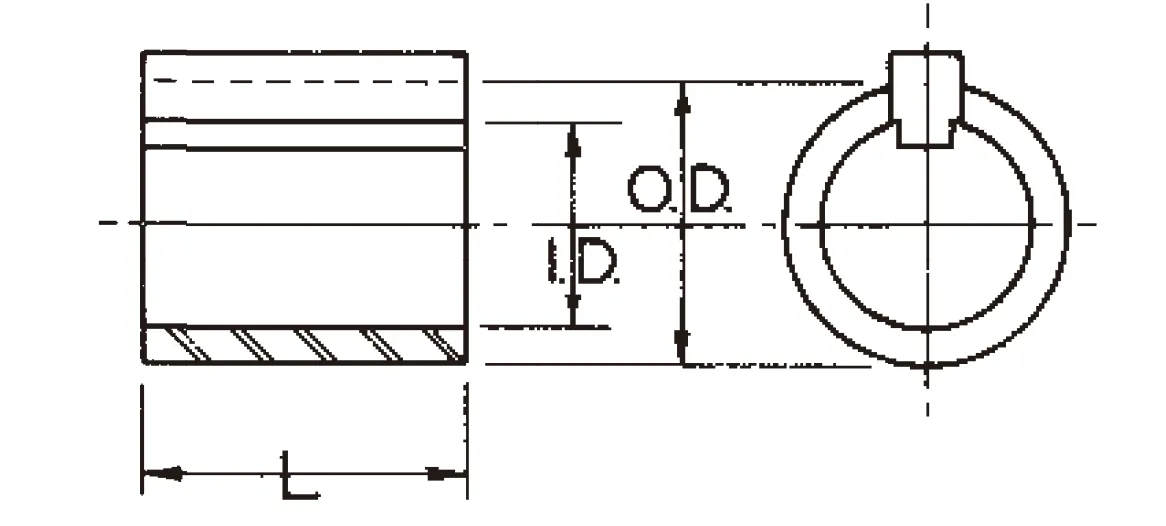

FHP23K Split Taper Bushing Dimensions:

Bushing Part No.	FHP23K Split Taper Bushing
Outside Diameter (O.D.)	5/8"
Inside Diameter (I.D.)	1/2"
Length	1 1/8"
Keyway Size	3/16" X 5/32" — 1/8" X 1/16"
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

FHP23K Split Taper Bushing Advantages:

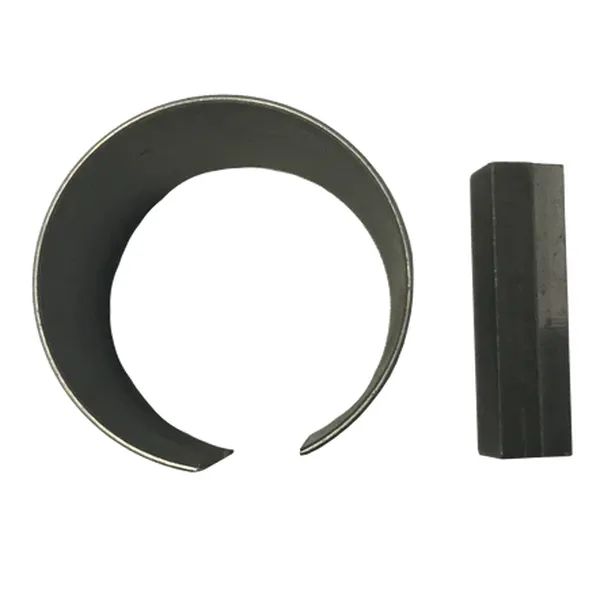

The FHP23K split taper bushing has a number of advantages, including:1. Keyed to the shaft for secure installation: The key helps to prevent the FHP23K split taper bushing from rotating on the shaft, which ensures that the sheave or sprocket is properly aligned.2. Made of double-split steel for strength and durability: The double-split steel construction makes the FHP23K split taper bushing strong and durable, and it can withstand the torque generated in power transmission.3. Designed for use in drives with lower torque: The FHP23K split taper bushing is designed for use in drives with lower torque, which makes it a good choice for applications where high torque is not required.4. Used to mount sheaves and sprockets on shafts: The FHP23K split taper bushing can be used to mount sheaves and sprockets on shafts, which makes it a versatile component that can be used in a variety of applications.5. Built to withstand torque generated in power transmission: The FHP23K split taper bushing is built to withstand the torque generated in power transmission, which makes it a reliable and durable component.Overall, the FHP23K split taper bushing is a versatile and reliable component that offers a number of advantages. It is a good choice for applications where lower torque is required, and it is built to withstand the rigors of power transmission.

Difference Between QD and Split Taper Bushing:

QD bushings and split taper bushings are both types of mechanical fasteners that are used to mount pulleys, sprockets, and other components to shafts. They both use a tapered design to create a secure fit, but they have some key differences.QD bushings have a flange on the outside diameter that helps to secure them in place. They also have a split that runs through the flange and the taper, which makes them easy to install and remove. QD bushings are typically used in applications where frequent removal and installation is necessary, such as in conveyor systems.Split taper bushings do not have a flange. Instead, they have two slots that are cut into the taper. These slots are used to insert set screws, which help to secure the bushing in place. Split taper bushings are typically used in applications where frequent removal and installation is not necessary, such as in machinery that is not frequently disassembled.Here is a table that summarizes the key differences between QD bushings and split taper bushings:

Feature	QD Bushing	Split Taper Bushing
Flange	Yes	No
Split	Yes	Yes
Set screws	No	Yes
Ease of installation	Easy	Difficult
Frequency of removal and installation	Frequent	Infrequent

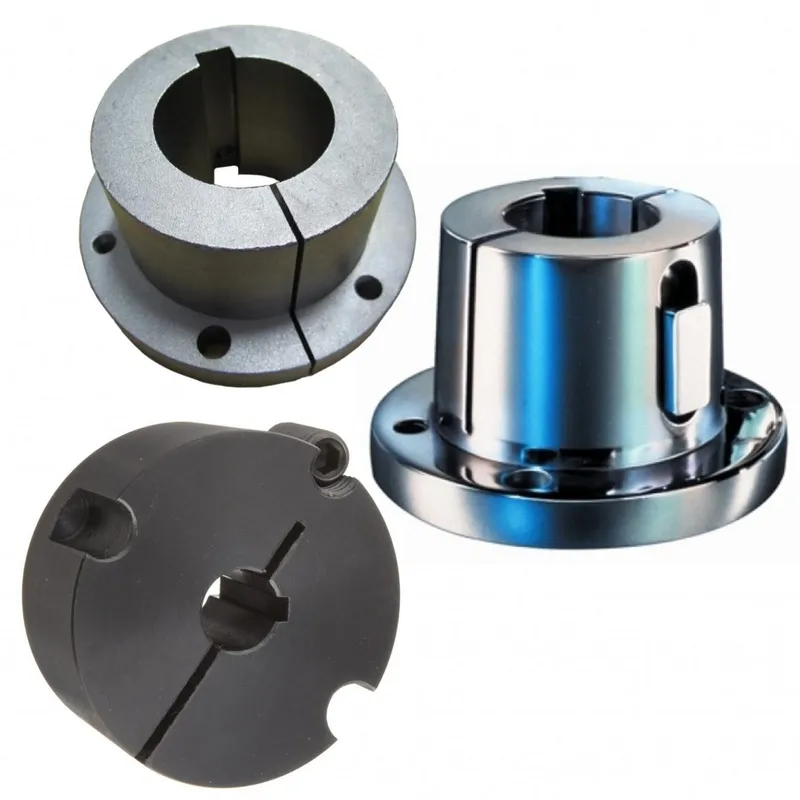

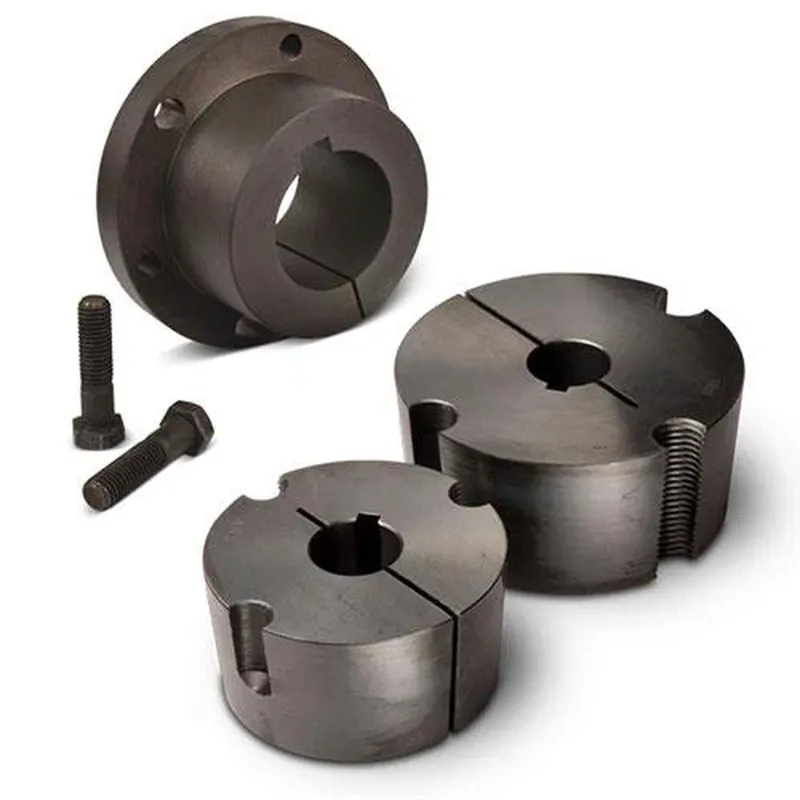

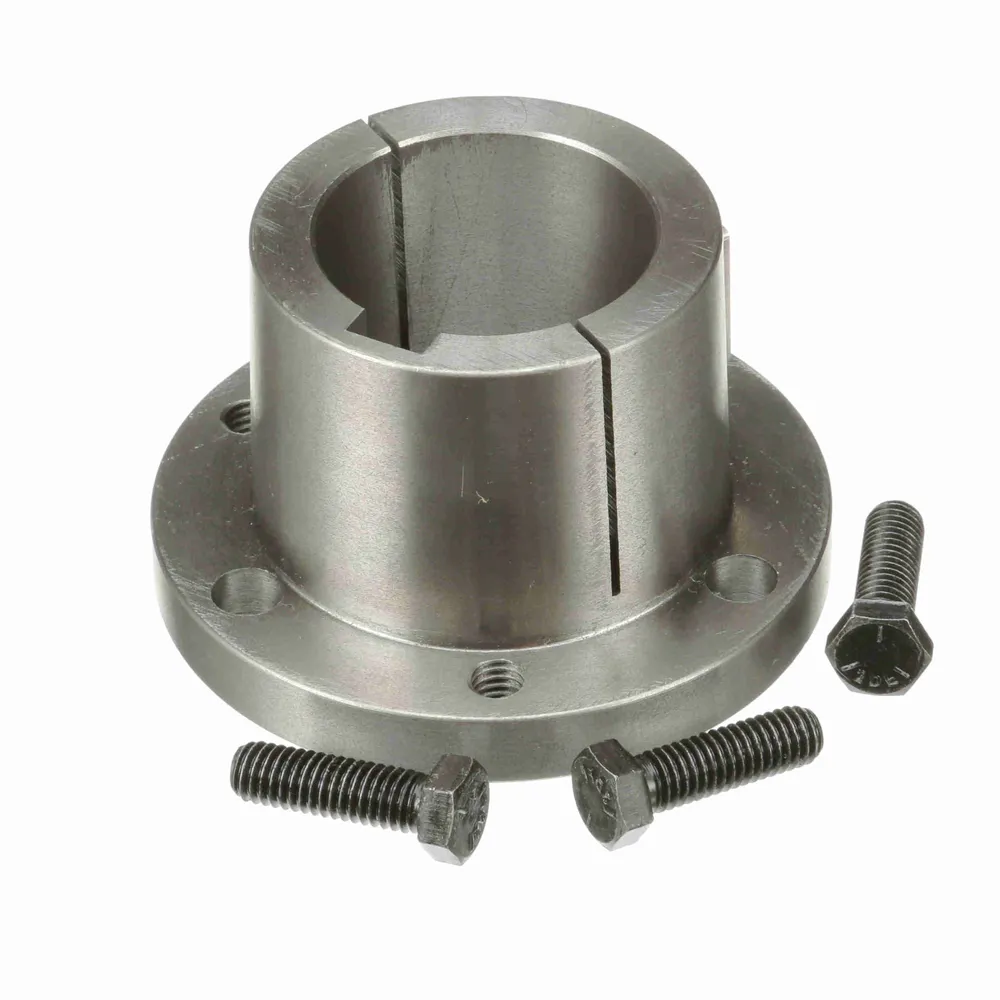

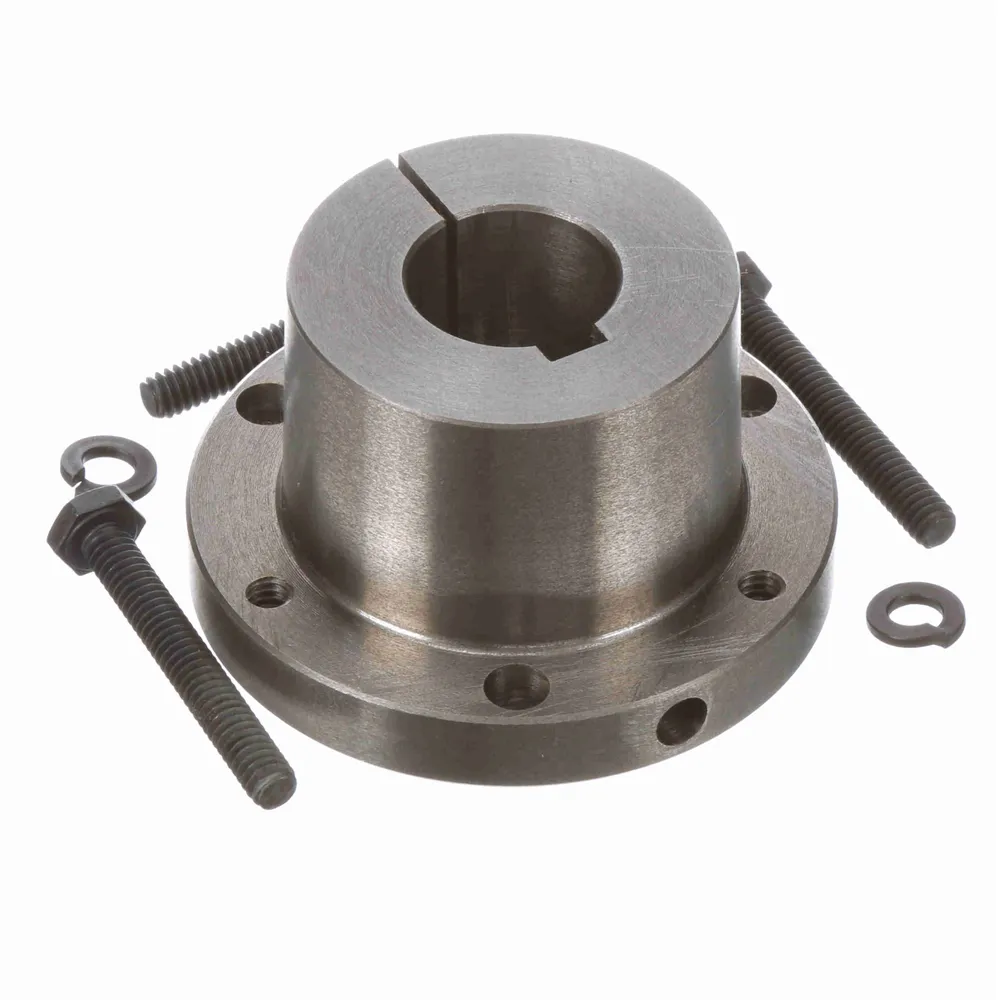

QD Bushing	Split Taper Bushing

FHP23K Split Taper Bushing Installation:

Installing an FHP23K split taper bushing involves several steps. Here’s a general guide to help you with the installation process:1. Gather the necessary tools and equipment: You’ll need a torque wrench, hammer, screwdriver, and possibly a puller or bushing installation tool (if required by the specific bushing).2. Prepare the shaft and hub: Ensure that the shaft and hub are clean and free from any debris or burrs. This will help with the proper installation and alignment of the bushing.3. Inspect the bushing: Before installation, check the split taper bushing for any damage or defects. Make sure it is the correct size and type for your application.4. Position the bushing: Place the split taper bushing inside the hub, ensuring that the split line of the bushing aligns with the split line of the hub. The tapered surface of the bushing should face the shaft.5. Tighten the bushing: Begin tightening the split taper bushing using a torque wrench and a socket wrench. Alternate tightening the bolts in a diagonal pattern to ensure even pressure distribution. Follow the manufacturer’s specifications for the recommended torque value.6. Check alignment: After tightening the split taper bushing, use a dial indicator or similar tool to check the alignment between the shaft and hub. This step is important to ensure proper alignment and minimize any potential vibration or misalignment issues.7. Secure the bushing: If provided by the manufacturer, install set screws or pins to secure the split taper bushing in place. These additional fasteners can help prevent the bushing from rotating or coming loose during operation.8. Test the installation: Rotate the shaft manually or using a power source to ensure smooth operation and proper alignment. Pay attention to any unusual vibrations or noises, as they may indicate an issue with the installation.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team, and we will happily assist you.
