FHP12K Split Taper Bushing

FHP12K Split Taper Bushing

The FHP12K split taper bushing is a type of split bushing that is designed for use in power transmission applications. It is made of steel and has a double split design, which makes it more adjustable in regard to shaft size and improves hold strength. The FHP12K split taper bushing is also keyed to the shaft, which helps to lock it in place and prevent it from rotating.This FHP12K split taper bushing is commonly used to mount sheaves and sprockets on shafts. It is also compatible with a variety of other FHP drive components, including pulleys and sprockets.

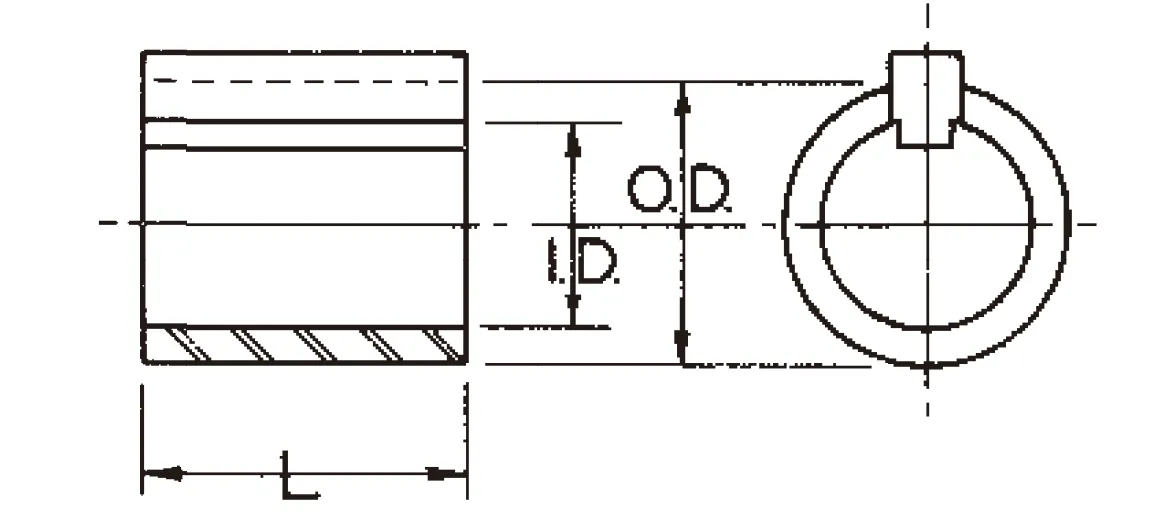

FHP12K Split Taper Bushing Dimensions:

Bushing Part No.	FHP12K Split Taper Bushing
Outside Diameter (O.D.)	1 7/16''
Inside Diameter (I.D.)	1 1/16''
Length	1 3/8''
Keyway Size	3/8'' X 11/32'' — 1/4'' X 1/8''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

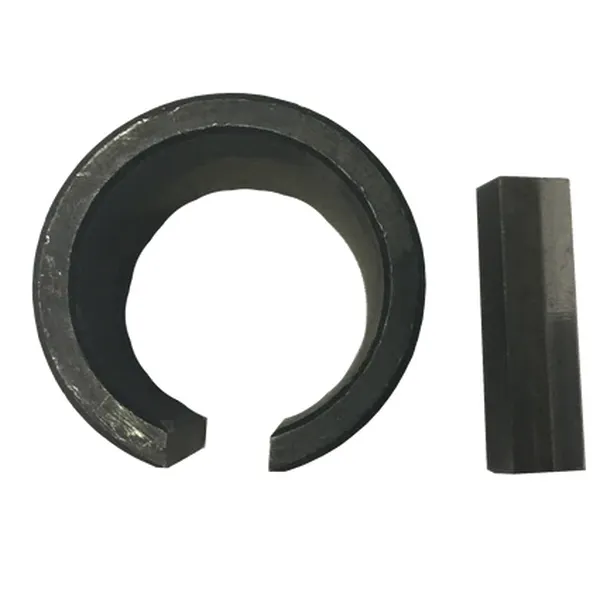

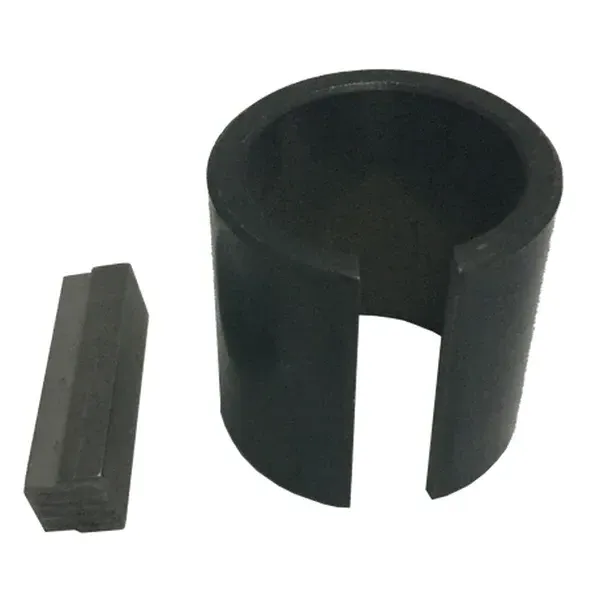

Characteristics of FHP12K Split Taper Bushing:

Here are some of the key characteristics of the FHP12K split taper bushing:1. Double split design: This design allows the FHP12K split taper bushing to be adjusted to fit a wider range of shaft sizes. It also improves the hold strength of the bushing, making it less likely to slip or rotate.2. Keyed to the shaft: The key helps to lock the FHP12K split taper bushing in place and prevent it from rotating. This is important in applications where high torque is present.3. Made of steel: Steel is a durable material that is resistant to wear and tear. This makes the FHP12K split taper bushing a good choice for applications where long life is required.4. Compatible with a variety of FHP drive components: The FHP12K split taper bushing is compatible with a variety of FHP drive components, including sheaves, pulleys, and sprockets. This makes it a versatile component that can be used in a wide range of applications.Overall, the FHP12K split taper bushing is a reliable and versatile component that can be used in a variety of power transmission applications. It is a good choice for applications where high torque and durability are required.

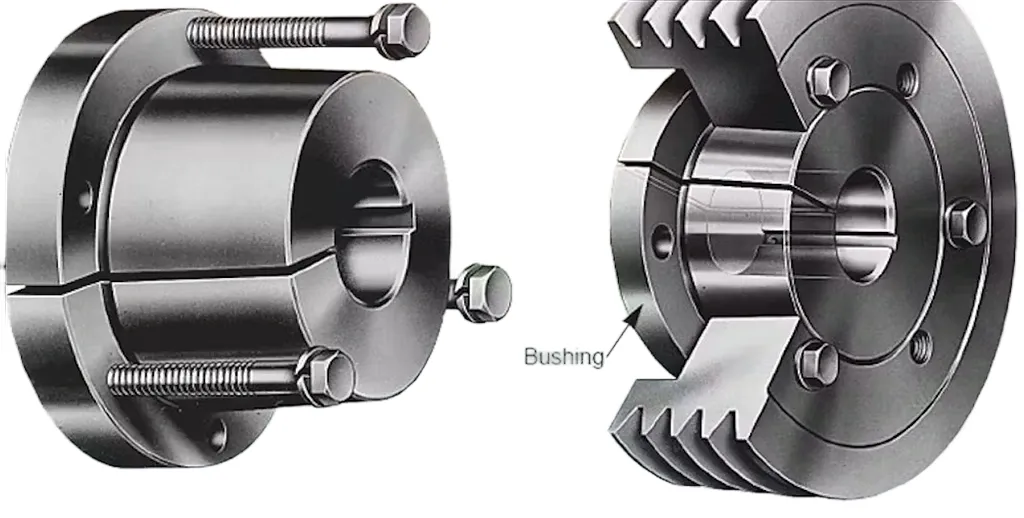

How Does a Split Taper Bushing Work?

A split taper bushing is a type of bushing that is used to mount rotating components, such as sheaves and sprockets, onto shafts. It is made of a steel barrel with a tapered bore, and it has two split halves that are held together by a key.To install a split taper bushing, the shaft is first tapered to match the bore of the bushing. The bushing is then placed over the shaft and the split halves are aligned. The key is then inserted into the keyway in the shaft, and the split halves are tightened together.The tapered bore of the split taper bushing creates a tight fit between the bushing and the shaft. This prevents the bushing from rotating or slipping, even under high torque loads. The key also helps to lock the bushing in place.Split taper bushings are a versatile and reliable way to mount rotating components onto shafts. They are commonly used in a variety of power transmission applications, such as conveyor belts, hoists, and elevators.Here are the steps on how to install a split taper bushing:

1. Prepare the shaft. The shaft must be tapered to match the bore of the bushing. This can be done using a lathe or a special tool.
2. Align the bushing. The bushing should be aligned so that the keyway in the shaft is aligned with the keyway in the bushing.
3. Insert the key. The key is inserted into the keyway in the shaft.
4. Tighten the split halves. The split halves are tightened together using a wrench or a socket.

Once the split taper bushing is installed, it is ready to be used. The bushing will hold the rotating component in place and prevent it from rotating or slipping, even under high torque loads.

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team and we will happily assist you.
