FHP8K Split Taper Bushing

FHP8K Split Taper Bushing

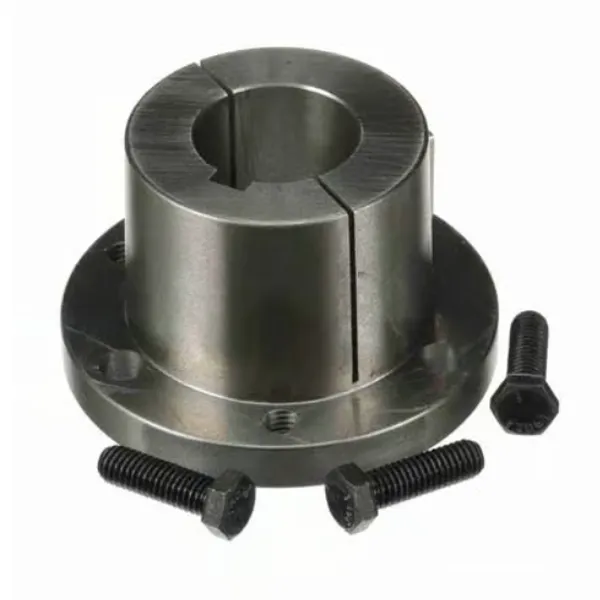

The FHP8K split taper bushing is a mechanical component that is used to securely mount pulleys, sprockets, or other rotating equipment onto a shaft. It is made of a durable steel alloy and has a double-split barrel that is keyed to the shaft. This design provides a strong and secure connection that can withstand high torque loads.The FHP8K split taper bushing has an inner diameter of 9/16 inches and an outer diameter of 3/4 inches. It is a standard size that is commonly used in a variety of industrial applications. If you are looking for a reliable and secure way to mount pulleys, sprockets, or other rotating equipment onto a shaft, then the FHP8K split taper bushing is a good option to consider.

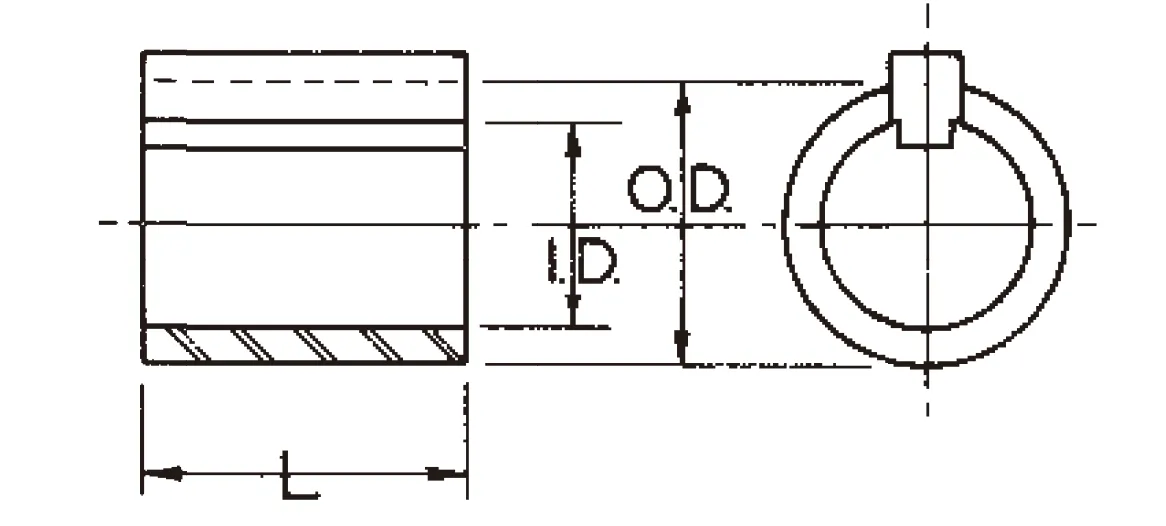

FHP8K Split Taper Bushing Dimensions:

Bushing Part No.	FHP8K Split Taper Bushing
Outside Diameter (O.D.)	3/4"
Inside Diameter (I.D.)	9/16"
Length	1 1/8"
Keyway Size	3/16" X 5/32" — 1/8" X 1/16"
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

Benefits of Using the FHP8K Split Taper Bushing:

The FHP8K split taper bushing is a type of taper lock bushing that is designed for use in drives with lower torque. It features a double split steel body that allows it to be easily installed and removed and a key that helps to lock it in place on the shaft.The FHP8K split taper bushing offers a number of benefits, including:1. Flexibility: The split design allows the FHP8K split taper bushing to be used with a variety of shaft sizes, making it a versatile option for a variety of applications.2. Strength: The steel body provides the FHP8K split taper bushing with a high degree of strength, making it able to withstand the torque generated in power transmission applications.3. Ease of installation: The split design makes the FHP8K split taper bushing easy to install and remove, which can save time and labor costs.4. Locking key: The key helps to lock the FHP8K split taper bushing in place on the shaft, preventing it from rotating and causing damage.

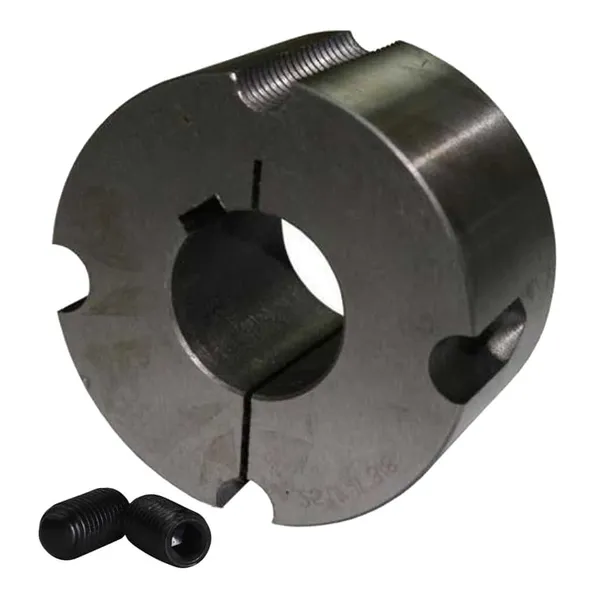

Split Taper Bushing Vs Taper Lock Bushing:

Split taper bushings and taper lock bushings are both types of bushings that are used to connect a sheave or sprocket to a shaft. They both use a tapered design to lock the bushing in place, but there are some key differences between the two.Split taper bushings have a split design that allows them to be easily installed and removed. This makes them a good option for applications where the sheave or sprocket needs to be frequently disassembled. Split taper bushings are also typically less expensive than taper lock bushings.Taper lock bushings have a solid body that is locked in place with a set screw. This makes them more secure than split taper bushings, but they are also more difficult to install and remove. Taper lock bushings are typically more expensive than split taper bushings.In general, split taper bushings are a good choice for applications where ease of installation and removal is important. Taper lock bushings are a good choice for applications where security is more important.Here is a table that summarizes the key differences between split taper bushings and taper lock bushings:

China Split Taper Bushing Manufacturers

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Our team of professionals is ready to address any questions you may have and can even create custom bushings in a variety of materials. For additional information or to get a quote, please contact our knowledgeable customer support team and we will happily assist you.
