Flared Union Elbows for 37° Flared Tube Fittings

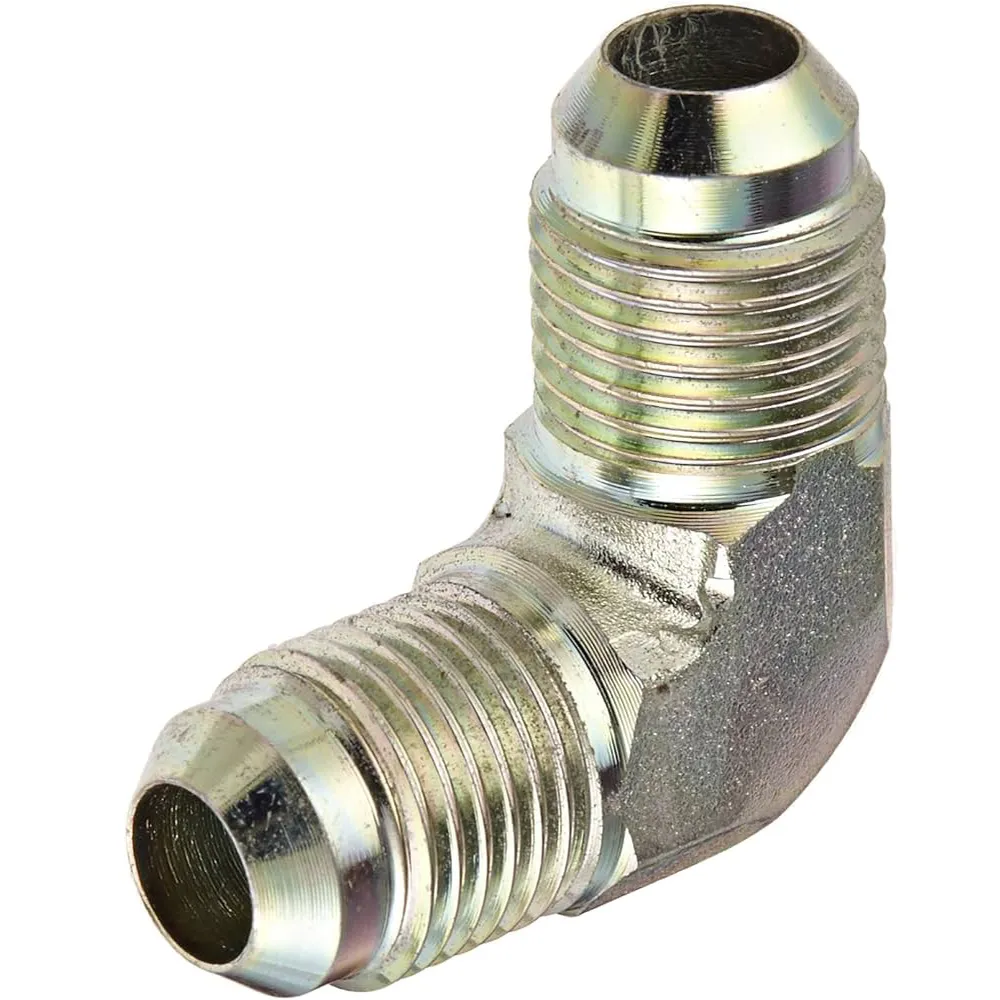

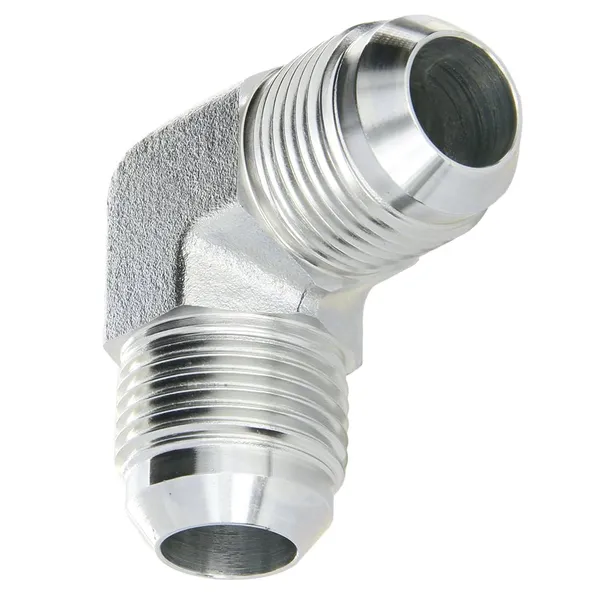

Flared Tube Union Elbows

Flared tube union elbows are a type of pipe fitting commonly used in plumbing and fluid transfer systems. They are specifically designed to connect two sections of tubing or pipes that are joined at an angle, typically 90 degrees. The flared tube union elbows are versatile fittings that provide a secure and leak-free connection while allowing for easy disassembly and reassembly of the tubing system.The main feature of a flared tube union elbow is its flared ends. These ends are designed to accommodate flared fittings, which are formed by expanding the end of the tubing to create a wider opening. The flared ends of the elbow fitting are then connected to the corresponding flared ends of the tubing sections, creating a reliable connection.Flared tube union elbows are commonly made from materials such as brass, stainless steel, or other corrosion-resistant alloys. These materials ensure the fittings are durable, resistant to pressure and temperature variations, and suitable for a wide range of applications.One of the key advantages of flared tube union elbows is their ease of installation and removal. They can be assembled and disassembled without the need for special tools or welding, making them ideal for situations where the tubing system may require frequent adjustments or maintenance.These flared tube fittings are widely used in various industries, including plumbing, HVAC (heating, ventilation, and air conditioning), automotive, and hydraulic systems. They are particularly common in applications where the tubing needs to make sharp turns or changes in direction while maintaining a reliable connection.

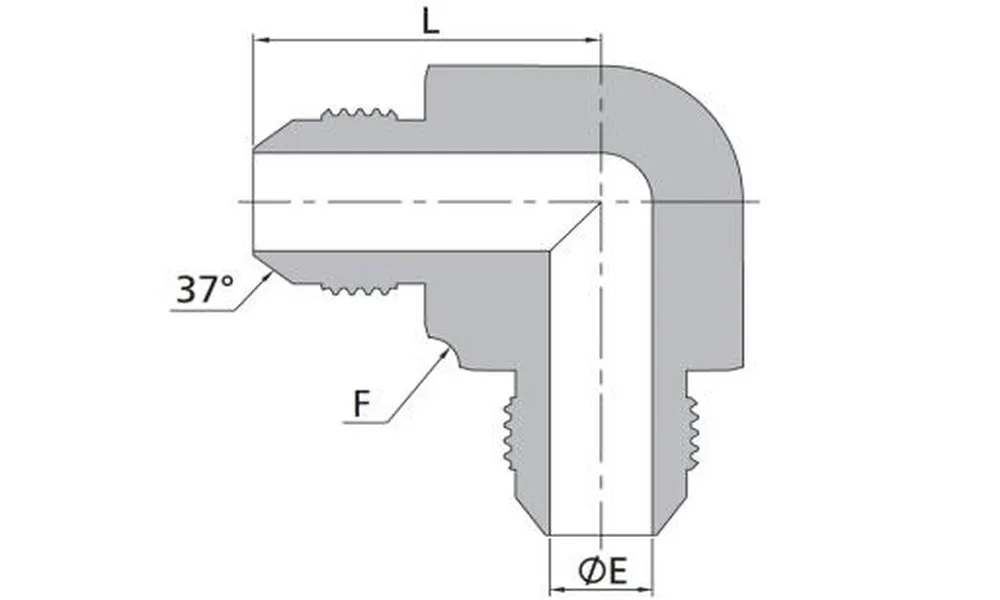

Flared Tube Union Elbows Size Chart:

Tube O.D.		Basic Ordering Number	Dimensions, in. (mm)
in.	mm		L	E	F (Flat)
1/8	3	-JUE-AN2	0.77 (19.6)	0.06 (1.6)	0.44 (11.1)
3/16	4	-JUE-AN3	0.83 (21.1)	0.13 (3.2)	0.44 (11.1)
1/4	6	-JUE-AN4	0.89 (22.6)	0.17 (4.4)	0.50 (12.7)
5/16	8	-JUE-AN5	0.95 (24.1)	0.24 (6.0)	0.56 (14.3)
3/8	10	-JUE-AN6	1.06 (26.9)	0.30 (7.5)	0.56 (14.3)
1/2	12	-JUE-AN8	1.25 (31.8)	0.39 (9.9)	0.81 (20.6)
5/8	16	-JUE-AN10	1.45 (36.8)	0.48 (12.3)	0.81 (20.6)
3/4	18	-JUE-AN12	1.66 (42.2)	0.61 (15.5)	1.06 (27.0)
7/8	22	-JUE-AN14	1.80 (45.7)	0.72 (18.3)	1.25 (31.8)
1	25	-JUE-AN16	1.81 (46.0)	0.85 (21.5)	1.37 (34.9)
1 1/4	32	-JUE-AN20	2.06 (52.3)	1.08 (27.5)	1.69 (42.9)
1 1/2	38	-JUE-AN24	2.33 (59.2)	1.30 (33.0)	2.00 (50.8)
2	50	-JUE-AN32	3.06 (77.7)	1.77 (45.0)	2.50 (63.5)

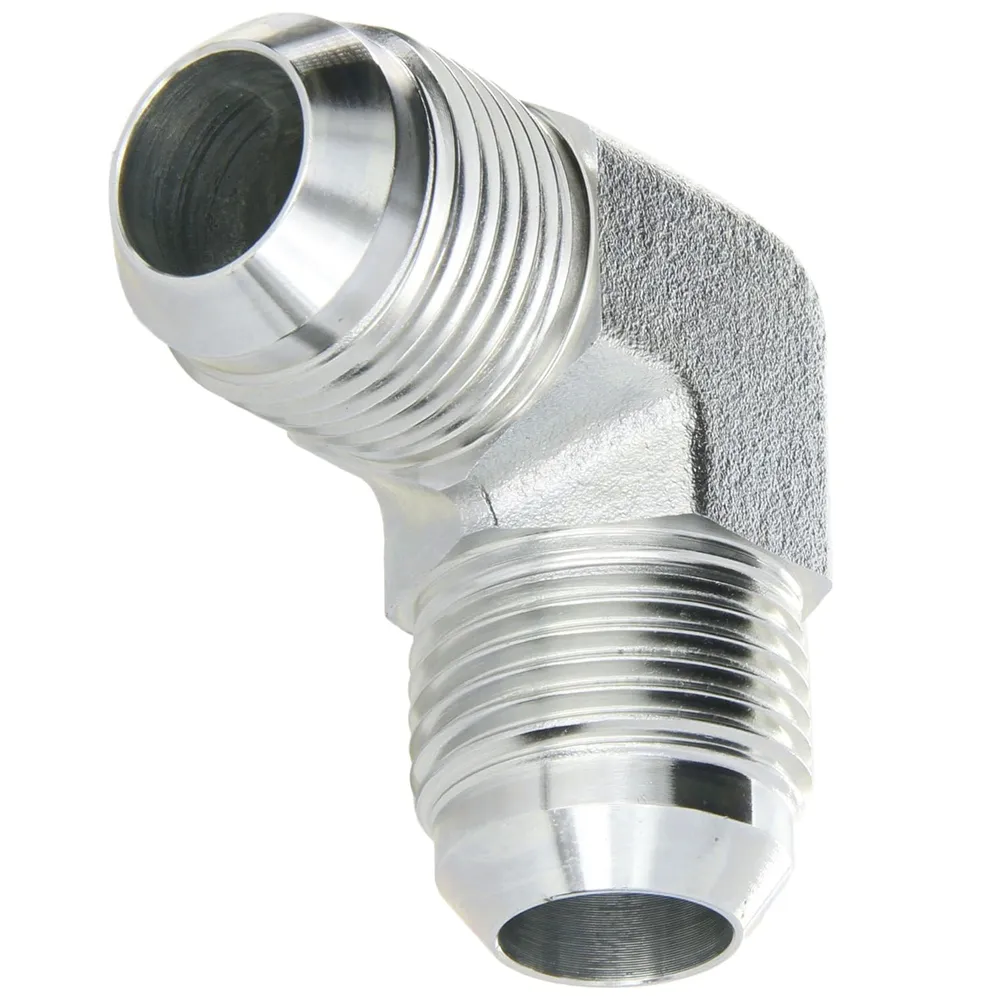

Benefits of Using Flared Tube Union Elbows:

Using flared tube union elbows in plumbing and fluid transfer systems offers several benefits. Here are some of the key advantages:1. Leak-free connections: Flared tube union elbows provide a secure and reliable connection between tubing sections. The flared ends of the fittings create a tight seal with the corresponding flared ends of the tubing, minimizing the risk of leaks. This is especially important in systems that handle liquids or gases under pressure.2. Easy installation and disassembly: Flared tube union elbows can be easily assembled and disassembled without the need for specialized tools or welding. This makes them highly convenient for situations that require frequent adjustments, modifications, or maintenance of the tubing system. The ability to disassemble and reassemble the fittings allows for easier troubleshooting and repairs.3. Versatility: Flared tube union elbows are available in a variety of sizes, materials, and configurations to suit different application requirements. Whether it's plumbing, HVAC, automotive, or hydraulic systems, these fittings can accommodate a wide range of tubing sizes and fluid types. Their versatility makes them a popular choice in various industries.4. Resistance to vibration and movement: The flared connection in union elbows provides enhanced resistance to vibration and movement within the tubing system. This is particularly beneficial in applications where the system is subject to mechanical stress, such as in automotive or industrial environments. The secure connection minimizes the risk of loosening or disconnecting due to vibrations or movement.5. Corrosion resistance: Flared tube union elbows are commonly constructed from materials like brass, stainless steel, or other corrosion-resistant alloys. This ensures their durability and longevity, even in harsh environments where the tubing system may be exposed to corrosive substances or extreme temperatures. The corrosion resistance of these fittings helps maintain the integrity of the system over time.6. Cost-effective: Flared tube union elbows offer a cost-effective solution for joining tubing sections at an angle. Compared to other types of fittings that require welding or specialized tools, flared tube union elbows are relatively inexpensive and easy to work with. Their reusability and ease of installation contribute to cost savings in terms of labor and materials.
