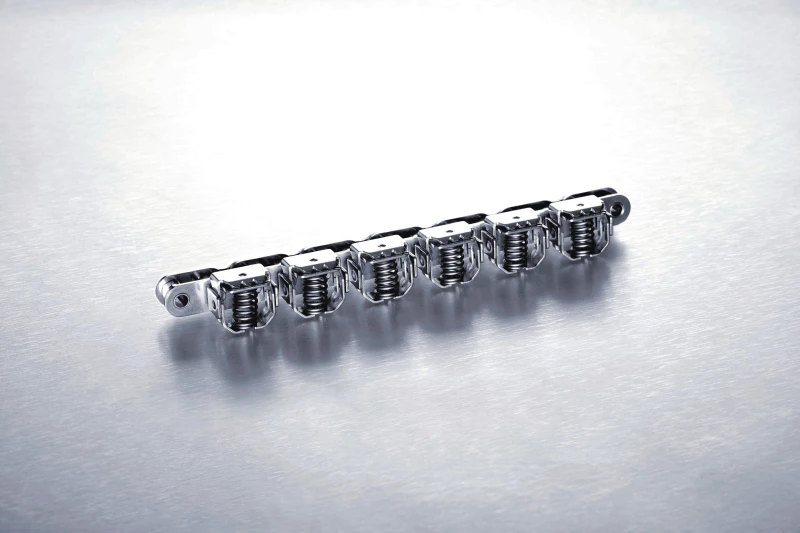

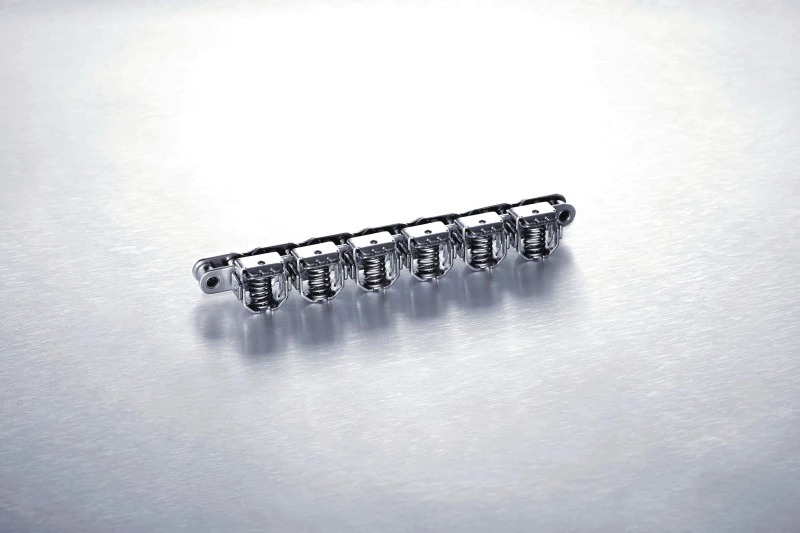

Gripper Chains with Type C Teeth Frame Clamp

Gripper Chains with Teeth Frame Clamp Specifications

Raydafon Code	DIN/ISO	Material			Pitch	Inside Width	Roller Dia	Clamp Moving		Clamp Force	Tensile Strength
		Base Chain	Clamp	Spring	Pmm	b1 Maxmm	d1 Maxmm	Vertical xmm	Horizontal ymm	Q-CN	Q Min.kN
08B1GC-C	08B-1	SS	SS	SS	12.700	7.75	8.51	? 4.2	3.7	50	15.0
	08B-1	NP	SS	SS	12.700	7.75	8.51	? 4.2	3.7	50	18.0
08B2GC-C	08B-2	SS	SS	SS	12.700	7.75	8.51	? 4.2	3.7	50	25.5
	08B-2	NP	SS	SS	12.700	7.75	8.51	? 4.2	3.7	50	32.0
10B1GC-C	10B-1	SS	SS	SS	15.875	9.65	10.16	? 6.7	5.6	70	18.5
	10B-1	NP	SS	SS	15.875	9.65	10.16	? 6.7	5.6	70	22.4
10B2GC-C	10B-2	SS	SS	SS	15.875	9.65	10.16	? 6.7	5.6	70	35.6
	10B-2	NP	SS	SS	15.875	9.65	10.16	? 6.7	5.6	70	44.5

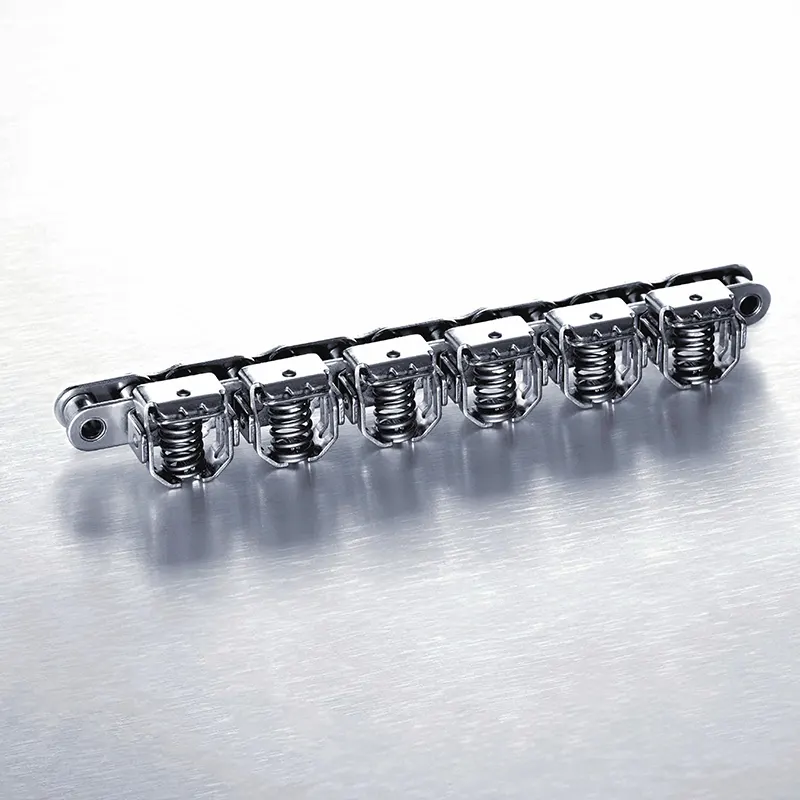

Overview of Gripper Chains with Type C Teeth Frame Clamp

The Gripper Chains with Type C Teeth Frame Clamp are specifically designed to provide enhanced clamping performance when working with thicker and stronger films. These chains feature a Teeth Frame Clamp (Type C) that ensures a secure grip, preventing any slippage during the packaging process.One of the standout features of these gripper chains is their excellent corrosion resistance. They are available in both Nickel Plated and Stainless Steel variations, making them suitable for various environments. The stainless springs used in these chains are made of high-quality material imported from Japan, guaranteeing consistent and reliable clamping force.To ensure exceptional durability, the base chain of the Gripper Chains is made of AISI 630HT, which offers outstanding wear-resistance. Additionally, the chains are supplied in pre-stretched and matched strands, ensuring trouble-free machine set-up.In addition to the standard version, a lube-free Nickel Plated chain is also available upon request, providing further convenience and ease of use.The Gripper Chains with Type C Teeth Frame Clamp find extensive applications in various industries, particularly for Form, Fill, and Vacuum Seal wrapping processes. In the food industry, they are commonly used for packaging items such as ham, sausage, cheese, bread, and fish. In the electronics industry, they are ideal for packaging wires, while the medical industry benefits from their usage in packaging injection syringes and pharmaceutical products.These gripper chains offer a reliable solution for ensuring secure and efficient packaging in a wide range of industrial applications. With their robust design and superior performance, they are a valuable asset in enhancing productivity and maintaining product integrity.

Features of Gripper Chains with Type C Teeth Frame Clamp

The Teeth Frame Clamp (Type C) provides better clamping performance with thicker and stronger film. Our Gripper Chains with Base Chains are available in both Nickel Plated and Stainless Steel options, ensuring excellent corrosion resistance. The stainless springs used in our chains are made of high-quality, Japan-imported material, guaranteeing reliable clamping force. For the stainless steel base chain, the Pin & Bush are made of AISI 630HT, providing outstanding wear-resistance.Our Gripper Chains are supplied in pre-stretched and matched strands, which ensures trouble-free machine setup. Additionally, we offer a lube-free Nickel Plated chain version upon request. With attention to detail and quality, our Gripper Chains are designed to enhance performance and durability in various industries.

How Does Grip Chains Work?

Gripper Chains with Type C Teeth Frame Clamp are designed to grip and move heavy loads in a variety of industrial applications. The chain features a unique design with Type C teeth that engage with the load, providing a secure grip. The chain is driven by sprockets, which rotate the chain and move the load along the conveyor.The main advantage of Grip Chains is their ability to grip and move heavy loads without the need for additional clamps or attachments. This makes them ideal for applications where space is limited or where multiple clamps or attachments would be impractical. The chain is also highly durable, with a robust construction that can withstand the rigors of heavy-duty use.In summary, Grip Chains with Type C Teeth Frame Clamp are a highly effective solution for moving heavy loads in a variety of industrial settings. Their unique design provides a secure grip without the need for additional clamps or attachments, making them an ideal choice for applications where space is limited or where multiple clamps would be impractical.

Applications of Gripper Chains with Type C Teeth Frame Clamp

The Teeth Frame Clamp (Type C) is specifically designed to provide better clamping performance with thicker and stronger films. Gripper chains with Type C teeth frame clamp offer reliable and efficient solutions for various wrapping applications. Here are some of the common applications of Gripper Chains with Type C Teeth Frame Clamp:

• Food Industry: Gripper chains are popularly used in the food industry for packaging ham, sausage, cheese, bread, fish, and other food products.
• Electronics Industry: Gripper chains are widely used in the electronics industry for packaging wires and other similar products.
• Medical Industry: Gripper chains are utilized in the medical industry for packaging injection syringes, pharmaceutical products, and other medical supplies.

Gripper chains with Base Chains are available in both Nickel Plated and Stainless Steel, providing excellent corrosion resistance. Stainless springs in the chains are made of high-quality material imported from Japan, ensuring consistent clamping force. For stainless-steel base chains, Pin & Bush are made of AISI 630HT, providing outstanding wear-resistance. The chains come pre-stretched and matched in strands, guaranteeing trouble-free machine set-up. Additionally, the lube-free Nickel Plated chain version is also available upon request.

How to Order Our Film Gripper Chains?

If you're interested in ordering our Gripper Chains with Type C Teeth Frame Clamp, please consider the following factors:

• Chain Size: You can choose either 08B or 10B chain size, depending on your requirements.
• Strand: You can select the number of strands based on the weight and size of the film roll. We offer both single and double strand options.
• Clamp Type: Our Gripper Chains come with a Type C Teeth Frame Clamp, which is suitable for gripping thin films.
• Base Chain Material: You can choose either Stainless Steel or Nickel-Plated Carbon Steel based on your requirements for corrosion resistance and durability.

Sprockets for Gripper Chains

Gripper Chains with Type C Teeth Frame Clamp are a crucial component of the overall functionality of the chain and sprocket system. The interdependence between the chain and sprocket is vital for efficient operation and optimal performance.In the case of Gripper Chains with Type C Teeth Frame Clamp, the chain requires a compatible sprocket to ensure smooth engagement and accurate transmission of power. The teeth on the sprocket perfectly align with the chain to provide a secure grip and minimize slippage during operation.Our company offers a wide range of sprockets that are specifically designed to complement Gripper Chains with Type C Teeth Frame Clamp. These sprockets are precisely manufactured to match the chain specifications, ensuring a reliable and durable connection between the chain and sprocket.With our extensive selection of compatible sprockets, we provide a comprehensive solution for customers using Gripper Chains with Type C Teeth Frame Clamp. Our sprockets are engineered to deliver superior performance, longevity, and precise synchronization with the chain.
