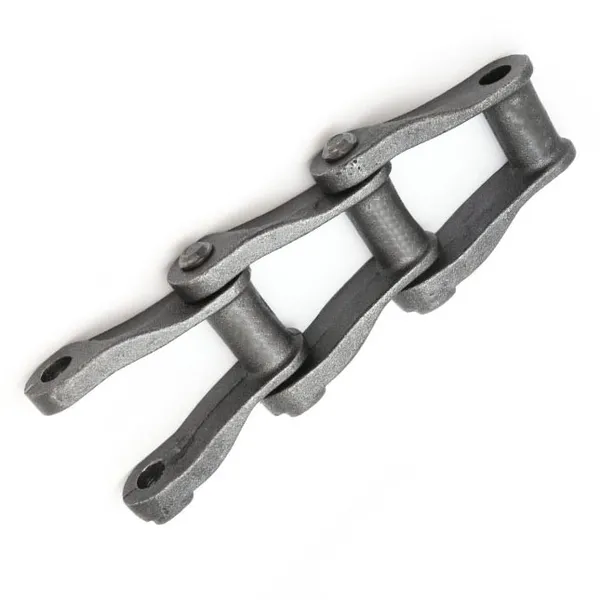

H60 Mill Chain

H60 Mill Chain for Lumber and Paper Industries

The H60 Mill Chain is made from pearlitic malleable iron, which is a strong and durable material that is resistant to wear and tear. The chain has a pitch of 2.308 inches, which is the distance between the centers of two adjacent pins. The H60 Mill Chain also has a tensile strength of 7000 pounds, which is the maximum amount of weight that the chain can safely support.

H60 H60 Mill Chains are available in both riveted and cottered construction. Riveted chains are more common and are less expensive than cottered chains. However, cottered chains are stronger and more durable than riveted chains.

If you are looking for a heavy-duty, high-quality chain for your industrial application, the H60 Mill Chain is a great option. It is strong, durable, and resistant to wear and tear. It is also available in a variety of lengths and configurations to meet your specific needs.

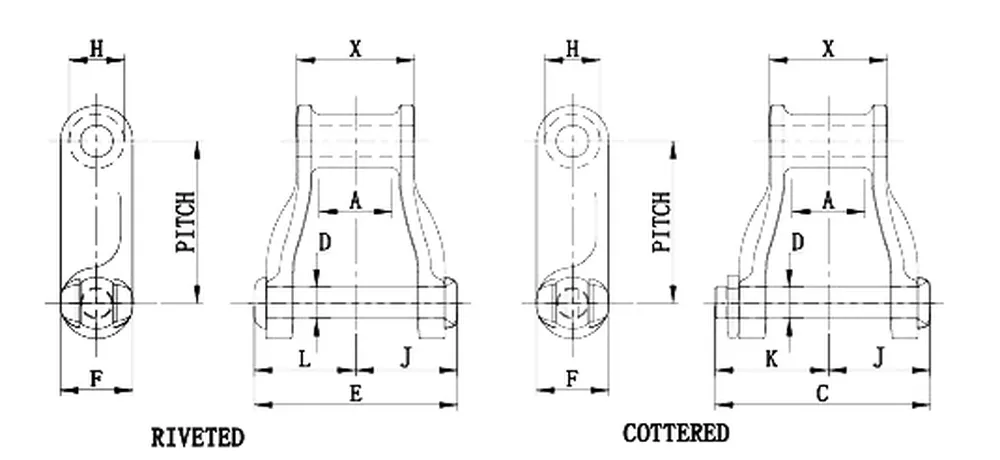

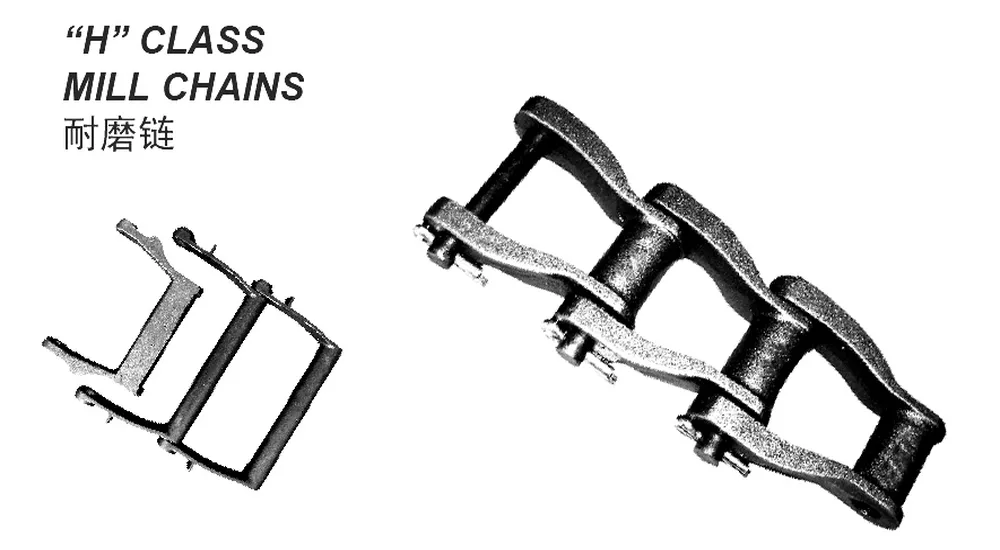

H60 Mill Chain Dimensions:

Chain No.	H60 Mill Chain
Pitch in Inches	2.308
Weight Per Foot LBS.	2.1
Average Ultimate Strength LBS.	7000
Maximum Working Load LBS.	1560
A	0.75
C	2.62
D	0.312
E	2.62
F	0.75
H	0.75
X	1.5
Available Attachments	H2, K1

H60 Mill Chain Attachments:

This H60 H2 attachment and H60 K1 attachment are high-quality precision attachments that are common stock items and can be assembled onto the H60 mill chain in any configuration needed or sold as an individual H60 H2 attachment link and H60 K1 attachment link.

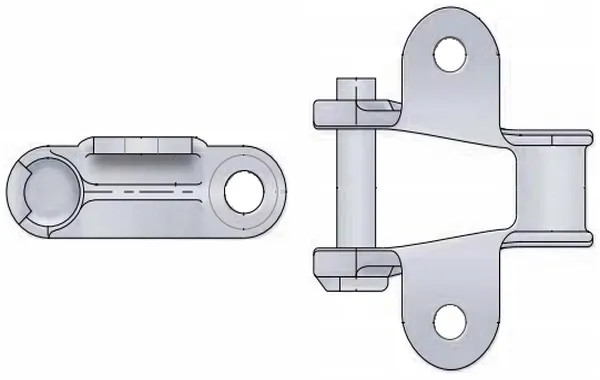

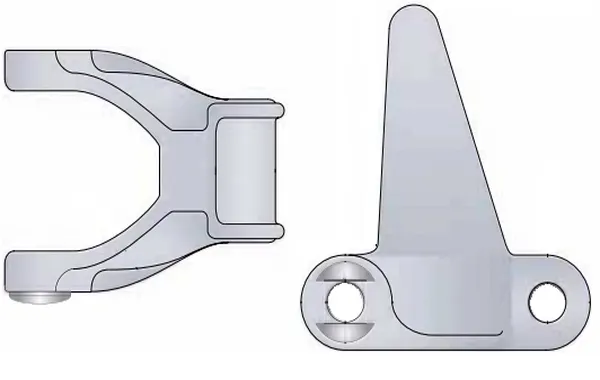

H60 Mill Chain H2 Attachment	H60 Mill Chain K1 Attachment

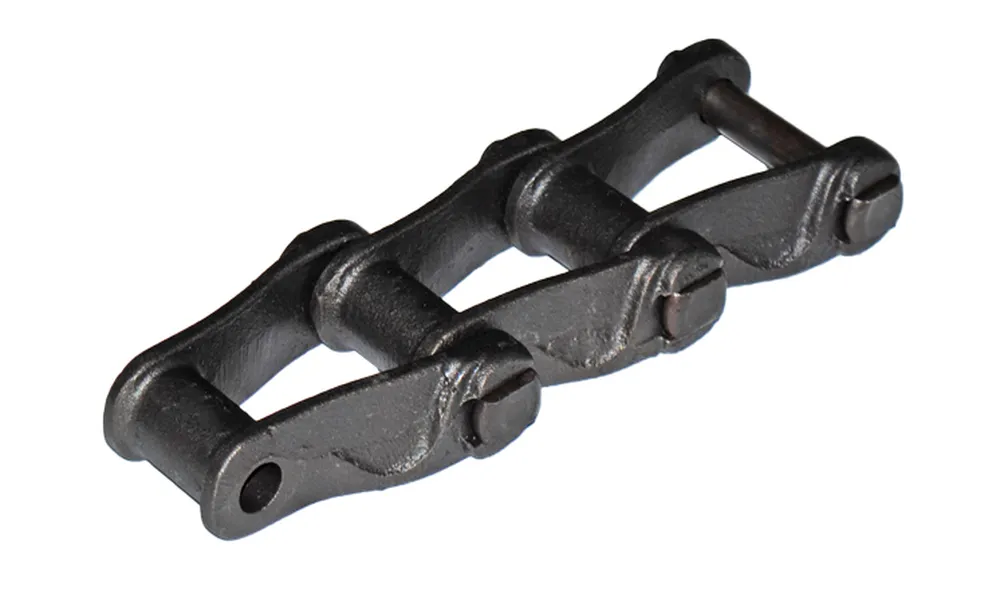

H60 Mill Chain Features:

The H60 Mill Chain, also known as an H60 chain or heavy-duty mill chain, is a type of roller chain commonly used in industrial applications, particularly in lumber and paper mills. It is designed to withstand heavy loads and harsh operating conditions. Here are some features of the H60 Mill Chain:1. Construction: The H60 Mill Chain is constructed using high-quality materials such as alloy steel. It typically consists of a series of cylindrical rollers connected together with link plates and pins.2. Roller Design: The rollers in the H60 Mill Chain are larger and heavier compared to standard roller chains. This design provides enhanced strength and durability, allowing the chain to handle heavy loads and resist wear.3. Pitch Size: The H60 Mill Chain has a pitch size of 2.308 inches. The pitch size refers to the distance between the centers of two consecutive rollers in the chain.4. Strength: H60 Mill Chains are known for their high tensile strength, which enables them to withstand heavy loads and shock loads commonly encountered in mill applications.5. Sprocket Compatibility: The H60 Mill Chain is designed to work with sprockets specifically manufactured for this chain size. The sprockets are typically made from hardened steel to ensure long service life.6. Lubrication: Proper lubrication is crucial for the smooth operation and longevity of the H60 Mill Chain. Regular lubrication helps reduce friction between the chain components, prevent wear, and maintain optimal performance.7. Applications: The H60 Mill Chain is commonly used in various heavy-duty applications, including lumber processing, sawmills, paper mills, and other industrial settings where large loads and harsh conditions are present.

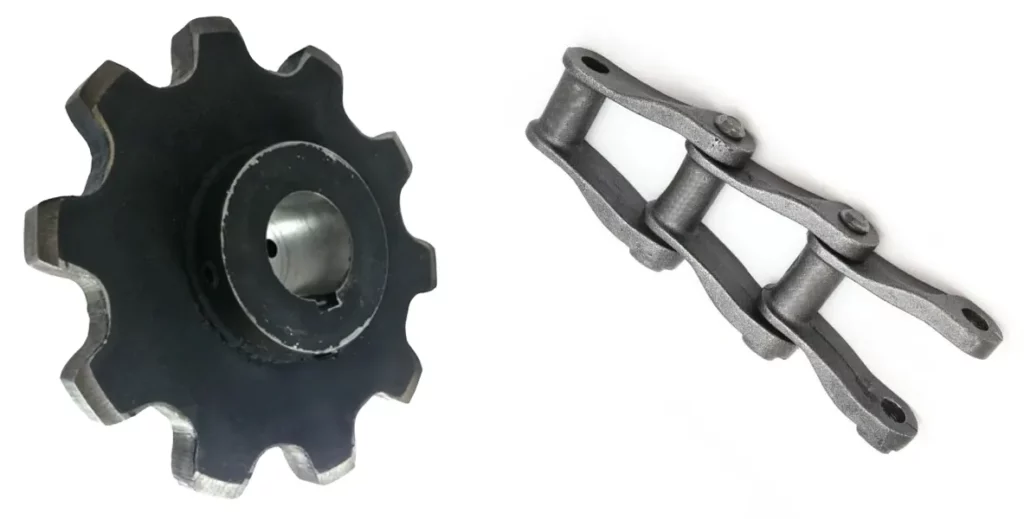

H60 Chain Sprockets for H60 Mill Chain:

H60 Mill Chain sprockets are specifically designed to match the H60 Mill Chain's pitch size and tooth profile. These sprockets are typically made from hardened steel to withstand the heavy loads and harsh operating conditions of mill applications. Here are some key features of H60 chain sprockets:(1) Pitch Diameter: The pitch diameter of the sprocket corresponds to the diameter of the circle formed by the chain's rollers' centers. H60 chain sprockets have a pitch diameter compatible with the 2.308 pitch of the H60 chain.(2) Number of Teeth: The number of teeth on the sprocket determines the speed ratio and engagement with the chain. The specific number of teeth on H60 chain sprockets can vary depending on the application requirements and the desired speed ratio.(3) Tooth Profile: H60 chain sprockets have a tooth profile that matches the shape of the chain rollers to ensure proper engagement. The tooth profile is designed to minimize wear and provide smooth and efficient power transmission.(4) Material: H60 chain sprockets are typically made from high-quality, hardened steel. This material choice ensures durability, resistance to wear, and the ability to withstand heavy loads and shock loads.(5) Hub Design: The sprocket hub provides the central mounting point for the sprocket on the shaft. H60 chain sprockets may have different hub designs, such as a solid hub or a split hub with a removable bushing. The hub design choice depends on the specific installation requirements and ease of assembly.(6) Mounting Options: H60 chain sprockets can be mounted using various methods, such as through a keyway, set screws, or a tapered bushing. The mounting method depends on the sprocket design and the shaft configuration.(7) Surface Treatment: To enhance the sprocket's resistance to corrosion and wear, some H60 chain sprockets may undergo surface treatments such as heat treatment, black oxide coating, or zinc plating.It's important to note that H60 chain sprockets should be selected based on the specific requirements of the application, including the desired speed ratio, torque, and environmental conditions. Consulting the manufacturer's specifications or technical documentation is recommended to ensure proper sprocket selection for the H60 Mill Chain.

China H Class Mill Chains Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
