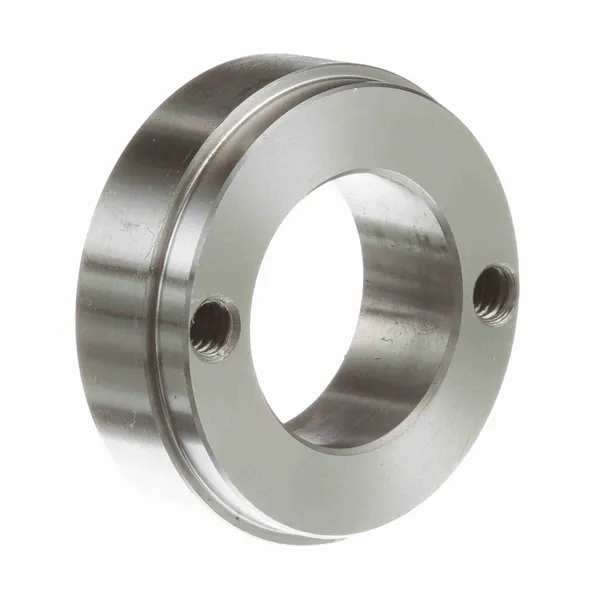

HG1 Steel Hubs for Split Taper Bushings

HG1 Steel Hubs for G Split Taper Bushings

HG1 steel hubs for split taper bushings are components used in power transmission systems that require a secure and reliable connection between a shaft and a mounted component, such as a pulley or sprocket. These HG1 steel hubs are designed to work with split taper bushings, which are inserted into the hub's tapered bore and tightened onto the shaft with a set of screws or bolts.The HG1 steel hubs for split taper bushings are made from high-quality steel and are precision machined to ensure accurate dimensions and a tight fit with the split taper bushing. They are commonly used in heavy-duty applications, such as in mining, oil and gas, and construction equipment. The split taper design allows for easy installation and removal of the mounted component without the need for special tools or equipment.

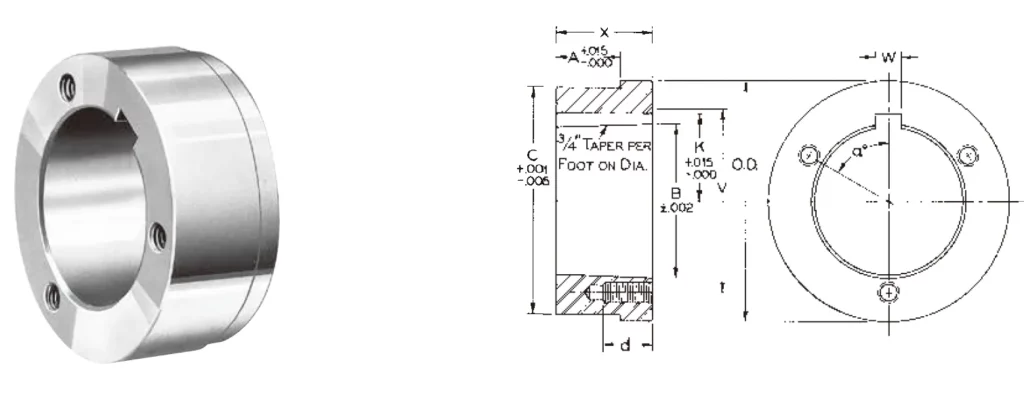

HG1 Steel Hubs Dimensions:

Part No.		HG1 Steel Hubs
For Bushing		G Split Taper Bushings
Dimensions	O.D.	2"
	A	0.174"
	B	1.168"
	C	1.875"
	K	-
	V	1 9/16"
	W	-
	X	5/8"
	a	-
Tapped Holes	d	5/8"
	No.	2
	Size	1/4-20
Wt. Lbs.		0.4

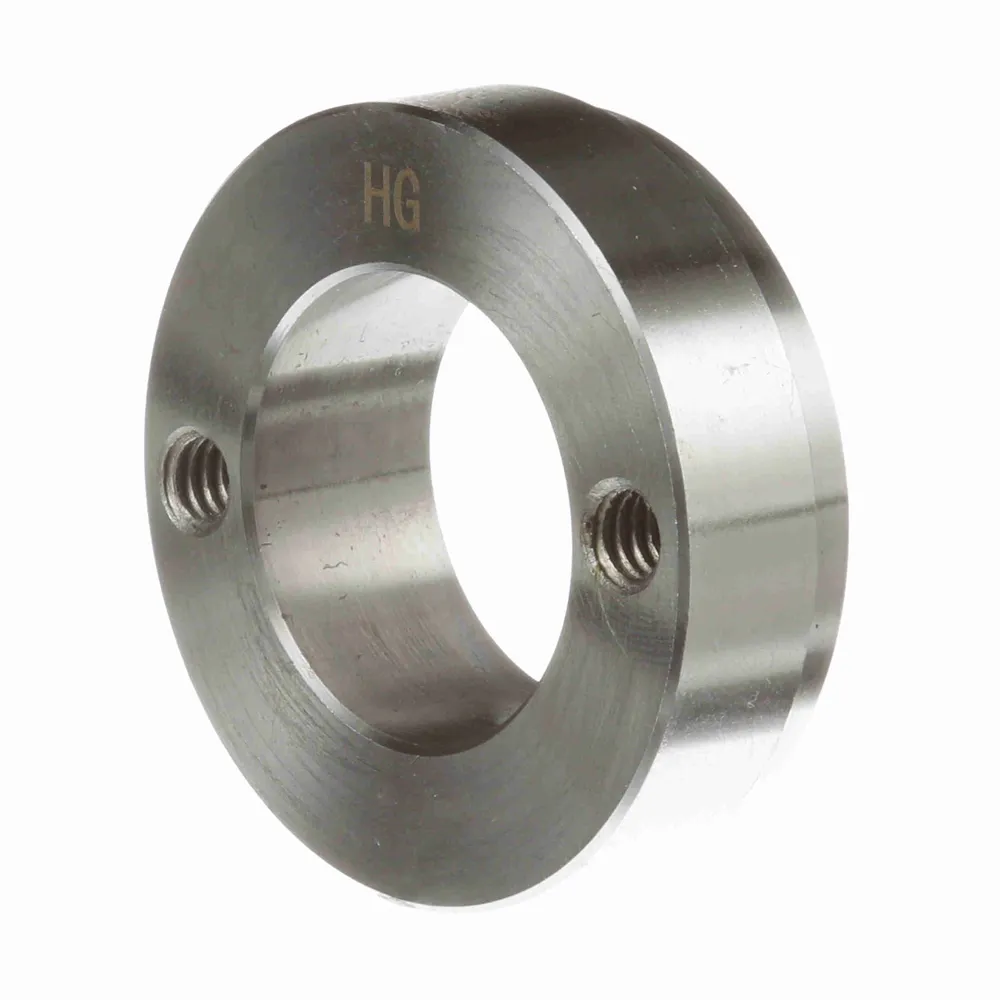

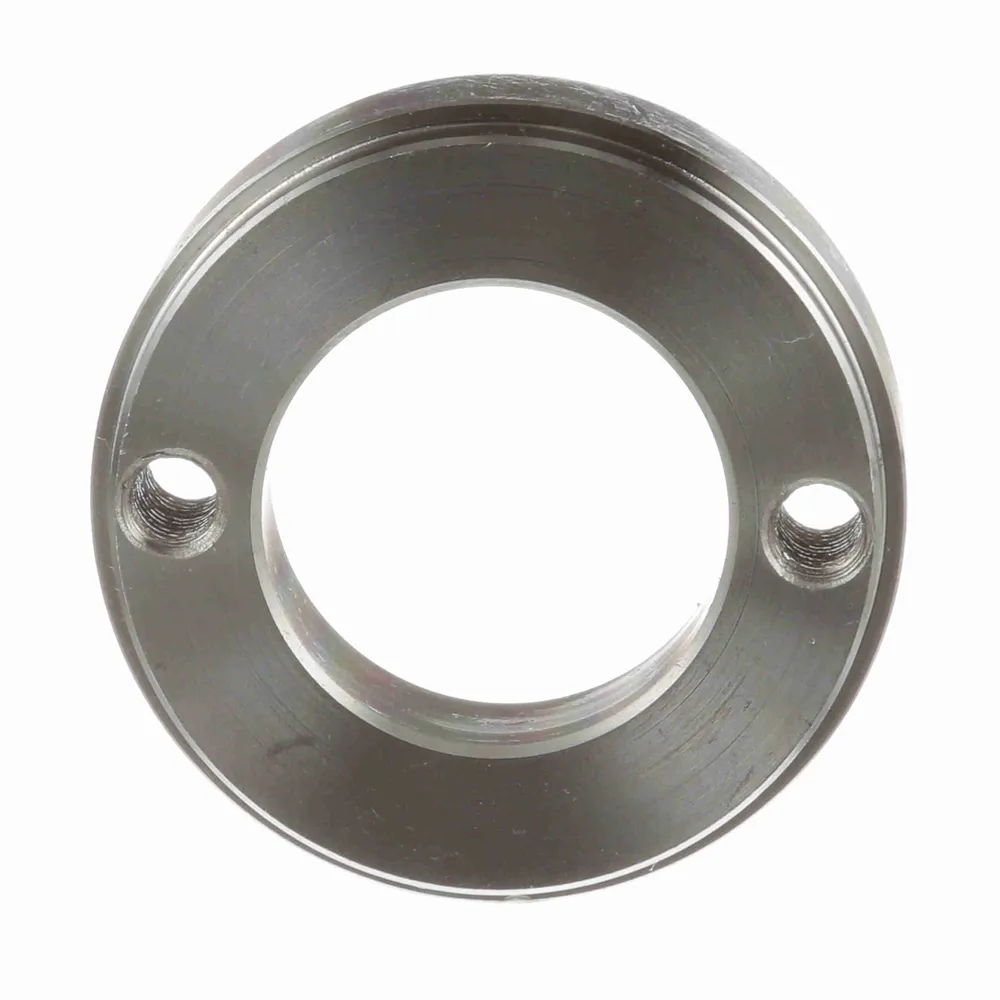

Features of HG1 Steel Hubs for Split Taper Bushings:

Here are the features of HG1 steel hubs for split taper bushings:1. Made of steel for strength and durability. The HG1 steel hubs are made of high-quality steel, which makes them strong and durable. This makes them a good choice for applications where strong and secure mounting is required.2. Split taper bushing for a tight fit on the drive shaft. The split taper bushing on the HG1 steel hubs allows them to be tightly secured to the drive shaft. This ensures that the hub will not come loose, even under high loads.3. Available in a variety of sizes. The HG1 steel hubs are available in a variety of sizes, so they can be used with a wide range of drive shafts. This makes them a versatile option for a variety of applications.4. Easy to install. The HG1 steel hubs are easy to install. Simply insert the hub onto the drive shaft and tighten the bolts. This makes them a quick and easy way to mount pulleys, sprockets, gears, or sheaves on a drive shaft.

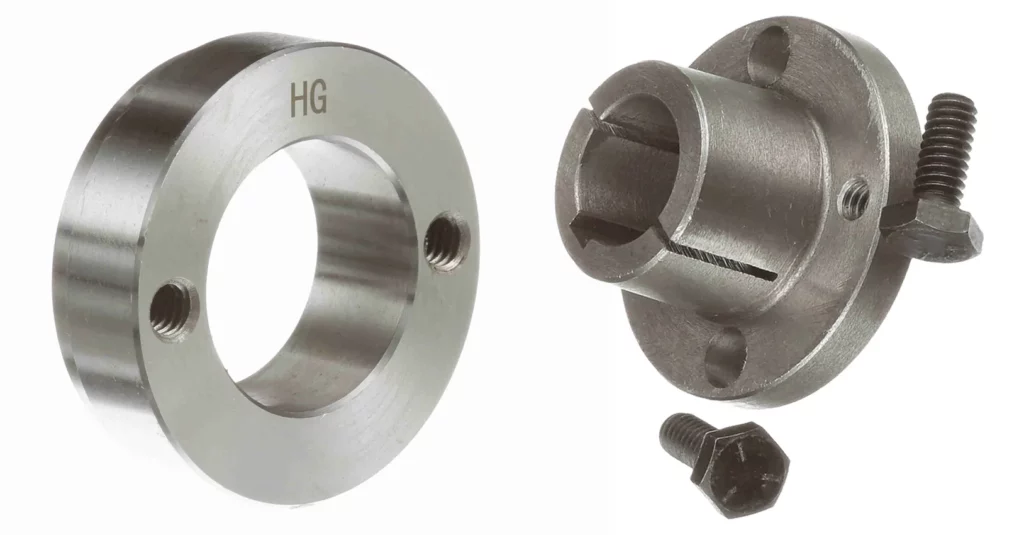

HG1 Steel Hubs for G Split Taper Bushings:

HG1 steel hubs and G split taper bushings are components commonly used in power transmission applications. The HG1 steel hub is a type of hub that is designed to be mounted onto a shaft and to transmit torque to other components such as gears, sprockets, and pulleys. The G split taper bushing is a mechanical component that is used to mount the hub onto the shaft in a secure and reliable manner.The HG1 steel hub is typically made from high-grade steel and is designed to provide a strong and durable connection between the shaft and other components. The HG1 hub may have a variety of features, such as keyways, set screws, or flanges, depending on the specific application and requirements.The G split taper bushing is designed to fit tightly onto the shaft and provide a secure mounting surface for the hub. The bushing has a tapered bore that matches the taper of the shaft, and when tightened, it creates a frictional force that locks the hub onto the shaft. The split design of the bushing allows for easy installation and removal without having to remove other components from the shaft.Together, the HG1 steel hub and G split taper bushing provide a reliable and efficient method for transmitting power between a shaft and other components in a wide range of industrial applications.

Applications of HG1 Steel Hubs for Split Taper Bushings:

HG1 steel hubs are commonly used in conjunction with split taper bushings to create a secure and reliable shaft-hub connection. Here are some of the key applications of HG1 steel hubs for split taper bushings:(1) Power transmission: HG1 steel hubs are commonly used in power transmission applications where a secure shaft-hub connection is critical. These applications can include conveyor systems, pumps, compressors, and other heavy-duty machinery.(2) Automotive: HG1 steel hubs are also used in automotive applications where a strong connection between the shaft and the hub is required. This can include applications such as engine components, drive shafts, and transmissions.(3) Construction: HG1 steel hubs are used in construction machinery such as cranes, excavators, and bulldozers. These machines require a strong and reliable shaft-hub connection to handle heavy loads and rough terrain.(4) Manufacturing: HG1 steel hubs are commonly used in manufacturing machinery such as lathes, milling machines, and presses. These machines require precise and reliable shaft-hub connections to ensure accurate and consistent performance.

China Steel Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Steel hubs for split taper bushings are available in a variety of materials, such as stainless steel, aluminum, and copper. If you are looking for a wide selection of high-quality products at a competitive price, Raydafon's steel hubs are the perfect choice. Raydafon's steel hubs for split taper bushings are crafted to meet or exceed industry standards. We can supply the replacement of Dodge hubs, Browning hubs, Martin hubs, etc. The steel hubs for split taper bushings are manufactured from C45 steel, making them suitable for a wide variety of industrial applications.
