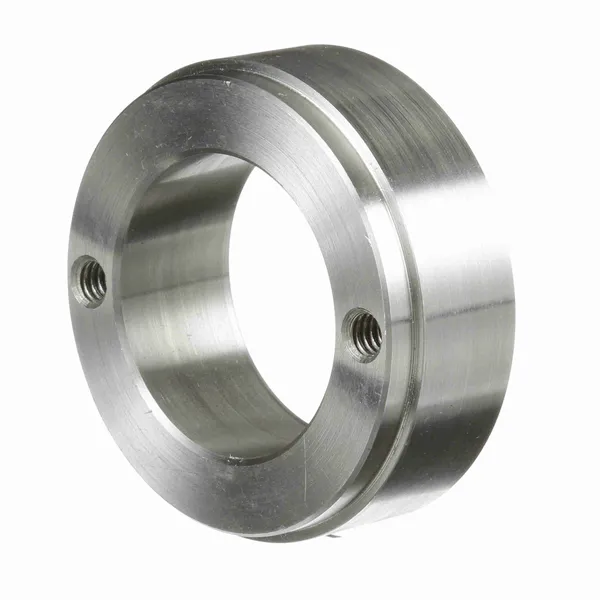

HH1 Steel Hubs for Split Taper Bushings

HH1 Steel Hubs for H Split Taper Bushings

HH1 steel hubs for split taper bushings are mechanical components used in power transmission systems. They are typically used to mount rotating equipment such as pulleys, sprockets, and gears onto a shaft.The HH1steel hubs are designed to work in conjunction with a split taper bushing, which is a type of locking device that allows for easy installation and removal of the hub from the shaft. The split taper bushing is inserted into a tapered bore in the hub and tightened using a set of screws, which causes the bushing to grip the shaft tightly.The HH1 steel hubs are made from high-strength steel and are designed to withstand heavy loads and high-speed rotation. It is available in a range of sizes and configurations to suit different applications and shaft sizes.Overall, the HH1 steel hubs for split taper bushings is a versatile and reliable component that is commonly used in power transmission systems to provide secure and efficient mounting of rotating equipment onto a shaft.

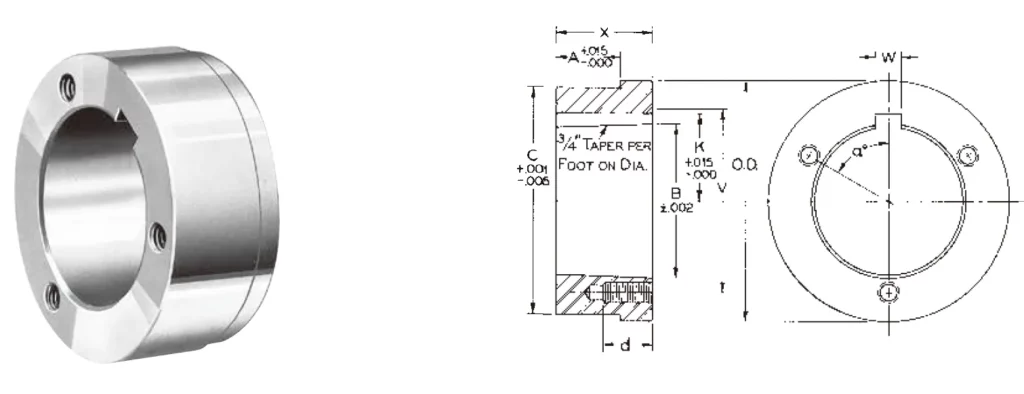

HH1 Steel Hubs Dimensions:

Part No.		HGH1 Steel Hubs
For Bushing		H Split Taper Bushings
Dimensions	O.D.	2 1/2"
	A	0.174"
	B	1.621"
	C	2.375"
	K	-
	V	2"
	W	-
	X	7/8"
	a	-
Tapped Holes	d	7/8"
	No.	2
	Size	1/4-20
Wt. Lbs.		0.6

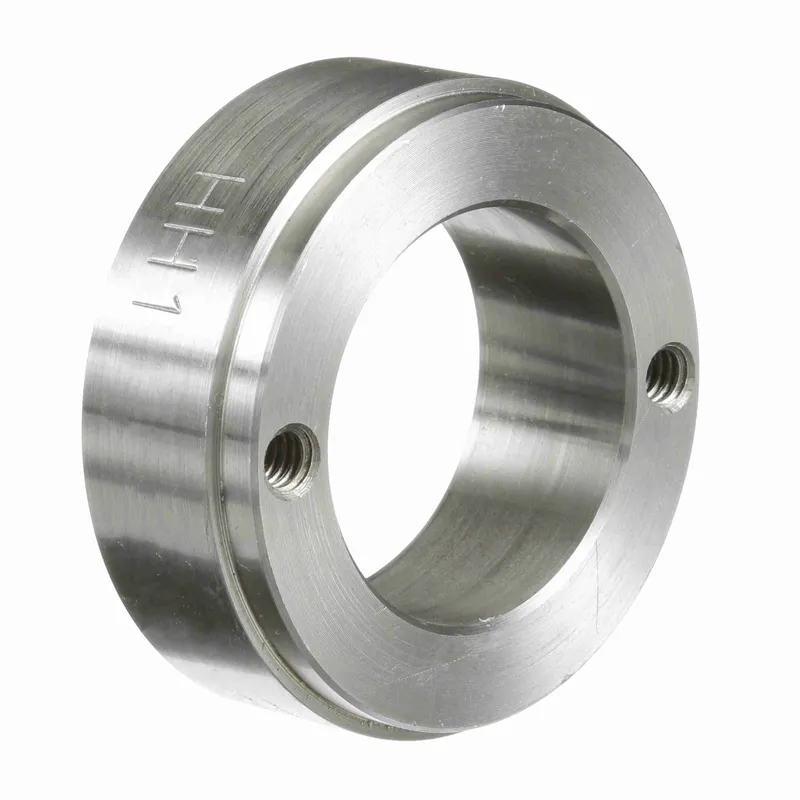

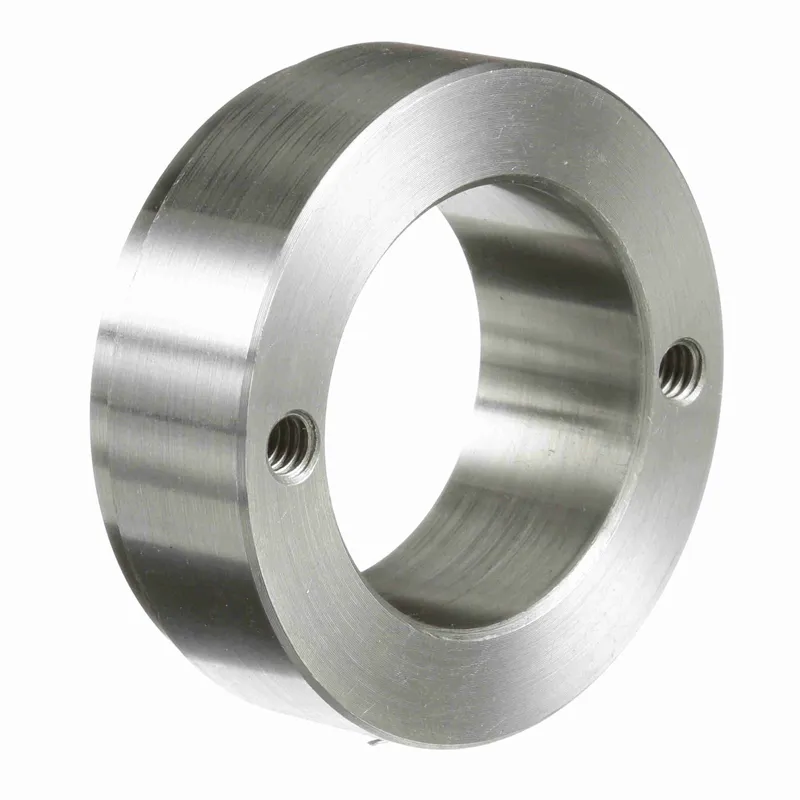

HH1 Steel Hubs for Split Taper Bushings Advantages:

There are several advantages of using HH1 steel hubs for split taper bushings in power transmission systems. Some of these advantages include:1. Easy installation and removal: The HH1 steel hubs for split taper bushings design allow for quick and easy installation and removal of the hub from the shaft without the need for special tools or equipment.2. Secure locking mechanism: The HH1 steel hubs for split taper bushings provides a secure and tight grip on the shaft, which helps to prevent slippage and maintain accurate positioning of the hub and the attached equipment.3. High strength and durability: HH1 steel hubs for split taper bushings are made from high-strength steel, which provides excellent durability and resistance to wear and tear. This makes them suitable for use in heavy-duty applications and environments.4. Versatility: HH1 steel hubs for split taper bushings are available in a range of sizes and configurations, which makes them suitable for use with a variety of different shaft sizes and types of equipment.5. Cost-effective: HH1 steel hubs for split taper bushings are a cost-effective solution for mounting rotating equipment onto a shaft, as they are relatively inexpensive compared to other types of locking devices.

Steel Hubs for Split Taper Bushings Vs Welding Hubs for Taper Bushes

Steel hubs for split taper bushings and welding hubs for taper bushes are two common methods used to mount components onto a shaft. Both methods have their advantages and disadvantages, and the choice between them depends on the specific application and requirements.Steel hubs for split taper bushings are designed to fit onto a shaft with a split taper bushing, which is a mechanical component that provides a secure grip on the shaft. The steel hub is typically bolted onto the split taper bushing, which is then mounted onto the shaft. This method provides a secure and reliable connection between the component and the shaft, and it allows for easy removal and replacement of the component when necessary. Steel hubs for split taper bushings are commonly used in industrial applications, such as conveyor systems, pumps, and gearboxes.Welding hubs for taper bushes, on the other hand, are designed to be welded directly onto the shaft. This method provides a very strong and permanent connection between the component and the shaft, but it can be more difficult to remove and replace the component if necessary. Welding hubs for taper bushes are commonly used in applications where a very strong and permanent connection is required, such as heavy machinery and equipment.In summary, the choice between steel hubs for split taper bushings and welding hubs for taper bushes depends on the specific application and requirements. Steel hubs for split taper bushings provide a secure and removable connection, while welding hubs for taper bushes provide a very strong and permanent connection.

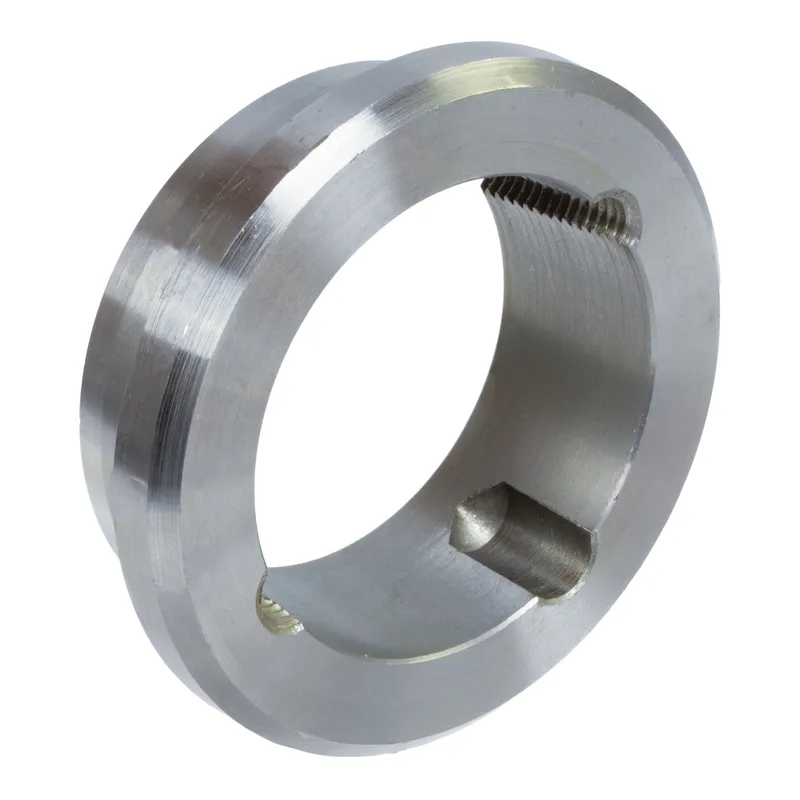

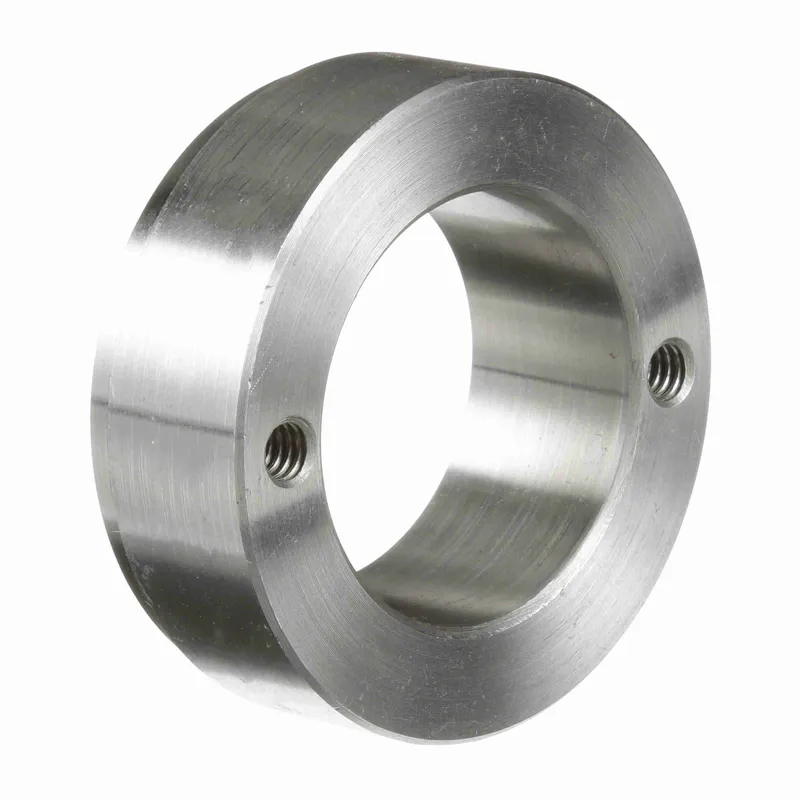

Steel Hubs for Split Taper Bushings	Welding Hubs for Taper Bushes

China Steel Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Steel hubs for split taper bushings are available in a variety of materials, such as stainless steel, aluminum, and copper. If you are looking for a wide selection of high-quality products at a competitive price, Raydafon's steel hubs are the perfect choice. Raydafon's steel hubs for split taper bushings are crafted to meet or exceed industry standards. We can supply the replacement of Dodge hubs, Browning hubs, Martin hubs, etc. The steel hubs for split taper bushings are manufactured from C45 steel, making them suitable for a wide variety of industrial applications.
