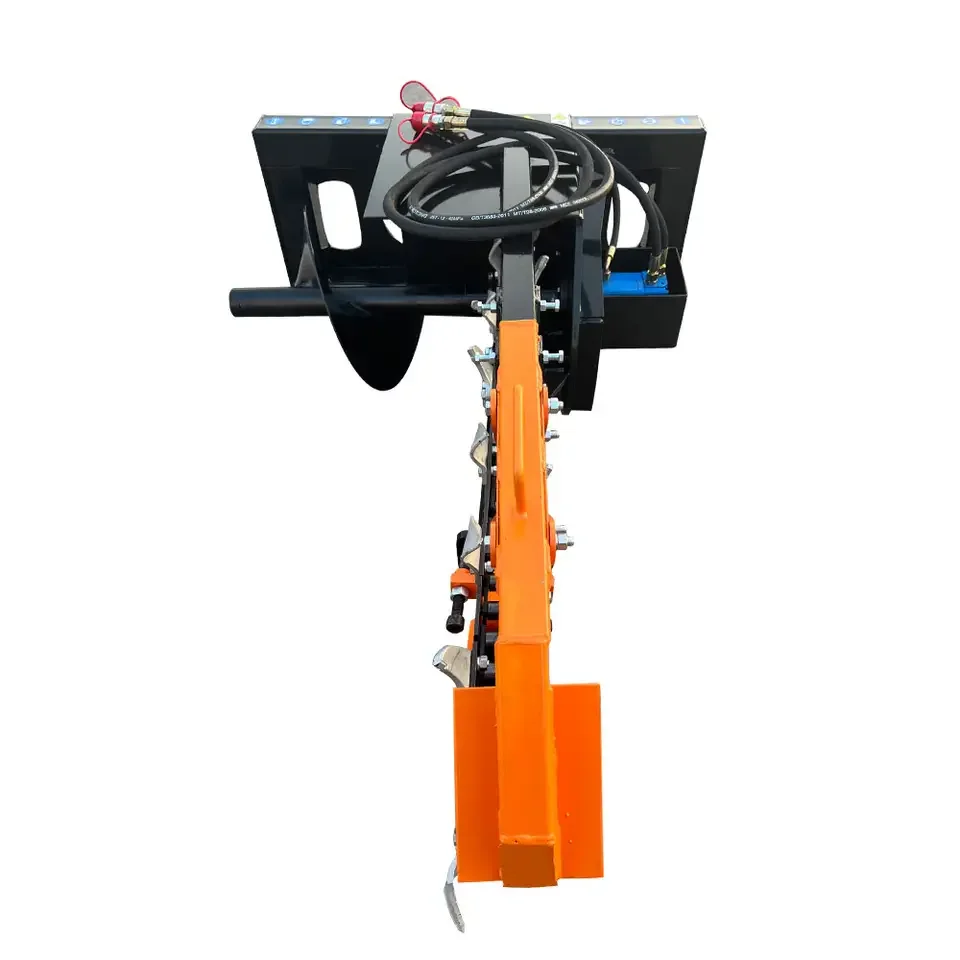

The Hot Sales Loader Attachment Soil Trencher Machine Mini Chain Skid Steer Trencher is a highly efficient, safety-oriented machine designed for use in various farming applications. It weighs 405 kilograms and comes with a showroom location. The machine has undergone video outgoing-inspection and machinery test report, which is a testament to its quality and durability. With a warranty of 3 months on core components such as gearbox and motor, this chain trencher is an ordinary product that promises extraordinary results.
Designed for high flow hydraulic systems, this Soil Trencher operates with hydraulic flows between 20-40 gpm (76-151 lpm). The trencher comes in sizes of 36"-60" (914-1524 mm) for digging depths and 6"-12" (152-305 mm) for trench widths. It features adjustable trenching depth up to 36"-60" and uses a combination of 30/70 percent teeth configuration for optimal trenching. The machine's shark teeth are made from alloy carbide steel, while the cup teeth are wear-resistant edge (alloy carbide). Overall, this machine is perfect for general soil work trenching and rocky and gravel trenching.
The Soil Trencher Machine works by utilizing three hydraulic hoses and an in-built large scraper shoe with springs. The ?" hydraulic hoses (In and Out) and the case drain line (3rd hose) release motor pressure, while the scraper shoe maintains loose soil that is clawed back to the chain to discharge and keep the trenched area clean. Installation of the machine is straightforward with the inclusion of flat-faced couplers. Maintenance involves regular checks on hydraulic flows and tension adjustments of the chain. The machine also features a robust packaging detail of iron shelf and plywood, with customization according to your needs.
Choose Raydafon's Skid Steer Loader & Accessories products for their high quality, durability, and excellent performance. Our products are complete in specifications and reliable in quality, meeting the demands of various industries. We encourage you to learn about our product and contact us for purchase. With a strong commitment to quality and customer satisfaction, Raydafon is your go-to choice for all your soil trenching needs.
Raydafon Machinery Manufacture Co., Ltd is a professional manufacturing factory that specializes in agricultural machinery, PTO shafts, agricultural gearboxes, garden machinery, construction machinery, automotive, excavators & accessories, agricultural machinery parts, rotary tillers, PTO shafts, furrow ploughs, box scraper, boom sprayers, fertilizer spreaders, post hole diggers, and more. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Our factory is based in Ningbo Zhejiang, China, and is built on 90,000 square meters. The factory has casting, machining, sheet metal, and other workshops.
Get a closer look at our Soil Trencher Machine in action. Click on the link below to watch our product video.
