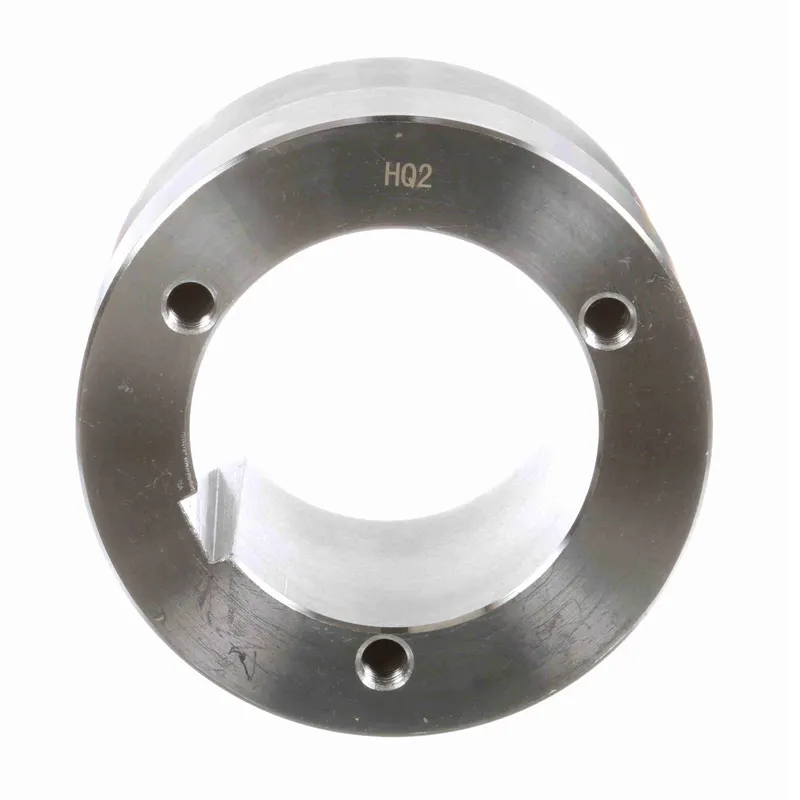

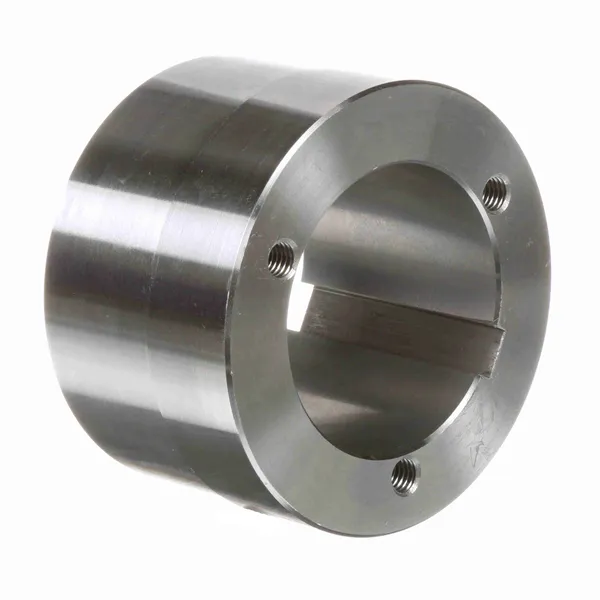

HQ2 Steel Hubs for Split Taper Bushings

HQ2 Steel Hubs for Q2 Split Taper Bushings

HQ2 steel hubs are a type of bushing hub that can be used with split taper bushings. These HQ2 hubs are made from high-quality steel, which makes them strong and durable. They are designed to provide a secure and reliable connection between the bushing and the shaft, creating a rigid and stable mount for various types of equipment.Split taper bushings are commonly used in power transmission systems to connect different types of shafts and hubs. These bushings are designed to fit snugly around the shaft, providing a secure and precise fit. The HQ2 steel hubs are designed to work specifically with split taper bushings, making it easy to create a strong and reliable connection between the shaft and the hub.One of the main benefits of using HQ2 steel hubs is their strength and durability. Because they are made from high-quality steel, they can withstand heavy loads and high speeds without bending or breaking. This makes them ideal for use in industrial applications where reliability and safety are critical.Overall, HQ2 steel hubs are a reliable and effective choice for anyone who needs to connect split taper bushings to a shaft. With their strength, durability, and precision design, they provide a secure and stable mount for a wide range of equipment.

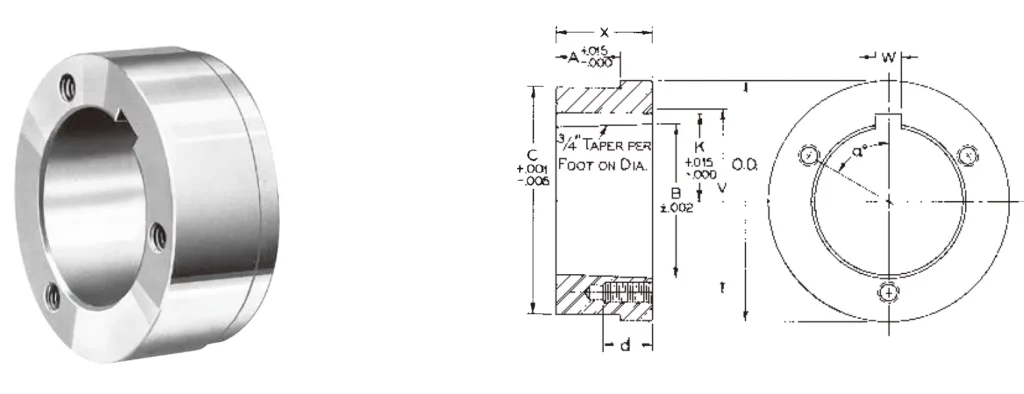

HQ2 Steel Hubs Dimensions:

Part No.		HQ2 Steel Hubs
For Bushing		Q2 Split Taper Bushings
Dimensions	O.D.	4 1/2"
	A	1.606"
	B	2.875"
	C	4.375"
	K	1 9/16"
	V	3 3/8"
	W	1/2"
	X	2 3/4"
	a	60°
Tapped Holes	d	7/8"
	No.	3
	Size	3/8-16
Wt. Lbs.		6.9

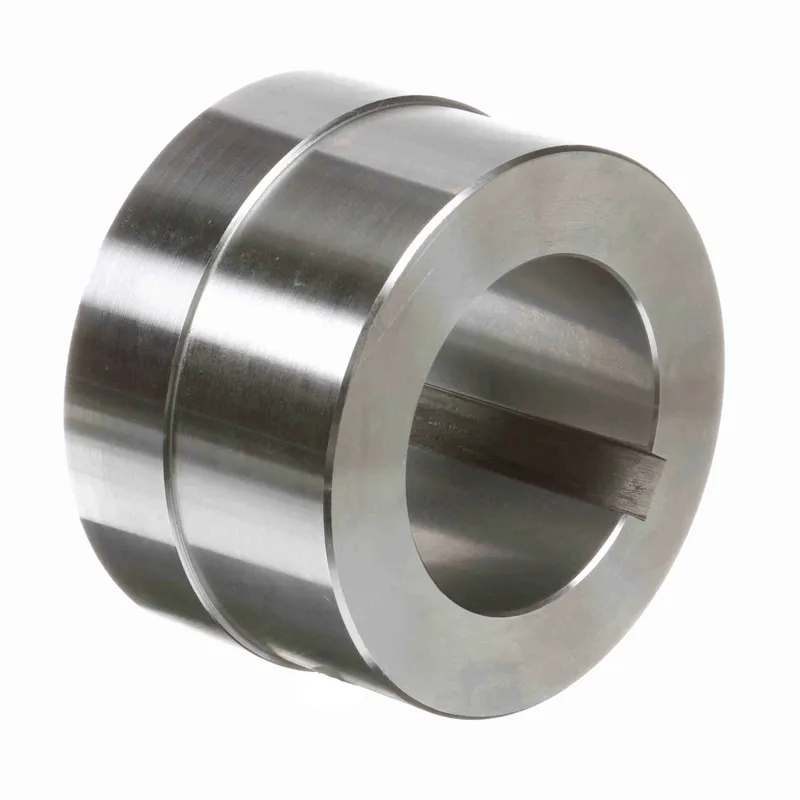

HQ2 Steel Hubs for Split Taper Bushings Advantages:

HQ2 steel hubs for split taper bushings offer several advantages, including:1. High Strength and Durability: HQ2 steel hubs are made from high-quality steel, which makes them strong and durable. They can withstand heavy loads and high speeds without bending or breaking, making them ideal for use in industrial applications where reliability and safety are critical.2. Easy to Install: HQ2 steel hubs are designed to be easy to install. They can be quickly and easily mounted onto a shaft using a split taper bushing, which ensures a precise and secure fit.3. Precision Design: The HQ2 steel hubs are designed to provide a precise and stable mount for various types of equipment. They are manufactured to strict tolerances, which ensures a high level of accuracy and reliability.4. Versatility: HQ2 steel hubs can be used with a wide range of equipment and in various applications. They are suitable for use in power transmission systems, conveyors, pumps, and other industrial machinery.5. Cost-Effective: HQ2 steel hubs are a cost-effective solution for connecting split taper bushings to a shaft. They offer a reliable and durable connection at an affordable price point.Overall, HQ2 steel hubs for split taper bushings provide a reliable, durable, and cost-effective solution for connecting different types of equipment in industrial settings. Their high strength, precision design, and ease of installation make them a popular choice for many applications.

HQ2 Steel Hubs for Split Taper Bushings Applications:

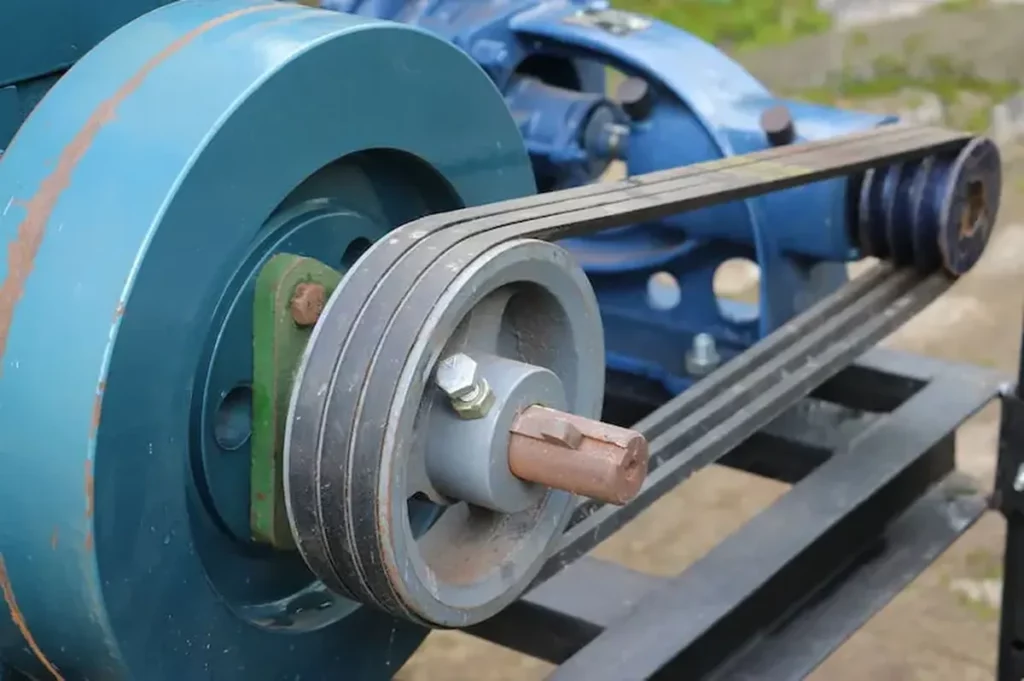

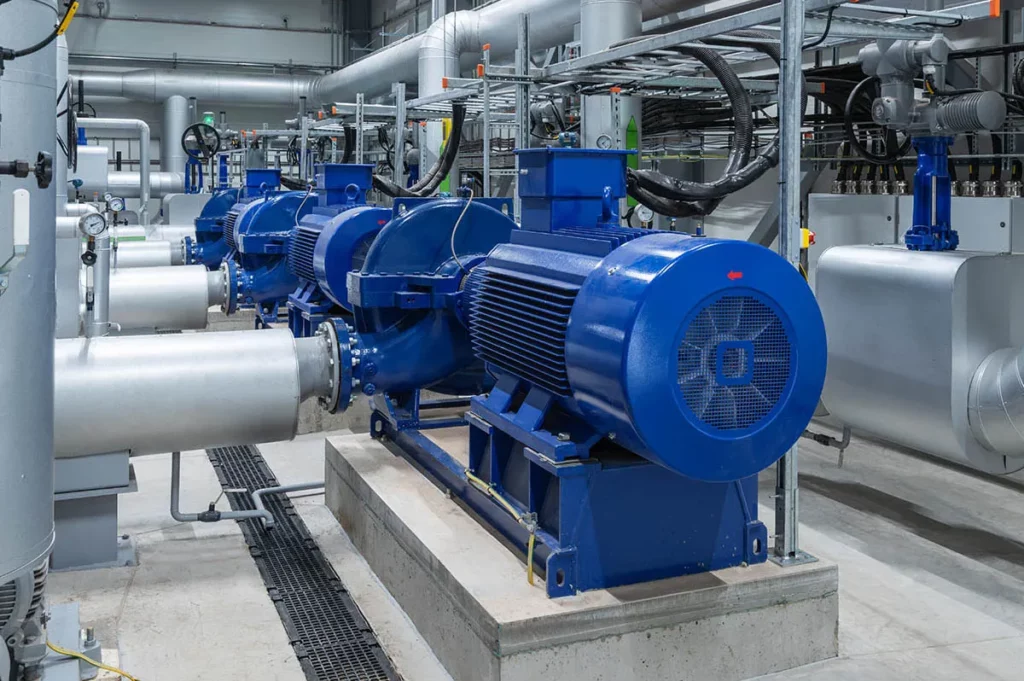

HQ2 steel hubs are a type of steel hub that is commonly used in mechanical power transmission systems. They are often used in conjunction with split taper bushings, which are mechanical components that are used to mount rotating components onto shafts. Here are some common applications of HQ2 steel hubs for split taper bushings:(1) Industrial machinery: HQ2 steel hubs are commonly used in industrial machinery to mount pulleys, gears, and other rotating components onto shafts. Split taper bushings are typically used to secure the hub to the shaft, and the HQ2 steel hub's high strength and durability make it a reliable choice for industrial applications.(2) Industrial pumps: Pumps used in industrial applications often require secure, non-slip connections between the rotating shaft and impeller. Split taper bushings with HQ2 steel hubs provide a reliable solution for these applications.(3) Agricultural equipment: HQ2 steel hubs are also used in agricultural equipment, such as tractors and combine, to mount components like sprockets and pulleys. Split taper bushings are often used to provide a secure, tight fit between the hub and the shaft, which is important for ensuring reliable operation in tough agricultural conditions.(4) Conveyor systems: HQ2 steel hubs and split taper bushings are commonly used in conveyor systems to mount drive pulleys. The high strength of HQ2 steel makes it well-suited for handling the high torque and loads that are typically encountered in conveyor applications.(5) Material handling equipment: HQ2 steel hubs and split taper bushings are also used in material handling equipment, such as forklifts and cranes, to mount components like sheaves and pulleys. The robust construction of HQ2 steel hubs helps ensure reliable operation in demanding material handling applications.

China Steel Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.Steel hubs for split taper bushings are available in a variety of materials, such as stainless steel, aluminum, and copper. If you are looking for a wide selection of high-quality products at a competitive price, Raydafon's steel hubs are the perfect choice. Raydafon's steel hubs for split taper bushings are crafted to meet or exceed industry standards. We can supply the replacement of Dodge hubs, Browning hubs, Martin hubs, etc. The steel hubs for split taper bushings are manufactured from C45 steel, making them suitable for a wide variety of industrial applications.
