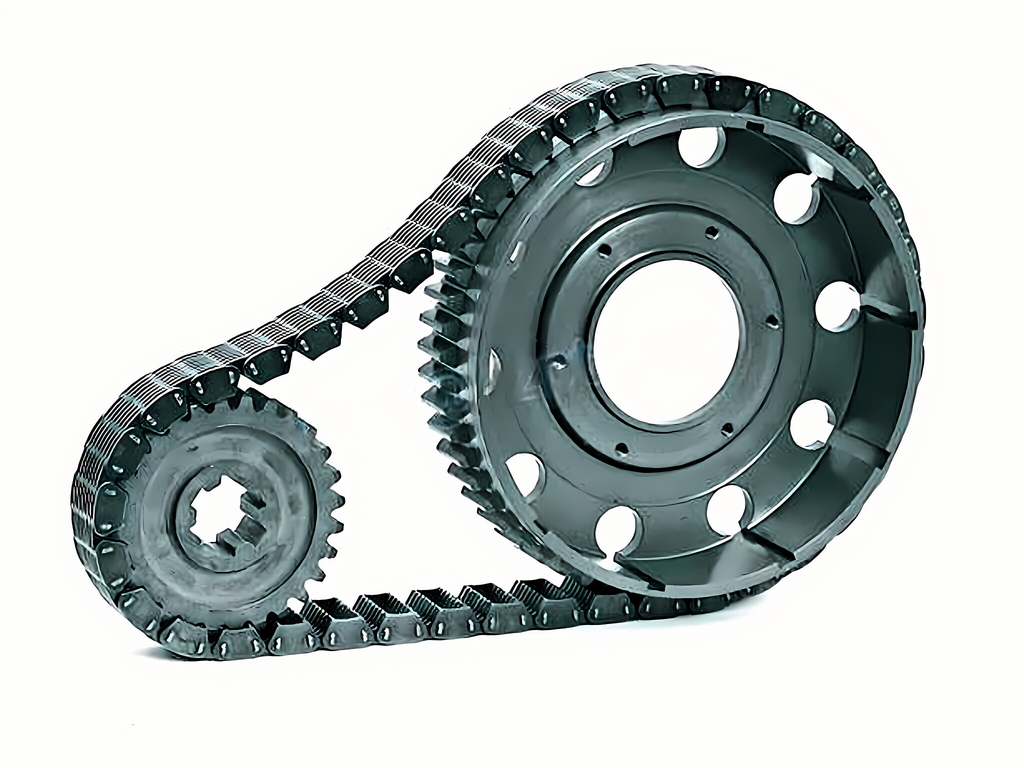

Hy-Vo Inverted Tooth Chains HV6 HV8

Discover Raydafon Group's Hy-Vo Inverted Tooth Chains HV6 HV8, engineered for precision and durability in demanding industrial applications. Their unique toothed design ensures superior performance, low maintenance, and quiet operation, making them ideal for machinery, automotive, and agricultural use. Experience unmatched reliability that enhances efficiency and minimizes wear. Choose Raydafon for advanced chain technology that sets a new standard in the market.

Send Inquiry

Product Description

Hy-Vo Inverted Tooth Chains HV6 HV8

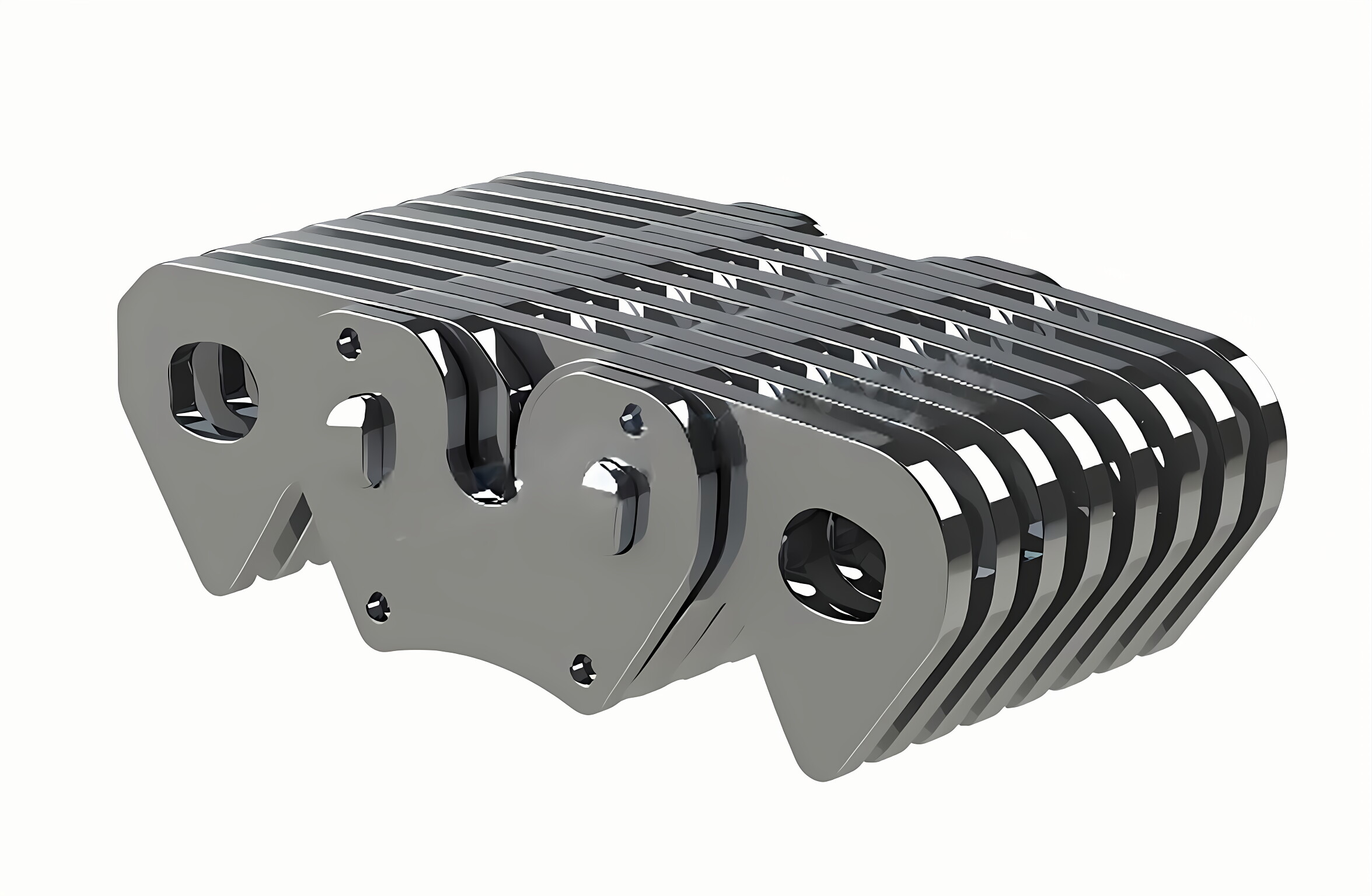

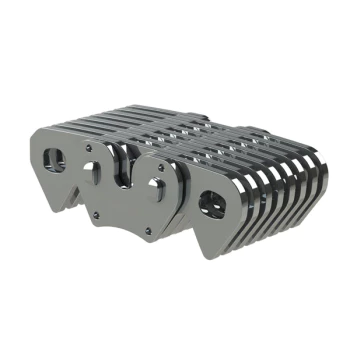

Ever power manufactures a variety of HY-VO Inverted tooth chains and has a wealth of experience in the chain drive industry. These chains are designed with inverted tooth link plates to minimize noise and vibration, while maximizing load bearing surface in each link. Additionally, they are shot peened to improve fatigue strength. Hy-Vo Inverted tooth chains are a great choice for a wide range of applications. Hy-Vo chains are also popular in motorcycles. They provide smooth operation, even at high rpm. They also have reduced chordal action, which means they can better survive tight wraps around the crankshaft. In addition, they are better suited for high-performance driving.

Specifications of Hy-Vo Inverted Tooth Chains HV6 HV8

HY-VO Chain is a unique type of Silent Chain. HY-VO stands for High Capacity, High Velocity, and Involute Tooth, and it is a registered trademark of Borg-Warner Automotive, Inc. Ever power can also provide this kind of drive chain.In Silent Chain, the pin and the plate rotate against each other. In HY-VO Chains, the pin is comprised of two pieces that have rotational contact. Due to the rotational contact of the pins, the wear life of the chain is increased. Also in HY-VO Chains, the contact point between the pins moves up when the chain engages the sprocket. This construction decreases chordal action, vibration, and noise. Hy-Vo Inverted Tooth Chains HV6 HV8

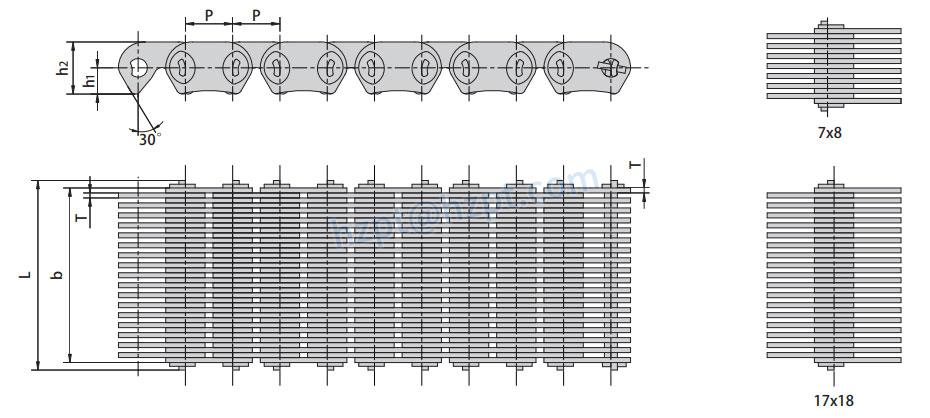

Chain No.	Pitch	Chain width	Pin length	Distance from hole center to tooth	Plate depth	Plate thickness	Guide type	Number of? plates	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	bmax	Lmax	h₁	h₂max	T		n	Qmin	Q₀	q
	mm	mm	mm	mm	mm	mm			kN/lbf	kN	kg/m
HV6	19.05	73.5	81.3	10.50	20.90	2.0	Outside	17×18	174 / 39100	200	7.4
HV8	25.40	48.5	56.9	14.06	27.74	3.0	Outside	7×8	187 / 42022	200	7.0

Problems With Hy-Vo Inverted Tooth Chains and SprocketsHy-Vo Inverted tooth chains and sprockets are a popular choice for many applications. They are able to handle a wide range of torques, including high and low speeds. Hy-Vo chains are designed to withstand these higher speeds and have low-wearing parts.Hy-Vo chains have two major benefits over traditional chain designs. The first is that they are made to function smoothly at high rpms. Because of this, the Hy-Vo chain is usually chosen for applications that require high rpm. The second advantage is that the Hy-Vo chain has a lower chordal action, meaning it will survive a tight wrap around the crankshaft.Although the Hy-Vo chain drive is supposedly "damp" (damping is energy dissipation), it is not immune to torsional excitation. Hy-Vo's claim ignores a more serious problem that is far more likely to cause serious injury. For example, if your engine is pulsing, the pulsing forces can cause destructive vibrations in your gears and propeller blades. Furthermore, a Hy-Vo PSRU drive's "damping" is only exacerbated by chain wear. Hy-Vo Inverted Tooth Chains HV6 HV8

Raydafon is one of the professional chain and?sprocket suppliers in China. We offer high-quality transmission chains and sprockets at competitive prices. Contact us now if you are interested!
