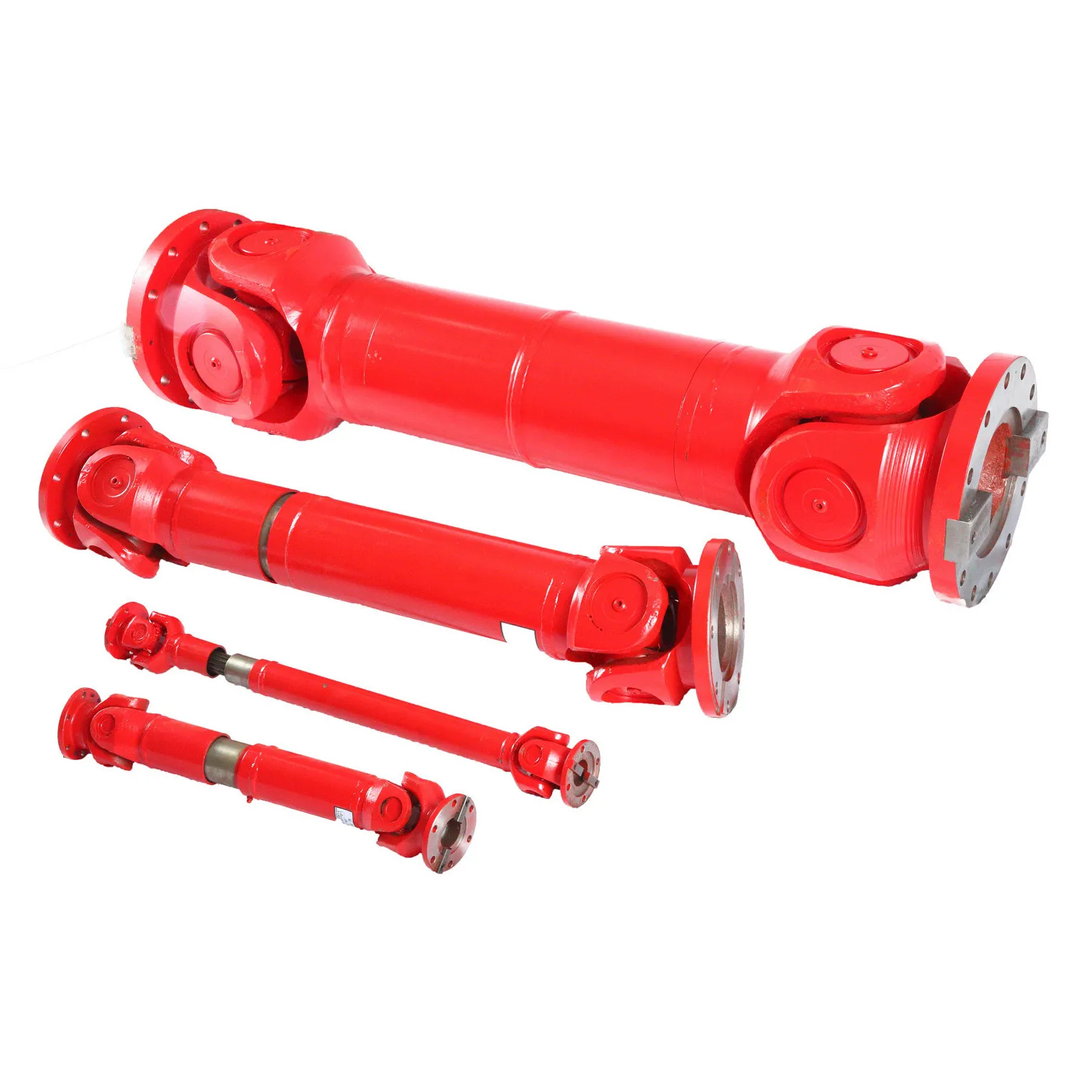

Industrial Cardan Drive Shaft SWC200BH for Slitting Machine

Industrial Cardan Drive Shaft SWC200BH for Slitting Machine

The Industrial Cardan Drive Shaft SWC200BH is a crucial component used in slitting machines for various industrial applications. Slitting machines are commonly used in industries such as paper, plastic, metal, and textile to cut large rolls of material into narrower strips or sheets. The SWC200BH Cardan drive shaft plays a vital role in transmitting torque and rotational motion from the machine's power source to the slitting blades.The SWC200BH Cardan drive shaft is typically designed with a universal joint configuration, which consists of two yokes connected by a cross-shaped center section. It is constructed using high-quality materials such as alloy steel or stainless steel to ensure durability, strength, and resistance to wear and tear. The primary function of the Cardan drive shaft is to transmit torque from the machine's power source, such as an electric motor or an engine, to the slitting blades. The SWC200BH is capable of transmitting high torque loads efficiently, allowing for smooth and precise cutting operations.Slitting machines often require the drive shaft to accommodate misalignment between the power source and the slitting blades. The SWC200BH Cardan drive shaft is designed to tolerate angular, parallel, and axial misalignments, ensuring reliable power transmission even in challenging operating conditions. During operation, slitting machines can generate significant vibrations that can affect the overall performance and accuracy of the cutting process. The SWC200BH drive shaft is engineered to minimize vibrations and maintain stable power transmission, enhancing the machine's efficiency and reducing wear on other components.Proper maintenance of the Cardan drive shaft is essential for its longevity and optimal performance. Regular inspection, lubrication, and alignment checks are recommended to prevent premature wear and failure. Lubrication points are strategically placed along the drive shaft to ensure smooth operation and minimize friction. The SWC200BH Cardan drive shaft can be customized to meet specific requirements of different slitting machine applications. Length, diameter, and torque capacity can be tailored to suit the machine's power output and the material being processed, ensuring optimal performance and efficiency.

Slitting Machine Cardan Drive Shaft SWC200BH Dimensions

Slitting Machine Cardan Drive Shaft SWC200BH Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC200BH	200	32	16	≤15	110	860	170	120	127	135	8-17	19	5	28	16	0.31	0.013	86	3.6

Benefits of Using the Cardan Drive Shaft SWC200BH for Slitting Machine

The Cardan Drive Shaft SWC200BH offers several benefits when used in slitting machines. Here are some of the key advantages:1. Efficient Power Transmission: The SWC200BH Cardan drive shaft is designed to efficiently transmit torque from the power source to the slitting blades. It ensures smooth and reliable power transfer, allowing for precise cutting operations and minimizing energy loss.2. High Torque Capacity: Slitting machines often require high torque to cut through various materials effectively. The SWC200BH drive shaft is capable of handling substantial torque loads, enabling efficient cutting of thick and dense materials without compromising performance.3. Misalignment Compensation: Slitting machines may experience misalignments due to various factors, such as vibrations or changes in operating conditions. The SWC200BH Cardan drive shaft is designed to accommodate angular, parallel, and axial misalignments, ensuring continuous power transmission and reducing stress on the machine's components.4. Vibration Dampening: Vibrations generated during the operation of slitting machines can affect the cutting precision and overall performance. The SWC200BH drive shaft helps dampen vibrations, providing a smoother and more stable operation, reducing wear on other machine components, and improving the lifespan of the machine.5. Durability and Reliability: The SWC200BH drive shaft is constructed using high-quality materials, such as alloy steel or stainless steel, making it durable and resistant to wear and tear. It is designed to withstand the demanding conditions of industrial applications, ensuring long-term reliability and minimizing downtime.6. Customizable Design: The SWC200BH Cardan drive shaft can be customized to meet the specific requirements of different slitting machine applications. Length, diameter, and torque capacity can be tailored to match the machine's power output and the material being processed, optimizing performance and efficiency.7. Easy Maintenance: The drive shaft requires regular maintenance to ensure optimal performance. Lubrication points are strategically placed along the shaft, allowing for easy access during maintenance routines. Regular inspection, lubrication, and alignment checks help extend the life of the drive shaft and prevent unexpected failures.

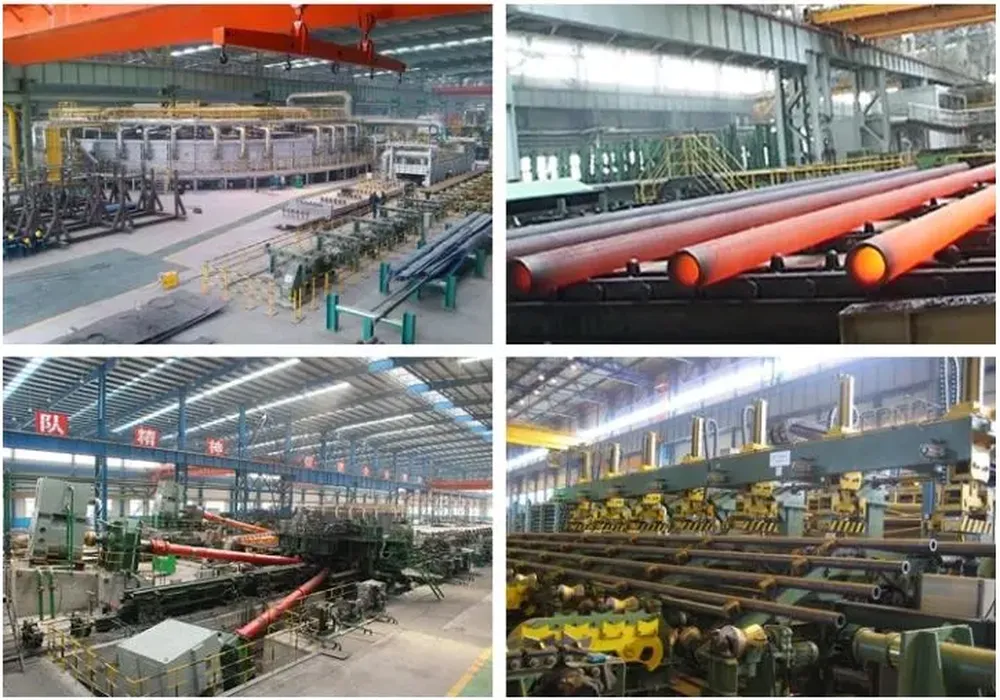

Working Principle of Industrial Cardan Drive Shaft SWC200BH for Slitting Machine

The Industrial Cardan Drive Shaft SWC200BH for slitting machines operates based on principles that allow for efficient, flexible, and reliable transmission of power from a motor to the machine's cutting mechanism, even in the presence of misalignment or other operational challenges. Here’s a closer look at its working principle:

Components of the Cardan Drive Shaft

• Shaft Body: The main structure that transmits the rotational force from one end to the other.
• Universal Joints (U-joints): Key components at either end of the shaft that allow for angular flexibility and the transmission of torque and rotational motion across different planes.
• Slip Yokes: In some designs, these components accommodate changes in the length of the drive system due to motion or thermal expansion.

Working Principle

1. Transmission of Rotational Power: The drive shaft begins its function by transmitting rotational power from the motor (the driving side) to the slitting machine’s cutting mechanism (the driven side). This is initiated by the motor's output shaft directly engaging with the drive shaft's input end.
2. Accommodating Misalignment: The universal joints at each end of the SWC200BH allow the shaft to bend and flex, accommodating angular, parallel, and axial misalignments between the motor and the cutting mechanism. This flexibility is crucial because perfect alignment is rarely possible in complex machinery setups, and the ability to adjust to misalignments without losing efficiency or causing damage is a significant advantage.
3. Maintaining Constant Velocity: The design of the universal joints aims to maintain a constant velocity of the drive shaft, despite the angle of operation. This constant velocity ensures that the power transmission to the slitting machine's cutting mechanism is smooth and uninterrupted, which is critical for precise and consistent cutting operations.
4. Adapting to Length Variations: Some Cardan drive shafts, including models like the SWC200BH, may incorporate slip yokes or telescopic sections that allow the shaft to adjust its length in response to operational movements or thermal expansions, preventing stress on the shaft and connected components.

Operational Flexibility

The SWC200BH’s design provides operational flexibility, allowing slitting machines to handle a variety of materials and thicknesses with precision. The drive shaft can transmit high levels of torque efficiently, which is necessary for cutting through tough materials. Furthermore, its ability to adapt to misalignments and maintain a constant velocity under varying angles enhances the machine's performance and longevity.

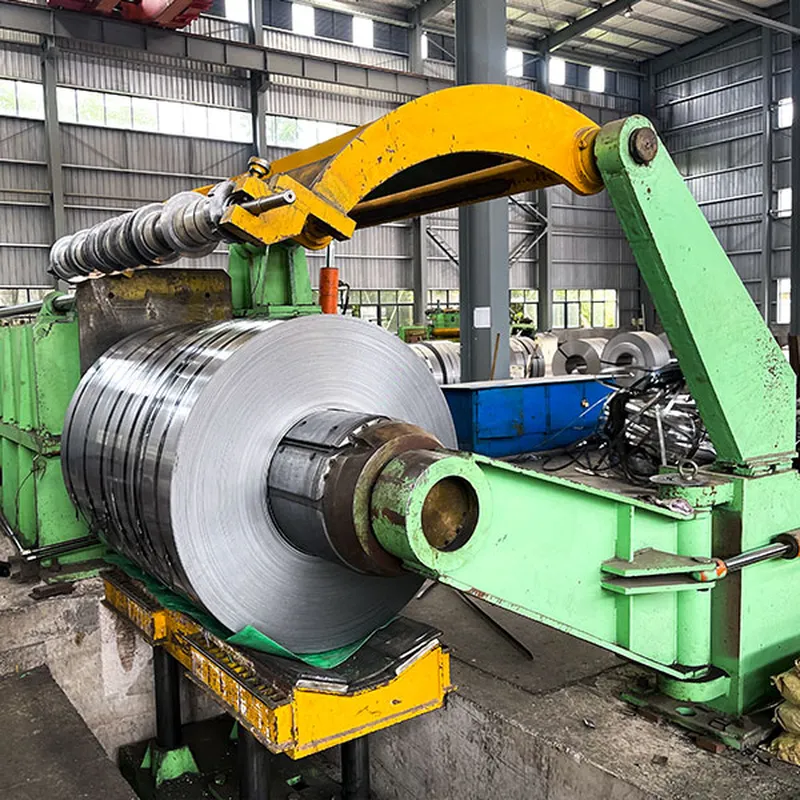

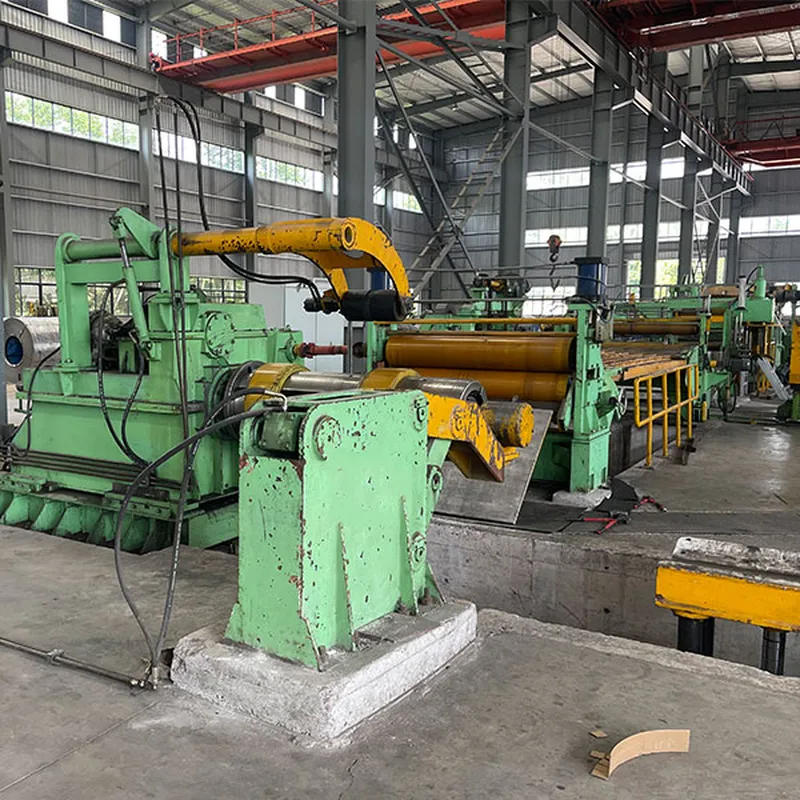

Applications of Industrial Cardan Drive Shaft for the Slitting Machine

The Industrial Cardan Drive Shaft SWC200BH finds applications in various industries that utilize slitting machines for cutting operations. Here are some of the common applications of the Cardan drive shaft in slitting machines:(1) Paper Industry: Slitting machines are extensively used in the paper industry to convert large rolls of paper into narrower strips or sheets. The Cardan drive shaft helps transmit torque from the power source to the slitting blades, allowing for precise and efficient cutting of paper materials.(2) Plastic Industry: Slitting machines are employed in the plastic industry to cut plastic films, sheets, and foils into desired widths. The Cardan drive shaft ensures smooth power transmission, enabling accurate slitting of plastic materials, such as polyethylene, polypropylene, and PVC.(3) Metal Industry: Slitting machines are utilized in the metal industry for cutting metal coils into narrower strips. The Cardan drive shaft provides the necessary torque to operate the slitting blades, allowing for clean and precise cuts in metals like steel, aluminum, and copper.(4) Textile Industry: Slitting machines play a vital role in the textile industry by cutting fabric rolls into narrower strips for various applications. The Cardan drive shaft assists in transmitting power to the slitting blades, ensuring smooth and accurate cutting of different types of fabrics.(5) Packaging Industry: Slitting machines are widely used in the packaging industry to produce customized packaging materials, such as tapes, labels, and shrink films. The Cardan drive shaft enables efficient power transmission, resulting in precise and consistent slitting of packaging materials.(6) Converting Industry: The converting industry, which involves the transformation of raw materials into finished products, relies on slitting machines for various cutting operations. The Cardan drive shaft facilitates the cutting process, ensuring reliable power transmission and consistent slitting of materials like foils, films, laminates, and nonwovens.(7) Automotive Industry: Slitting machines are employed in the automotive industry for cutting materials used in manufacturing components like gaskets, seals, and interior trims. The Cardan drive shaft supports the cutting process, allowing for accurate and efficient production of automotive parts.

Industrial Cardan Drive Shaft Manufacturers

Raydafon Transmission Machinery Co., Ltd. is a professional company dedicated to the research, development, design, and manufacture of transmission shafts for metallurgical machinery, papermaking machinery, woodworking machinery, plastics machinery, mining machinery, textile machinery, petroleum machinery, water conservancy machinery, road construction machinery, excavating machinery, etc. The company adopts advanced computerized design technology, excellent numerical-control machining equipment, all-around screen test methods, and complete Microsoft system management, creating a reliable product strength. The factory specializes in the production of SWC, SWP, SWL cross shaft universal shaft, flexible jaw couplings, spacer couplings, rigid couplings, HRC couplings, fluid couplings, chain couplings, flange flexible couplings, gear couplings, and so on. Its various performance indicators by the user feedback have reached or exceeded the advanced level of the industry; the products are sold to major domestic OEMs and exported abroad with the host. After years of efforts, we have provided support services for a number of companies across the country; in the future, we will continue to do better for the majority of customers by providing quality products and quality service. And welcome friends from all walks of life to visit and negotiate.

FAQ

Q 1: Are you a trading company or a manufacturer?A: We are a professional manufacturer specializing in manufacturing various series of cardan drive shafts.Q 2: Can you do OEM?Yes, we can. We can do OEM & ODM for all customers with customized PDF or AI format artwork.Q 3: How long is your delivery time?Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.Q 4: Do you provide samples? Is it free or extra?Yes, we could offer the sample but not for free. Actually, we have an excellent price principle, when you make the bulk order the cost of the sample will be deducted.Q 5: How long is your warranty?A: Our Warranty is 12 months under normal circumstances.Q 6: What is the MOQ?A: Usually, our MOQ is 1 pcs.Q 7: Do you have inspection procedures for the cardan drive shaft?A: 100% self-inspection before packing.Q 8: Can I have a visit to your factory before the order?A: Sure, welcome to visit our factory.Q 9: What's your payment?A:1) T/T.
