Industrial Cardan Drive Shaft SWC390BH for Seamless Steel Pipe Mill Machine

Industrial Cardan Drive Shaft SWC390BH for Seamless Steel Pipe Mill Machine

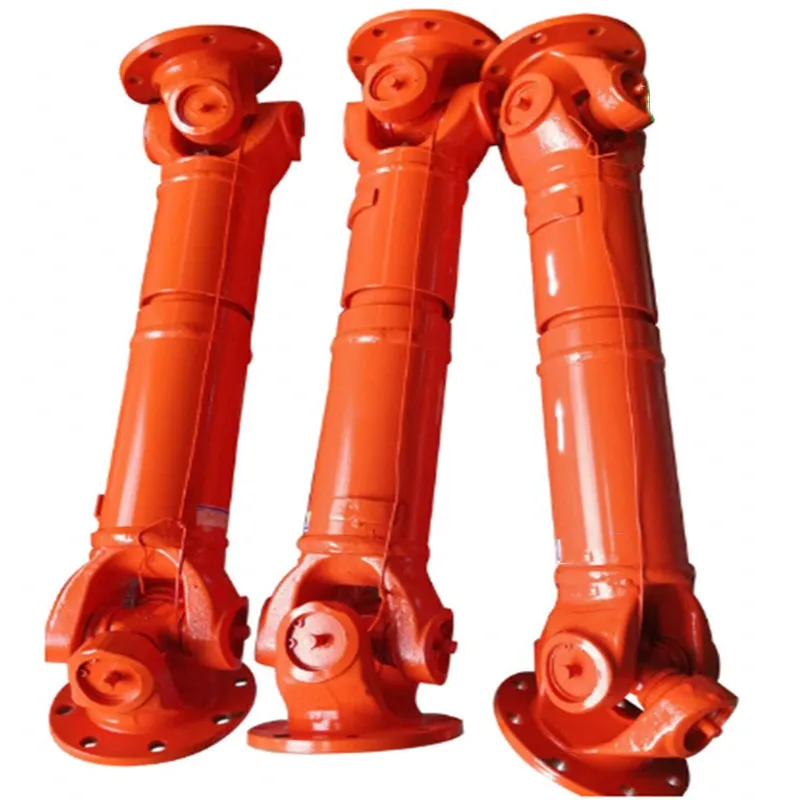

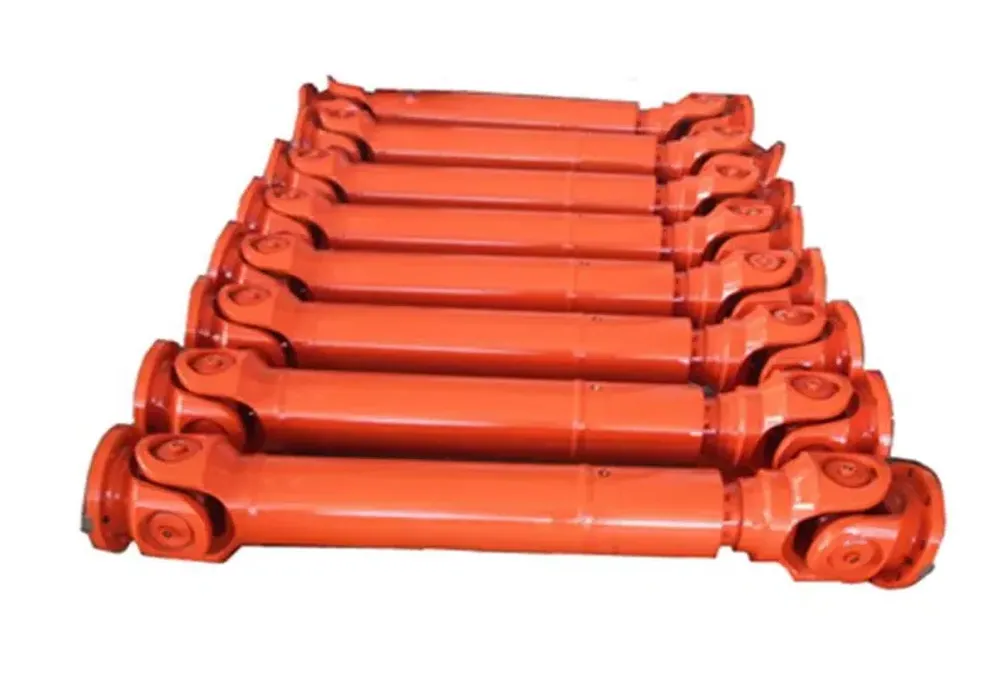

The SWC390BH Industrial Cardan drive shaft is a specialized component used in seamless steel pipe mill machines. It plays a critical role in transmitting torque and rotational motion between various components of the mill, ensuring smooth and efficient operation throughout the pipe manufacturing process.The SWC390BH Cardan drive shaft is specifically designed to meet the requirements of seamless steel pipe mills, which involve high-speed and heavy-duty operations. It is engineered to handle substantial torque loads, accommodate misalignments, and withstand the harsh conditions typically encountered in such industrial environments.This drive shaft model, SWC390BH, belongs to the SWC-BH series, which is recognized for its robustness and reliability in demanding applications. It is constructed using high-quality materials like alloy steel, ensuring strength, durability, and resistance to fatigue.The SWC390BH Cardan drive shaft consists of multiple universal joints connected by a solid or hollow shaft. These universal joints comprise a cross-shaped yoke with bearings at each end, allowing for free rotation. The yoke is connected to the adjacent shafts using yoke ears and bearing caps, securing the joints while enabling rotational movement.In the seamless steel pipe mill machine, the SWC390BH Cardan drive shaft is typically used to transmit power from the main motor or gearbox to various components involved in the pipe manufacturing process. It effectively compensates for misalignments that may occur due to the different orientations of the driving and driven shafts.During operation, as the driving shaft rotates, the universal joints of the SWC390BH drive shaft transfer the torque to the driven shafts, ensuring smooth power transmission. The drive shaft's flexible design allows it to absorb any angular misalignment, reducing vibration and enhancing the overall efficiency of the mill machine.

Seamless Steel Pipe Mill Machine Cardan Drive Shaft SWC390BH Dimensions

Seamless Steel Pipe Mill Machine Cardan Drive Shaft SWC390BH Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC390BH	390	250	125	≤15	170	1590	345	235	267	215	10-25	40	8	70	18	12.164	0.2219	738	15

Advantages of Cardan Drive Shaft for Seamless Steel Pipe Mill Machine

The Cardan drive shaft offers several advantages when used in a seamless steel pipe mill machine. Here are some key benefits:1. Efficient Power Transmission: The Cardan drive shaft efficiently transfers torque and rotational motion from the main motor or gearbox to various components of the mill machine. It ensures a smooth and reliable power transmission, enabling the seamless steel pipe mill to operate efficiently and effectively.2. Angular Misalignment Compensation: In the seamless steel pipe mill, there can be misalignments between the driving and driven shafts due to different orientations of the equipment. The Cardan drive shaft is specifically designed to accommodate these angular misalignments. It flexibly adjusts to varying angles, ensuring proper power transmission without placing excessive stress on the components, thereby reducing wear and tear.3. Vibration Damping: The Cardan drive shaft effectively absorbs and dampens vibrations that may occur during the operation of the mill machine. By reducing vibration, it enhances the overall stability and smoothness of the pipe manufacturing process. This, in turn, improves the quality of the seamless steel pipes produced and extends the lifespan of the equipment.4. High Load-Bearing Capacity: Seamless steel pipe mill machines often handle heavy loads and operate under demanding conditions. The Cardan drive shaft is designed to withstand these high torque loads and harsh industrial environments. It is constructed using durable materials such as alloy steel, ensuring strength, durability, and resistance to fatigue.5. Flexibility and Adaptability: The Cardan drive shaft provides flexibility and adaptability in the seamless steel pipe mill. It allows for axial movement and compensates for axial and radial misalignments, ensuring smooth operation even when there are slight variations in the equipment's positioning. This flexibility enhances the overall performance, reduces downtime, and facilitates easy maintenance and repairs.6. Maintenance and Serviceability: Cardan drive shafts are relatively easy to maintain and service. Regular inspections and lubrication of the universal joints are essential to ensure optimal performance and extend the service life of the drive shaft. The modular design of the Cardan drive shaft also allows for easy replacement of individual components, minimizing downtime during maintenance or repair operations.

How Does the Cardan Drive Shaft for Seamless Steel Pipe Mill Machine Work?

The Cardan drive shaft, specifically models like the SWC390BH designed for seamless steel pipe mill machines, plays a crucial role in transmitting power within the machinery used to manufacture steel pipes. Understanding how it works involves looking at its design, the principles behind its operation, and its integration into the machinery of a steel pipe mill.

Basic Principle of Operation

A Cardan shaft, or universal shaft, is designed to transmit torque and rotational motion between two points that are not directly aligned. It consists of one or more universal joints, shaft segments, and sometimes a telescopic mechanism to accommodate changes in distance between these points. Here's how these components work together in the context of a seamless steel pipe mill:

1. Torque Transmission: The drive shaft transfers torque from the motor or engine (the power source) to various parts of the steel pipe mill machinery (the driven components), such as rollers or conveyors.
2. Universal Joints: The key feature of a Cardan shaft is its universal joints, which allow for angular misalignment between the driving and driven ends. These joints can bend in any direction while still transmitting power, accommodating angular, parallel, and axial misalignments.
3. Compensation for Movement: In a seamless steel pipe mill, machinery components may need to move relative to each other due to operational requirements or thermal expansion. The Cardan shaft's design allows for this movement without interrupting the transmission of power or causing excessive wear on the machinery.

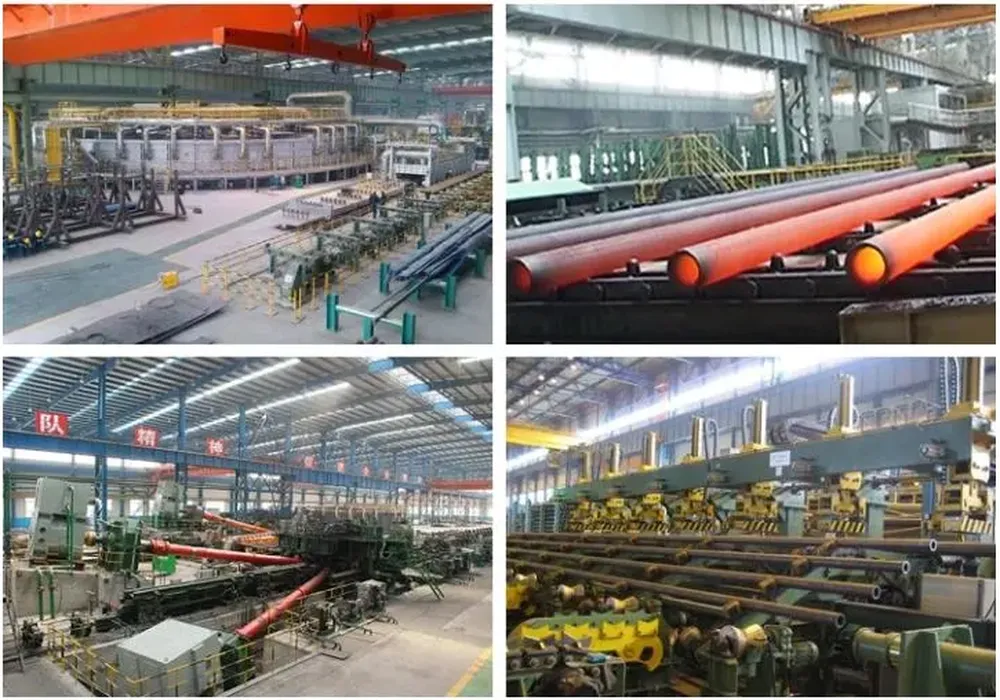

Integration into Seamless Steel Pipe Mill Machinery

In the context of a seamless steel pipe mill, the Cardan shaft has specific applications:

• Driving Rollers: The shaft drives the rollers that form the steel into pipes. Its ability to transmit power efficiently, even with the angular misalignment between the motor and the rollers, is crucial for continuous operation.
• Conveyance Systems: It powers conveyor systems that transport raw materials, semi-finished, and finished pipes through the production process. The flexibility of the Cardan shaft accommodates the varying alignments and distances across the conveyor system.
• Adaptability to Work Conditions: The seamless steel pipe manufacturing process involves heavy loads and high temperatures, which can lead to expansion or shifting of machinery. The Cardan shaft’s ability to adapt to these changes without a loss of efficiency or increased wear is invaluable.

Choose the Right Cardan Drive Shaft for Seamless Steel Pipe Mill Machine

Choosing the right Cardan drive shaft for a seamless steel pipe mill machine involves several critical considerations to ensure efficient, reliable operation, and longevity of the equipment. Here’s a guideline to help you select the most appropriate Cardan drive shaft:(1) Determine the Torque Requirements: Calculate the Required Torque: Understand the torque requirements of your steel pipe mill machinery. This includes both the operational torque and any peak torques that may occur during startup or under load changes. Safety Factor: Apply an appropriate safety factor to the calculated torque to ensure the drive shaft can handle unexpected loads or operational anomalies.(2) Understand the Operational Speed: Operating Speed Range: Identify the range of speeds at which the machinery operates. The drive shaft must be capable of handling the highest operational speed without excessive vibration or wear. Critical Speed: Ensure the chosen drive shaft’s critical speed is well above the maximum operating speed. The critical speed is the speed at which the shaft becomes unstable and can start to vibrate destructively.(3) Assess Angular and Axial Misalignment: Angular Misalignment: Measure or estimate the maximum angular misalignment between the driving and driven units that the shaft needs to accommodate. This determines the type of universal joints required. Axial Misalignment and Movement: Consider any axial movement or changes in distance between the connected units during operation, requiring a telescoping shaft or splined slip joint to compensate.(4) Review Environmental and Operational Conditions: Temperature and Environment: Consider the environmental conditions, such as high temperatures or the presence of corrosive materials, which could affect the material selection for the shaft and its components. Load Characteristics: Analyze the type of load (steady, variable, impact) the drive shaft will encounter, as this impacts the choice of shaft material and design for durability.(5) Select Appropriate Materials and Coatings: Material Strength: Choose materials that provide sufficient strength and toughness to handle the demands of the application, including high-strength steel or alloys. Corrosion Resistance: If operating in corrosive environments, consider protective coatings or materials resistant to corrosion to extend the lifespan of the drive shaft.

Industrial Cardan Drive Shaft Manufacturers

Raydafon Transmission Machinery Co., Ltd. is a professional company dedicated to the research, development, design, and manufacture of transmission shafts for metallurgical machinery, papermaking machinery, woodworking machinery, plastics machinery, mining machinery, textile machinery, petroleum machinery, water conservancy machinery, road construction machinery, excavating machinery, etc. The company adopts advanced computerized design technology, excellent numerical-control machining equipment, all-around screen test methods, and complete Microsoft system management, creating a reliable product strength. The factory specializes in the production of SWC, SWP, SWL cross shaft universal shaft, flexible jaw couplings, spacer couplings, rigid couplings, HRC couplings, fluid couplings, chain couplings, flange flexible couplings, gear couplings, and so on. Its various performance indicators by the user feedback have reached or exceeded the advanced level of the industry; the products are sold to major domestic OEMs and exported abroad with the host. After years of efforts, we have provided support services for a number of companies across the country; in the future, we will continue to do better for the majority of customers by providing quality products and quality service. And welcome friends from all walks of life to visit and negotiate.

FAQ

Q 1: Are you a trading company or a manufacturer?A: We are a professional manufacturer specializing in manufacturing various series of cardan drive shafts.Q 2: Can you do OEM?Yes, we can. We can do OEM & ODM for all customers with customized PDF or AI format artwork.Q 3: How long is your delivery time?Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.Q 4: Do you provide samples? Is it free or extra?Yes, we could offer the sample but not for free. Actually, we have an excellent price principle, when you make the bulk order the cost of the sample will be deducted.Q 5: How long is your warranty?A: Our Warranty is 12 months under normal circumstances.Q 6: What is the MOQ?A: Usually, our MOQ is 1 pcs.Q 7: Do you have inspection procedures for the cardan drive shaft?A: 100% self-inspection before packing.Q 8: Can I have a visit to your factory before the order?A: Sure, welcome to visit our factory.Q 9: What's your payment?A:1) T/T.
