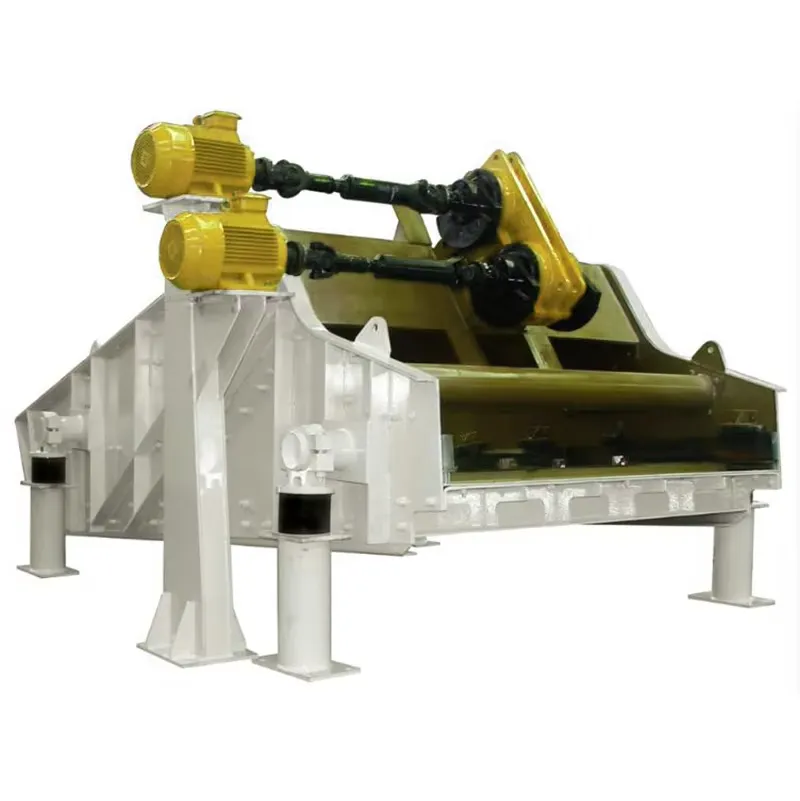

Industrial Linear High Frequency Screen for Mineral Processing Sand Gravel Slurry Dewatering Machine

Industrial Linear High Frequency Screen for Mineral Processing Sand Gravel Slurry Dewatering Machine

Product Overview

The Industrial Linear High Frequency Screen is a cutting-edge solution designed for mineral processing, particularly in the separation of sand, gravel, and slurry dewatering. This high-precision industrial vibrating screen excels in providing accurate and efficient classification of materials, ensuring optimal performance in various applications. With its advanced high-frequency technology, this screen enhances dewatering capabilities and improves the overall quality of processed materials. By utilizing high-quality stainless steel in its construction, the screen boasts excellent corrosion resistance, making it ideal for environments where durability is paramount.

Specifications

• Core Components: Screen Deck, Screening Media (Mesh/Sieve), Vibrator/Drive Mechanism, Frame/Body, Springs/Dampers
• Voltage: 380 V, 110 V, 220 V
• Dimension(L*W*H): Customized
• Weight: 50 KG
• Warranty: 1 Year

Key Features

• Stainless Steel Construction: Provides exceptional corrosion resistance, enhancing the longevity and reliability of the industrial vibrating screen.
• High-Frequency Technology: Increases dewatering efficiency, making it suitable for high-frequency dewatering applications.
• Customizable Dimensions: Tailored to meet specific project requirements, ensuring optimal fit and performance.

We specialize in manufacturing this high-quality industrial vibrating screen, catering to a wide range of industrial needs.

Applications in Various Industries

The Industrial Linear High Frequency Screen is widely used across multiple industries, including:

• Mining: Efficiently separates various minerals and aggregates, contributing to enhanced processing quality.
• Ports: Handles slurry dewatering in loading and unloading operations, ensuring smooth workflow.
• Cement: Aids in the classification of raw materials, crucial for producing high-quality cement.

For instance, in the mining industry, our screens have successfully improved the classification of mineral aggregates, leading to increased processing efficiency and product quality. With a reputation for reliability, our industrial vibrating screens have become essential in ensuring the success of our clients’ operations.

Design Considerations

Excitation Force

The excitation force of the industrial vibrating screen is critical for achieving optimal screening performance. Properly calibrated excitation ensures efficient material movement across the screen deck, enhancing the separation process and increasing throughput. This design consideration directly impacts the screen's efficiency and effectiveness in various applications.

Sealing

Effective sealing is essential to prevent dust and moisture ingress, protecting the internal components of the screen. A well-sealed design minimizes maintenance needs and prolongs the equipment's lifespan, ensuring consistent performance in challenging environments.

Screen Durability

The durability of the screening mesh is vital in minimizing wear and tear during operations. We utilize high-quality materials that withstand abrasive materials, providing extended service life and reducing replacement frequency.

Isolation Design

A robust isolation design helps to minimize vibrations transmitted to the surrounding environment, enhancing safety and operational comfort. This is particularly important in settings where personnel proximity to machinery is unavoidable.

Maintainability

Ease of maintenance is a crucial aspect of our industrial vibrating screen design. Simplified access to critical components allows for timely inspections and repairs, ensuring consistent operational efficiency and minimizing downtime.

Sealing and Lubrication

The sealing and lubrication of the vibrating screen components, such as the exciter and bearing housing, are critical for maintaining optimal performance:

• Utilization of floating oil seals and high-temperature resistant seals ensures robust protection against contaminants.
• Grease or low viscosity oil lubrication methods for exciter bearings enhance operational reliability.
• Selection of wear-resistant materials for sealing components minimizes wear and prolongs service life.
• Precision machining of bearing housings ensures a tight seal and optimal fit.

Regular Inspection and Preventive Maintenance

To maintain optimal performance, regular inspection and preventive maintenance are necessary:

• Monitoring bearing temperatures helps detect potential issues before they escalate.
• Vibration amplitude analysis assists in identifying abnormal patterns that could indicate malfunctions.
• Checking screen tension ensures proper mesh operation and efficiency.
• Inspecting fasteners on vibration sources guarantees structural integrity and safe operation.

Installation Guidelines

Proper installation is critical for the effective operation of the industrial vibrating screen:

• Foundation requirements must be met to ensure stability and prevent vibrations from affecting surrounding structures.
• Leveling calibration is essential to guarantee uniform material flow across the screen.
• Isolation spring installation requires careful attention to ensure optimal vibration damping.
• Adjusting the vibration motor's weight angle is crucial for achieving the desired excitation force.

Common Maintenance Tasks

• Regular Inspections and Replacement of Wear Parts: Timely checks and replacements of critical components help maintain performance and extend the service life of the screen.
• Exciter Lubrication Changes: Routine changes of lubricants ensure that the exciter operates smoothly, reducing the risk of failure.
• Amplitude and Frequency Calibration: Regular adjustments to these parameters optimize screening performance and ensure materials are classified accurately.

Safety Considerations and Environmental Factors

When utilizing our industrial vibrating screen, safety measures must be prioritized. Measures include:

• Dust covers to minimize airborne particles, enhancing workplace safety and compliance.
• Isolation safety distances to protect personnel from excessive vibrations.
• Noise reduction measures to maintain a safe working environment.
• Anti-static designs to prevent hazards in sensitive applications.

Fault Diagnosis and Common Issues

Common issues may include:

• Decreased Screening Efficiency: Often caused by improper tension or wear on the mesh.
• Mesh Breakage: Can occur due to overload or material impact.
• High Bearing Temperatures: Indicates lubrication failure or misalignment.
• Abnormal Vibration Patterns: May signal component wear or imbalance.

Addressing these issues promptly and effectively is key to minimizing downtime and maximizing productivity.Our company stands as a leading manufacturer and wholesaler of Industrial Vibrating Screens, committed to providing a comprehensive range of high-quality products. We adhere to excellence in quality and employ a refined production management strategy to consistently deliver superior products. Our investment in skilled technicians, advanced digital manufacturing equipment, and professional testing systems ensures the enhancement of our manufacturing platform, paving the way for high-quality production routes. With a focus on efficiency, precision, and quality, we meet diverse customer needs.Our expertise is backed by international certifications, customized services, state-of-the-art production equipment, and excellent after-sales support, affirming our position in the global market.
