TH130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox

TH130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox

Product Overview

hollow rotary actuator Rotating Platform Table With High Precision Planetary Gearbox">TH130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox is a high-precision rotating device that consists of a hollow rotary platform and a high-precision planetary gearbox. It is widely used in various industrial sectors such as robotics, aerospace, medical equipment, military equipment, optical instruments, and industrial automation. This product is also known as Hollow Rotary Platform and Hollow Rotary Table. With its precise motion control and high torque output, the TH130 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox is expected to have a promising future market trend.

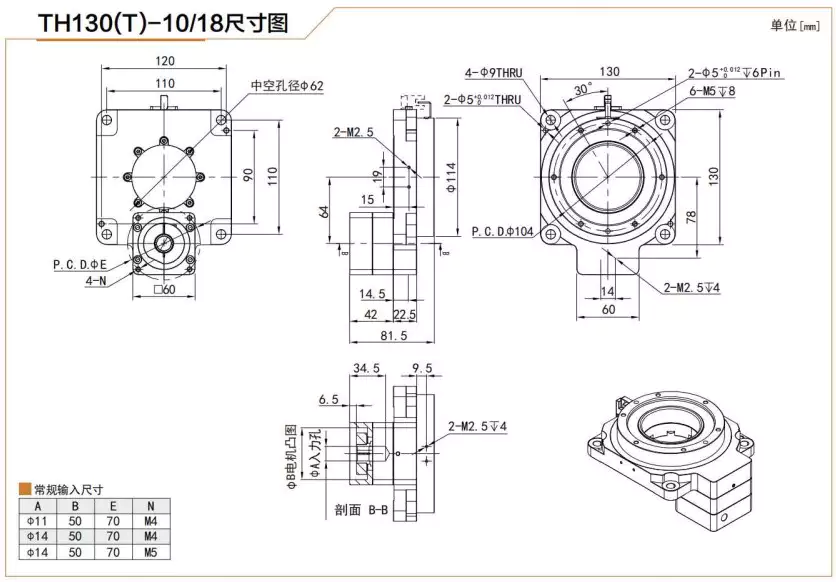

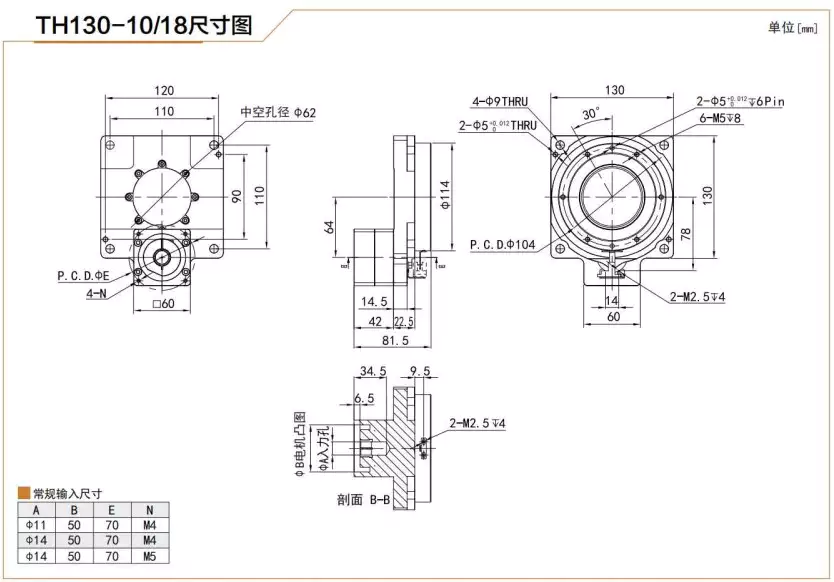

Technical Parameter

Specifications	TH130-10 / TH130-18
Reduction ratio	1:10 / 1:18
Allowable torque	78Nm / 52Nm
Adapted motor	200/400W AC Servo motor
Rotating platform bearings	Cross Roller Bearing
Moment of inertia	15870*0.000001 kg.m²
Permissible speed	200r/min
Allowable inertia load	130N / 55N
Allowable axial load	2000N
Positioning accuracy	士0.5arcmin
Repeated positioning accuracy	士5arcsec
Deviation of rotating platform tabletop	士 0.005mm
Parallelism of rotating platform	士0.015mm
Concentricity of rotating platform	±0.01 mm
Precision lifespan	20000 h
Protection level	IP40
Weight	2.5kg

Basic Construction

The basic construction of the Hollow Rotary Actuator includes the following parts:

• 1. Crossed roller bearing
• 2. Precision gear
• 3. Input mounting flange
• 4. Input shaft
• 5. Sensing device

1. Crossed roller bearing: This bearing provides the rotary support for the Hollow Rotary Actuator. It is designed to handle heavy loads and provide high stiffness and accuracy.2. Precision gear: A high-precision planetary gearbox is used to reduce the output speed and increase the output torque. It consists of a sun gear, planet gears, and ring gear.3. Input mounting flange: The input flange is used to attach the Hollow Rotary Actuator to a motor or other drive system.4. Input shaft: The input shaft transfers the motion from the motor to the planetary gearbox.5. Sensing device: A feedback device such as an encoder or magnetostrictive displacement sensor is used to provide closed-loop position control of the Hollow Rotary Actuator.

Working Principle

The working principle of the Hollow Rotary Actuator can be described in the following steps:

1. Drive source: The Hollow Rotary Actuator is powered by a motor, which can be a servo motor, stepper motor, or DC motor. The motor converts electrical energy into mechanical energy and transmits it to the transmission system via the input shaft.
2. Transmission mechanism: The transmission system usually consists of a set of precision gears, such as a planetary gearbox. The motor's power is transmitted to the sun gear through the input shaft, and the sun gear drives a set of planetary gears that rotate around it. These planetary gears rotate around the internal ring gear and rotate simultaneously, thereby achieving torque amplification and reducing the rotation speed. This design allows the Hollow Rotary Actuator to provide high torque output while maintaining a compact structure size.
3. Hollow shaft design: The core feature of the actuator is an internal hollow rotating shaft that allows cables, fluid pipelines, or other necessary components to pass through the axis without affecting the actuator's rotation function. This feature greatly enhances the equipment's integration in limited space.
4. Position control and feedback: To achieve precise position control, the Hollow Rotary Actuator is equipped with position sensors such as encoders or magnetostrictive displacement sensors. These sensors detect the actuator's rotation angle in real-time and transmit the data back to the control system, forming a closed-loop feedback mechanism to ensure that the actuator moves accurately to the target position.
5. Load application: The output end of the actuator is connected to the load that needs to be rotated, such as robot joints, radar antennas, medical equipment, etc., through a flange or other interface, allowing for precise continuous or intermittent rotation operations.

Design and Selection Considerations

When designing and selecting the Hollow Rotary Actuator, the following factors should be considered:

Factors	Considerations
Load capacity	The actuator's load capacity should match the application's requirements.
Speed and torque	The actuator's speed and torque should match the application's requirements.
Precision	The actuator's precision should match the application's requirements.
Environmental conditions	The actuator should be designed to withstand the environmental conditions of the application, such as temperature, humidity, and vibration.
Mounting options	The actuator should be designed to allow for easy installation and integration with the application.

Applications

The Hollow Rotary Actuator is widely used in various industrial sectors, including:

• 1. Robotics: The actuator is used in robot arms, joints, and grippers to provide precise motion control.
• 2. Aerospace: The actuator is used in satellite attitude control systems, radar antennas, and other aerospace equipment.
• 3. Medical equipment: The actuator is used in medical imaging equipment, surgical robots, and other medical devices.
• 4. Military equipment: The actuator is used in military robots, missile guidance systems, and other military equipment.
• 5. Optical instruments: The actuator is used in telescopes, cameras, and other optical instruments to provide precise motion control.
• 6. Industrial automation: The actuator is used in various industrial automation applications, such as material handling, assembly, and testing.
