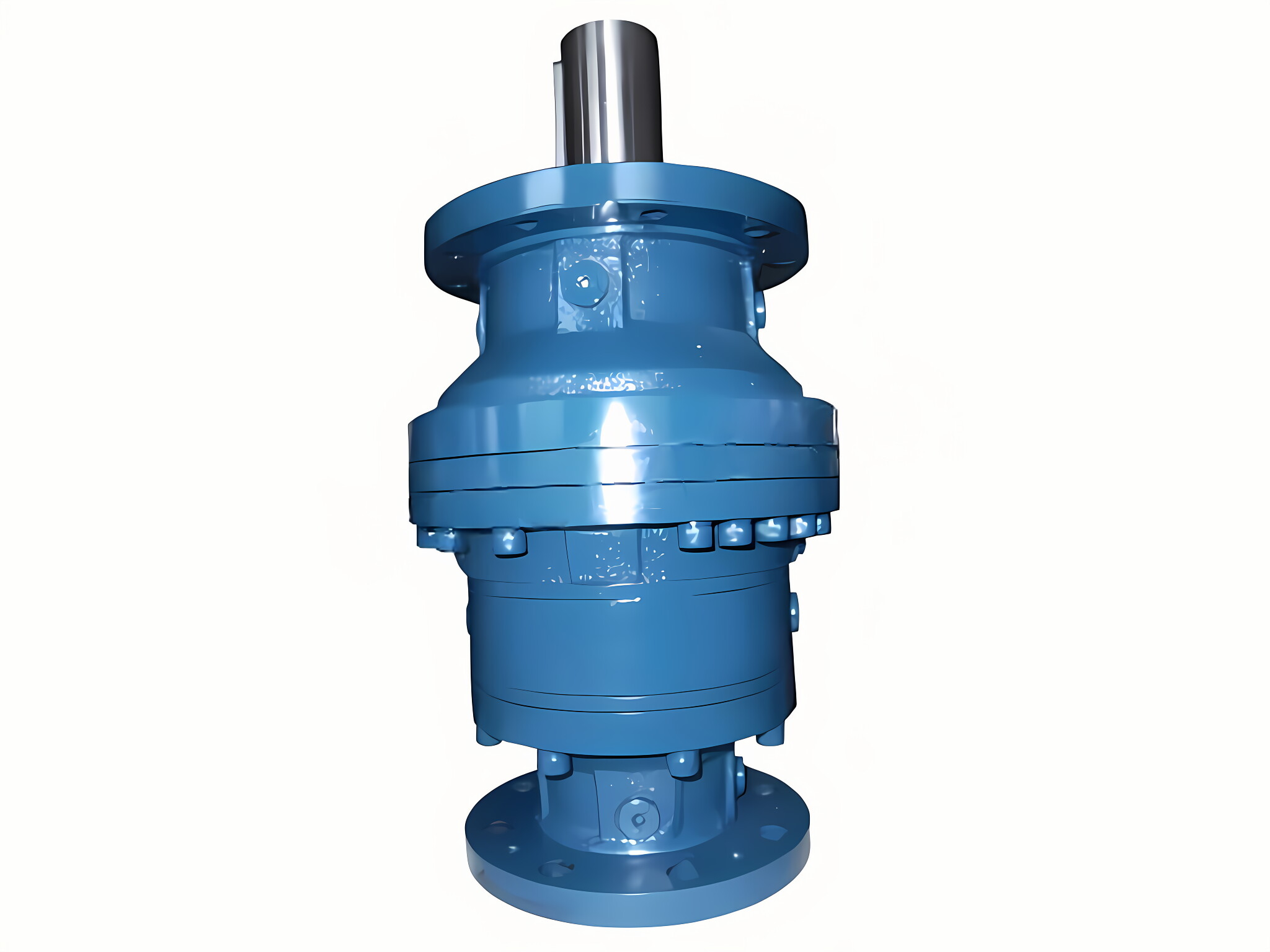

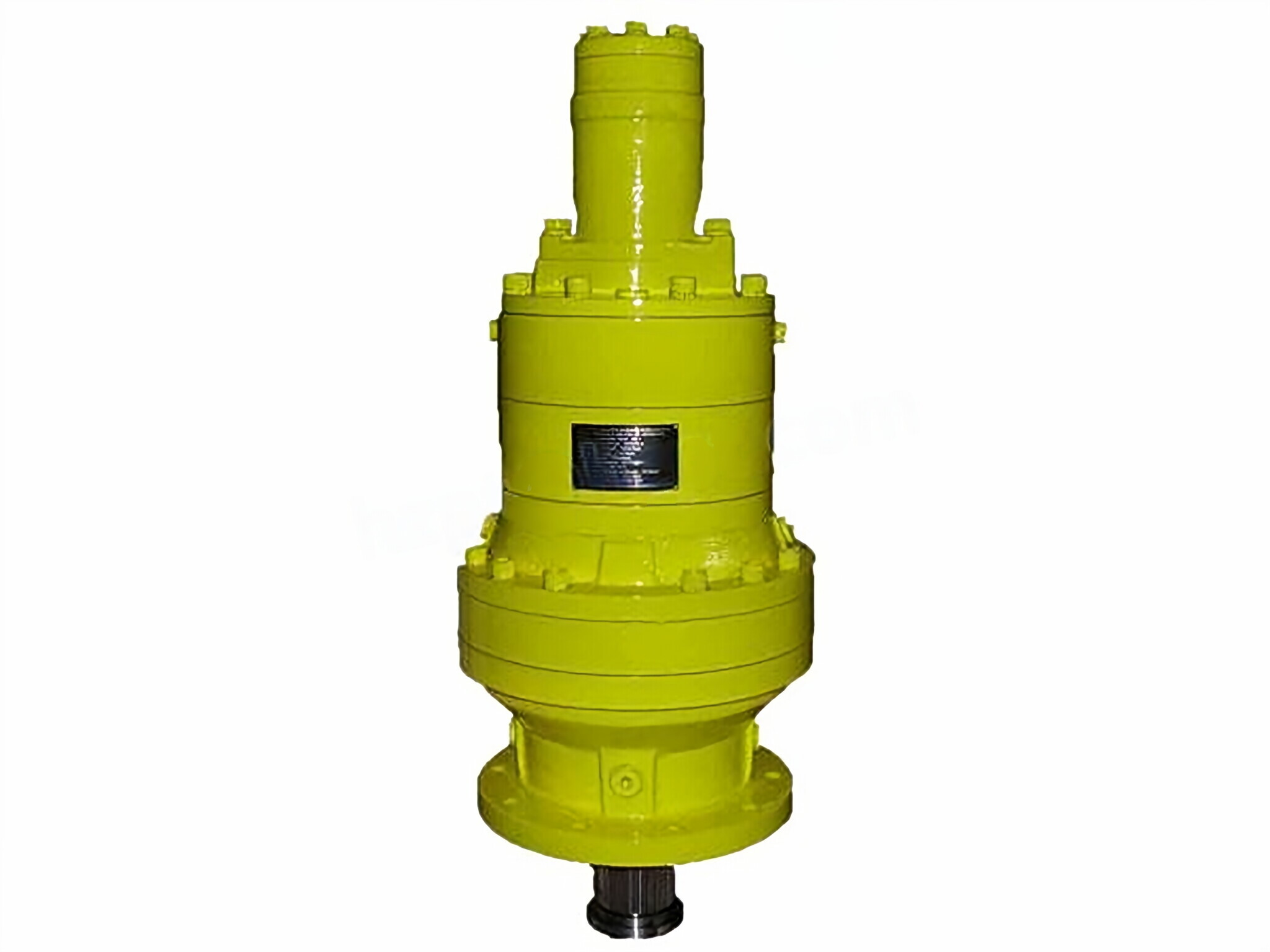

Inline Planetary Gear Reducer-Inline Planetary Gearboxes

Inline Planetary Gear Reducer Inline Planetary Gearboxes

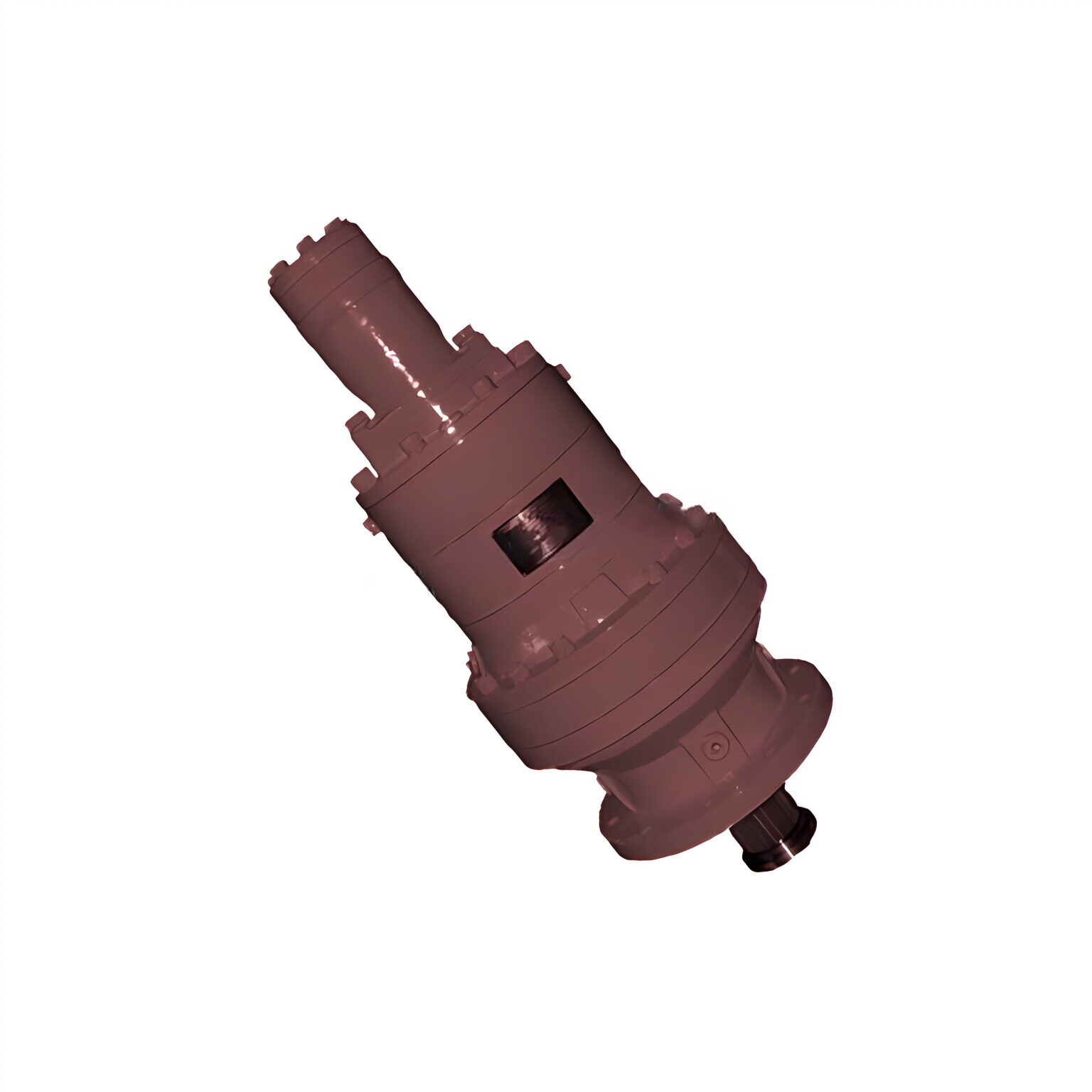

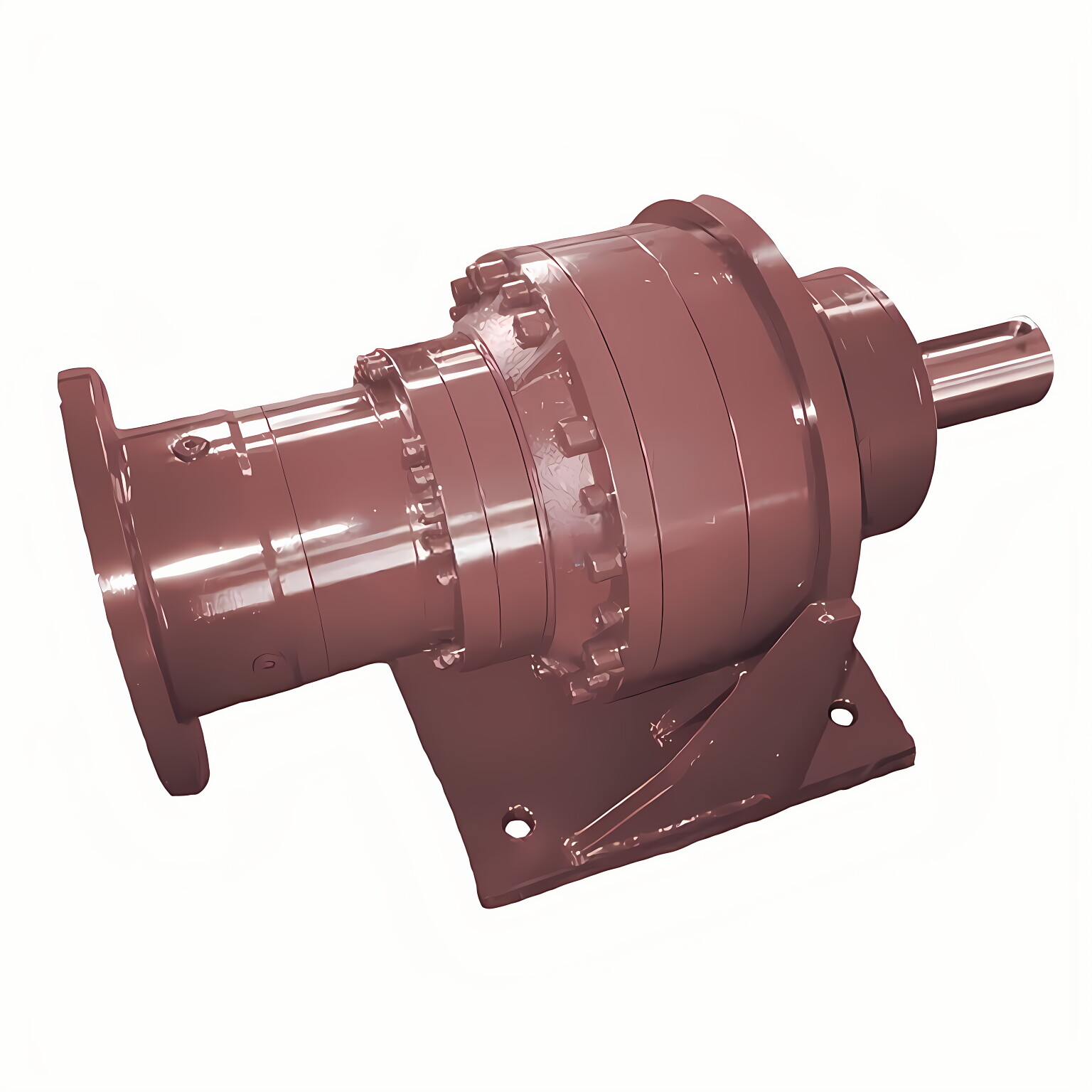

EP303L3-HC

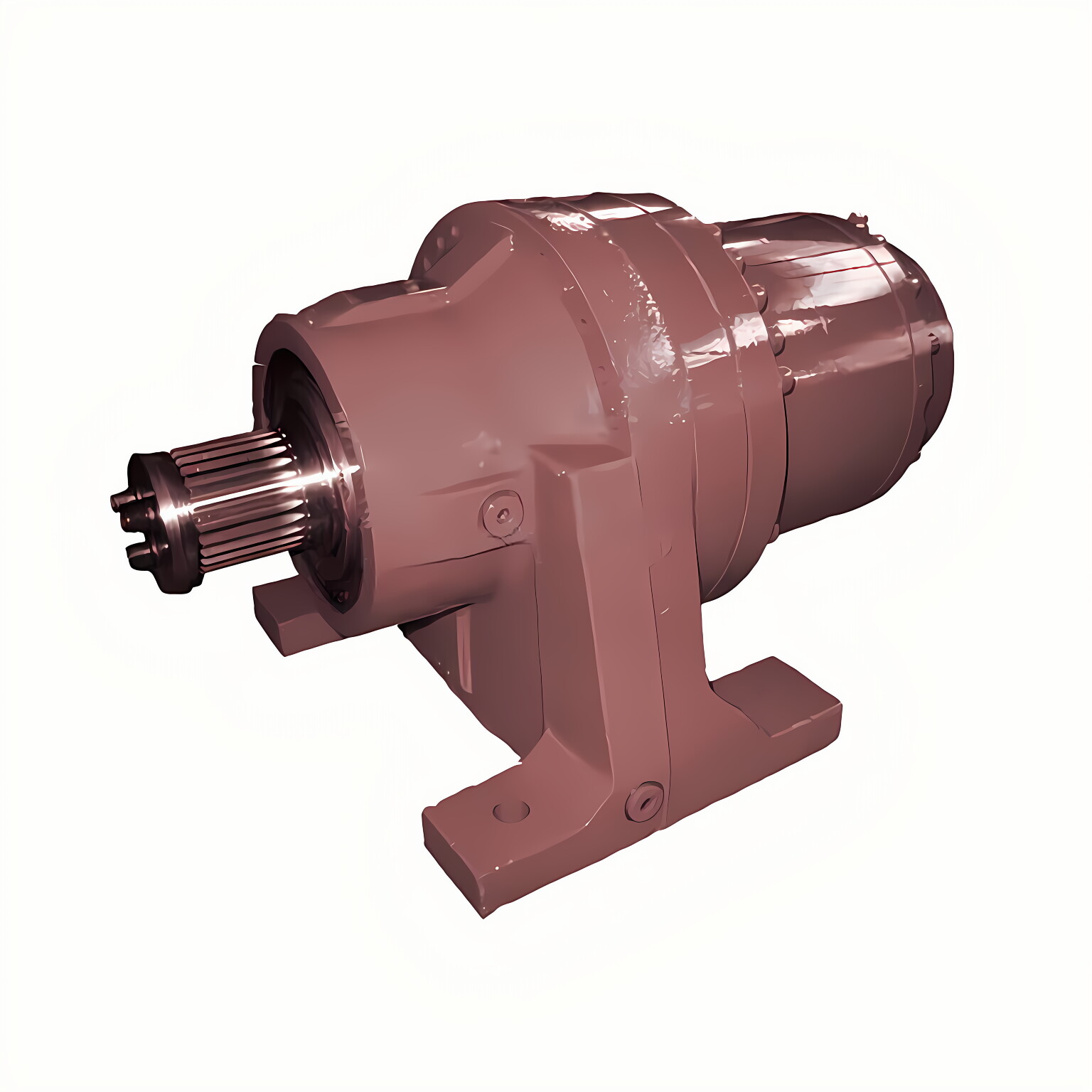

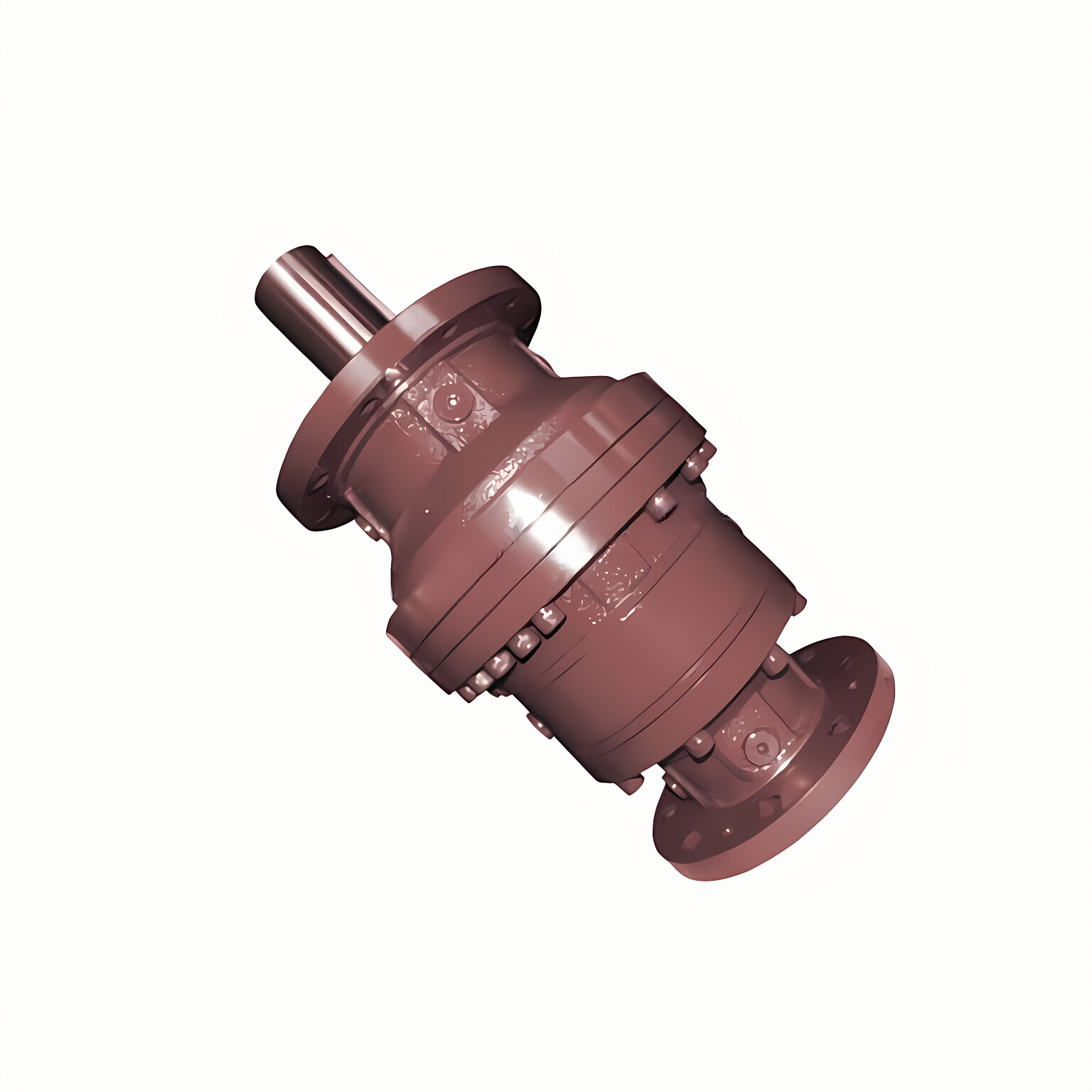

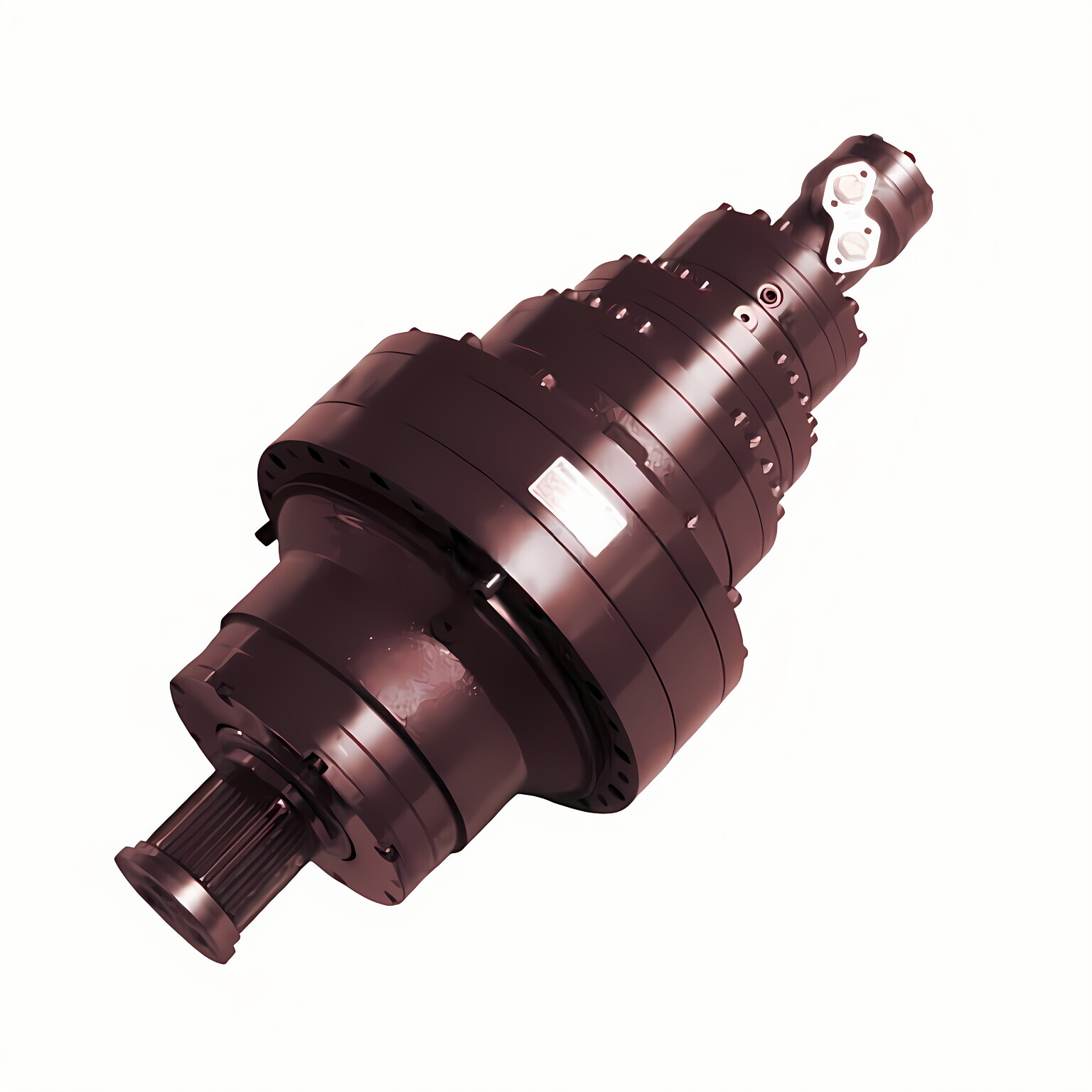

EP305L2-HZ

Inline Planetary Gear Reducer Performance

EP300L series inline planetary gearboxes manufactured by Raydafon are the best gearbox solution for all applications that require high torque and minimum sizes, such as stationary industrial equipment and heavy-duty self-propelled machines. This planetary gearing solution offers a significant improvement over common gearboxes in terms of space footprint and weight. The inline planetary gearbox combines high performance, low cost, and compact size, excellent reliability, simple installation and reduced maintenance. The EP300L series inline planetary gearboxes are available in a wide range of sizes to ensure the optimum duration and silent operation in a variety of applications.The EP300L series is also available in a high-power version, combining the performance of our planetary technology with the high quality and reliability of a gearbox: a solution that is more efficient, quieter, more compact and more cost-effective than conventional gear units.

Inline Planetary Gear Reducer Key Features

1. Torque range: 1000-450.000 Nm2. Transmissible mechanical power: up to 540 kW3. Gear ratios: 3.4-9.0004. Gear unit versions: in line5. Output configurations:

• 1) Foot and flange mounted
• 2) Output shaft: solid with key, splined, splined hollow
• 3) Hollow with shrink disc

6. Input configurations:

• 1) Flanged axial piston hydraulic motors
• 2) Hydraulic orbit motors
• 3) IEC and Nema motor adaptors
• 4) Solid input shaft

7. Hydraulic brake: hydraulically released parking brake8. Electric brake: DC and AC type

Inline Planetary Gear Reducer Identification Scheme

Tipo		Torque Nm
EP300L	EP300L1, EP300L2, EP300L3, EP300L4	1000
EP301L	EP301L1, EP301L2, EP301L3, EP301L4	1750
EP303L	EP303L1, EP303L2, EP303L3, EP303L4	2500
EP305L	EP305L1, EP305L2, EP305L3, EP305L4	5000
EP306L	EP306L1, EP306L2, EP306L3, EP306L4	8500
EP307L	EP307L1, EP307L2, EP307L3, EP307L4	12500
EP309L	EP309L1, EP309L2, EP309L3, EP309L4	18000
EP310L	EP310L1, EP310L2, EP310L3, EP310L4	25000
EP311L	EP311L1, EP311L2, EP311L3, EP311L4	40000
EP313L	EP313L1, EP313L2, EP313L3, EP313L4	55000
EP315L	EP315L1, EP315L2, EP315L3, EP315L4	100000
EP316L	EP316L1, EP316L2, EP316L3, EP316L4	135000
EP317L	EP317L1, EP317L2, EP317L3, EP317L4	170000
EP318L	EP318L1, EP318L2, EP318L3, EP318L4	250000
EP319L	EP319L1, EP319L2, EP319L3, EP319L4	350000
EP321L	321L 1, 321L2, 321L3, 321L4	500000

Our inline planetary gearboxes can be a replacement for the gearboxes of the following brands.Trasmital Replacement of Bonfiglioli, Replacement of Brevini Riduttori, Replacement of Bosch Rexroth, Replacement of Comer Industries, Replacement of Reggiana Riduttori, Replacement of Rossi, Replacement of Zollern

Benefits of an Inline Planetary Gearbox

Designed to deliver maximum torque and speed, an inline planetary gearbox can be customized to fit the application requirements. Available in a variety of frame sizes, these inline planetary gearboxes have precision-cut helical gears and longer face widths. The latter result in greater tooth-to-shaft contact and overall torque density. They're also available with case-hardened teeth.One of the major benefits of an inline planetary gear reducer is that it can achieve different output speeds and gear reduction ratios. Due to its proportionate torque distribution, inline planetary gearboxes are able to bear big radial loads. These inline reducers are available with both male and female configurations.A planetary gearbox is similar to the Milky Way - the sun gear in the middle of the system rotates around the ring gear. It has two or more outer gears that mesh with it. The gears are held together by a carrier that also incorporates the output shaft. There are several advantages and disadvantages to inline planetary gearboxes. The first is that they require higher precision, which can lead to premature failure. The second is that heat dissipation is more difficult than with other gearboxes.Another benefit of planetary gearboxes is their compact size. Compared to a normal pinion and gear reducer, they have lower inertia. They are often used for small and compact applications, where space is at a premium. Their compact size and large reduction ratios make them a popular choice in space-constrained applications.The inline planetary gearboxes produced by Raydafon are lubricated with Food Compatible grease. They are also available with upgraded sealing options. They are highly economical, feature a wide range of ratios, and are washdown-ready and hygienic. They have a reputation for durability. They can provide years of trouble-free operation. They can also be designed to minimize maintenance requirements.Coaxial inline planetary gear reducers feature the same center of rotation as the input and output shafts. In other words, the input and output shafts rotate around each other. The planetary gear reducer's design allows for greater torque and speed to be delivered to the motor at the same time. Its low backlash makes it ideal for high precision applications and increased acceleration.

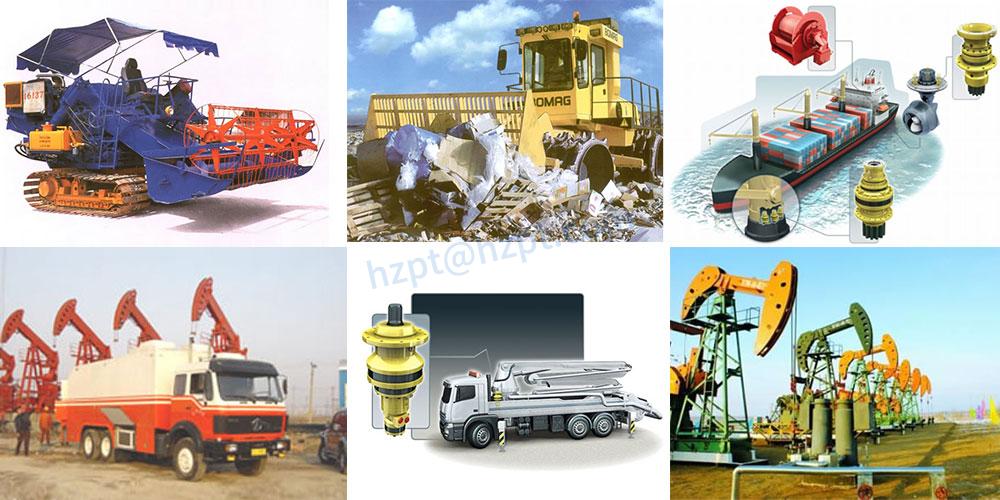

Inline Planetary Gearbox Applications

• Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
• Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
• Waste and sewage treatment (rotating filters, thickeners, clarifiers, Warm hoists, agitators)
• Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines)
• Wind energy (pitch drives, yaw drives)
• Substructures (movable roofs, movable gantries, piling)
• Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills)
• Food industry (mixing machines, mixers, conveyors, fruit extractor machines)
