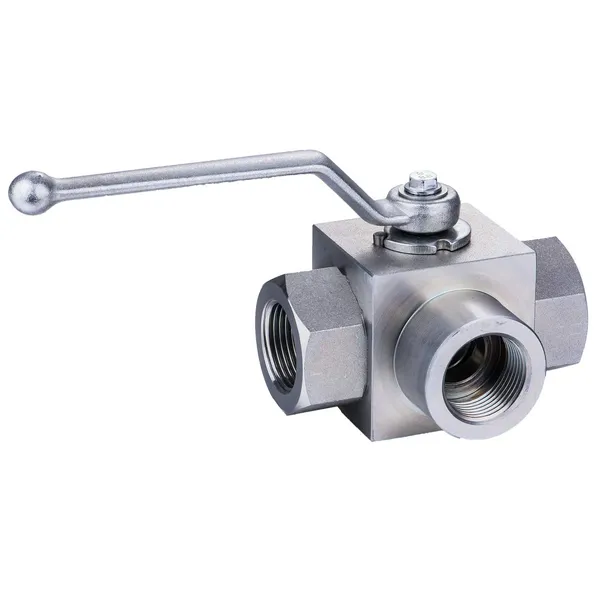

KHB-3W Series 3-way Hydraulic Ball Valves

KHB-3W Series 3-way Hydraulic Ball Valves

The KHB-3W Series 3-way hydraulic ball valves are high-pressure valves designed for use in a variety of hydraulic applications. They are made of high-strength carbon steel and have a working pressure of up to 7250 psi. KHB-3W Series 3-way ball valves are available in a variety of port sizes and thread types to meet the needs of different applications.

KHB-3W Series 3-way hydraulic ball valves are three-way valves, meaning they have three ports that can be connected to piping or tubing. This allows the valves to be used for a variety of purposes, such as:

• Switching the flow of fluid between two different lines.
• Mixing two fluids together.
• Diverting the flow of fluid from one line to another.
• Isolating a section of pipe for maintenance or repair.

KHB-3W Series 3-way ball valves are operated by turning a lever or handle. This rotates a ball inside the valve body, which opens or closes the different ports. KHB-3W valves are designed to be easy to operate and provide a positive seal against leakage.

Some of the key features of KHB-3W 3-way hydraulic ball valves include:

• High-pressure design with a working pressure of up to 7250 psi
• Three-way design for a variety of applications
• Easy operation with a lever or handle
• Positive seal against leakage
• Durable construction with a high-strength carbon steel body
• Available in a variety of port sizes and thread types

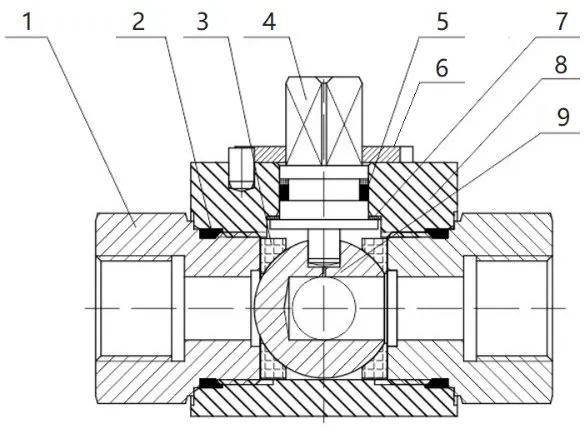

KHB-3W Series 3-way Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

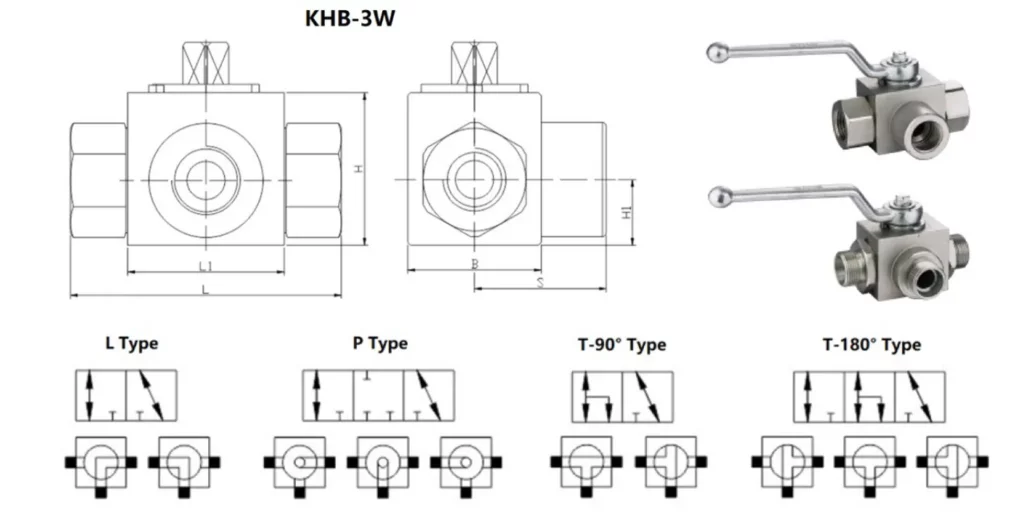

KHB-3W Series 3-way Hydraulic Ball Valve Dimensions:

Related Products

KHB Series Hydraulic Ball Valves View More >>

KHM Series Hydraulic Ball Valves View More >>

KHR Series Hydraulic Ball Valves View More >>

3KH Series 3-way Hydraulic Ball Valves View More >>

4KH Series 4-way Hydraulic Ball Valves View More >>

CJZQ Series Hydraulic Ball Valves View More >>





News Recommendations

What is the difference between inline and right-angle helical gearboxes?View More >>

What materials are V pulleys and sheaves made from?View More >>

What are the advantages and disadvantages of oil-sealed vacuum pumps?View More >>

What are the different types of stainless steel chains?View More >>

How do hydraulic cylinder pressure and force affect vulcanizing machine performance?View More >>

Are there different types of agricultural sprockets for tractors and combines?View More >>





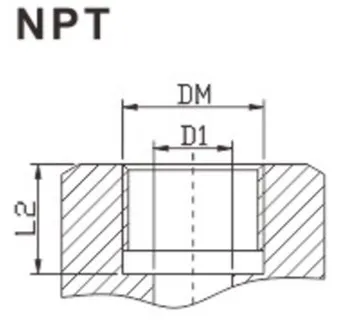

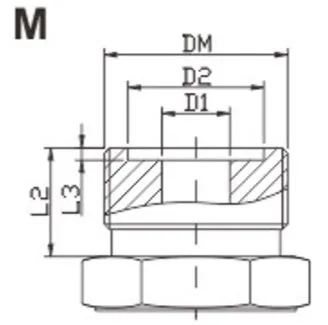

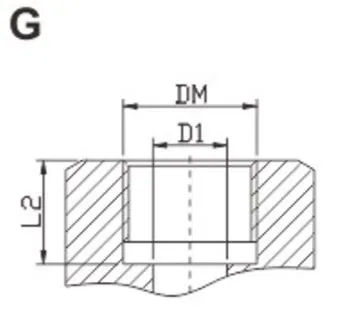

	Part NO.	PN	DN	Dimension(mm)
				D1	D2	DM	L	L1	L2	L3	H1	H2	B	S
	KHB-3W-M16	500	06	6	11	M16*1.5	69	40	11	1.4	32	13	26	35
	KHB-3W-M22	500	08	8	16	M22*1.5	76	42	12	1.8	40	17	34	36.5
	KHB-3W-M27	500	10	10	20	M27*1.5	76	42	12	1.8	40	17	34	36.5
	KHB-3W-M30	400	16	15	24	M30*1.5	84	48	13	1.8	45	19	38	42
	KHB-3W-M36	315	20	19	30	M36*2	103	60	15	2.4	56	24	48	52
	KHB-3W-M42	315	25	24	35	M42*2	116	64	18	2.4	63	29	58	59.5
	KHB-3W-M52	315	32	30	40	M52*2	149	72	20	2.4	75	34	69	75.5
	KHB-3W-M60	315	40	36	45	M60*2	174	80	22	2.4	86	40	80	82
	KHB-3W-FG2	500	04	4	-	G1/8	69	40	10	-	32	13	26	35
	KHB-3W-FG4	500	06	6	-	G1/4	69	40	14	-	32	13	26	35
	KHB-3W-FG6	500	10	10	-	G3/8	72	42	14	-	40	17	34	34.5
	KHB-3W-FG8	500	13	13	-	G1/2	83	48	16	-	40	17	34	40
	KHB-3W-FG8	400	16	15	-	G1/2	83	48	16	-	45	19	38	42
	KHB-3W-FG12	315	20	19	-	G3/4	95	60	18	-	56	24	48	49
	KHB-3W-FG16	315	25	24	-	G1	113	64	20	-	63	29	58	56
	KHB-3W-FG20	315	32	30	-	G11/4	110	72	22	-	75	34	68	58.5
	KHB-3W-FG24	315	40	38	-	G11/2	130	80	24	-	86	40	80	67.5
	KHB-3W-FG32	315	50	48	-	G2	140	96	26	-	104	48	99	70
	KHB-3W-FN2	500	04	4	-	NPT1/8	69	40	10	-	32	13	26	35
	KHB-3W-FN4	500	06	6	-	NPT1/4	69	40	14	-	32	13	26	35
	KHB-3W-FN6	500	10	10	-	NPT3/8	72	42	14	-	40	17	34	34.5
	KHB-3W-FN8	500	13	13	-	NPT1/2	83	48	16	-	40	17	34	40
	KHB-3W-FN8	400	16	15	-	NPT1/2	83	48	16	-	45	19	38	42
	KHB-3W-FN12	315	20	19	-	NPT3/4	95	60	18	-	56	24	48	49
	KHB-3W-FN16	315	25	24	-	NPT1	113	64	20	-	63	29	58	56
	KHB-3W-FN20	315	32	30	-	NPT11/4	110	72	22	-	75	34	68	58.5
	KHB-3W-FN24	315	40	38	-	NPT11/2	130	80	24	-	86	40	80	67.5
	KHB-3W-FN32	315	50	48	-	NPT2	140	96	26	-	104	48	99	70
