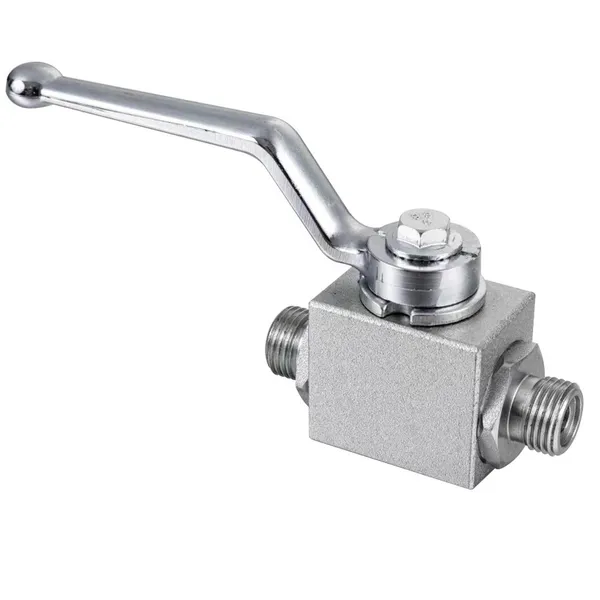

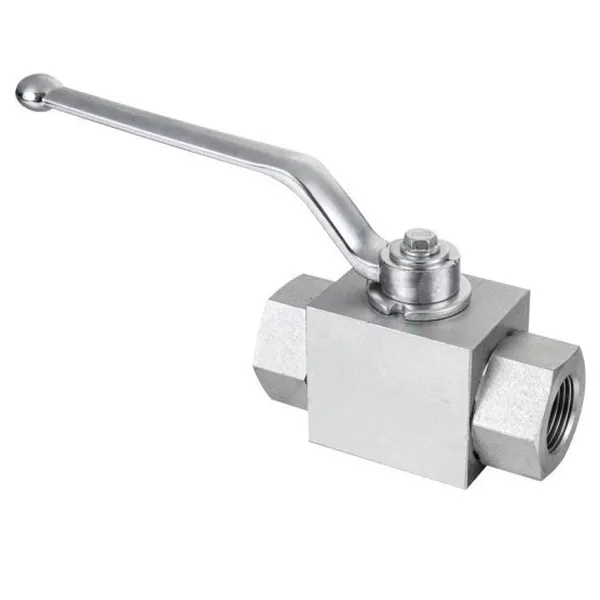

KHM Series hydraulic ball valves are high-pressure ball valves designed for use in a variety of hydraulic applications. KHM ball valves are known for their reliability, durability, and tight sealing performance.KHM ball valves are available in a wide range of sizes and materials, making them suitable for a variety of applications. They are commonly used in industrial hydraulic systems, such as those found in construction equipment, machine tools, and agricultural machinery. KHM hydraulic ball valves can also be used in mobile hydraulic systems, such as those found in excavators, bulldozers, and forklifts.KHM hydraulic ball valves are typically made of brass, stainless steel, or carbon steel. The ball valve itself is made of hardened steel for durability. The valve body is typically made of brass or stainless steel, depending on the application. KHM ball valves are available with a variety of seal materials, including PTFE, Buna-N, and EPDM.KHM hydraulic ball valves are available in both two-way and three-way configurations. Two-way ball valves have two ports, one for inlet and one for outlet. Three-way ball valves have three ports: one for inlet, one for outlet, and one for diverting the flow.KHM ball valves are operated by a lever or handle. When the lever or handle is turned, the ball valve rotates to open or close the valve. KHM ball valves are also available with pneumatic or electric actuators for automated operation.

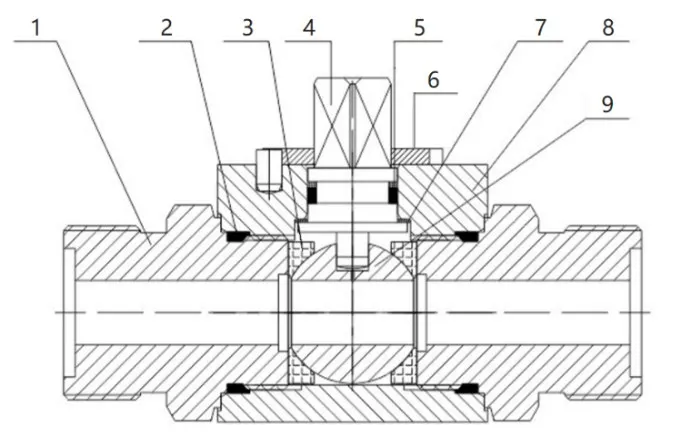

KHM Series Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

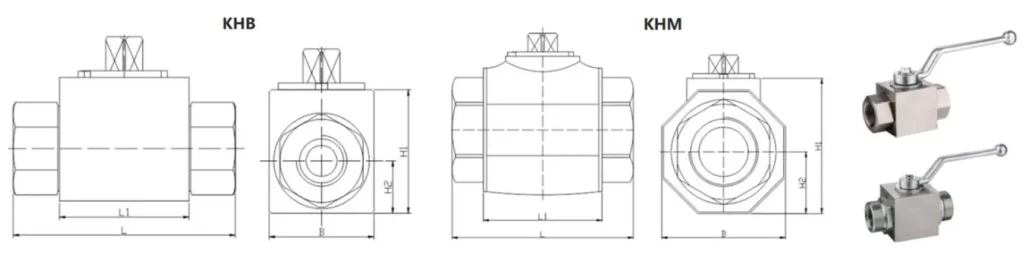

KHM Series Hydraulic Ball Valve Dimensions:

	PartNO.	PN	DN	Dimension(mm)

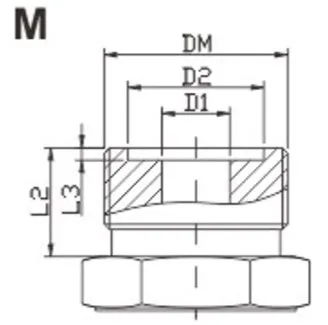

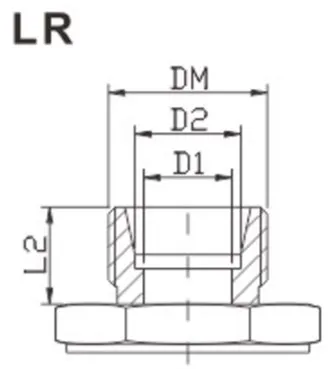

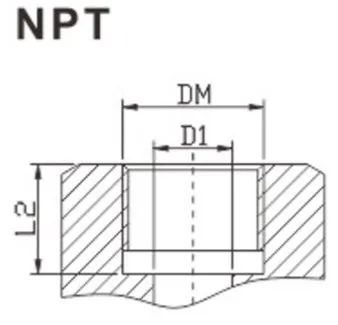

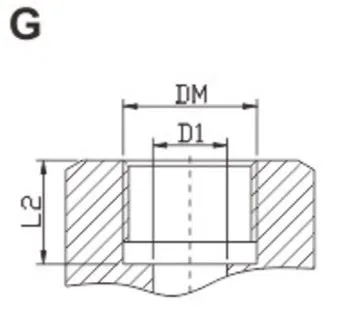

				D1	D2	DM	L	L1	L2	L3	H1	H2	B
	KHB-M16	500	06	6	11	M16*1.5	69	40	11	1.4	32	13	26
	KHB-M22	500	08	8	16	M22*1.5	76	42	12	1.8	40	17	34
	KHB-M27	500	10	10	20	M27*1.5	76	42	12	1.8	40	17	34
	KHB-M30	400	16	15	24	M30*1.5	84	48	13	1.8	45	19	38
	KHB-M36	315	20	19	30	M36*2	103	60	15	2.4	56	24	48
	KHB-M42	315	25	24	35	M42*2	116	64	18	2.4	63	29	58
	KHB-M52	315	32	30	40	M52*2	149	72	20	2.4	75	34	69
	KHB-M60	315	40	36	45	M60*2	174	80	22	2.4	86	40	80
	KHB-FG2	500	04	4	-	G1/8	69	40	10	-	32	13	26
	KHB-FG4	500	06	6	-	G1/4	69	40	14	-	32	13	26
	KHB-FG6	500	10	10	-	G3/8	72	42	14	-	40	17	34
	KHB-FG8	500	13	13	-	G1/2	83	48	16	-	40	17	34
	KHB-FG8	400	16	15	-	G1/2	83	48	16	-	45	19	38
	KHB-FG12	315	20	19	-	G3/4	95	60	18	-	56	24	48
	KHB-FG16	315	25	24	-	G1	113	64	20	-	63	29	58
	KHB-FG20	315	32	30	-	G11/4	110	72	22	-	75	34	68
	KHB-FG24	315	40	38	-	G11/2	130	80	24	-	86	40	80
	KHB-FG32	315	50	48	-	G2	140	96	26	-	104	48	99
	KHB-FN2	500	04	4	-	NPT1/8	69	40	10	-	32	13	26
	KHB-FN4	500	06	6	-	NPT1/4	69	40	14	-	32	13	26
	KHB-FN6	500	10	10	-	NPT3/8	72	42	14	-	40	17	34
	KHB-FN8	500	13	13	-	NPT1/2	83	48	16	-	40	17	34
	KHB-FN8	400	16	15	-	NPT1/2	83	48	16	-	45	19	38
	KHB-FN12	315	20	19	-	NPT3/4	95	60	18	-	56	24	48
	KHB-FN16	315	25	24	-	NPT1	113	64	20	-	63	29	58
	KHB-FN20	315	32	30	-	NPT11/4	110	72	22	-	75	34	68
	KHB-FN24	315	40	38	-	NPT11/2	130	80	24	-	86	40	80
	KHB-FN32	315	50	48	-	NPT2	140	96	26	-	104	48	99
	KHB-06LR	500	04	4	6	M12*1.5	67	40	10	-	32	13	26
	KHB-08LR	500	06	6	8	M14*1.5	67	40	10	-	32	13	26
