CJZQ Series Hydraulic Ball Valves

CJZQ Series Hydraulic Ball Valves

The CJZQ series hydraulic ball valves are a type of valve designed for controlling the flow of fluids in hydraulic systems. These valves are commonly used in industrial applications where precise control and reliable shut-off of fluid flow are required. The CJZQ series valves are known for their robust construction, high-pressure capabilities, and excellent sealing performance.One of the key features of CJZQ series hydraulic ball valves is their spherical ball-shaped disc, which is positioned within the valve body. This ball has a hole, known as the bore, that allows or blocks the flow of fluid when rotated. By turning the handle or actuator attached to the valve, the ball can be rotated to control the flow direction and rate.The CJZQ series ball valves are often made from durable materials such as stainless steel or brass, which ensures their reliability and resistance to corrosion. They are available in various sizes, pressure ratings, and end connections to accommodate different system requirements.These hydraulic ball valves offer several advantages. Firstly, they provide a tight shut-off, minimizing leakage and preventing fluid loss. Secondly, they have low operating torque, allowing for easy and smooth operation. Additionally, they offer high flow rates with minimal pressure drop, making them suitable for applications that require efficient fluid flow.The CJZQ series hydraulic ball valves find applications in a wide range of industries, including oil and gas, petrochemical, power generation, manufacturing, and agriculture. They are commonly used in hydraulic power units, hydraulic cylinders, hydraulic presses, and other hydraulic systems.

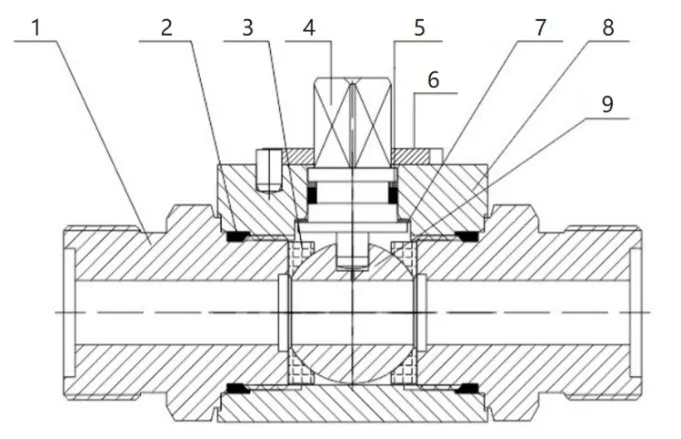

CJZQ Series Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

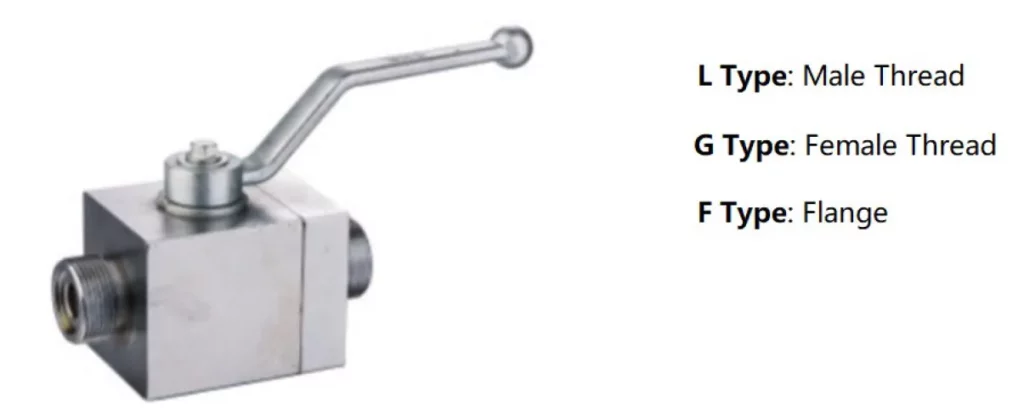

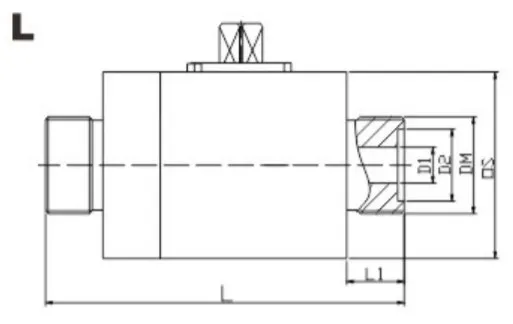

CJZQ Series Hydraulic Ball Valve Dimensions:

	PartNO.	PN	DN	Dimension(mm)
				DM	L	L1	D1	D2	□S
	CJZQ-L6H	315	6	M16*1.5	81	12	6	11	40
	CJZQ-L8H	315	8	M22*1.5	86	14	8	16	40
	CJZQ-L10H	315	10	M27*1.5	100	16	10	20	52
	CJZQ-L15H	315	15	M30*1.5	105	18	15	25	52
	CJZQ-L20H	315	20	M36*2	121	20	20	30	64
	CJZQ-L25H	315	25	M42*2	135	22	24	35	70
	CJZQ-L32H	315	32	M52*2	160	24	30	40	83
	CJZQ-L40H	315	40	M60*2	180	26	38	50	94
	CJZQ-L50H	315	50	M72*2	205	28	48	60	110

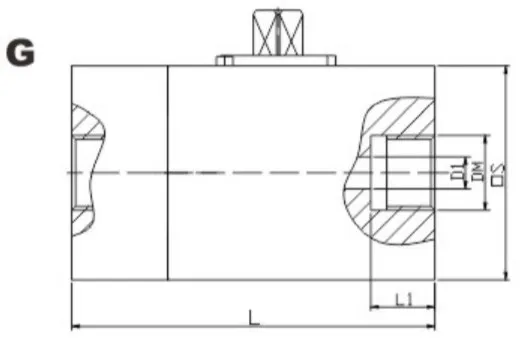

	Part NO.	PN	DN	Dimension(mm)
				DM	L	L1	D1	D2	□S
	CJZQ-G6H	315	6	M14*1.5	68	12	6	11	40
	CJZQ-G8H	315	8	M16*1.5	70	14	8	16	40
	CJZQ-G10H	315	10	M18*1.5	88	16	10	20	52
	CJZQ-G15H	315	15	M27*1.5	91	18	15	25	52
	CJZQ-G20H	315	20	M33*2	100	20	20	30	64
	CJZQ-G25H	315	25	M42*2	111	22	24	35	70
	CJZQ-G32H	315	32	M48*2	131	24	30	40	83

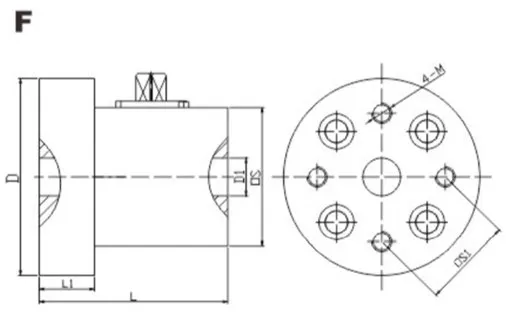

	PartNO.	PN	DN	Dimension(mm)
				M	L	L1	D	D1	□S
	CJZQ-F10H	200	10	M8	70	22	73	10	52
	CJZQ-F15H	200	15	M8	75	22	78	15	52
	CJZQ-F20H	200	20	M10	85	22	88	20	64
	CJZQ-F25H	200	25	M12	96	28	98	24	70
	CJZQ-F32H	200	32	M14	106	28	113	30	83
	CJZQ-F40H	200	40	M16	125	36	130	38	94
	CJZQ-F50H	200	50	M20	146	36	156	48	110
	CJZQ-F65H	200	65	M22	170	45	178	60	134
	CJZQ-F80H	200	80	M24	185	45	218	70	169

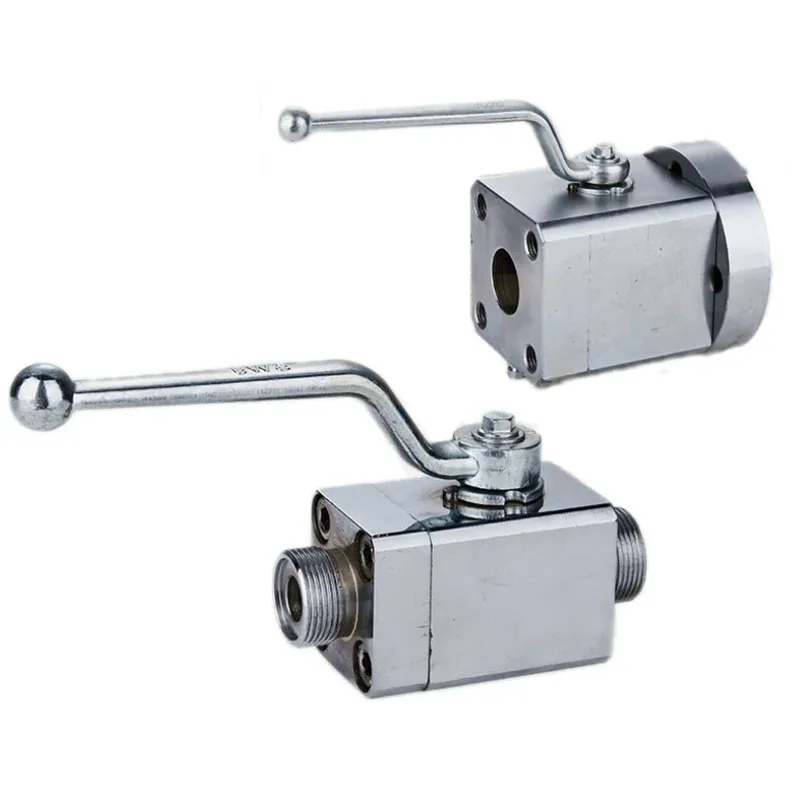

Advantages of CJZQ Series Hydraulic Ball Valves:

CJZQ series hydraulic ball valves are a type of valve that is specifically designed for use in high-pressure hydraulic applications. They offer a number of advantages over other types of valves, including:

1. High-pressure rating: CJZQ series ball valves are typically rated to withstand pressures of up to 63 MPa (9100 psi), making them ideal for use in demanding hydraulic applications.2. Low torque operation: CJZQ series hydraulic ball valves require relatively low torque to operate, making them easy to open and close, even when under high pressure.3. Tight sealing: CJZQ series high-pressure ball valves provide a tight seal, even when used with contaminated fluids. This helps to prevent leaks and protect downstream components.4. Durability: CJZQ series ball valves are made from high-quality materials and are built to withstand the rigors of industrial use.5. Versatility: CJZQ series hydraulic ball valves can be used in a wide range of hydraulic applications, including in industrial machinery, construction equipment, and mobile hydraulics.6. Compact design: CJZQ series ball valves are relatively compact in size, making them easy to install in space-constrained applications.7. Lightweight: CJZQ series high-pressure ball valves are lightweight, making them easy to handle and install.8. Corrosion-resistant: CJZQ series ball valves are made from corrosion-resistant materials, such as stainless steel and brass, making them ideal for use in harsh environments.

Overall, CJZQ series hydraulic ball valves offer a number of advantages over other types of valves, making them a popular choice for demanding hydraulic applications.
