KHR Series Hydraulic Ball Valves

KHR Series Hydraulic Ball Valves

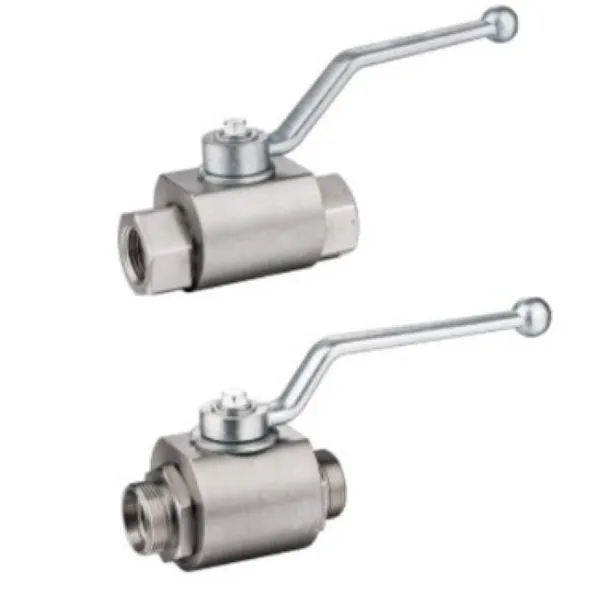

KHR Series hydraulic ball valves are a new line of high-performance ball valves designed for use in demanding hydraulic applications. These valves are manufactured from high-quality materials and feature a robust design that can withstand high pressures and temperatures.

KHR Series hydraulic ball valves are available in a variety of sizes and configurations to meet the needs of a wide range of applications. They are also available with a variety of options, including different types of end connections, actuators, and sensors.

Here are some of the key features of KHR Series Hydraulic Ball Valves:

• High pressure and temperature ratings
• Robust design for demanding applications
• Available in a variety of sizes and configurations
• A variety of options are available to meet specific application needs
• Long service life
• Low maintenance requirements

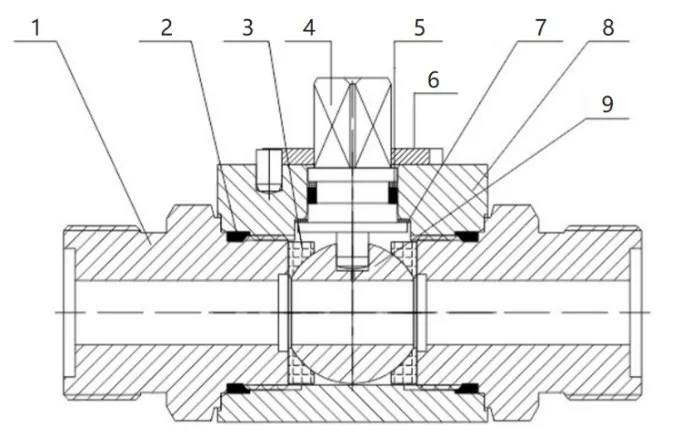

KHR Series Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

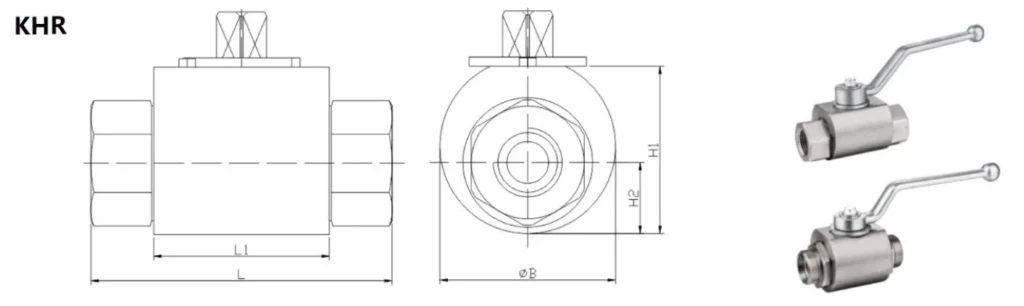

KHR Series Hydraulic Ball Valve Dimensions:

Related Products

KHB Series Hydraulic Ball Valves View More >>

KHM Series Hydraulic Ball Valves View More >>

KHB-3W Series 3-way Hydraulic Ball Valves View More >>

3KH Series 3-way Hydraulic Ball Valves View More >>

4KH Series 4-way Hydraulic Ball Valves View More >>

CJZQ Series Hydraulic Ball Valves View More >>





News Recommendations

How do you measure agricultural chain size and pitch correctly?View More >>

How do I find the correct specifications for my replacement hydraulic cylinder?View More >>

What are common problems and troubleshooting tips for air compressors?View More >>

What are the safety considerations when working with lift oil cylinders?View More >>

How do cylinder spike teeth affect grain quality and threshing efficiency?View More >>

How do you select the right bushing size for a sprocket?View More >>





	PartNO.	PN	DN	Dimension(mm)
				D1	D2	DM	L	L1	L2	L3	H1	H2	ØB

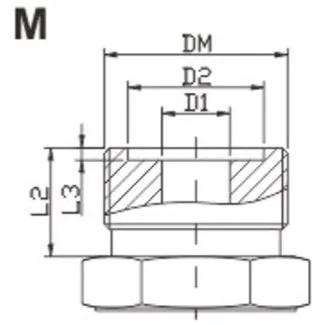

	KHR-M16	500	06	6	11	M16*1.5	69	40	11	1.4	32	13	35
	KHR-M22	500	08	8	16	M22*1.5	76	42	12	1.8	40	17	42
	KHR-M27	500	10	10	20	M27*1.5	76	42	12	1.8	40	17	42
	KHR-M30	400	16	15	24	M30*1.5	84	48	13	1.8	45	19	50
	KHR-M36	315	20	19	30	M36*2	103	60	15	2.4	56	24	60
	KHR-M42	315	25	24	35	M42*2	116	64	18	2.4	63	29	68
	KHR-M52	315	32	30	40	M52*2	149	72	20	2.4	75	34	87
	KHR-M60	315	40	36	45	M60*2	174	80	22	2.4	86	40	95

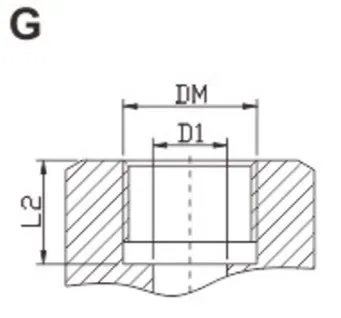

	KHR-FG2	500	04	4	-	G1/8	69	40	10	-	32	13	35
	KHR-FG4	500	06	6	-	G1/4	69	40	14	-	32	13	35
	KHR-FG6	500	10	10	-	G3/8	72	42	14	-	40	17	42
	KHR-FG8	500	13	13	-	G1/2	83	48	16	-	40	17	45
	KHR-FG8	400	16	15	-	G1/2	83	48	16	-	45	19	50
	KHR-FG12	315	20	19	-	G3/4	95	60	18	-	56	24	60
	KHR-FG16	315	25	24	-	G1	113	64	20	-	63	29	68
	KHR-FG20	315	32	30	-	G11/4	110	72	22	-	75	34	87
	KHR-FG24	315	40	38	-	G11/2	130	80	24	-	86	40	95
	KHR-FG32	315	50	48	-	G2	140	96	26	-	104	48	112

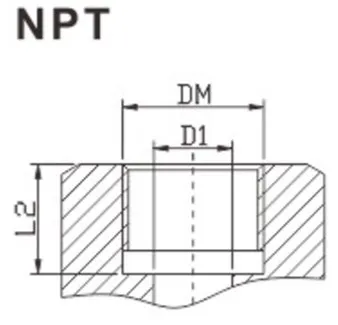

	KHR-FN2	500	04	4	-	NPT1/8	69	40	10	-	32	13	35
	KHR-FN4	500	06	6	-	NPT1/4	69	40	14	-	32	13	35
	KHR-FN6	500	10	10	-	NPT3/8	72	42	14	-	40	17	42
	KHR-FN8	500	13	13	-	NPT1/2	83	48	16	-	40	17	45
	KHR-FN8	400	16	15	-	NPT1/2	83	48	16	-	45	19	50
	KHR-FN12	315	20	19	-	NPT3/4	95	60	18	-	56	24	60
	KHR-FN16	315	25	24	-	NPT1	113	64	20	-	63	29	68
	KHR-FN20	315	32	30	-	NPT11/4	110	72	22	-	75	34	87
	KHR-FN24	315	40	38	-	NPT11/2	130	80	24	-	86	40	95
	KHR-FN32	315	50	48	-	NPT2	140	96	26	-	104	48	112

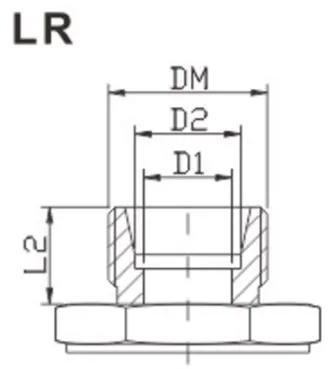

	KHR-06LR	500	04	4	6	M12*1.5	67	40	10	-	32	13	35
	KHR-08LR	500	06	6	8	M14*1.5	67	40	10	-
