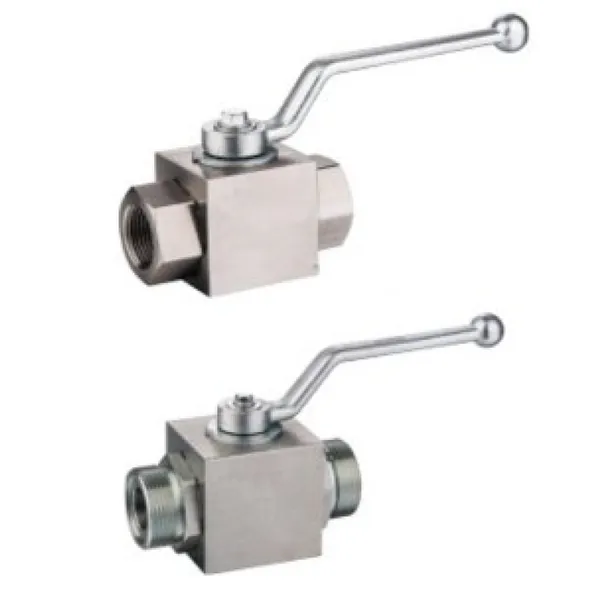

KHB Series Hydraulic Ball Valves

KHB Series Hydraulic Ball Valves

KHB Series Hydraulic Ball Valves are a type of hydraulic control valve designed to regulate the flow of fluid in hydraulic systems. These valves are widely used in industrial applications where precise control of fluid flow is required.The KHB Series ball valves are known for their high-performance capabilities, durability, and reliability. They are typically made from high-quality materials such as stainless steel or brass, which provide excellent resistance to corrosion and ensure long-lasting performance even in harsh operating conditions.One of the key features of KHB Series hydraulic ball valves is their ability to handle high-pressure applications. They have a robust construction that allows them to withstand high pressures, making them suitable for use in hydraulic systems that operate under demanding conditions.The design of KHB Series ball valves includes a spherical ball with a cylindrical hole in the center. When the valve is in the open position, the fluid can flow through the hole, allowing unrestricted flow. Conversely, when the valve is closed, the ball rotates to block the flow, effectively shutting off the fluid passage.These hydraulic ball valves offer precise control over the fluid flow due to their quarter-turn operation. This means that the valve can be fully opened or closed by rotating the ball by only 90 degrees. The quarter-turn action allows for quick and efficient control, making KHB Series valves suitable for applications that require rapid response and precise flow adjustment.KHB Series hydraulic ball valves are available in various sizes, pressure ratings, and configurations to meet specific application requirements. They can be operated manually, using a lever or a handwheel, or can be integrated into automated systems for remote control and operation.

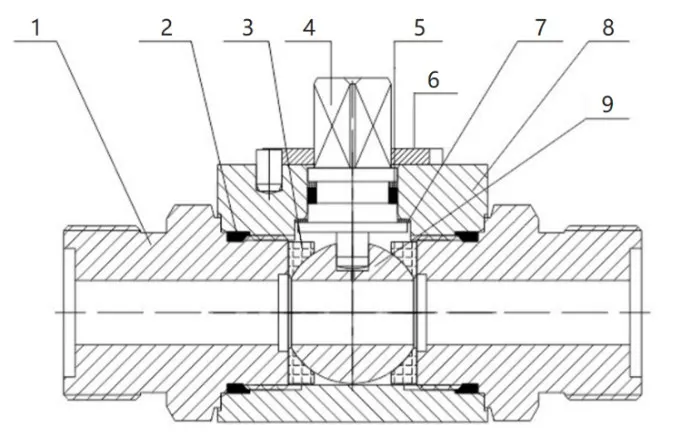

KHB Series Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

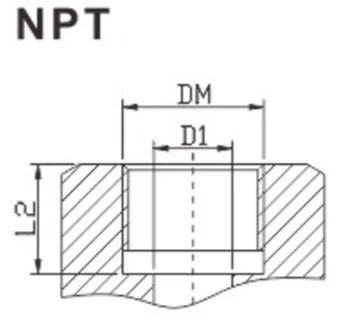

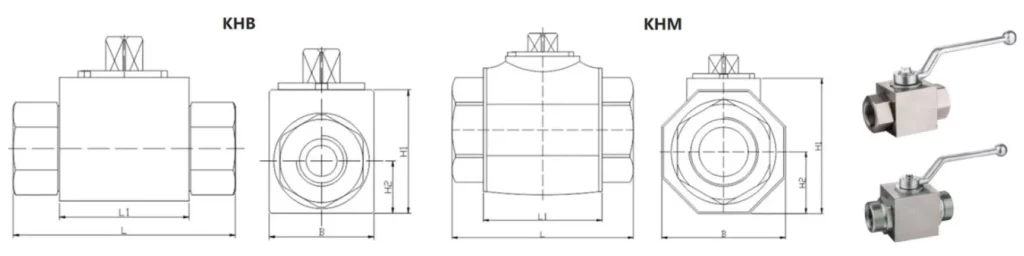

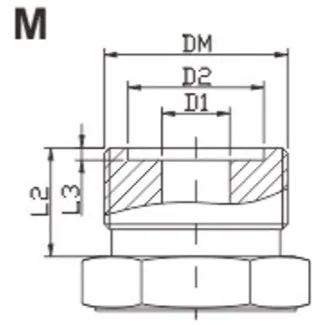

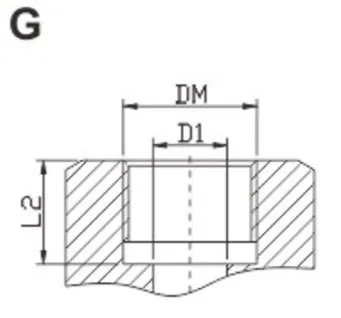

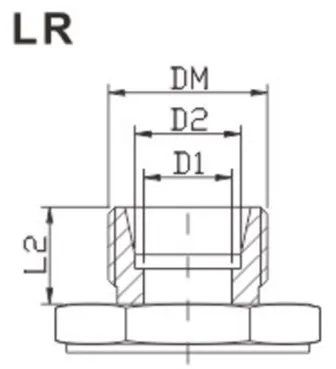

KHB Series Hydraulic Ball Valve Dimensions:

Hot Tags: KHB Series Hydraulic Valves, Industrial Ball Valves Supplier, Hydraulic Control Valves Wholesale

	PartNO.	PN	DN	Dimension(mm)
				D1	D2	DM	L	L1	L2	L3	H1	H2	B
	KHB-M16	500	06	6	11	M16*1.5	69	40	11	1.4	32	13	26
	KHB-M22	500	08	8	16	M22*1.5	76	42	12	1.8	40	17	34
	KHB-M27	500	10	10	20	M27*1.5	76	42	12	1.8	40	17	34
	KHB-M30	400	16	15	24	M30*1.5	84	48	13	1.8	45	19	38
	KHB-M36	315	20	19	30	M36*2	103	60	15	2.4	56	24	48
	KHB-M42	315	25	24	35	M42*2	116	64	18	2.4	63	29	58
	KHB-M52	315	32	30	40	M52*2	149	72	20	2.4	75	34	69
	KHB-M60	315	40	36	45	M60*2	174	80	22	2.4	86	40	80
	KHB-FG2	500	04	4	-	G1/8	69	40	10	-	32	13	26
	KHB-FG4	500	06	6	-	G1/4	69	40	14	-	32	13	26
	KHB-FG6	500	10	10	-	G3/8	72	42	14	-	40	17	34
	KHB-FG8	500	13	13	-	G1/2	83	48	16	-	40	17	34
	KHB-FG8	400	16	15	-	G1/2	83	48	16	-	45	19	38
	KHB-FG12	315	20	19	-	G3/4	95	60	18	-	56	24	48
	KHB-FG16	315	25	24	-	G1	113	64	20	-	63	29	58
	KHB-FG20	315	32	30	-	G11/4	110	72	22	-	75	34	68
	KHB-FG24	315	40	38	-	G11/2	130	80	24	-	86	40	80
	KHB-FG32	315	50	48	-	G2	140	96	26	-	104	48	99
	KHB-FN2	500	04	4	-	NPT1/8	69	40	10	-	32	13	26
	KHB-FN4	500	06	6	-	NPT1/4	69	40	14	-	32	13	26
	KHB-FN6	500	10	10	-	NPT3/8	72	42	14	-	40	17	34
	KHB-FN8	500	13	13	-	NPT1/2	83	48	16	-	40	17	34
	KHB-FN8	400	16	15	-	NPT1/2	83	48	16	-	45	19	38
	KHB-FN12	315	20	19	-	NPT3/4	95	60	18	-	56	24	48
	KHB-FN16	315	25	24	-	NPT1	113	64	20	-	63	29	58
	KHB-FN20	315	32	30	-	NPT11/4	110	72	22	-	75	34	68
	KHB-FN24	315	40	38	-	NPT11/2	130	80	24	-	86	40	80
	KHB-FN32	315	50	48	-	NPT2	140	96	26	-	104	48	99
	KHB-06LR	500	04	4	6	M12*1.5	67	40	10	-	32	13	26
	KHB-08LR	500	06	6	8	M14*1.5	67	40	10	-	32	13	26
	KHB-10LR
