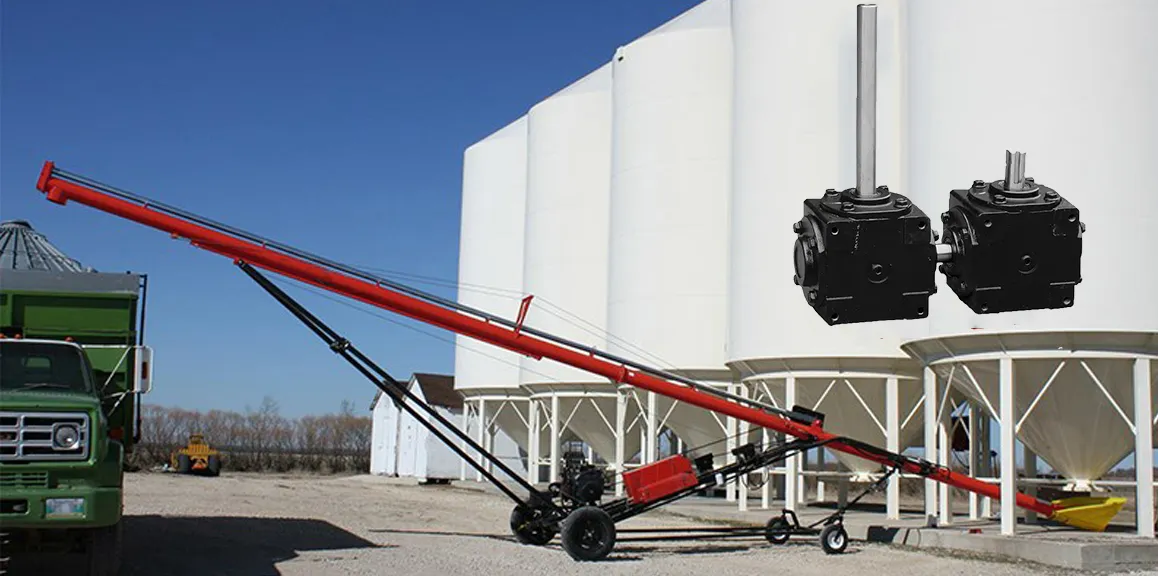

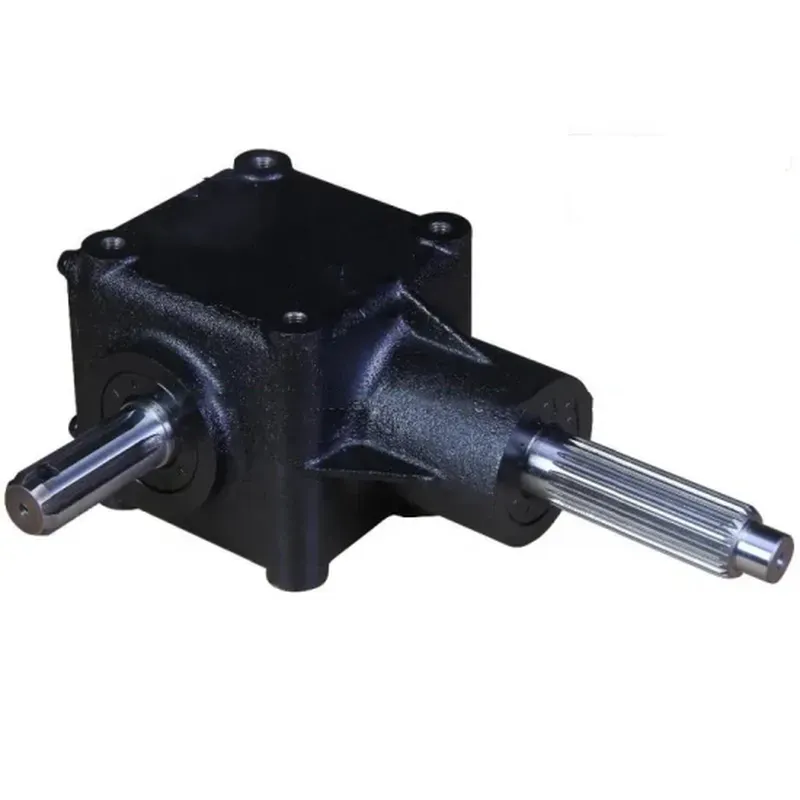

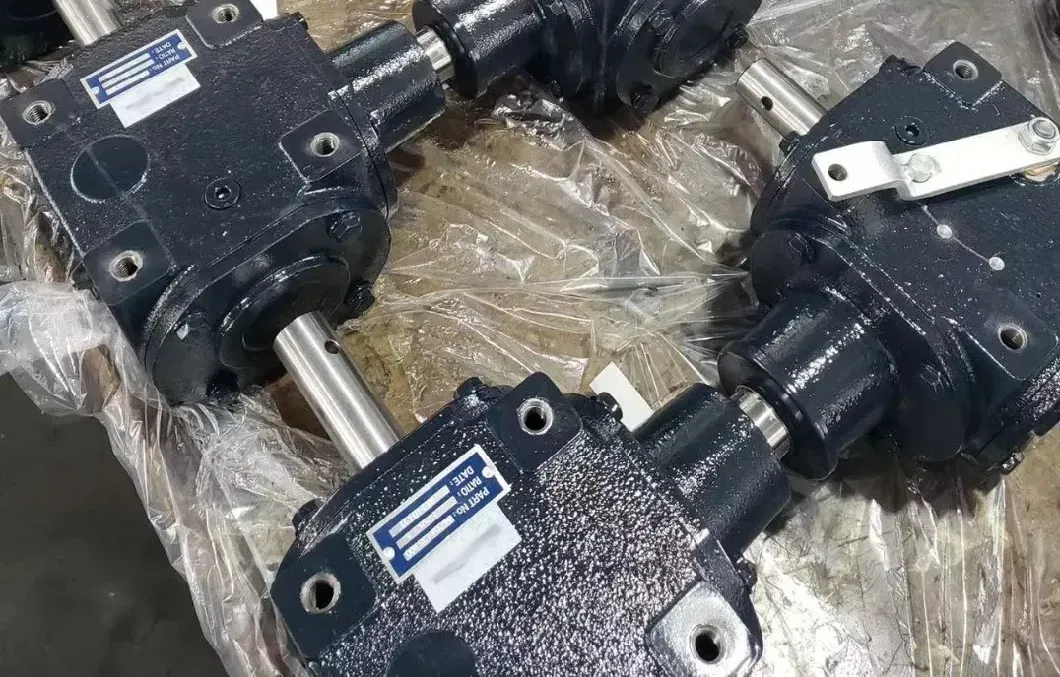

L Series 40HP Grain Storage Gearbox RDF-5490 for Agricultural Grain Storage

The L Series 40HP Grain Storage Gearbox is a specialized mechanical component designed for use in agricultural grain storage systems. This gearbox is part of the machinery used to operate large silos or storage bins where grains like wheat, corn, and barley are kept after harvest. With a power rating of 40 horsepower (HP), it is robust enough to handle the heavy loads associated with moving and managing large quantities of agricultural produce.This gearbox typically features a high torque design that ensures smooth and efficient transmission of power from the motor to the operating parts of the storage facility, such as augers or conveyors. It is engineered for durability and reliability, with a sturdy construction that resists wear and tear even under continuous use. The L Series gearbox is also designed for easy maintenance and compatibility with various types of machinery, making it a versatile choice for farmers and agricultural businesses looking to enhance the efficiency of their grain storage operations.

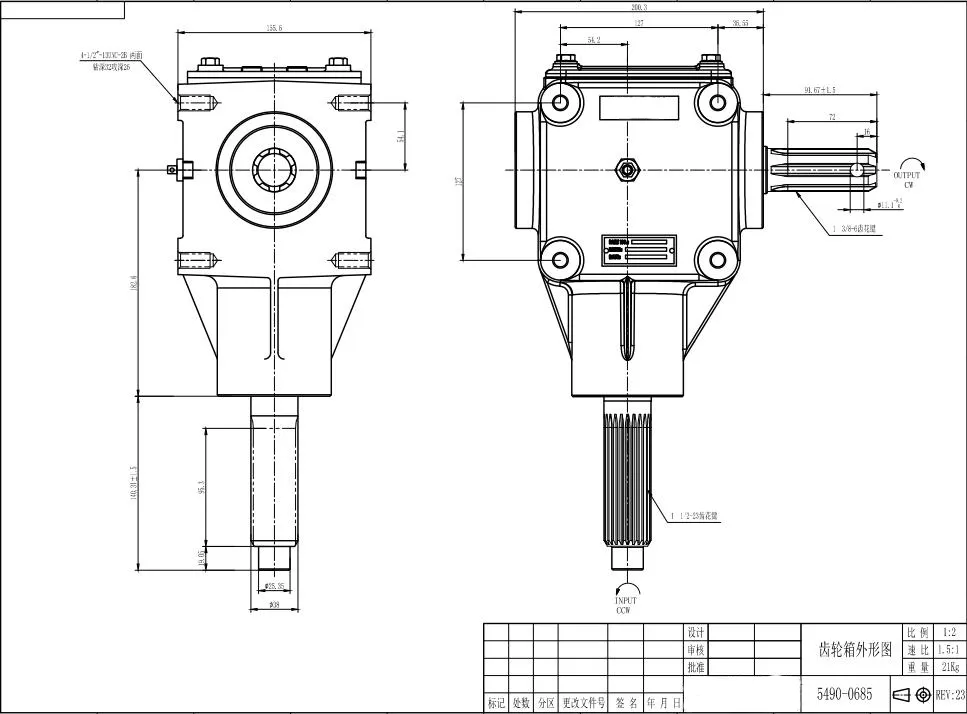

Grain Storage Gearbox RDF-5490 Dimension

Grain Storage Gearbox RDF-5490 Specifications

Product Name	Grain storage gearbox
Material	HT250 for housing, 20CrMnTi for gear shaft.
Color	Customization
Weight	21KG
Ratio	1.5:1
Power	40HP
Used	Grain storage

Benefits of Using the L Series Grain Storage Gearbox for Agricultural

Using the L Series Grain Storage Gearbox in agricultural settings offers several significant benefits:

1. Enhanced Efficiency: The L Series gearbox is designed to maximize the efficiency of grain handling and storage processes. With its high-power output and optimized torque delivery, it ensures faster and more consistent movement of grains within storage facilities. This results in reduced operational times and increased throughput, allowing farmers to manage larger volumes of grain more effectively.
2. Durability and Longevity: Constructed with high-quality materials and designed to withstand the harsh conditions of agricultural environments, the L Series gearbox offers exceptional durability. Its robust construction prevents wear and tear from continuous use, which translates to a longer lifespan and reduced need for frequent replacements or repairs, thereby saving costs over time.
3. Versatility: This gearbox is compatible with a variety of machinery used in grain storage operations, including conveyors, elevators, and augers. This versatility allows it to be integrated into existing systems with minimal modifications, making it a practical choice for upgrading older equipment or designing new installations.
4. Reduced Maintenance Needs: The design of the L Series gearbox emphasizes ease of maintenance. It often includes features like self-lubricating systems or easy-access components, which simplify regular checks and maintenance tasks. This not only reduces downtime but also lowers the long-term maintenance costs associated with grain storage operations.
5. Improved Safety: With its reliable performance and steady power delivery, the gearbox contributes to safer operation of grain storage facilities. It minimizes the risk of equipment malfunction or failures that could lead to accidents or spillages, thus ensuring a safer working environment for agricultural workers.

Applications of the L Series Grain Storage Gearbox for Agricultural

The L Series Grain Storage Gearbox is employed in various agricultural applications to enhance the efficiency and functionality of grain storage and handling systems. Here are some key applications:

• Grain Elevators: In grain elevators, the gearbox is used to power the mechanisms that lift grain from ground level to higher storage compartments or silos. It ensures a smooth and efficient transport of grains vertically, which is crucial for large-scale storage facilities.
• Conveyor Systems: Conveyor belts that transport grains across different stages of the storage and processing facilities often rely on the L Series gearbox for their operation. It provides the necessary torque to keep the conveyor belts moving consistently, handling the heavy loads of grain without interruptions.

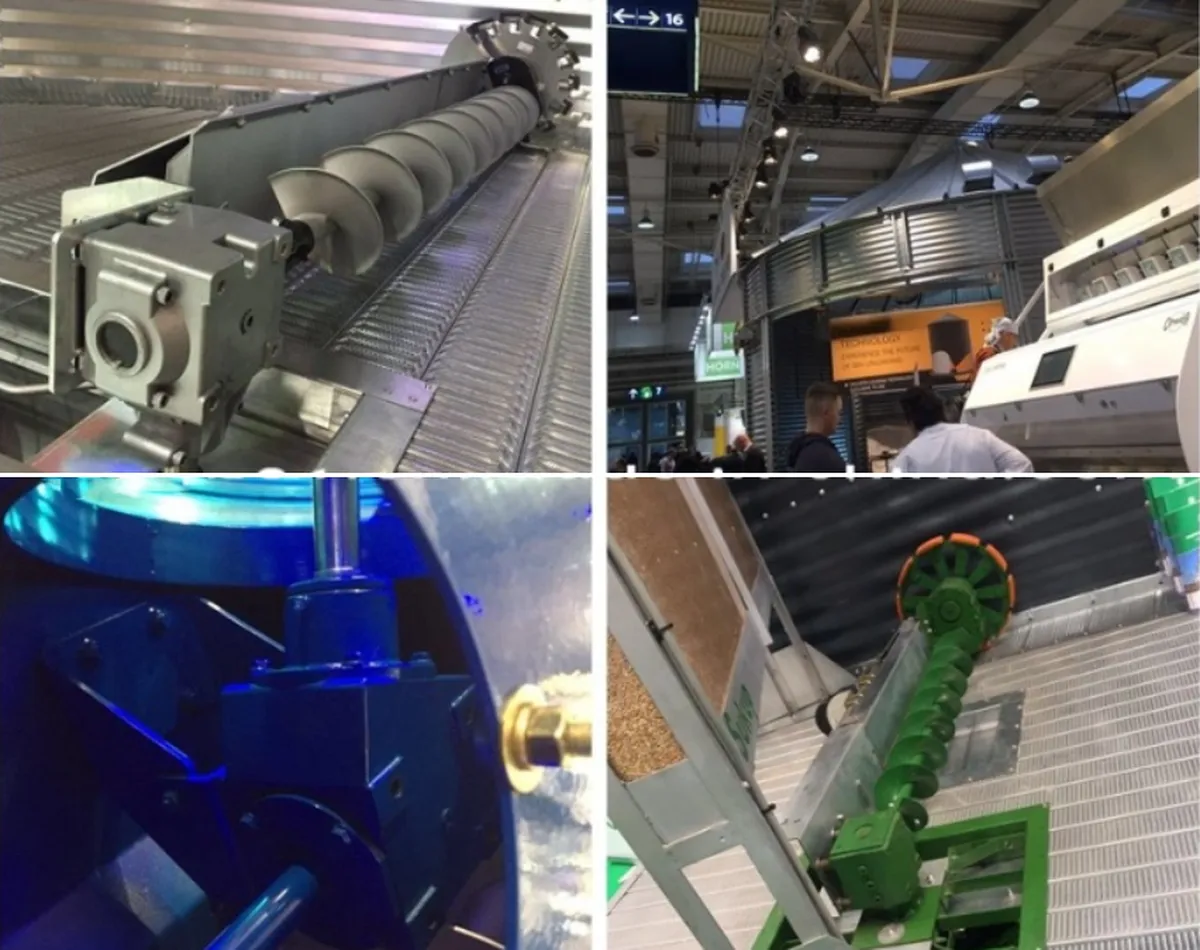

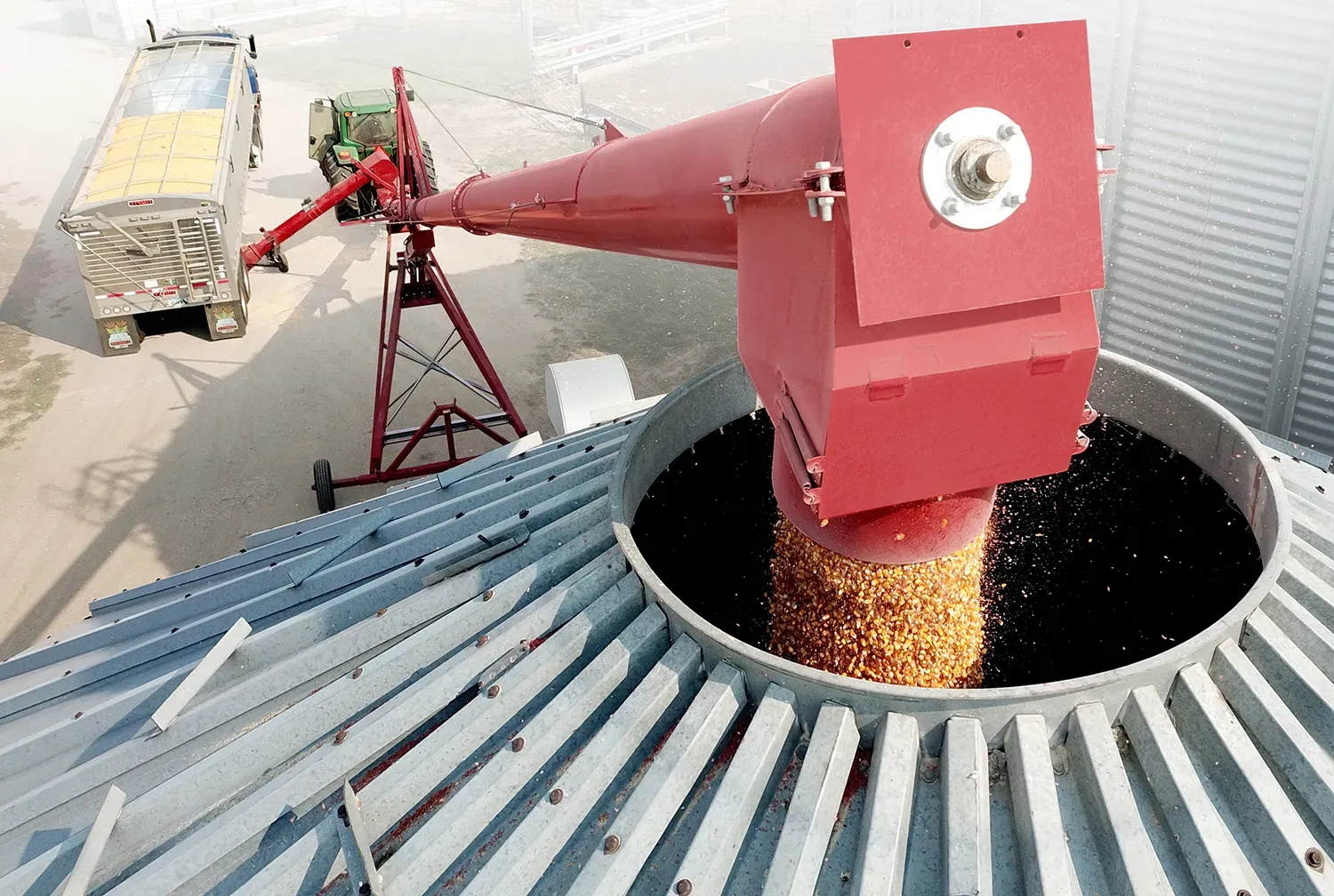

• Augers: The gearbox drives augers, which are used to move grain horizontally or at an angle into or out of storage areas. These are essential for the distribution of grains within silos, helping to maintain an even flow and prevent clogging or uneven distribution that could impact storage conditions.
• Grain Pumps: Grain pumps, which are used to pneumatically transfer grains through tubes, benefit from the robust power output of the L Series gearbox. This application requires consistent and reliable power to ensure that grains are moved efficiently without damage.
• Mixers and Blenders: In facilities where grains need to be mixed with other ingredients or additives, the L Series gearbox drives the mixers and blenders. Its efficient power delivery ensures that these machines can operate continuously and effectively mix large volumes of materials.
• Loading and Unloading Systems: The gearbox is also critical in the loading and unloading systems at grain storage facilities. It powers equipment that handles the transfer of grain to and from transport vehicles, such as trucks or railcars, ensuring quick and efficient loading and unloading processes, which are vital for operational efficiency.

Working Principle of the L Series Grain Storage Gearbox for Agricultural

The L Series Grain Storage Gearbox operates on principles common to industrial gearboxes, adapted to meet the specific demands of agricultural grain storage systems. Here’s an overview of its working principle:

1. Power Input: The gearbox typically receives mechanical power from an external source, such as an electric motor. This motor is connected to the gearbox’s input shaft, which transfers rotational energy into the gearbox.
2. Gear Reduction: Inside the gearbox, this rotational energy is transmitted through a series of gears. The primary function of these gears is to reduce the speed of the input shaft to a more usable speed at the output shaft while simultaneously increasing torque. This process is known as gear reduction and is critical because grain handling equipment often requires high torque at lower speeds to operate effectively.
3. Torque Multiplication: As the speed decreases through the gearbox, the torque increases. This is crucial for agricultural applications where heavy loads of grain need to be moved. The increased torque ensures that the machinery can handle these loads efficiently without overstressing the motor.
4. Output Delivery: The transformed energy, now at a lower speed but higher torque, is delivered to the gearbox’s output shaft. This output shaft then drives the mechanical components of the grain storage equipment, such as conveyors, elevators, or augers.
5. Modular Design: The L Series gearbox often features a modular design, allowing for easy adaptation and customization according to specific agricultural needs. This design enables various setups of the gearbox to fit different types of machinery and applications in grain storage facilities.
6. Lubrication and Cooling: To maintain efficient operation and longevity, the gearbox is equipped with a lubrication system that reduces friction and wear between moving parts. Cooling mechanisms, either passive (like heat sinks) or active (like cooling fans or oil circulation), are also incorporated to manage the heat generated by the gearbox during operation.

Choose the Right L Series Grain Storage Gearbox for Agricultural

Selecting the right L Series Grain Storage Gearbox for your agricultural grain storage application involves considering several factors to ensure optimal performance, durability, and cost-effectiveness. Here are key considerations and steps to help you choose the most suitable gearbox:

1. Assess Load Requirements:
   • Capacity and Torque Needs: Determine the maximum load the gearbox needs to handle. Check the torque requirements based on the weight and throughput of the grains being moved. This will help in selecting a gearbox that can provide sufficient torque without overloading.
   • Operational Speed: Consider the speed at which the gearbox needs to operate. Different grain handling operations might require different speeds for efficiency and effectiveness.
2. Gearbox Rating:
   • Power Rating: Ensure the gearbox’s power rating matches or exceeds the requirements of your application. This prevents underperformance and reduces wear and tear.
   • Service Factor: Look at the service factor of the gearbox, which indicates its ability to handle overloads. A higher service factor means the gearbox can handle occasional excess loads without failing.
3. Type of Gears:
   • Gear Design: Choose between helical, bevel, or spur gears based on efficiency needs and space constraints. Helical gears are quieter and can carry more load but may require more space.
4. Mounting Configuration:
   • Orientation and Fit: Decide on the mounting configuration (such as foot-mounted or flange-mounted) based on the available space and alignment requirements with other machinery.
5. Material and Build Quality:
   • Construction Materials: Check the materials used for gearbox construction. Gearboxes designed for agricultural use should be robust and resistant to corrosion, particularly if they are exposed to harsh environmental conditions.
6. Maintenance and Accessibility:
   • Ease of Maintenance: Consider gearboxes that are easy to maintain. Features like external lubrication ports and detachable components can make maintenance tasks simpler and less time-consuming.

We Also Offer Other Types of Agricultural Gearboxes

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc.

Grain Transportation Gearbox Manufacturers

Raydafon is a prominent manufacturer of high-performance grain transportation gearboxes for a variety of applications. Our grain transportation gearboxes are a powerful replacement option for Replacement of Comer Industries, John Deere, Bush Hog, Replacement of Bonfiglioli, Case IH, New Holland, Claas, Kubota, Land Pride, Kuhn, and other brands. Our technical staff can reconfigure an existing design or assist you in designing a custom grain transportation gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a grain transportation gearbox. If you want to buy a grain transportation gearbox, please get in touch with us.
