Live Molds Hydraulic Cylinder for Vulcanizing Machine

Live Molds Hydraulic Cylinder for Vulcanizing Machine

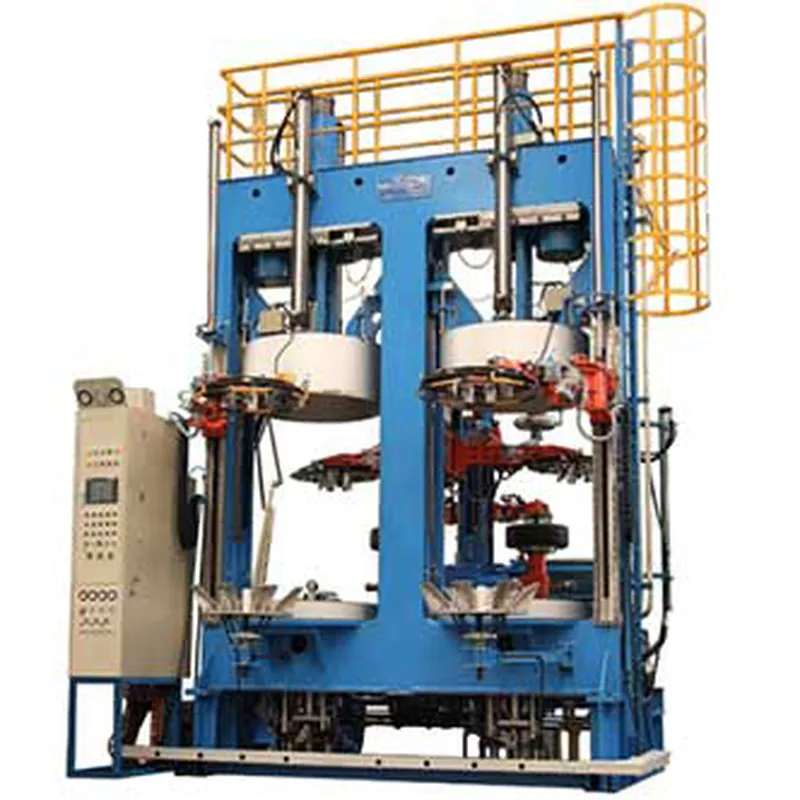

A live molds hydraulic cylinder is a crucial component of a vulcanizing machine used in various industrial applications, particularly in the rubber and polymer industries. This type of hydraulic cylinder is specifically designed to facilitate the process of vulcanization, which involves the transformation of raw rubber or polymer materials into a durable and stable product through the application of heat and pressure.The live molds hydraulic cylinder plays a significant role in the vulcanization process by providing the necessary force and control to shape and mold the raw material into the desired form. It consists of a cylindrical housing, a piston, and a hydraulic system that generates and controls the pressure within the cylinder.

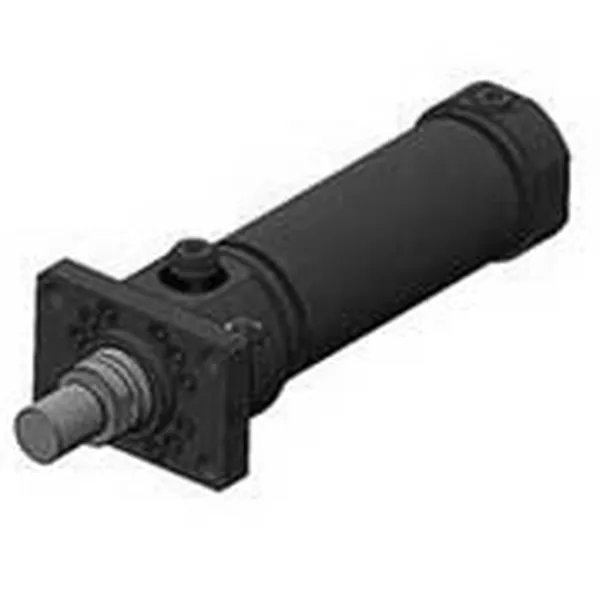

Live Molds Hydraulic Cylinder for Vulcanizing Machine Specifications

Product Name	Live Molds Hydraulic Cylinder
Features:	Driving multiple active molds to merge and combine into a complete mold
Specification:	Bore diameter: 90mm～220mmRod diameter: 50mm～140mmStroke: ≤900mm
Thrust force:	Max 798KN(Cylinder diameter 220mm/pressure 21MPa)
Live Molds Cylinder Applications:	Vulcanizing Machine

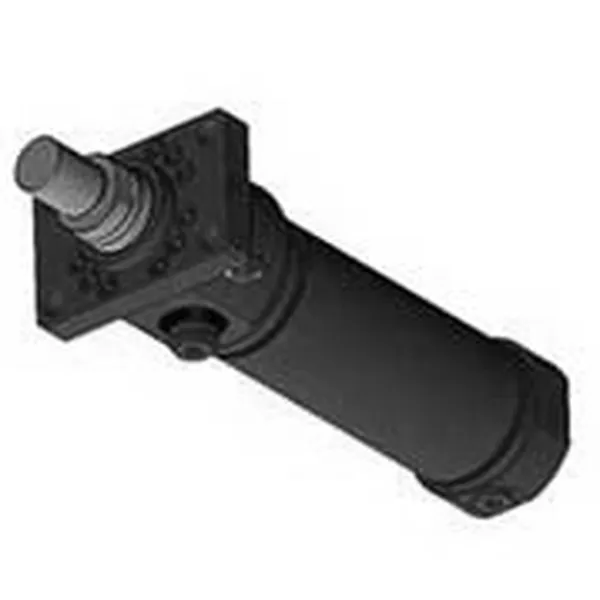

Features of Live Molds Hydraulic Cylinder for Vulcanizing Machine

1. Compact structure design, high-strength materials, and special heat treatment and welding technology ensure that the cylinder has a very high fatigue endurance life under high pressure and heavy load.2. The low friction sealing system is designed with special material to meet the customer's requirements of low starting pressure, low oil film, and fast response.3. Wide range of temperature resistance (-25℃～+120℃) and can provide customized service for higher or lower temperature cylinders.4. Reasonable oil drain hole design can effectively solve the problem of heavy oil film caused by high frequency and high speed and prevent the sealing system from producing "trapped pressure"; at the same time, the accumulated oil can be returned to the tank through the hose, with high anti-pollution ability.5. The surface of the piston rod is treated specially to ensure excellent wear and corrosion resistance.6. Working pressure, size, installation, and so on can be customized according to the customer's needs.

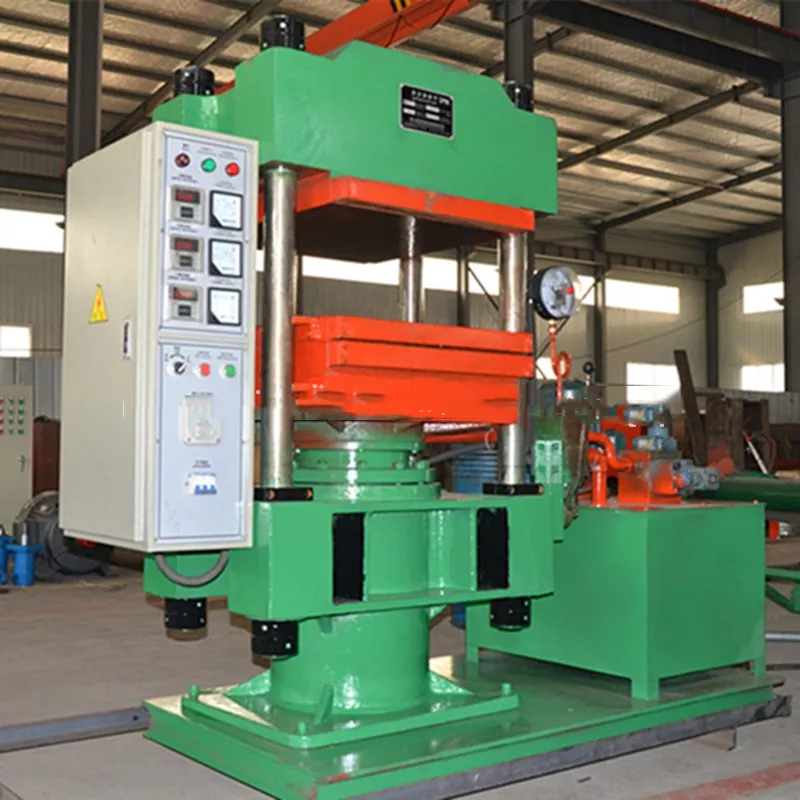

Advantages of Live Molds Hydraulic Cylinder for Vulcanizing Machine

The live molds hydraulic cylinder offers several advantages for vulcanizing machines in industrial applications. Here are some key advantages:1. Precise Pressure Control: The hydraulic system in the cylinder allows for precise control over the pressure applied during the vulcanization process. This enables consistent and uniform molding of the raw material, resulting in high-quality finished products with accurate dimensions and properties.2. Customization and Flexibility: The hydraulic system provides flexibility in adjusting the pressure and speed of the cylinder according to specific product requirements. This allows manufacturers to accommodate a wide range of materials, shapes, and sizes, making the vulcanizing machine versatile for different applications.3. High Force Generation: Live molds hydraulic cylinders are designed to generate high forces necessary for effective vulcanization. The hydraulic system can apply significant pressure to the piston, which is then transferred to the mold or press plate. This ensures efficient compression of the raw material, promoting optimal curing and bonding.4. Durability and Longevity: The construction of live molds hydraulic cylinders is typically robust and durable. They are designed to withstand the high pressures, forces, and repetitive cycles encountered during vulcanization processes. This ensures the longevity of the hydraulic cylinder, minimizing downtime and maintenance costs.5. Safety Features: Hydraulic systems often include safety features such as pressure relief valves and overload protection mechanisms. These features help prevent excessive pressure build-up and protect the cylinder from damage or failure, ensuring the safety of operators and the equipment.6. Ease of Operation: Live molds hydraulic cylinders are relatively easy to operate and control. The hydraulic system allows for smooth and precise movements of the piston, enabling operators to achieve the desired mold closure and pressure levels effectively. This simplifies the vulcanization process and reduces the chances of human error.

Choose the Right Live Molds Hydraulic Cylinder for Vulcanizing Machine

Choosing the right live molds hydraulic cylinder for a vulcanizing machine is crucial to ensure optimal performance and efficiency. Here are some factors to consider when selecting a hydraulic cylinder:(1) Pressure and Force Requirements: Determine the maximum pressure and force required for your vulcanizing process. Consider the size and type of the molds or press plates you'll be using, as well as the material being vulcanized. Choose a hydraulic cylinder that can generate the necessary pressure and force to achieve the desired compression and molding.(2)Stroke Length: The stroke length refers to the distance the piston can travel inside the cylinder. Consider the thickness and height of the molds or press plates, as well as the specific requirements of your vulcanizing process. Ensure that the stroke length of the hydraulic cylinder is sufficient to accommodate the required movement and compression.(3) Cylinder Size and Mounting: Consider the available space in your vulcanizing machine for the hydraulic cylinder. Choose a cylinder size that fits within the constraints of your equipment. Additionally, consider the mounting options available, such as tie-rod, welded, or flange mounts, and select a cylinder that can be easily integrated into your machine's design.(4) Speed and Control: Evaluate the speed requirements of your vulcanizing process. Determine if you need a hydraulic cylinder with fast or slow response times, depending on the specific application. Consider the control mechanisms available, such as proportional control valves or servo-controlled systems, to ensure precise and accurate pressure control.(5) Durability and Maintenance: Assess the durability and maintenance requirements of the hydraulic cylinder. Look for cylinders constructed from high-quality materials that can withstand the pressures and forces involved in the vulcanizing process. Consider features like seals, corrosion resistance, and ease of maintenance to ensure long-lasting performance and reduced downtime.



Hydraulic Cylinder for Vulcanizing Machine Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the hydraulic cylinder market segment for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinders are non-standard products, and we independently develop all products.
