Tipping Cylinder for Vulcanizing Machine

Tipping Cylinder for Vulcanizing Machine

A tipping cylinder is an essential component of a vulcanizing machine used in various industries, particularly in rubber manufacturing and processing. The vulcanization process involves the application of heat and pressure to transform raw rubber into a more durable and stable material. The tipping cylinder plays a crucial role in facilitating this process by providing controlled pressure and force during vulcanization.The tipping cylinder is typically a hydraulic or pneumatic cylinder that is integrated into the vulcanizing machine. It consists of a cylindrical housing, a piston, and a rod. The cylinder is connected to a hydraulic or pneumatic system, which enables the controlled movement of the piston and rod.During the vulcanization process, the tipping cylinder applies pressure to the mold or press plates, which contain the raw rubber material. The cylinder generates a force that presses the plates together, ensuring even distribution of pressure and heat across the rubber surface. This pressure and heat combination initiates the chemical reaction known as vulcanization, which strengthens the rubber and gives it desirable properties such as elasticity, durability, and resistance to heat, chemicals, and abrasion.The tipping cylinder allows for precise control over the pressure applied during vulcanization. This control is crucial to ensure consistent and uniform results across multiple manufacturing cycles. Manufacturers can adjust the pressure settings of the tipping cylinder based on the specific requirements of the rubber product being produced. This flexibility allows for customization and optimization of the vulcanization process to achieve the desired quality and characteristics of the final rubber product.

Tipping Cylinder for Vulcanizing Machine Specifications:

Product Name	Tipping Cylinder for Vulcanizing Machine
Features:	Achievement of tire flipping action
Specification:	Bore diameter: 50mmRod diameter: 28mmStroke: 310mm
Thrust force:	Maximum 384MN(Plunger 140mm/pressure 25MPa)
Tipping Cylinder Applications:	Vulcanizing Machine

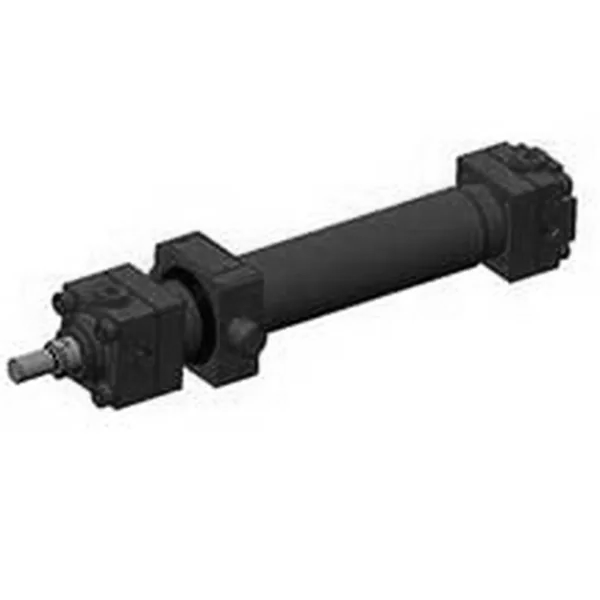

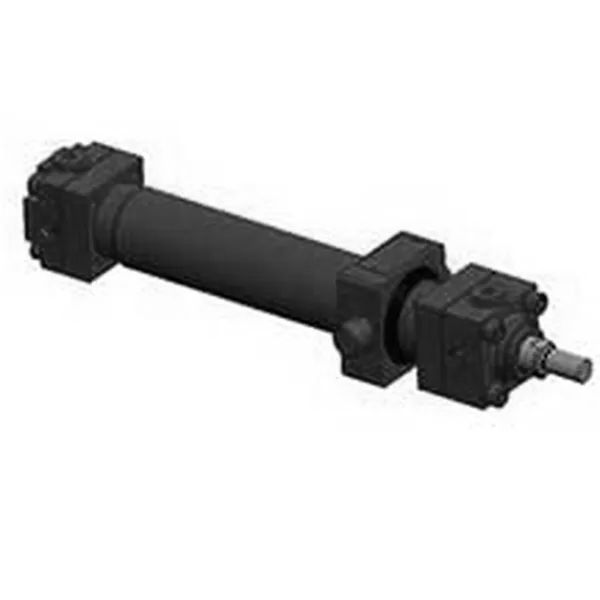

Tipping Cylinder for Vulcanizing Machine Features:

- Compact structural design, high-strength materials, and special heat treatment and welding process ensure the cylinder has high fatigue endurance life under high pressure and heavy load.- Low friction sealing system design with special materials to meet the customer's requirements of low start-up pressure, low oil film and fast response.- Wide range of temperature resistance (-25℃～+120℃), and can provide customized service for higher or lower temperature cylinders.- Reasonable design of oil drain hole can effectively solve the problem of heavy oil film caused by high frequency and high speed, and avoid "trapped pressure" in sealing system, at the same time, the accumulated oil can be returned to the tank through the hose, with high anti-pollution ability.- The surface of the piston rod adopts special surface treatment to ensure excellent wear and corrosion resistance of piston rod.- Working pressure, size, mounting method, etc., can be customized according to the customer's needs.

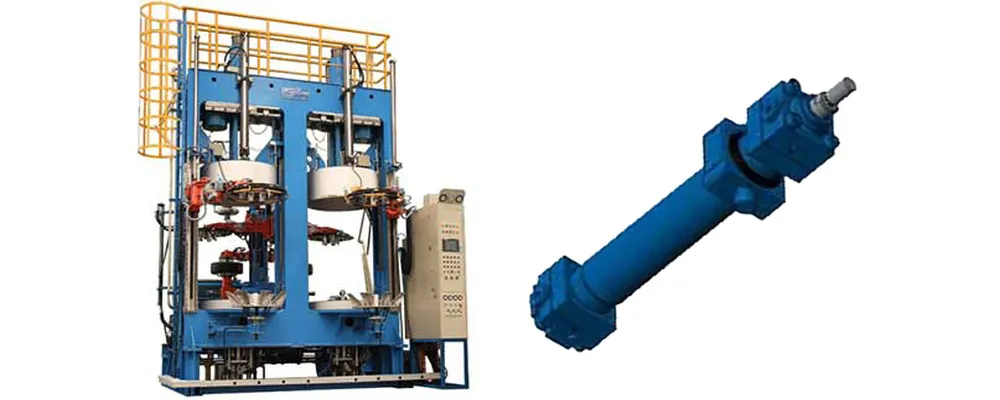

Advantages of Using the Tipping Cylinder for Vulcanizing Machine:

Using a tipping cylinder in a vulcanizing machine offers several advantages that contribute to the efficiency and quality of the vulcanization process. Here are some of the key advantages:1. Precise Pressure Control: The tipping cylinder allows for accurate and adjustable pressure control during vulcanization. This precision ensures consistent pressure application across the rubber surface, resulting in uniform curing and optimal product quality.2. Customization and Flexibility: With a tipping cylinder, manufacturers can easily adjust the pressure settings based on the specific requirements of different rubber products. This flexibility enables customization and optimization of the vulcanization process, accommodating various material types and product specifications.3. Even Heat Distribution: The tipping cylinder applies pressure evenly across the mold or press plates, facilitating the uniform distribution of heat during vulcanization. This ensures that the rubber material cures uniformly, minimizing the risk of defects and inconsistencies in the final product.4. Improved Product Quality: The controlled pressure provided by the tipping cylinder helps enhance the quality and performance characteristics of vulcanized rubber products. It promotes better bonding between rubber layers, resulting in improved strength, durability, and resistance to heat, chemicals, and abrasion.5. Enhanced Efficiency and Productivity: The use of a tipping cylinder streamlines the vulcanization process, allowing for efficient and consistent production. The precise pressure control and controlled mold movement reduce the risk of errors and facilitate faster curing times, leading to increased productivity.6. Reliability and Longevity: Tipping cylinders are designed for durability and longevity, ensuring reliable performance over extended periods of use. This reliability minimizes machine downtime and maintenance requirements, contributing to overall operational efficiency.

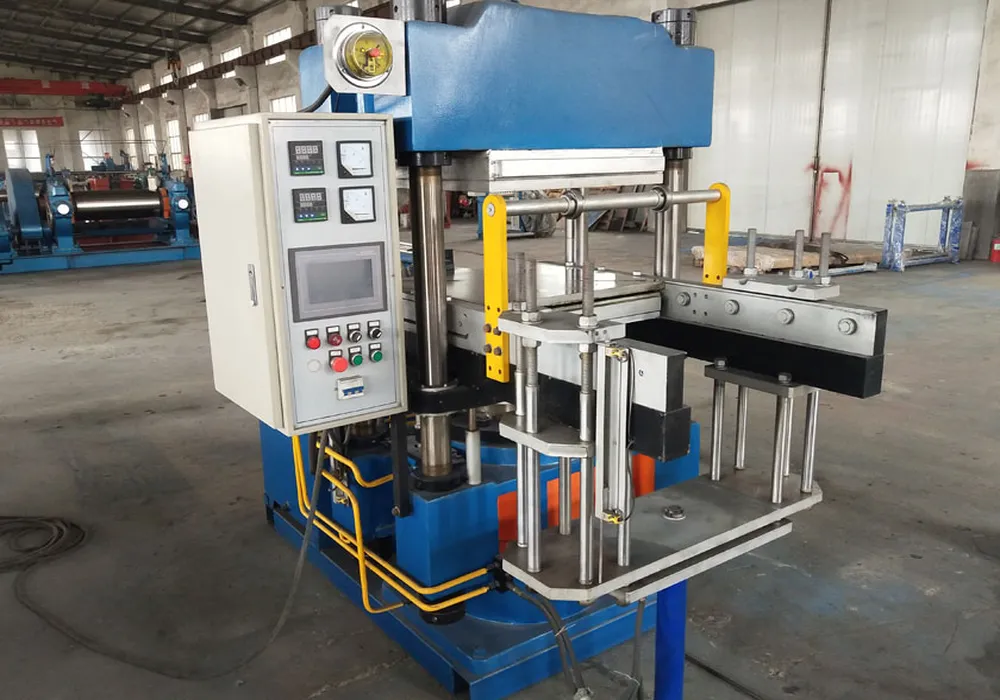

Applications of the Tipping Cylinder for Vulcanizing Machine:

The tipping cylinder for a vulcanizing machine has diverse applications across various industries where rubber processing and manufacturing are involved. Here are some common applications:(1) Tire Manufacturing: The tire industry extensively utilizes vulcanizing machines with tipping cylinders. These cylinders apply pressure and heat to cure rubber compounds, resulting in the production of high-quality tires with enhanced durability, tread patterns, and grip.(2) Conveyor Belt Production: Conveyor belts used in industries such as mining, agriculture, and logistics undergo vulcanization to enhance their strength and longevity. Tipping cylinders ensure uniform pressure distribution during the vulcanization process, resulting in reliable and durable conveyor belts.(3) Rubber Gasket and Sealing Production: Tipping cylinders play a crucial role in the vulcanization of rubber gaskets and seals used in various industries. The precise pressure control provided by the cylinders ensures proper bonding and sealing properties, making them suitable for applications such as automotive, plumbing, and industrial equipment.(4) Rubber Mat Manufacturing: Rubber mats used for flooring, industrial applications, and safety purposes often undergo vulcanization. Tipping cylinders facilitate the curing process, allowing for the production of durable and resilient mats with consistent quality.(5) Automotive Parts: Various rubber components in automotive manufacturing, such as engine mounts, bushings, and seals, require vulcanization. Tipping cylinders are instrumental in ensuring the proper curing of these components, resulting in enhanced performance, longevity, and resistance to environmental factors.(6) Rubber Hose Production: Rubber hoses used in industries like automotive, aerospace, and construction undergo vulcanization to achieve the required strength and flexibility. Tipping cylinders aid in the curing process, ensuring uniform pressure and heat distribution, leading to reliable and durable hoses.

Hydraulic Cylinder for Vulcanizing Machine Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
