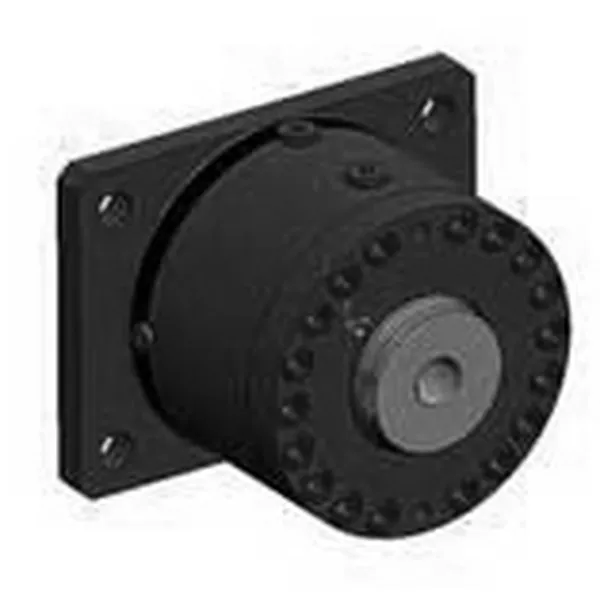

Pressurized Hydraulic Cylinder for Vulcanizing Machine

Pressurized Hydraulic Cylinder for Vulcanizing Machine

A pressurized hydraulic cylinder is a vital component of a vulcanizing machine. Vulcanizing machines are used in various industries, such as rubber and tire manufacturing, for the process of vulcanization. Vulcanization involves subjecting rubber or other materials to heat and pressure to enhance their properties and make them more durable. The hydraulic cylinder in a vulcanizing machine is responsible for generating the necessary force and pressure required during the vulcanization process. It consists of a cylindrical barrel, a piston, and a hydraulic system.

Pressurized Hydraulic Cylinder for Vulcanizing Machine Specifications:

Product Name	Pressurized Hydraulic Cylinder
Features:	Used for clamping pressure after the upper and lower molds, so the cylinder needs to be resistant to high pressure and be able to hold pressure for a long time.
Specification:	Bore diameter: 90mm～220mmRod diameter: 50mm～140mmStroke: ≤600mm
Thrust force:	Max 760KN(Cylinder diameter 220mm/pressure 10MPa)
Pressurized Cylinder Applications:	Vulcanizing Machine

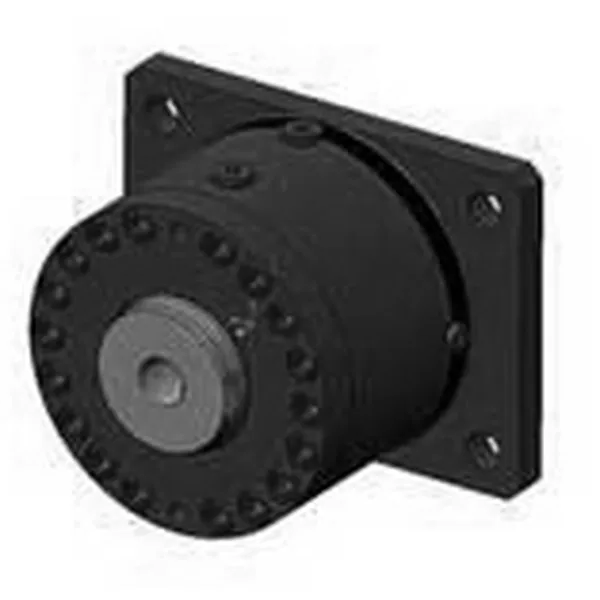

Features of Pressurized Cylinder for Vulcanizing Machine:

1. compact structure design, high strength materials, and, special heat treatment, welding technology to ensure that the cylinder has a very high fatigue endurance life under high pressure and heavy load.2. The low friction sealing system is designed with special material to meet the customer's requirements of low starting pressure, low oil film, and fast response.3. Wide range of temperature resistance (-25℃～+120℃) and can provide customized service for higher or lower temperature cylinders.4. Reasonable oil drain hole design can effectively solve the problem of heavy oil film caused by high frequency and high speed and prevent the sealing system from producing "trapped pressure"; at the same time, the accumulated oil can be returned to the tank through the hose, with high anti-pollution ability.5. The surface of the piston rod is treated specially to ensure excellent wear and corrosion resistance.6. Working pressure, size, installation, and so on can be customized according to the customer's needs.

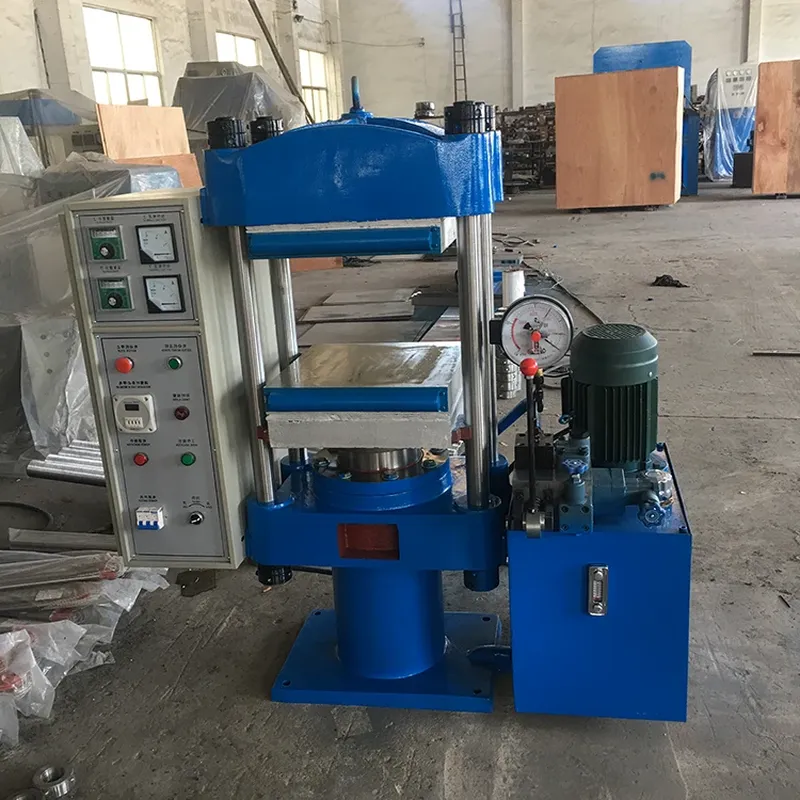

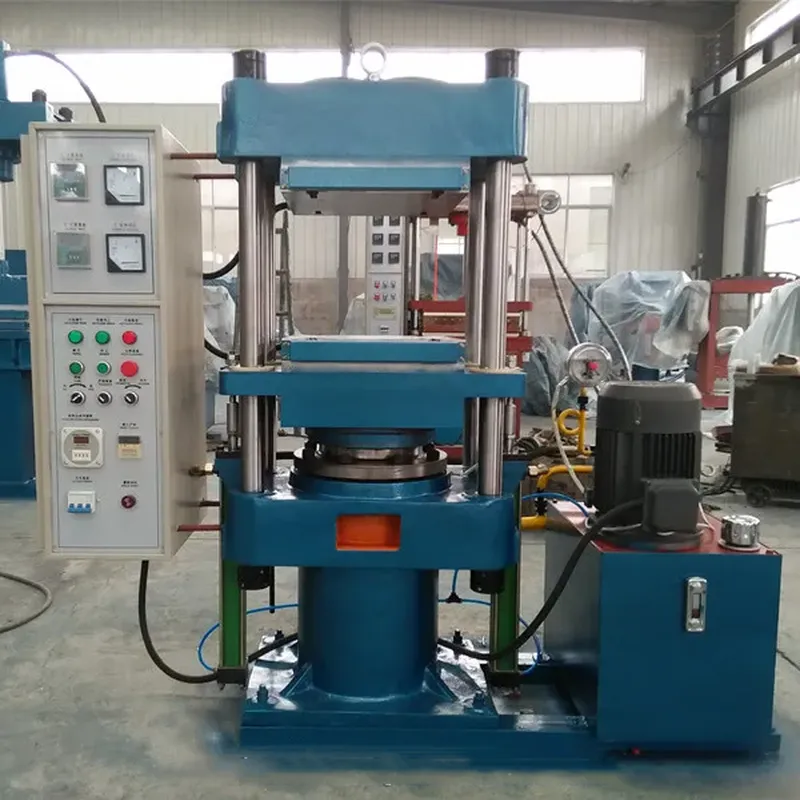

Working Principle of Pressurized Hydraulic Cylinder for Vulcanizing Machine

The working principle of a pressurized hydraulic cylinder used in a vulcanizing machine, which is often utilized in the rubber and tire manufacturing industries for molding and setting rubber materials, involves several key components and stages. Hydraulic cylinders are crucial in applying the necessary pressure and heat to vulcanize rubber, transforming its properties to make it more durable, elastic, and resistant to heat and chemicals. Here’s an overview of how these cylinders work within a vulcanizing machine:Basic Components

• Cylinder Barrel: Houses the cylinder's internal components and contains the hydraulic fluid.
• Piston: Moves back and forth within the cylinder barrel under hydraulic pressure.
• Piston Rod: Connected to the piston and extends/retracts from the cylinder to apply force.
• Seals: Prevent leakage of hydraulic fluid and maintain pressure within the system.
• Hydraulic Fluid: Transfers pressure through the system.

Working Principle：

• Pressure Generation: The process begins with the hydraulic system generating pressure by pumping hydraulic fluid into the cylinder barrel. This fluid is typically oil, chosen for its lubricating properties and incompressibility.
• Piston Movement: As the hydraulic fluid enters the cylinder, it pushes against the piston, causing it to move. This movement can be either outward (extension) or inward (retraction), depending on which side of the piston the fluid is directed to.
• Force Application: The movement of the piston rod, driven by the piston, applies force to the vulcanizing machine's press. In vulcanizing machines, this force is used to close and pressurize the mold containing the rubber material.
• Heat Application: Simultaneously, the vulcanizing machine applies heat to the rubber material. The combination of pressure from the hydraulic cylinder and heat from the machine causes the rubber to vulcanize. This process changes the molecular structure of the rubber, making it more durable and elastic.
• Controlled Operation: The amount of pressure applied by the hydraulic cylinder can be precisely controlled by adjusting the flow of hydraulic fluid. This allows for the accurate control of the molding process, ensuring consistent quality of the vulcanized rubber products.
• Retraction and Opening: Once the vulcanization process is complete, the hydraulic fluid's flow is reversed, causing the piston to retract and the mold to open. The finished product can then be removed, and the machine is ready for another cycle.

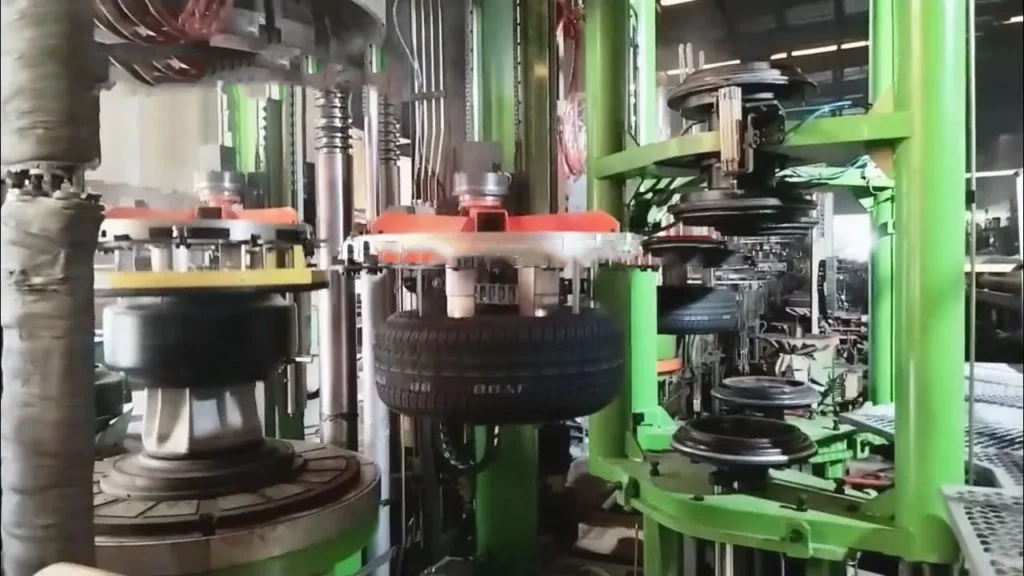

Applications of Pressurized Hydraulic Cylinder for Vulcanizing Machine

Pressurized hydraulic cylinders in vulcanizing machines play a critical role across various industries, particularly in the manufacturing and processing of rubber products. Their ability to apply precise, controlled pressure and force makes them indispensable in several applications. Here’s an overview of their key applications:1. Tire Manufacturing: Hydraulic cylinders are used in tire presses to vulcanize rubber, forming the tire's final shape and adding essential properties such as elasticity and resistance to wear. This process is crucial for producing tires for vehicles ranging from bicycles to airplanes.2. Rubber Goods Production: In the production of a wide range of rubber goods, including seals, gaskets, hoses, and belts, hydraulic cylinders provide the necessary pressure to mold rubber into specific shapes and sizes while ensuring the material undergoes proper vulcanization.3. Automotive Parts: Many components in the automotive industry, such as engine mounts, bushings, and shock absorber seals, are made from vulcanized rubber. Hydraulic cylinders in vulcanizing machines are essential for manufacturing these parts, ensuring they meet stringent quality and durability standards.4. Aerospace and Defense: Vulcanizing machines equipped with hydraulic cylinders are used to produce high-quality rubber parts that can withstand extreme conditions, such as high temperatures and pressures, for aerospace and defense applications.5. Construction and Infrastructure: Vulcanized rubber products manufactured with the help of hydraulic cylinders, such as expansion joints and waterproofing membranes, are critical in construction projects for their sealing and insulating properties.6. Medical Equipment: The medical industry benefits from vulcanized rubber for manufacturing various products, including tubing, gloves, and seals for medical devices. Hydraulic cylinders ensure these products are durable, flexible, and meet health standards.

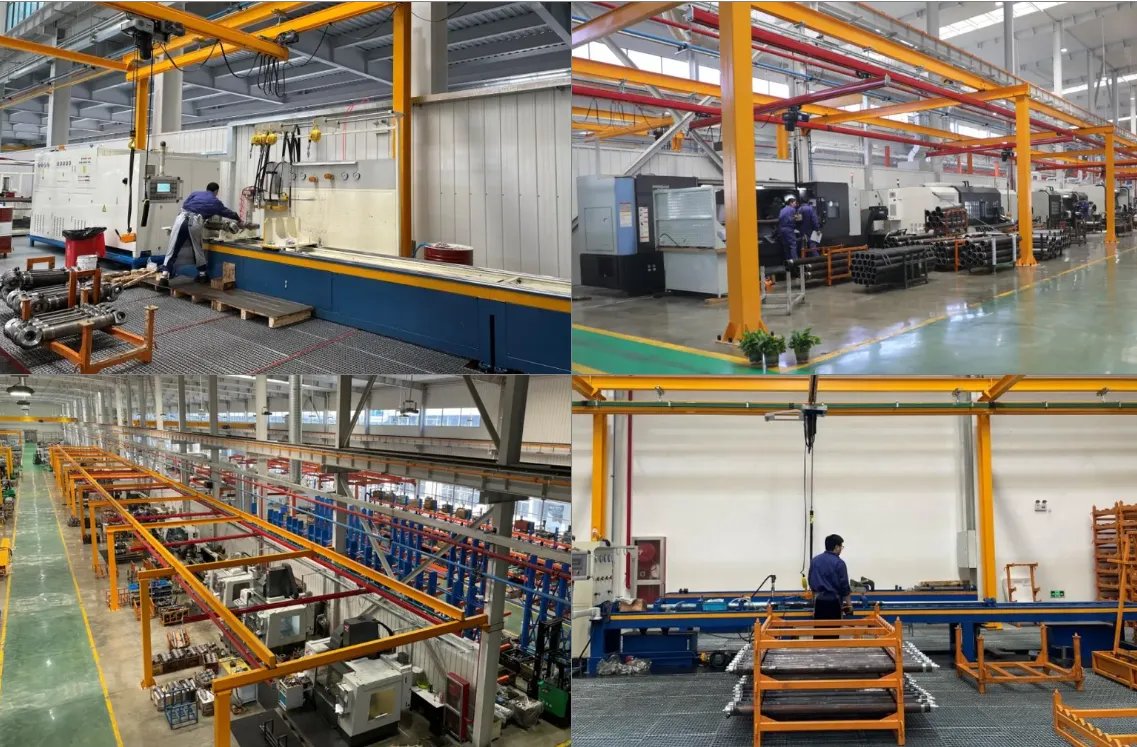

Hydraulic Cylinder for Vulcanizing Machine Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the hydraulic cylinder market segment for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinders are non-standard products, and all products are independently developed by ourselves.
